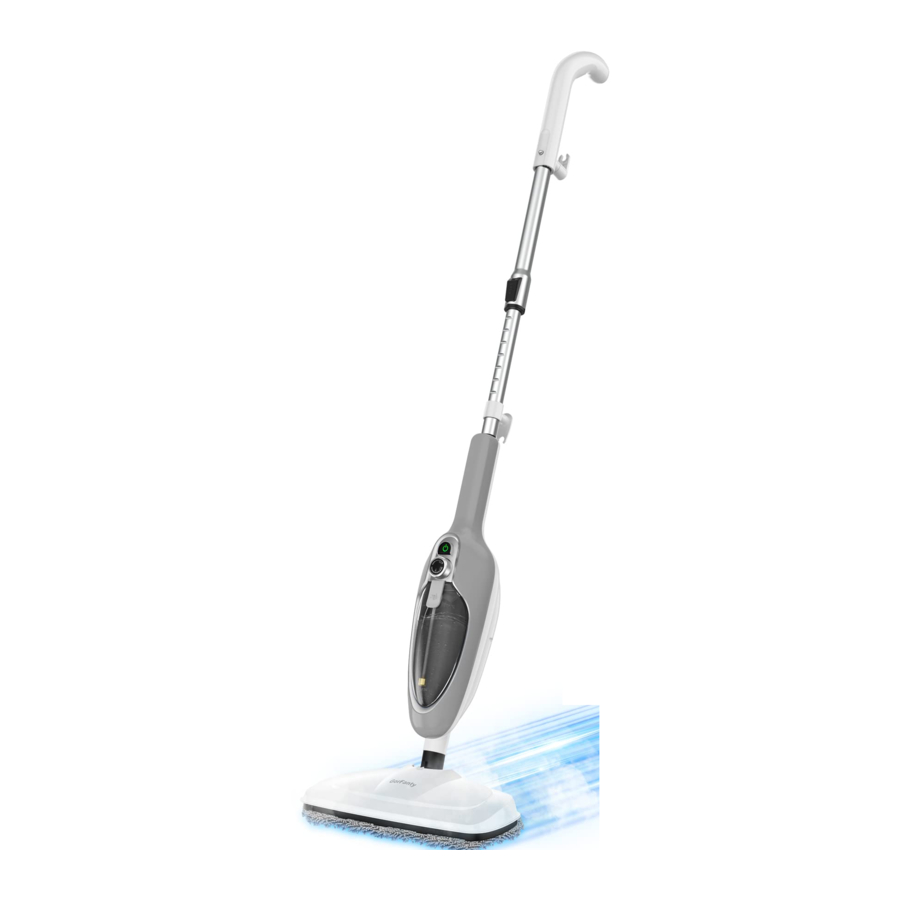

GorFanty GF-6610, GF-6610B, GF-6698 Manual

PRODUCT DIAGRAM

1. Handle
2. Cord Wrap Hook
3. Metal Tube
4. Power Switch
5. Steam Adjustment Knob
6. Water Tank Cap
7. Water Tank
8. Main Body
9. Mop Head
10. Mop Pad
11. Carpet Glider
12. Measuring Cup
13. Ironing Brush
14. Window Cleaning Tool
15. Adaptor
16. Round Brush
17. Flat Brush
18. Angle Nozzle
19. Large Round Brush
20. Scraping Tool
21. Small Cloth
22. Self Stand Buckle

ASSEMBLING THE STEAM MOP

1. Before assembling the steam mop, please make sure the power switch is in the "OFF" position
2. Connect the part as shown below:
3. Fit the mop pad over the mop head as shown below:

   Use on the Floor (MUST REMOVE the carpet glider)	Use on the Carpet (Install the carpet glider )

4. Switch the self-stand mode to flexible mopping mode
   Holding the mop head and pull the main body back, so that the locking buckle will be detached, and the mop head will be flexible rotating to mop.

   Self-standing Mode (Buckle Locking)	Flexible Mopping Mode(Buckle Unlocked)

ASSEMBLING THE HANDHELD STEAM CLEANER

1. Before assembling the steam mop, please make sure the power switch is in the "OFF" position
2. Remove the handle from the main body
3. Choose the appropriate accessory as shown in the Accessories List. Connect the accessory with the adaptor by inserting the tip of adaptor into the opening of the accessory and turning the adaptor clockwise to lock into place.
4. Align the Release Button on the accessory adaptor with the opening on the main body and insert the adaptor into the opening on the main body.

NOTE:

• To remove accessory adaptor from the main body, press Release Button on the accessory adaptor.
• When using the window cleaning tool, ironing brush is used to link the adaptor with it.

ACCESSORIES KIT

USING THE STEAM MOP/CLEANER

The easy, environmentally friendly way to clean your floors

• NO CHEMICALS
  Thoroughly cleans and sanitizes floor surfaces without any chemicals.
• NO ELBOW GREASE
  Easily removes dirt and grime from hard floors or carpets, leaving them hygienically clean without the need for hard physical labour.
• TAP WATER ONLY
  Designed for use with plain tap water that is converted into steam.[Distilled or purified water is recommended for use in hard water areas.]
• REUSABLE CLOTH
  Comes with two reusable, highly absorbent microfibre cloths that can be machine-washed in hot water and tumble dried.
• USE ON MOST HARD FLOOR
  Designed for use on hard surfaces that can withstand high heat, including ceramic tiles, marble, stone or linoleum floors and on sealed hardwood or parquetry floor [see "CAUTION!" note below].
• USE ON CARPET AND RUGS
  Designed for use with the supplied carpet glider on carpet and rugs that can withstand high heat.

• Do not use the steam mop on unsealed wood floors.
• Do not let the steam mop stand on any wood floor for an extended period of time. This can cause the wood grain to expand. Test on an isolated area of the surface before proceeding.
• Take extra care when using the steam mop on surfaces that have been treated with wax, as the heat and steam may remove the wax or sheen.
• Take extra care when using the steam mop on vinyl, linoleum or any other heat-sensitive floor, as too much heat can melt the glue on the floor. We recommend cleaning a small sample in an inconspicuous area of the floor first and checking the manufacturer's use and care instructions for the surface to ensure its suitability for steam cleaning.

NOTES:
Before you start steam cleaning your floor, make sure:

• The surfaces that you want to steam clean have been swept or vacuumed.
• The steam mop is fully assembled.
• The microfibre cloth sits tightly around the steam head.[Do not use the mop without the microfibre cloth! ]
• The water tank is filled.[Do not add cleaning solutions, only use tap water, or distilled/purified water.]

Start using the steam mop/cleaner:

1. Plug into electrical outlet suitable for the appliance, ensure the AC outlet and the product rating label voltage are compatible.
2. Turn on the power switch power indicator light; the unit starts heating up. It takes approximately 20-30 seconds for the unit to heat up and the steam to be ready.
3. Push the unit forward and backward along the floor.
4. When the water level in the water tank is low, the power switch must be turned off immediately. Unplug the unit from the electrical outlet and refill the water tank by following the instructions.
5. If you use the steam mop for a long time, the cloth sleeve may become very wet or dirty G will need to be replaced. Turn off the unit &allow it to cool before replacing. While replacing the cloth sleeve, don't touch the steam head to avoid scalding.
6. To sanitize a specific area of your floor, position the steam mop over the area for a minimum of 8 seconds, but no longer than 15 seconds. The steam temperature will reach approximately 194℉-230℉ (90°C-110°C).This is particular useful for cleaning the bathroom, shower. pet sleeping area or around garbage bins.

CLEANING AND STORAGE

• Always switch off the appliance, disconnect the appliance from the power source, and let it cool thoroughly before cleaning.
• Wipe the exterior of the appliance with damp cloth.
• The accessories can be washed in water with mild detergent.
• Never immerse the appliance in water or any other liquids.
• Never use abrasive cleansers, scouring pads, metal brushes, as they may damage the surface.
• Ensure the appliance is completely cool and dry before storage.
• Do not wrap the cord around the appliance, as this will damage the cord.
• Keep the appliance in a cool, dry place.

TECHNICAL SPECIFICATIONS

TROUBLE SHOOTING GUIDE

Problem	Reason	Solution
Can Not Turn On	Doesn't plugged in /Poor connection	Unplug and then plug it again. Plug the product beside the socket
	Power switch not turn on	Press the power button to ON status
	Product Damage	Stop Using & Contact customer service (service@gorfanty.net)
Can Not Turn Off	Switch isn't turn off	Switch off the machine
	Product Damage	Stop Using & Contact customer service (service@gorfanty.net)
Reduced steam / No Steam	Power switch not turn on	Press the power button to ON status
	Out of water	Turn off the cleaner and refill the water tank.
	Low steam setting	Adjust the steam level to a higher setting
	Gravity ball straw does not touch the water	Shake the main body & move the gravity ball into water.
	Plug was pulled out /Poor Connection	Unplug and then plug it again.
	Steam generation need 20sec	Please wait as least 20sec for the water to heat up & the power light to turn green
	Have used chemical cleaner or water with high hardness.	Stop Using & Contact customer service (service@gorfanty.net)
Can Not be detached	Didn't press the release buttons	Press the release buttons & pull out the accessory at the same time.
Stop working	Short Out Protection Running with NO water	Turn off the cleaner and refill the water tank.
	Plug was pulled out /Poor Connection	Unplug and then plug it again.
	Product Damage	Stop Using & Contact customer service (service@gorfanty.net)
Can Not clean the floor as well	Carpet glider did not remove & the mop pad did not reach the floor.	Remove the carpet glider for hard floor mopping.
Hard to swivel the mop head	Did not unlock the self stand buckle of the mop head	Unlock the self stand buckle.
Water leaking	Loosen tank cap	Turn off the cleaner and turn the tank cap tightly.
	The mop head did not connect with the machine body properly.	Please remove the mop head and install it back correctly.
	Product Damage	Stop Using & Contact customer service (service@gorfanty.net)
Hard to use on the carpet	Carpet glider not buckled	Make sure the carpet glider has been buckled on the floor head.
There is a puddle of water / The mop pad is not picking up dirt	The mop pad is saturated and needs changing.	Change another mop pad or wash the mop pad.
The metal button of pole did not pop up	Metal button to attach pole parts is stuck inside pole.	Please press it out with a small stick, press it several times until it pops up flexibly

FREQUENTLY QUESTION & ANSWER

GENERAL SAFETY INSTRUCTIONS

Read this manual thoroughly before first use, even if you are familiar with this type of product.

To reduce the risk of fire, injury or electrical shock along with extending the life of your appliance, please read and follow all of the information in this manual before using and save it for future reference.
Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

1. Before turning on the steam mop, ensure your electrical voltage and circuit frequency correspond to those indicated on the appliance rating label.
2. To provide continued protection against the risk of electric shock, connect the appliance to a properly grounded electrical outlet only. Never force the plug into an outlet.
3. Do not use an extension cord or electrical outlet with inadequate currentcarrying capacity.
4. To reduce the risk of electrocution, never operate this product with wet hands or without shoes. Never immerse it under water or spill liquids into the product.
5. Protect the power cord. Do not kink or damage the power cord. Do not pull or carry the steam mop by the cord. Do not use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
6. If the supply cord or plug is damaged, do not use the appliance. A damaged cord or plug must be replaced by the manufacturer, its service agent or appropriately qualified personnel in order to avoid a hazard.
7. Do not leave the appliance unattended while connected to the power supply.
8. Turn off the switch and unplug the electrical cord when not in use and before servicing.
   To unplug, grasp the plug, not the cord.
9. This steam mop is intended for household use only. Do not use it for anything other than its intended purpose, and only use it as described in this manual.
10. Only use the steam mop with the accessories supplied with the product.
11. Improper assembly or use may result in the risk of fire, electric shock and/or injury to persons.
12. We assume no liability for any eventual damages due to improper use or incorrect handling.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. Supervise young children to ensure they do not play with the appliance.
    Do not allow the steam mop to be used as a toy.
15. Close attention is necessary when this appliance is used near children, pets or plants.
16. Do not use the steam mop outdoors.

SAFE OPERATION

Always follow basic safety precautions when using any electrical products, especially when children are present.

DANGER OF SCALDING!

Beware of steam when operating the unit. The steam is hot and may cause severe burns if it comes in contact with bare skin.
Never run the steam mop without water. Never direct steam at any person or animal.
FOR HOUSEHOLD USE ONLY SAVE INSTRUCTIONS FOR FUTURE REFERENCE

1. Ensure that all the parts are correctly assembled before operation.
2. Do not use the steam mop without the floor cloth in place.
3. Do not use it without water in the water tank.
4. Place the appliance on a flat surface when operating to avoid overturning.
5. Do not insert any objects into openings. Do not use with any opening blocked.
6. Never block the steam openings or place the product on a soft surface, where the steam openings may be blocked. Keep the steam openings free of lint, hair
7. Using detergents in the water tank is unsafe and will damage the unit.
8. Never direct steam towards people, animals or plants, or equipment containing electrical components.

9. Use extra caution when using the steam mop on stairs.
10. Keep your work area well lit.
11. Store your steam mop indoors in a cool, dry area out of children's reach.
12. The unit has no user-serviceable parts contained within. Do not attempt to repair, disassemble or modify the appliance.
