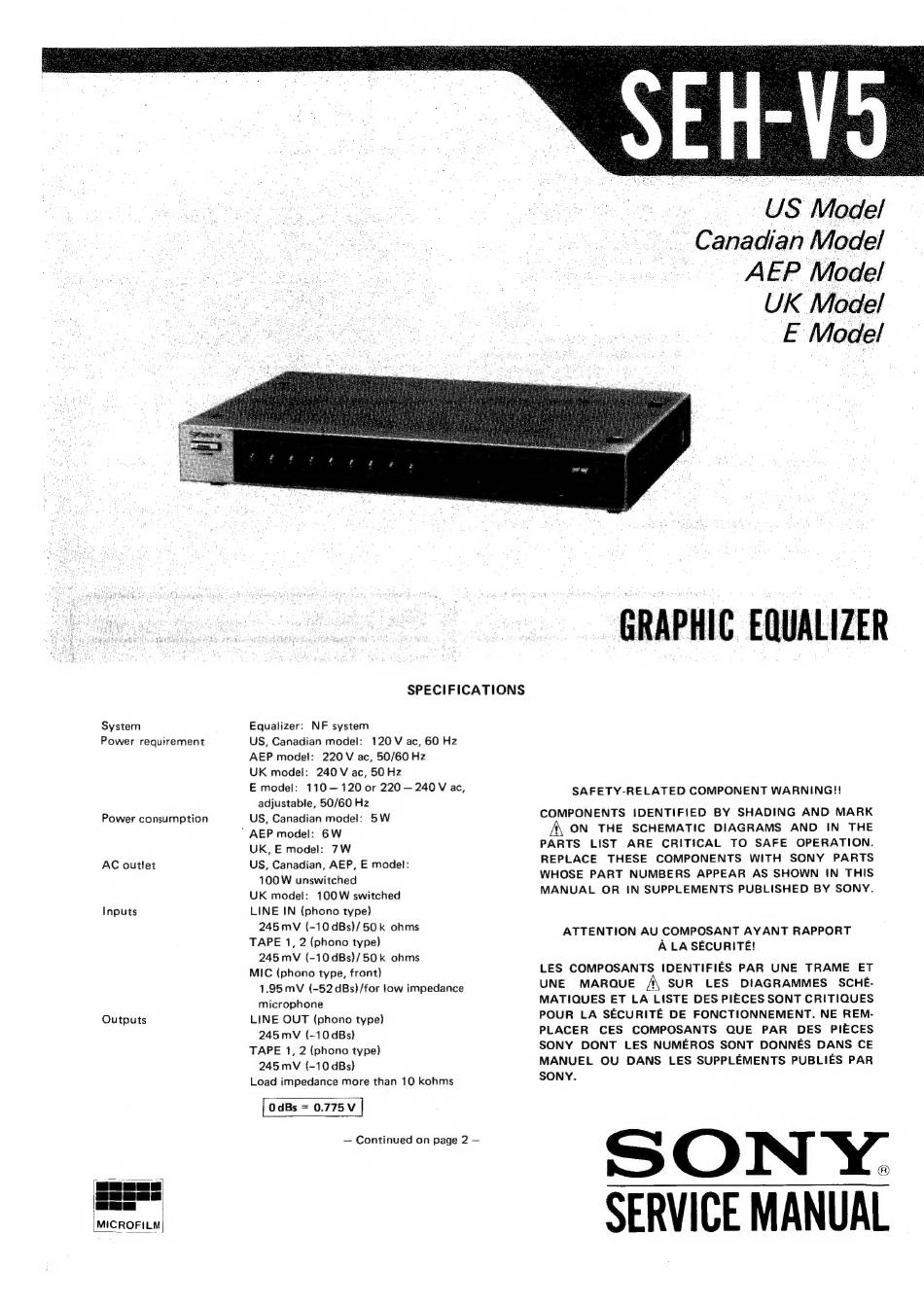

Sony SEH-V5 Service Manual

System
Power requirement
Power consumption
AC outlet
Inputs
Outputs
MICROFILM
SPECIFICATIONS
Equalizer: NF system
US, Canadian model: 120 V ac, 60 Hz
AEP mode}: 220 V ac, 50/60 Hz
UK model: 240 V ac, 50 Hz
E model: 110—120 or 220 — 240 V ac,
adjustable, 50/60 Hz
US, Canadian model: 5W
" AEP model: 6W
UK, E model: 7W
US, Canadian, AEP, E model:
100W unswitched
UK model: 100W switched
LINE IN (phono type)
245 mV (-10dBs)/50k ohms
TAPE 1, 2 (phono type)
245 mV (-10dBs)/50k ohms
MIC (phono type, front)
1.95 mV (-52dBs)/for low impedance
microphone
LINE OUT (phono type)
245 mV (-10.dBs)
TAPE 1, 2 (phono type)
245 mV (-10dBs)
Load impedance more than 10 kohms
OdBs = 0.775V
~— Continued on page 2 —
US Model
'Canadian Model
AEP Model
UK Model
E Model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE /\ SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
®
SERVICE MANUAL
