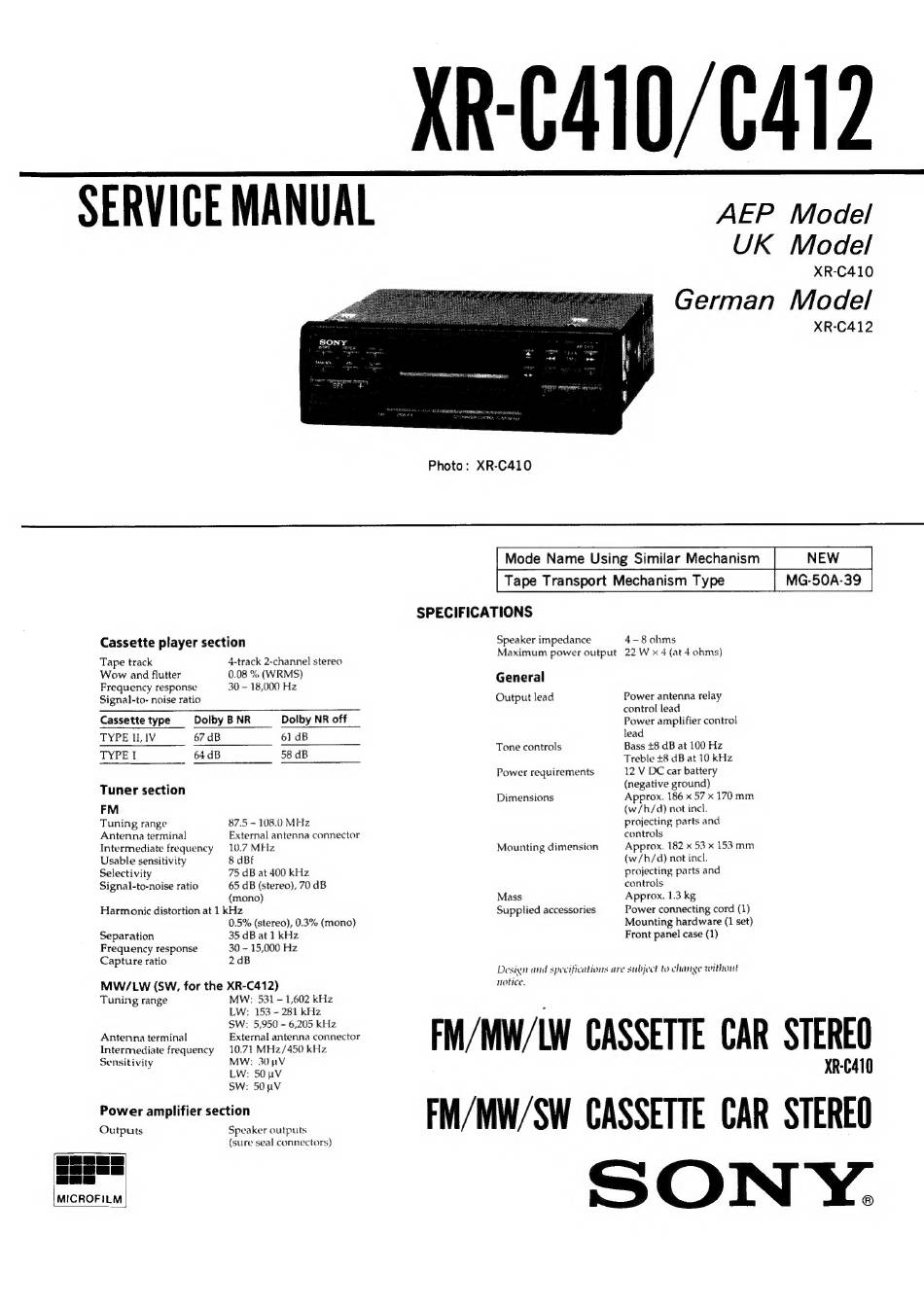

Sony XR-C410 Service Manual

SERVICE MANUAL
Cassette player section
4-track 2-channel stereo
0.08 % (WRMS)
Tape track
Wow and flutter
Frequency response 30 - 18,000 Hz
Signal-to- noise ratio
Cassette type Dolby B NR Dolby NR off
TYPE II, 1V 67 dB 61 dB
TYPE I 64 dB 58 dB
Tuner section
FM
Tuning range
Antenna terminal
87.5 - 108.0 MHz
External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 8 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 65 dB (stereo), 70 dB
(mono)
Harmonic distortion at 1 kHz
0.5% (stereo), 0.3% (mono)
Separation 35 dB at 1 kHz
Frequency response 30 - 15,000 Hz
Capture ratio 2 dB
MW/LW (SW, for the XR-C412)
Tuning range MW: 531 - 1,602 kHz
LW: 153 - 281 kHz
SW: 5,950 - 6,205 kHz
External antenna connector
10.71 MHz/450 kHz
MW: 301V
LW: 50 uv
SW: 50 uV
Antenna terminal
Intermediate frequency
Sensitivity
Power amplifier section
Outputs Speaker outputs
(sure seal connectors)
Pit | ty
| | | py
Be
MICROFILM
XR-6410/C412
Photo: XR-C410
AEP Model
UK Model
XR-C410
German Model
XR-C412
Mode Name Using Similar Mechanism NEW
SPECIFICATIONS
Speaker impedance
Tape Transport Mechanism Type
MG-50A-39
4-8 ohms
Maximum power output 22 W x 4 (at 4 ohms)
General
Output lead
Tone controls
Power requirements
Dimensions
Mounting dimension
Mass
Supplied accessories
Power antenna relay
control lead
Power amplifier control
lead
Bass +8 dB at 100 Hz
Treble +8 dB at 10 kHz
12 V DC car battery
(negative ground)
Approx. 186 x 57 x 170 mm
(w/h/d) not incl.
projecting parts and
controls
Approx. 182 x 53 x 153 mm
(w/h/d) not incl.
projecting parts and
controls
Approx. 1.3 kg
Power connecting cord (1)
Mounting hardware (1 set)
Front panel case (1)
Design and specifications are subject to change without
notice.
FM/MW/LW CASSETTE CAR STEREO
XR-C410
FM/MW/SW CASSETTE CAR STEREO
SONY.
