I N S T A L L A T I O N
1. Connect leads supplied to desired contacts
(i.e. com – N/C, com – N/O) on pushbutton.
2. Connect leads from contacts of pushbutton to leads
in mounting box using wire connectors supplied.
3. Take 2 tamper resistant screws and screw into
electrical gang box.
IS940/50
USA: 2517 SQUADRON COURT, SUITE 104, VIRGINIA BEACH, VA 23453 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939• E-MAIL: SALES@RUTHERFORDCONTROLS.COM

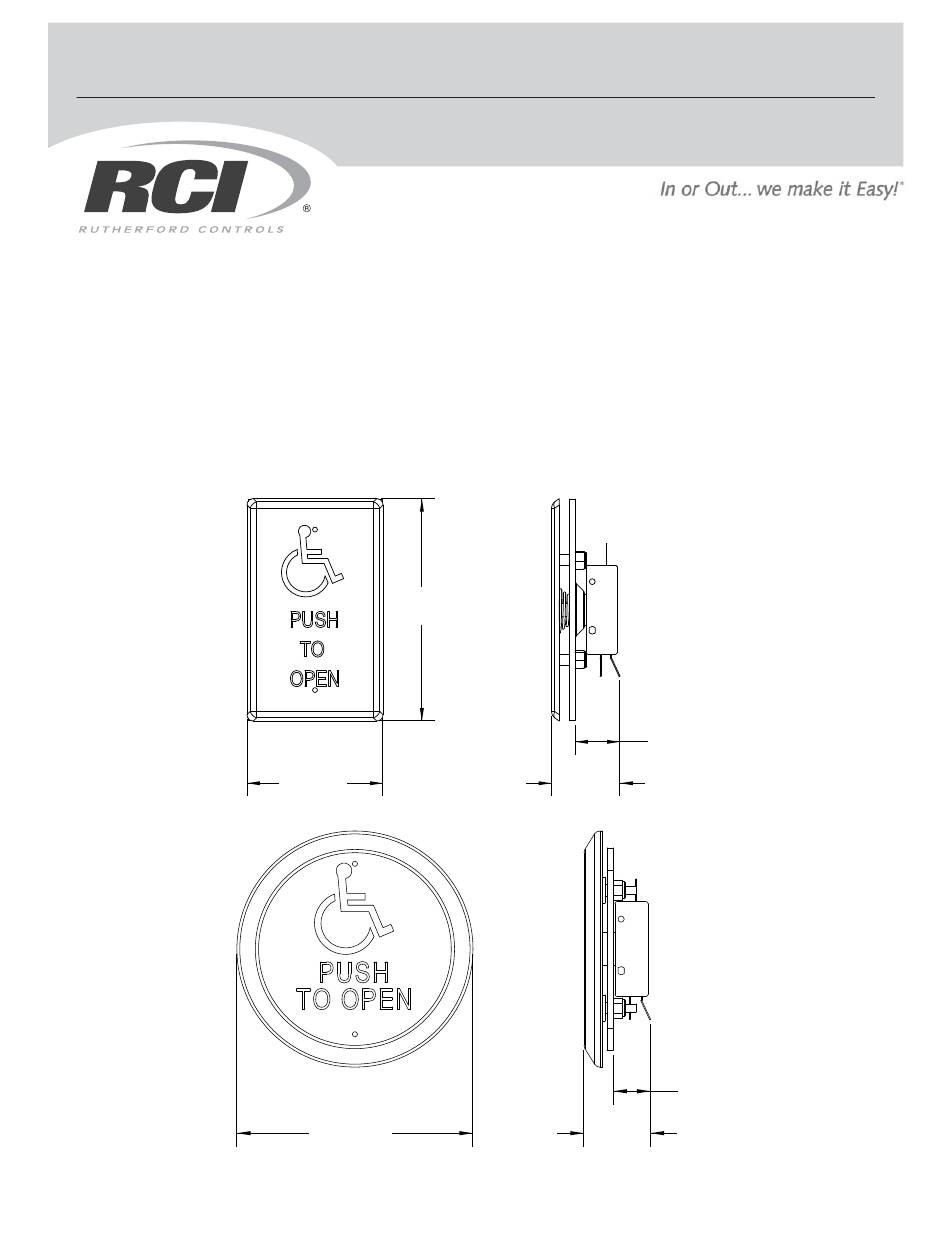

940P, 940HP, 950P4, 950HP4

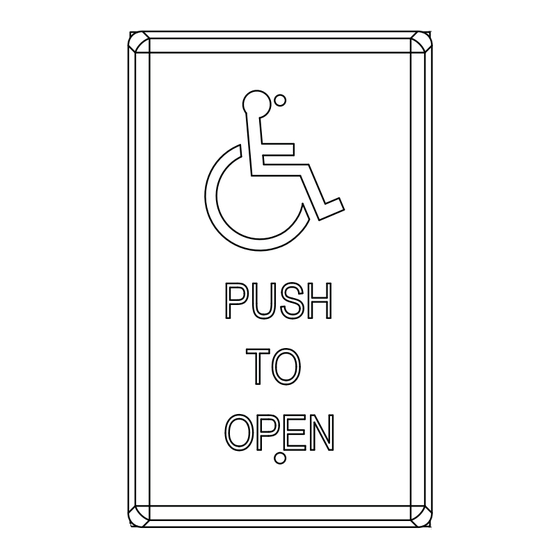

940
4-1/2"
(114.3mm)
2-3/4"
(69.9mm)
950
4-1/2"
(114.3mm)
©2012 RUTHERFORD CONTROLS INT'L CORP. WWW.RUTHERFORDCONTROLS.COM
4. Push leads back into box and slide pushbutton over
tamper resistant screw heads.
5. Tighten screws using the supplied allen key.
NOTE: Pushbutton fits in standard 3" x 2" electrical gang box.
1-1/8"
(28.2mm)
1-1/2"
(39.5mm)
1-1/2"
(39.5mm)
940/950
DOOR SWITCHES
59/64"
(23.4mm)
PCN120003
R02/12SH
