RCI 960 Series Installation

I N S T A L L A T I O N
1. Remove the components from the box and read
these instructions carefully in order to assemble
correctly.
2. Place the mortise cylinder (optional) 1-1/8" cylinder
length complete with straight or clover cam through
the 1-3/16" hole in the center of the aluminum face-
plate.
3. Mount the cylinder/switch bracket on the reverse
side of the faceplate (see below) making sure that
the teeth are positioned inside the grooves along the
cylinder, then attach the cylinder nut to fasten.

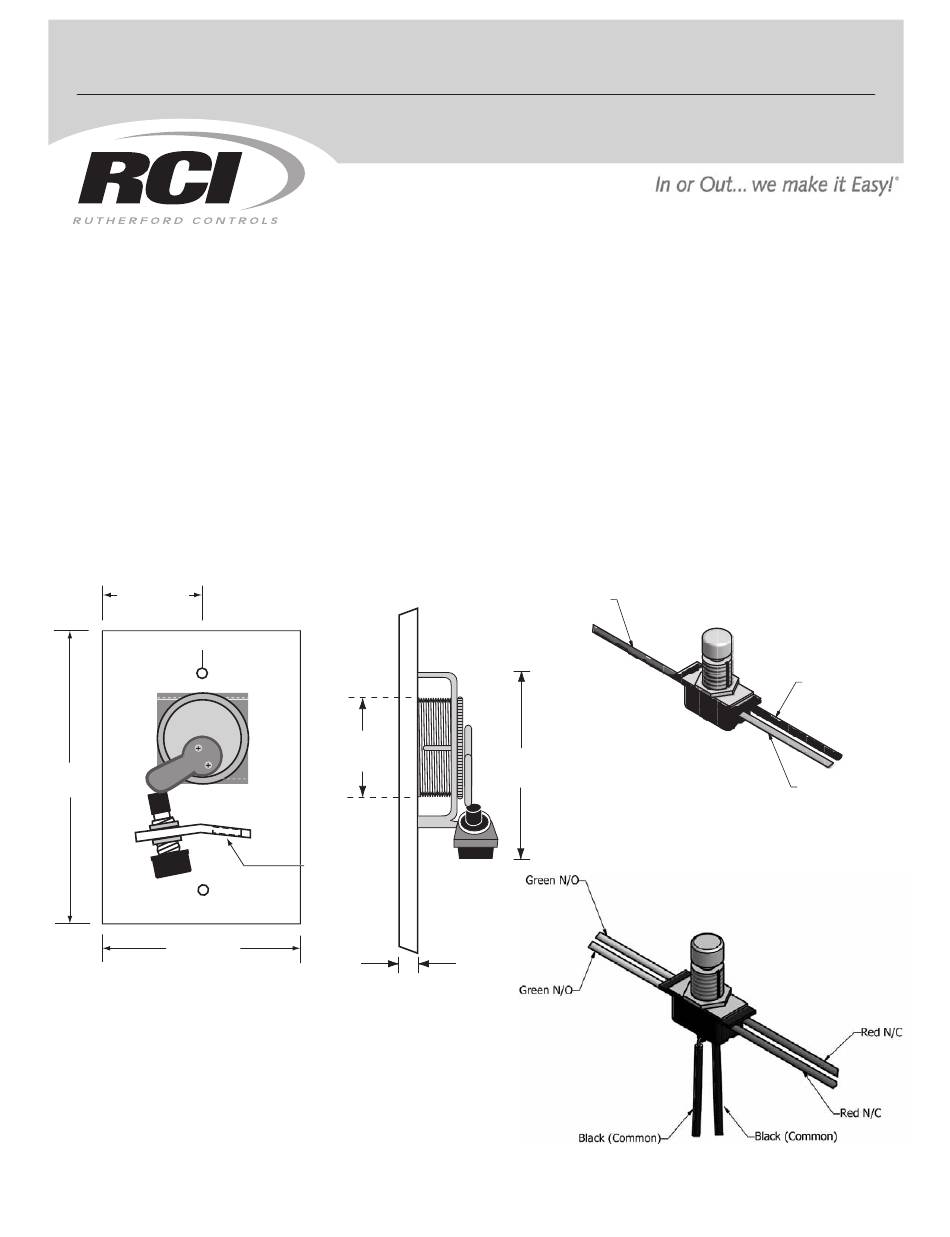

Rear Profile
1-1/2" (38mm)
27/32" (N)
(21.5mm)
C L
4-3/4"
(120.6mm)
3" (76mm)
1-11/16" (N) (43mm)
(N) = Narrow Style 960N
IS960
USA: 2517 SQUADRON COURT, SUITE 104, VIRGINIA BEACH, VA 23453 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
®
Instructions
Side Profile
1-3/16"
(30mm)
1/2" (13mm)
Switch Hole
1/4" (6.3mm)
©2011 RUTHERFORD CONTROLS INT'L CORP. WWW.RUTHERFORDCONTROLS.COM
TAMPER-RESISTANT KEYSWITCH
4. Insert the switch(es) into the 1/2" holes located on
the bracket below the cylinder. For ideal installation
thread the top nut an 1/8" down and tighten bottom
nut using a 9/16" wrench.
5. Make wire connections as required (see wire
connection figure below).
6. Fasten faceplate assembly to electrical box with the
tamperproof 6-32 machine screws supplied with the
spanner hand tool (also supplied).
Wire Connection
Red N/C
2-3/4"
(70mm)
Optional (DPDT Switch)
960
Black (Common)
(SPDT)
Red N/O (Maintained)
Green N/O (Momentary)
PCN110045
R07/11SH
