Cobra POWER 500W, CPI500W Manual

POWER INVERTER

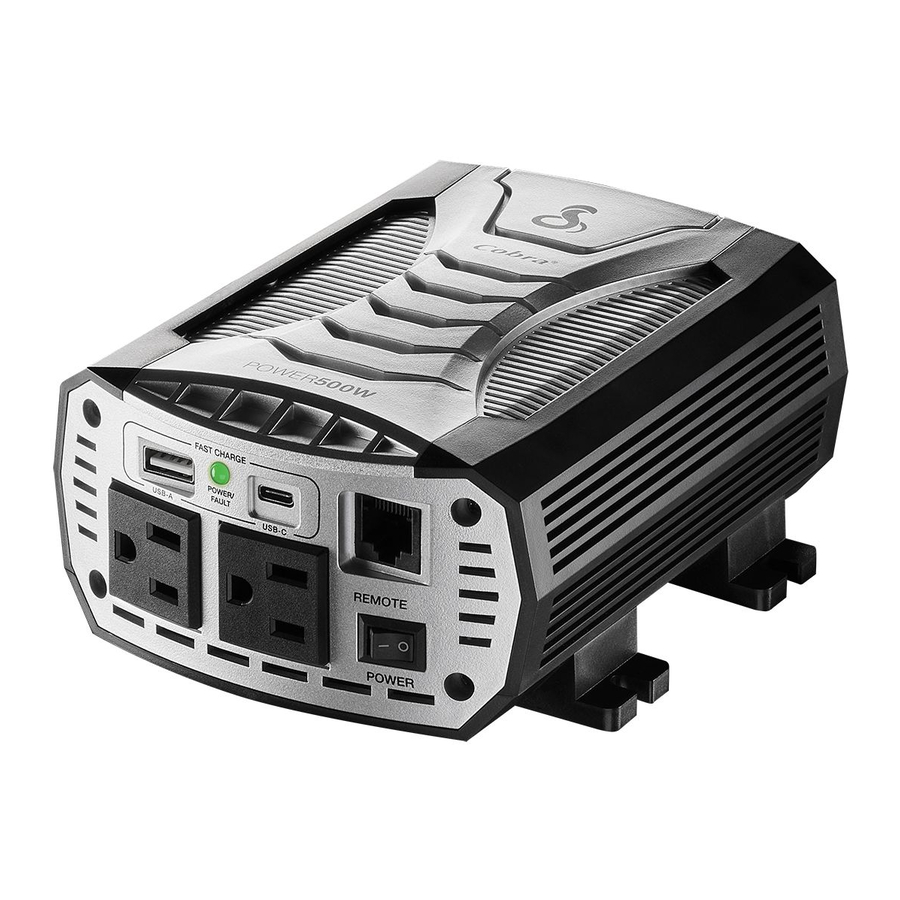

Features

The POWER 500W is ideal for travelers, campers, RV enthusiasts or for when a power outage occurs.
Count on Cobra for Power Where You Need It.

*Model CPIALCDGI

1. Negative Power Input Terminal
2. Cooling Fan - regulate the temperature of the inverter, turning on when temperature exceeds the preset limit, and turning off when the temperature reduces
3. Positive Power Input Terminal
4. USB-A Fast Charge port (5V/9V/15W)
5. Power/FauIt LED Indicator
6. USB C Fast Charge port (5V/9V/15W)
7. Port for Cobra Remote On/Off Controll er with Fast Charge USB (Sold Separately)*
8. (2) GFCI Protected AC Outlets
9. Power Switch
10. Power Cables
11. 12 Volt Accessory Cable (for vehicle accessory port)
12. Cobra Remote On/Off Controller with Fast Charge USB (Sold Separately)*

Connecting Directly To A Vehicle Battery

1. Mount the inverter inside the vehicle in a well ventilated location close to the battery
2. Disconnect the NEGATIVE (-) or black battery terminal of the vehicle
3. Route cables close to the battery
4. nstall the insulated terminal boots on the inverter end of the power cables (RED = positive, BLACK = negative)
5. Connect the BLACK Cable to the Negative (-) terminal on the Inverter
6. Connect the RED Cable to the Positive (+) terminal on the
7. Connect the other end of the RED cable to the (+) terminal on the vehicle battery
8. Visual y inspect and make sure the red wire or its connectors are not touching any metal parts of the vehicle or the black wire connectors
9. Connect the other end of the BLACK cable to the (-) terminal on the vehicle battery.

   There is normally a spark at the point of contact at the negative terminal
10. Check all connections making sure the RED cable is connected to the POSITIVE (+) terminals and the BLACK cable is connected to the NEGATIVE (-) terminals
11. Press the POWER button to turn on your inverter

Connecting To A Vehicle Accessory Port

1. Mount your inverter in a well-ventilated area of vehicle
2. Remove the thumb cap on the inverter for each terminal
3. Connect the RED (+) 12V Accessory Cable ring terminal to the RED (+) inverter terminal
4. Screw the thumb cap back on the RED (+) inverter terminal
5. Connect the BLACK (-) 12V Accessory Cab e ring terminal to the BLACK (-) inverter terminal
6. Screw the thumb cap back on the BLACK (-) inverter terminal
7. Plug the 12V Accessory Cable into vehicle accessory port*
8. Place the power switch into the ON position by pressing the eft side of the switch to turn ON your inverter. Place the power switch into the OFF position by pressing the right side of the switch to turn OFF your inverter

*The 12V Accessory Cable can support on average up to 120 Watts. Do not overload. Please refer to your vehicle manual for the maximum load your vehicle's accessory port can handle
