BOULT Audio AirBass Manual

Know your Y1 Gaming

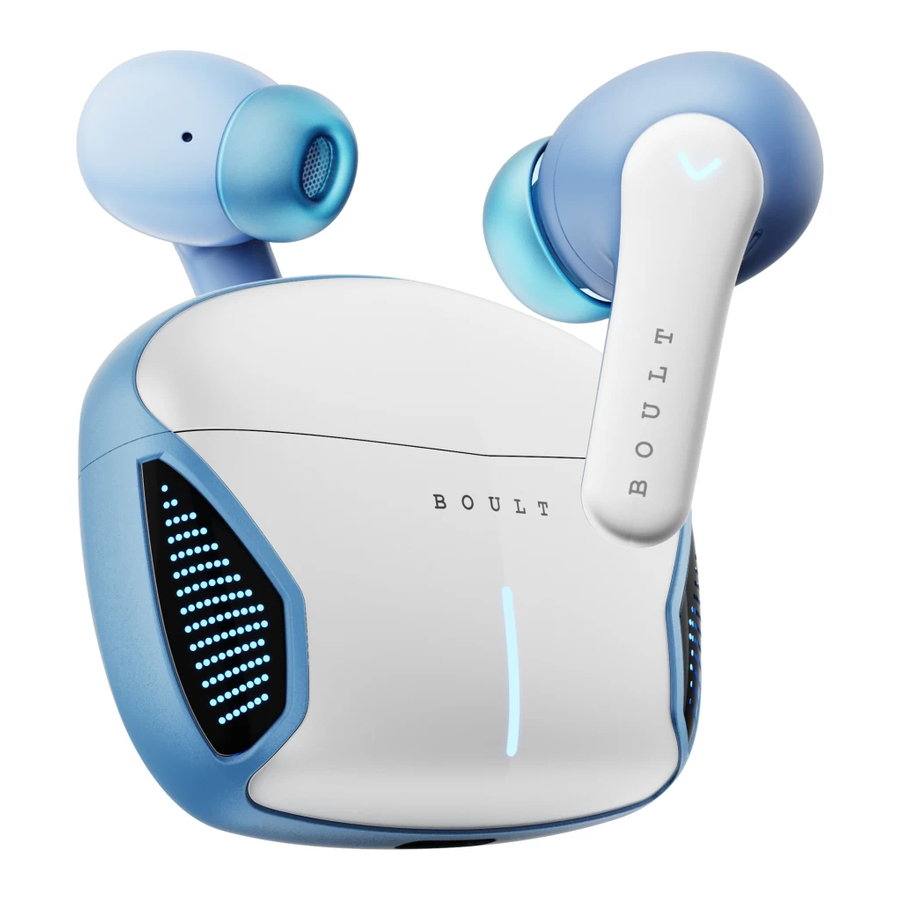

Overview

What's in the Box

Charging Case
Earbuds
Type C Charging Cable
Manual
Extra Pair of Eartips
Warranty Card

Product Specification

Product Name – TWS Bluetooth Headset
Model – Boult Audio AirBass
Bluetooth Range - ~10m/33ft (without any obstacles)
Earbuds Charging Time – 60 mins
Frequency Range - 20Hz - 20KHz
Technology - HFP/HSP/A2Dp/AVRCP
Input - DC5V = 1A

How to Download & Connect to 'Boult Amp' App

Install the 'Boult Amp' App from the Play Store or App Store

www.apple.com

play.google.com

Scan & Download 'Boult Amp' App

  • Take the earbuds out of the charging case
  • In the Boult Amp App click on "Add Device" and search for your Boult earbuds
  • Select the pairing name "Boult Audio AirBass" and complete the pairing process
  • If a pop-up doesn't appear, select "go to settings" from the App screen and select "Boult Audio Airbass" to connect your earbuds
  • Your earbuds are now connected; get the most out of your earbuds with available features on the App

How to Use Your Y1 Gaming

Touch Controls
The Touch Area (Multi-Functional Touch Panel) is located in the upper part of the earbuds handle.

Wearing Earbuds
The earbud marked with L is worn on the left ear and the earbud marked with R is worn on the right ear.

LED Functions

Charging The Case
Front LED flashes green continuously, and side LEDs breathe

When Fully Charged
Front LED stays green, and side LEDs goes OFF

Power ON/OFF

Power ON:
Auto: Open the charging case and take out the earbuds to Power ON.
Manually: Tap and hold the multifunction button (MFB) for 3 seconds.

Power OFF:
Auto:
Place both the earbuds in the charging case, close the lid.
Manually: Hold MFB for 5 seconds.

Play/Pause
Tap the MFB once

Next Track
Double Tap the right MFB

Previous Track
Double Tap the left MFB

Volume +
Triple Tap the right MFB

Volume -
Triple Tap the left MFB

Voice Assistant
Long Press the MFB for 2s

Answer the Call
Tap the MFB once

End Call/Reject
Double Tap the MFB

Game/Music Mode
Tap the MFB four times

Pairing

Open the charging case, and take out the earbuds, the earbuds LEDs will start flashing automatically until paired with a device.
Activate Bluetooth on the device, turn on Bluetooth, search for pairing name "Boult Audio Airbass" and click on it.
Single Earbud Usage (Mono Mode): Please note that both the earbuds can be used in Mono Mode.
When both the earbuds are connected, put one earbud back into the charging case; the other earbud can be used normally.

Dual Device Connectivity

  • Connect the Y1 Gaming with your first device. Once your Y1 Gaming is paired with the first device, turn off the Bluetooth of your first device.
  • Now turn on the Bluetooth of your second device and follow the same steps to connect to your Y1 Gaming Bluetooth earbuds.
  • Once Y1 Gaming is connected to your new device, turn on Bluetooth of the first device.
  • You will hear a sound again "connected" which means both your devices are now connected to the Y1 Gaming earbuds.
  • You can now enjoy music and take calls from both of your connected devices on your Y1 Gaming earbuds.

To disconnect from either of the devices, go to the Bluetooth settings of the respective device and press disconnect/forget.

Bluetooth Lost

Turn off mobile phone's Bluetooth, earbuds will enter pairing mode and can pair with other devices. If the connection range is exceeded, the earbuds will enter back into connection mode. If there's no connection within 5 minutes, the earbuds will turn off.

Reset

If your earbuds fail to pair, or only one works, reset them.

  1. Delete all "Boult Audio Airbass" Bluetooth records on the phone and turn off Bluetooth.
  2. Put earbuds in the charging case and then take out to pairing modes, tap L&R 5 times simultaneously, hear "DU" prompt voice to clear all pairing.
  3. Put earbuds back into the charging case.

Voice Prompts

  • You will hear 'power on' when the headset powers on.
  • You will hear 'power off' when the headset powers off.
  • You will hear 'connected' when the headset is paired.
  • You will hear 'low battery' when the headset is in low power status.
  • You will hear 'gaming mode' when the headset is in gaming mode.
