Sony HT-XT1 - Home Theatre System Manual

Using the Control for HDMI function

By using the Control for HDMI function, and connecting equipment that is compatible with the Control for HDMI function via a High Speed HDMI cable, operation is simplified with the features below. The Control for HDMI function is enabled by setting "CTRL (Control for HDMI)" to "ON" (see "Adjusting the settings"). The default setting is "ON."

System Power Off

When you turn off the TV, the system and the connected equipment will turn off automatically.

System Audio Control

If you turn on the system while you are watching the TV, the TV sound will be output from the speakers of the system automatically. The volume of the system will be adjusted when you adjust the volume using the TV's remote control.

If the TV sound was output from the speakers of the system the last time you watched the TV, the system will be turned on automatically when you turn on the TV again.

Audio Return Channel

If the TV is compatible with the Audio Return Channel (ARC) technology, a High Speed HDMI cable connection will also allow sending digital audio signals from the TV to the system. You do not need to make a separate audio connection for listening to TV sound from the system.
The ARC function is enabled by setting "ARC (Audio return channel)" to "ON" (see "Adjusting the settings"). The default setting is "ON."

One-Touch Play

When you activate the equipment (Blu-ray Disc player, "PlayStation 4," etc.) connected to the system with a High Speed HDMI cable, the connected TV is turned on automatically and the input signal of the system is switched to the appropriate HDMI input.

Notes

• The above features may not operate with certain equipment.
• Depending on the settings of the connected equipment, the Control for HDMI function may not work correctly. Refer to the operating instructions of the equipment.

Using BRAVIA Sync features

The original Sony functions listed below can also be used with products that are compatible with "BRAVIA" Sync.

Power save

If a "BRAVIA" Sync-compatible TV is connected to the system, the power consumption will be reduced in standby mode by stopping HDMI signal transmission when the TV is turned off with the passthrough function* of the system set to "AUTO" (see "Adjusting the settings").
The default setting is "AUTO."
If any TV other than "BRAVIA" is connected, set the item to "ON" (see "Adjusting the settings").
* The pass-through function for HDMI signals is used to output the signals from the HDMI OUT jack of this system even if it is in standby mode.

Notes on HDMI connections

• Use a High Speed HDMI cable. If you use a Standard HDMI cable, 1080p, Deep Color, 3D, and 4K images may not be displayed properly.
• Use an HDMI-authorized cable.
  Use a Sony High Speed HDMI cable with the Cable Type Logo.
• We do not recommend using an HDMI-DVI conversion cable.
• Check the setup of the connected equipment if an image is poor or the sound does not come out of the equipment connected via the HDMI cable.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected equipment.
• Sound may be interrupted when the sampling frequency or the number of channels of audio output signals from the playback equipment is switched.
• If the connected equipment is not compatible with copyrightprotection technology (HDCP), the image and/or the sound from the HDMI OUT jack of this system may be distorted or may not be output. In such a case, check the specifications of the connected equipment.
• When "TV" is selected as the input source of the system, video signals via one of the HDMI IN 1/2/3 jacks selected last time are output from the HDMI OUT jack.

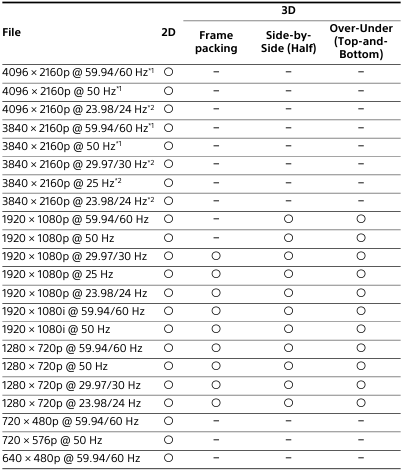

• This system supports Deep Color, "x.v. Color," 3D, and 4K transmission.
• To enjoy 3D images, connect a 3D-compatible TV and video equipment (Blu-ray Disc player, "PlayStation 4," etc.) to the system using High Speed HDMI cables, put on 3D glasses, and then play back a 3D-compatible Blu-ray Disc, etc.
• To enjoy 4K images, the TV and players that are connected to the system must be compatible with 4K images.

Controlling the unit using a smartphone or tablet device

"SongPal" is the application to operate the system with your smartphone or tablet, etc.
"SongPal" is available from either Google Play or App Store.
This function is enabled by setting "BT PWR (BLUETOOTH power)" to "ON" (see "Adjusting the settings"). The default setting is "ON."

When using an Android device

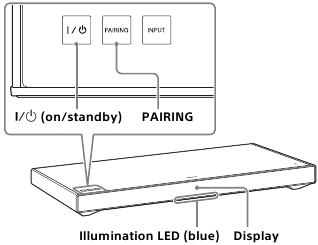

1. Touch the (on/standby) touch key of the system.
   The display of the system lights after the system turns on.
2. Search for "SongPal" with the Android device and download that application.
3. Run "SongPal" then follow the on-screen instructions.
4. After the BLUETOOTH connection display appears on the Android device, touch the PAIRING touch key of this system.
   The illumination LED (blue) of the system flashes quickly during BLUETOOTH pairing.
5. Select "SONY:HT-XT1" from the BLUETOOTH device list of the Android device.
   When the connection has been established, the illumination LED (blue) of the system lights.
6. Operate the system with the display of the connected Android device.

One-Touch connection using the Android device with the NFC function built-in

1. Perform steps 1 to 3 of "When using an Android device."
2. After the BLUETOOTH connection display appears on the Android device, touch the Android device with the N mark of the system.
   When the connection has been established, the illumination LED (blue) of the system lights.

3. Operate the system with the display of the Android device.

When using an iPhone/iPod touch

1. Touch the (on/standby) touch key of the system.
   The display of the system lights after the system turns on.
2. Touch the PAIRING touch key of this system.
   The illumination LED (blue) of the system flashes quickly during BLUETOOTH pairing.
3. Set the iPhone/iPod touch to pairing mode and select "SONY:HT-XT1" from the BLUETOOTH device list on the iPhone/iPod touch.
   When the connection has been established, the illumination LED (blue) of the system lights.
4. Search for "SongPal" with the connected iPhone/iPod touch and download that application.
5. Run "SongPal" then operate the system with the display of the iPhone/iPod touch.

Adjusting the settings

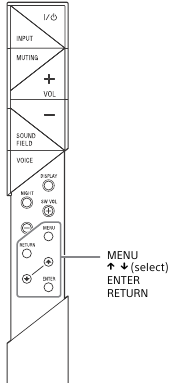

You can set the following items with the MENU button on the remote control.
Your settings are retained even if you disconnect the AC power cord (mains lead).

1. Press the MENU button on the remote control to display the amplifier menu window on the display of the system.
2. Press the (select) button repeatedly to select the desired setting, then press the ENTER button.
3. To close the amplifier menu window, press the MENU button again.

Menu		Function	Default
LEVEL	DRC (Dynamic range control)	You can enjoy Dolby Digital sound at low sound volumes. (ON/ AUTO/OFF) ON: Compresses sound in accordance with the compression information contained in the content. AUTO: Automatically compresses sound encoded in Dolby TrueHD. OFF: Sound is not compressed.	AUTO
TONE	BASS	Low sound is emphasized. The setting can be changed from –6 to +6 in units of 1.	0
	TREBLE	High sound is emphasized. The setting can be changed from –6 to +6 in units of 1.	0
AUDIO	SYNC (AV sync)	You can adjust the sound when the image and the sound are not in sync. (ON/OFF)	OFF
	DUAL (Dual mono)	You can enjoy multiplex broadcast sound of Dolby Digital audio. (M/S (main and sub channels)/MAIN (main channel)/SUB (sub channel))	MAIN
	AAV (Advanced auto volume)	Reduces the volume discrepancies between different programs or between programs and commercials. (ON/OFF)	OFF
	EFFECT (Sound effect)	ON: The sound of the selected sound field is played. It is recommended to use this setting. OFF: The input source is down-mixed for 2 channels. Note: When "EFFECT (Sound effect)" is set to "OFF," "EFFECT (Sound effect)" is automatically set to "ON" when you change the SOUND FIELD setting.	ON
HDMI	CTRL (Control for HDMI)	To switch the Control for HDMI function on or off. (ON/OFF) Refer to "Using the Control for HDMI function" for details.	ON
	P. THRU (Pass through)	To set the power saving mode of the pass-through function for HDMI signals. (AUTO/ON) AUTO: Outputs signals from the HDMI OUT jack of the system in standby mode according to the status of the TV. This setting saves power in standby mode compared with the "ON" setting. ON: Always outputs signals from the HDMI OUT jack in standby mode. If any TV other than "BRAVIA" is connected, use the system with the "ON" setting. Note: This item appears only when "CTRL (Control for HDMI)" is set to "ON."	AUTO
	ARC (Audio return channel)	To listen to digital sound from a TV compatible with the Audio Return Channel (ARC) technology that is connected using a High Speed HDMI cable. (ON/OFF) Note: This item appears only when "CTRL (Control for HDMI)" is set to "ON."	ON
SET BT	BT PWR (BLUETOOTH power)	To switch the BLUETOOTH function of this system on and off. (ON/OFF) Note: If you change the setting to "OFF," the BLUETOOTH function and the NFC function become disabled.	ON
	BT.STBY (BLUETOOTH standby)	When the system has pairing information, the system is in the BLUETOOTH standby mode even when it is turned off. (ON/OFF)	ON
	AAC (Advanced audio coding)	To set whether or not the system will use AAC via BLUETOOTH. (ON/OFF) Note: If you change the setting when the system is connected with a BLUETOOTH device, the system will be disconnected from the device.	ON
SYSTEM	A. STBY (Auto standby)	To switch the AUTO POWER OFF function on or off. (ON/OFF) The system turns off automatically when no operation has been made within a certain period (about 20 minutes) and the system is not receiving an input signal.	ON
	VER (Version)	To display the current firmware version.	–
	SYS.RST (System cold reset)	To reset menus and settings (sound fields, etc.) of the system to the initial status when it does not work properly. Refer to "Troubleshooting" for details.	–

Precautions

On safety

• Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not climb on the system, as you may fall down and injure yourself, or system damage may result.
• Do not place anything other than a TV on the system.

On power sources

• Before operating the system, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate at the rear of the system.
• If you are not going to use the system for a long time, be sure to disconnect the system from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at a qualified service shop.

On heat buildup
Although the system heats up during operation, this is not a malfunction. If you continuously use this system at high volume, the system temperature at the back and bottom rises considerably. To avoid burning yourself, do not touch the system.

On placement

• Leave the front of the system open.
• Do not place the system on top of a device that radiates heat.
• Place the system in a location with adequate ventilation to prevent heat buildup and prolong the life of the system.
• Do not place the system near heat sources or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything at the rear of the system that might block the ventilation holes and cause malfunctions.
• If the system is being used in combination with a TV, VCR, or tape deck, noise may result and picture quality may suffer. In such a case, place the system away from the TV, VCR, or tape deck.
• Use caution when placing the system on a surface that has been specially treated (with wax, oil, polish, etc.), as staining or discoloration of the surface may result.
• Take care to avoid any possible injury from the corners of the system.
• Install the system so as not to harm the speaker on the bottom of this system.
• The speakers of this system are not of magnetically shielded type. Do not place magnetic cards or a CRT-type TV set on top of the system or near it.

Notes on the glass

• Do not set something hot on the top such as a heated pan or pot. The glass top may be broken, cause injury, or be a cause of damage to this system.
• Do not impart a strong impact to the glass top. The glass top of this system is made of hardened glass; however, there is no guarantee it cannot be shattered. Heed the following so as not to break the glass:
  • Do not impart a strong impact to the glass top by hitting it or by dropping something pointed.
  • Do not scratch the glass with something pointed or poke it.
  • Do not hit the side of the glass when installing in a storage rack.
• If the glass is broken, do not touch it with bare hands. It may cause cuts.
• Do not place anything on this system that weighs over 30 kg (66 Ib 2 ¹/₄ oz). Such an item can damage the glass top or this system.
• A tempered glass is stouter than ordinary glass but will shatter if broken.
• A tempered glass can shatter spontaneously in extremely rare instances.
  The glass used in this system has been carefully selected: however, there is no guarantee it cannot be shattered.

On operation
Before connecting other equipment, be sure to turn off and unplug the system.

On cleaning
Clean the system with a soft, dry cloth. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine.
If you have any question or problem concerning your system, please consult your nearest Sony dealer.

BLUETOOTH wireless technology

Supported BLUETOOTH version and profiles

Profile refers to a standard set of functions for various BLUETOOTH product features. Refer to "Specifications" for the BLUETOOTH version and profiles supported by this system.

Notes

• To use the BLUETOOTH function, the BLUETOOTH device to be connected must support the same profile as this system. Even if the device supports the same profile, the functions may differ because of the specifications of the BLUETOOTH device.
• Audio playback on this system may be delayed from that on the BLUETOOTH device because of the characteristics of the BLUETOOTH wireless technology.

Effective communication range

BLUETOOTH devices should be used within approximately 10 meters (33 feet) (unobstructed distance) of each other. The effective communication range may become shorter under the following conditions;

• When a person, metal object, wall or other obstruction is between devices with a BLUETOOTH connection
• Locations where a wireless LAN is installed
• Around microwave ovens that are in use
• Locations where other electromagnetic waves are generated

Effects of other devices

BLUETOOTH devices and wireless LAN (IEEE 802.11b/g) equipment use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur.
This could result in lower data-transfer rates, noise, or inability to connect. If this happens, try the following remedies:

• Connect this system and BLUETOOTH mobile phone or BLUETOOTH device when you are at least 10 meters (33 feet) away from the wireless LAN equipment.
• Turn off the power to the wireless LAN equipment when using your BLUETOOTH device within 10 meters (33 feet).

Effects on other devices

The radio waves broadcast by this system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power to this system, BLUETOOTH mobile phone and BLUETOOTH device in the following locations:

• In hospitals, on trains or airplanes, at gas stations, and any place where flammable gasses may be present
• Near automatic doors or fire alarms

Notes

• This system supports security functions that comply with the BLUETOOTH specification as a means of ensuring security during communication using BLUETOOTH technology. However, this security may be insufficient, depending on the settings and other factors. So always be careful when performing communication using BLUETOOTH technology.
• Sony shall not be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.
• BLUETOOTH communication is not necessarily guaranteed with all BLUETOOTH devices that have the same profile as this system.
• BLUETOOTH devices connected with this system must comply with the BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be certified to comply. However, even when a device complies with the BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect or may result in different control methods, display, or operation.
• Noise may occur or the audio may cut off, depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.

Troubleshooting

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

POWER
The system does not power up.

• Check that the AC power cord (mains lead) is connected securely.

The system is turned off automatically.

• The "A. STBY" function is working. Set "A. STBY (Auto standby)" to "OFF" (see "Adjusting the settings").

SOUND
No TV sound is output from the system.

• Repeatedly press the INPUT button on the remote control to display "TV" in the display (refer to "Listening to the audio of the TV" in the supplied Startup Guide).
• Check the connection of the HDMI cable, optical digital cable, or audio cable that is connected to the system and the TV (refer to "Connection" in the supplied Startup Guide).
• Check the sound output of the TV. Refer to the operating instructions of the TV for the TV settings.
• Increase the volume on the TV or cancel muting.
• When a TV compatible with the Audio Return Channel (ARC) technology is connected with an HDMI cable, make sure the cable is connected to the HDMI input (ARC) terminal of the TV (refer to "Connection" in the supplied Startup Guide).
• If the TV is not compatible with the Audio Return Channel (ARC) technology, connect the optical digital cable in addition to the HDMI cable in order to output sound (refer to "Connection" in the supplied Startup Guide).

The sound is output from both the system and the TV.

• Turn off the sound of the system or the TV.

The TV sound from this system lags behind the image.

• Set "SYNC (AV sync)" to "OFF" if it is set to "ON" (see "Adjusting the settings").

No sound or only a very low-level sound of the equipment connected to this system is heard from this system.

• Press the VOL + button on the remote control and check the volume level (refer to "Parts and controls").
• Press the MUTING or VOL + button on the remote control to cancel the muting function (refer to "Parts and controls").
• Make sure the input source is selected correctly. You should try other input sources by pressing the INPUT button on the remote control several times (refer to "Listening to the sound" in the supplied Startup Guide).
• Check that all the cables and cords of the system and the connected equipment are firmly inserted.

Bass sound is not heard or its volume is low.

• Press the SW VOL + button on the remote control to increase the subwoofer volume (refer to "Parts and controls").

The surround effect cannot be obtained.

• Depending on the input signal and the sound field setting, surround sound processing may not work effectively. The surround effect may be subtle, depending on the program or disc.
• To play multi channel audio, check the digital audio output setting on the device connected to the system. For details, refer to the operating instructions supplied with the connected equipment.

BLUETOOTH
BLUETOOTH connection cannot be completed.

• Make sure that the illumination LED (blue) is lit (refer to "Listening to the sound from BLUETOOTH devices" in the supplied Startup Guide).

System status	illumination LED status
During BLUETOOTH pairing	Flashes quickly in blue
The system is attempting to connect with a BLUETOOTH device	Flashes in blue
The system has established connection with a BLUETOOTH device	Lit in blue
The system is in BLUETOOTH standby mode (when the system is off)	Unlit

• Make sure the BLUETOOTH device to be connected is turned on and the BLUETOOTH function is enabled.
• Bring this system and the BLUETOOTH device closer together.
• Pair this system and the BLUETOOTH device again. You may need to cancel the pairing with this system using your BLUETOOTH device first.

Pairing cannot be achieved.

• Bring this system and the BLUETOOTH device closer together (refer to "Listening to the sound from BLUETOOTH devices" in the supplied Startup Guide).
• Make sure this system is not receiving interference from a wireless LAN equipment, other 2.4 GHz wireless devices, or a microwave oven. If a device that generates electromagnetic radiation is nearby, move the device away from this system.

No sound is output from the connected BLUETOOTH device.

• Make sure that the illumination LED (blue) is lit (refer to "Listening to the sound from BLUETOOTH devices" in the supplied Startup Guide).
• Bring this system and the BLUETOOTH device closer together.
• If a device that generates electromagnetic radiation, such as a wireless LAN equipment, other BLUETOOTH devices, or a microwave oven is nearby, move the device away from this system.
• Remove any obstacle between this system and the BLUETOOTH device or move this system away from the obstacle.
• Reposition the connected BLUETOOTH device.
• Try changing the wireless frequency of the Wi-Fi router, computer, etc. to the 5 GHz band.
• Increase the volume on the connected BLUETOOTH device.

The sound is not in sync with the image.

• When you are watching movies, you may hear the sound with a slight delay from the image.

REMOTE CONTROL
The remote control does not function.

• Point the remote control at the remote control sensor on the system (refer to "Parts and controls").
• Remove any obstacles in the path between the remote control and the system.
• Replace both batteries in the remote control with new ones, if they are weak.
• Make sure you are pressing the correct button on the remote control.

OTHERS
The Control for HDMI function does not work properly.

• Check the HDMI connection (refer to "Connection" in the supplied Startup Guide).
• Set up the Control for HDMI function on the TV. Refer to the operating instructions supplied with the TV for TV setting.
• Make sure that any equipment connected is compatible with "BRAVIA" Sync.
• Check the Control for HDMI settings on the connected equipment. Refer to the operating instructions supplied with the connected equipment.
• If you connect/disconnect the AC power cord (mains lead), wait more than 15 seconds before operating the system.
• If you connect the audio output of video equipment with the system, using a cable other than an HDMI cable, no sound may be output because of "BRAVIA" Sync. In such a case, set "CTRL (Control for HDMI)" to "OFF" (see "Adjusting the settings") or connect the cable from the audio output jack of the video equipment directly to the TV.

"PRTECT (protect)" appears on the display of the system.

• Touch the (on/standby) touch key on the main unit to turn off the system. After the indication disappears, disconnect the AC power cord (mains lead) then check that nothing is blocking the ventilation holes of the system.

RESET
If the system still does not operate properly, reset the system as follows:

1. Press the (on/standby) button on the remote control to turn the system on.
2. Press the MENU button on the remote control.
3. Press the (select) button repeatedly until "SYSTEM" appears, then press the ENTER button.
4. Press the (select) button repeatedly until "SYS.RST" appears, then press the ENTER button.
5. Press the ENTER button after displaying "START."
   "RESET" appears on the display, and the settings of the menu and sound fields, etc. return to their initial statuses.
6. Disconnect the AC power cord (mains lead).

Parts and controls

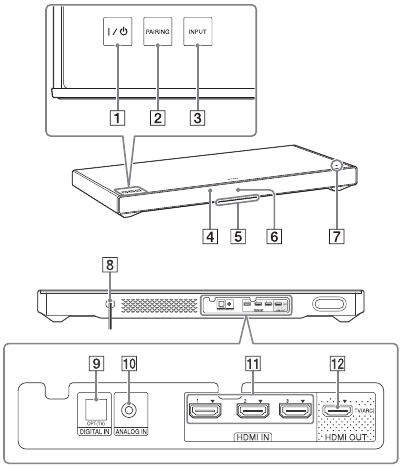

Main unit

Front/Top

1. (on/standby) touch key
2. PAIRING touch key
3. INPUT touch key
4. Remote control sensor
5. Illumination LED
   • White: When the display brightness is set to "Off," the illumination LED turns off.
   • Blue: BLUETOOTH mode (see "Troubleshooting")
6. Display
7. N mark
   To use an NFC function, touch your NFC device to the mark.

Back

8. AC power cord (mains lead)
9. DIGITAL IN (OPT (TV)) jack
10. ANALOG IN jack
11. HDMI IN 1/2/3 jacks
12. HDMI OUT (TV (ARC)) jack

* Touch a touch key lightly with a fingertip. If you touch two or more keys simultaneously or touch with a thumb, appropriate operation may not be obtained.

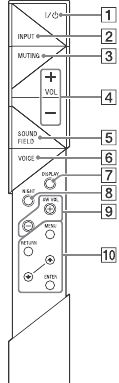

Remote control

1. (on/standby) button
2. INPUT button
3. MUTING button
4. VOL (volume) +/– button
5. SOUND FIELD button*
6. VOICE button*
7. DISPLAY button
   The display brightness can be switched.
   Bright → Dark → Off
   • When the display brightness is set to "Off," the display is turned off after the display shows operation status for several seconds.
   • When the setting is changed to "Bright" from "Off," the display shows the audio stream information.
8. NIGHT (night mode) button*
9. SW VOL (subwoofer volume) +/buttons
   Adjusts the volume of the bass sound.
10. MENU/ (select)/ENTER/RETURN buttons
    Select the desired setting by pressing the (select) button then register it by pressing the ENTER button.

* Refer to "Enjoying the sound effects" in the supplied Startup Guide.

Specifications

Amplifier section
U.S. models:
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
(FTC)
Front L + Front R:
With 3 ohms loads, both channels driven, from 400 - 20,000 Hz; rated 20 Watts per channel minimum RMS power, with no more than 1% total harmonic distortion from 250 milliwatts to rated output.
POWER OUTPUT (reference)
Front L/Front R speaker: 35 Watts (per channel at 3 ohms, 1 kHz)
Subwoofer: 100 Watts (at 4 ohms, 100 Hz)

Canadian models:
POWER OUTPUT (rated)
Front L + Front R: 20 W + 20 W
(at 3 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R speaker: 35 Watts (per channel at 3 ohms, 1 kHz)
Subwoofer: 100 Watts (at 4 ohms, 100 Hz)

Inputs
HDMI IN 1/2/3*
ANALOG IN
DIGITAL IN (OPT (TV))
*These 3 jacks are identical. Using any of them makes no difference.

Output
HDMI OUT (TV (ARC))

BLUETOOTH section
Communication system
BLUETOOTH Specification version 3.0
Output
BLUETOOTH Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (33 ft)¹⁾
Maximum number of devices to be registered
9 devices
Frequency band
2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)

Compatible BLUETOOTH profiles²⁾
A2DP (Advanced Audio Distribution Profile)
AVRCP 1.3 (Audio Video Remote Control Profile)

Supported Codecs³⁾
SBC⁴⁾, AAC⁵⁾
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)

1) The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, operating system, software application, etc.
2) BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
3) Codec: Audio signal compression and conversion format
4) Subband Codec
5) Advanced Audio Coding

Front L/Front R speaker section
Speaker system
Full range speaker system, Acoustic suspension
Speaker
35 mm (1 7/16 in) × 80 mm (3 1/4 in) cone type
Rated impedance
3 ohms

Subwoofer section
Speaker system:
Subwoofer system
Bass reflex

Speaker
100 mm (4 in) cone type ×2

Rated impedance
4 ohms

General
Power requirements
120 V AC, 60 Hz

Power consumption
On: 34 W
Standby mode (Control for HDMI is set to on): 0.5 W or less
Standby mode (Control for HDMI is set to off): 0.3 W or less
BLUETOOTH Standby mode: 0.5 W or less

Dimensions (approx.) (w/h/d)
720 mm × 72 mm × 310 mm (28 3/8 in × 2 7/8 in × 12 1/4 in)

Mass (approx.)
8 kg (17 Ib 10 1/8 oz)

Digital audio input formats supported by the product

Dolby Digital	DTS-HD Master Audio*
Dolby Digital Plus*	DTS-HD High Resolution Audio*
Dolby TrueHD*	DTS-HD Low Bit Rate*
DTS	Linear PCM 2ch 48 kHz or less
DTS 96/24	Linear PCM Maximum 7.1ch 192 kHz or less*

* It is possible to input these formats only with HDMI connection.

Video formats supported by the product

Input/Output (HDMI Repeater block)

^*1 YCbCr 4:2:0/Supported 8-bit only
^*2 Supported 8-bit only

Design and specifications are subject to change without notice.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.
To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.
As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.
Indoor use only.

For the customers in the U.S.A
This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The model and serial numbers are located on the rear panel of the unit. Record the serial numbers. Refer to them whenever you call upon your Sony dealer regarding this product.

Documents / Resources

References

• App Store - Apple
• Google Play

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Sony HT-XT1 - Home Theatre System Manual
