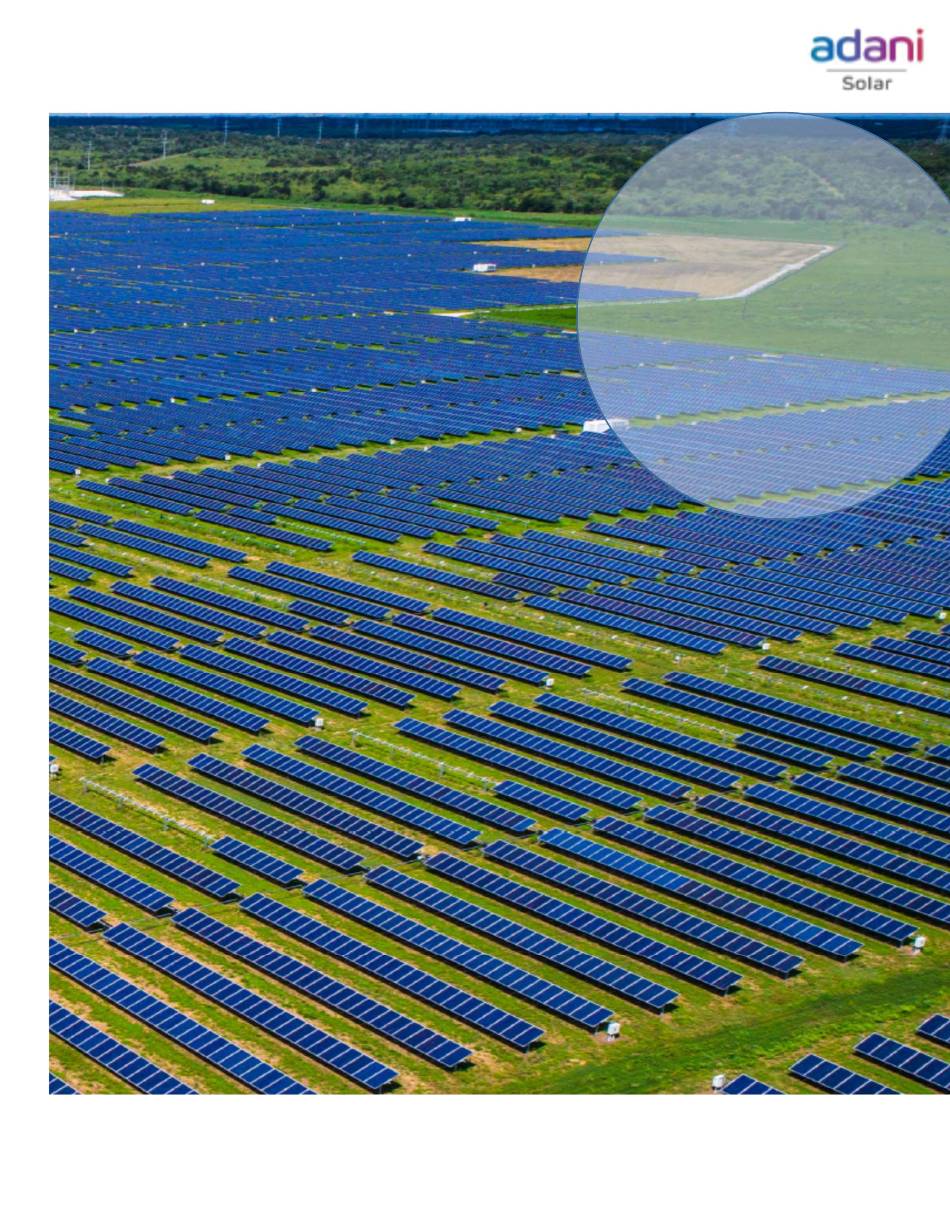

- Page 1 PV MODULE INSTALLATION MANUAL MSEL/MSPVL/IM02/2024...
-
Page 2: Table Of Contents
Table of Contents 1. DISCLAIMER OF LIABILITY ---------------------------------------------------------------------------------------------------------------------------- 3 2. SAFETY MEASURES -------------------------------------------------------------------------------------------------------------------------------------- 3 3 PV MODULE UNPACKING AND STORAGE ----------------------------------------------------------------------------------------------------- 6 4. ENVIRONMENTAL CONSIDERATIONS ----------------------------------------------------------------------------------------------------------- 7 5. SITE SELECTION ------------------------------------------------------------------------------------------------------------------------------------------- 7 6. MOUNTING INSTRUCTION ----------------------------------------------------------------------------------------------------------------------------- 8 7 ELECTRICAL CONFIGURATION -------------------------------------------------------------------------------------------------------------------- 22 8 PERIODIC MAINTENANCE AND CARE ----------------------------------------------------------------------------------------------------------- 24 9 PRODUCT RECYCLING &... -
Page 3: Disclaimer Of Liability
This Installation Manual is applicable for Mundra Solar Energy Limited (MSEL) / Mundra Solar PV Limited (MSPVL) PV Modules. MSPVL / MSEL is referred as Adani / Adani Solar in the Installation Manual. MSPVL / MSEL is part of Adani Group. - Page 4 The connector needs to be protected or added with the dust plug when installing the module in the Coastal area. Other anti-rust measures are also necessary to prevent the relevant components from rusting (Buyer must contact the technical team of Adani Solar to confirm the specific protective measures requirements according to installation or storage site).
- Page 5 • The maximum rating of a fuse connected in series with an array string is typically 25A or 30A. The actual maximum rating of the fuse specific to the PV modules model, can be found on the product label and in the product data sheet. Prefer Article 690, Solar Electric Systems of National Electric Code (module under UL scope) for installation.
-
Page 6: Pv Module Unpacking And Storage
3 PV MODULE UNPACKING AND STORAGE • After receiving the PV modules, customers are requested to match the product specification as it had been ordered. All the modules serial number and other details are present on the box of the PV modules. •... -
Page 7: Environmental Considerations
4. ENVIRONMENTAL CONSIDERATIONS Climate Conditions All Adani Solar modules models are tested as per IEC 61215, IEC 61730-I & II, IEC 61701, IEC 62716, IEC 62804, IEC 60068 standards. The modules are qualified for Application Class A, and safety qualification as per IEC 61730 within this application class are considered to meet the requirements of Safety Class II. -
Page 8: Mounting Instruction
northern hemisphere and north in southern hemisphere. • For installing solar modules on a roof, the roof must be covered with a layer of fireproof material applicable to the class, and sufficient ventilation must be ensured between the backsheet and the installation surface. A safe working area also must be left between the edge of the roof and the external edge of the solar array. - Page 9 Important Instruction for Mounting • Always avoid loop formation during designing, to minimize the risk during indirect lightning strike. • Confirm mounting system withstands the loads anticipated by wind and snow. • Loads of wind & and snow should not cross the maximum rated load bearing capacity of PV module.
-
Page 10: Mounting Methods
PV modules which will not be part of Adani Solar warranty claim. When modules are ground mounted, select the height of the mounting system in such a way as to prevent the lowest edge of the module from being covered by snow for a long time in winter in areas that experience severe snow fall. - Page 11 Mechanical Drawings of PV Module (Gen 1) Mechanical Drawings of PV Module (Gen 1) ASM-M10-144-XXX ASB-M10-144-XXX MSEL/MSPVL/IM02/2024...
- Page 12 Mechanical Drawings of PV Module (Gen 2) Mechanical Drawings of PV Module (Gen 2) ASM-M10-144-XXX ASB-M10-144-XXX MSEL/MSPVL/IM02/2024...
- Page 13 Mechanical Drawings of PV Module AB-G12R-132- XXX FIG 3. Solar PV Modules Mechanical Drawings MSEL/MSPVL/IM02/2024...
- Page 14 6.3.1 Monofacial & Bifacial Assembly Mechanical Installation 6.3.1.1 Bolts Mounting Monofacial & Bifacial Modules Fig 4. PV Modules installed with screw/bolt fitting method. 6.3.1.1.(A) Different methods of Bolt installation Installation with bolts into 4 outer holes Installation with bolts into 4 Inner holes Installation with bolts into 4 outer &...
- Page 15 Table 5: Load values for different bolt installation 6.3.1.2 Clamp Type Fixing Monofacial & Bifacial Modules Adani Solar has done number of tests on clamps and on the basis of that test results, it is recommended to use clamps with EPDM only.
- Page 16 Fig 6: PV Modules installed with clamp method 6.3.1.2.(A) Different methods of clamp installation Installation with Clamps into 4 outer holes Installation with Clamps into 4 inner holes (1400mm pitch), Beams perpendicular to long (990mm pitch), Beams perpendicular to short sides sides Note: For mounting hole/structure, please refer the desired PV module datasheet.
- Page 17 The maximum load that Adani modules can achieve, is as listed in Table 7. For detailed installation drawings, as well as other tracker systems that are not listed in the table, please contact Adani Solar customer service team. The compatibility with given test loads as mentioned in Table 7, can only be assured if the site conditions and installation is within maximum permissible limits as tested for the different Tracker models and installation done exactly the same way as done during the load approval testing.
- Page 18 • It is recommended to use Connectors from same manufacturers for mating with each other. Please contact Adani solar if such a replacement is needed and for specific connector specifications. Also, please refer to the connector manufacturer’s installation manual*. *Please refer the connector specifications.
- Page 19 • Do not pinch the positive connector wings. • Connectors are not waterproof when unmated, while installing the modules, connectors should be connected to each other as soon as possible or appropriate measures (like using connector endcaps) should be taken to avoid moisture and dust penetrating into the connector.
- Page 20 • Adani solar modules can be installed by using any third party listed grounding devices to connecting grounding terminals. As per instruction manual of grounding device manufacturer, the grounding device should be installed.
- Page 21 • Grounding wire dimension should be considered of 6 to 12 AWG solid bar copper and installed under the wire binding bolt. • Tightening of wire binding bolt must be done at proper torque level 45 In-lb. Procedure 2:- Grounding by bolts: # 2058729-1 1) Wire slot (available for 4-6 mm²...
-
Page 22: Electrical Configuration
1000W/m2, irradiance with AM 1.5 spectrum and 25- C ambient temperature. The module might produce more or less voltage or current than rated value in uncertainty condition. Please refer technical datasheet of different models of Adani Solar modules for finding the electrical values. -
Page 23: Fuse Selection
Power plant using Adani modules. There is always a risk of lightening to PV power plants and PV modules and Adani Solar requests the EPC installer and the customer to analyze the risk of lightening as per IEC 62305-2 or NEC code/UL61730 and install lightening arrestors and SPD's such that no part of PV system and PV Module is affected by lightening or any other high voltage surges. -
Page 24: Periodic Maintenance And Care
Adani Solar. • Check the mounting structure status and ensure all the modules should be tightly fitted on the structure and should be as per the mounting instruction provided above. -
Page 25: Product Recycling & End Of Life
Product should be recycled in useful renewable method after end of its life cycle. Please contact Adani Solar after the end of product life cycle for recycling procedure. Module disposal will be under the customer scope and module should be disposed as per applicable law. -
Page 26: Appendix 2：Mesures De Sécurité
Appendix 2：Mesures De Sécurité Consignes Générales De Sécurité Lors d'une exposition directe à la lumière du soleil, le module PV produit de l'électricité, ce qui peut entraîner un choc électrique ou lors de l'utilisation d'un module exposé à la lumière directe du soleil, il est conseillé... - Page 27 Toute lumière solaire artificielle se concentrant sur le module PV n'est pas recommandée car elle peut réduire ses performances et cycle de vie. Les modules PV Adani sont certifiés pour fonctionner dans des conditions de classe A installés en dessous du niveau de tension 1500 Vdc.
