Lufft ANACON Operation Manual

Umb analogue/digital converter

Advertisement

Quick Links

UMB Analogue/Digital Converter
ANACON
Operational Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANACON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lufft ANACON

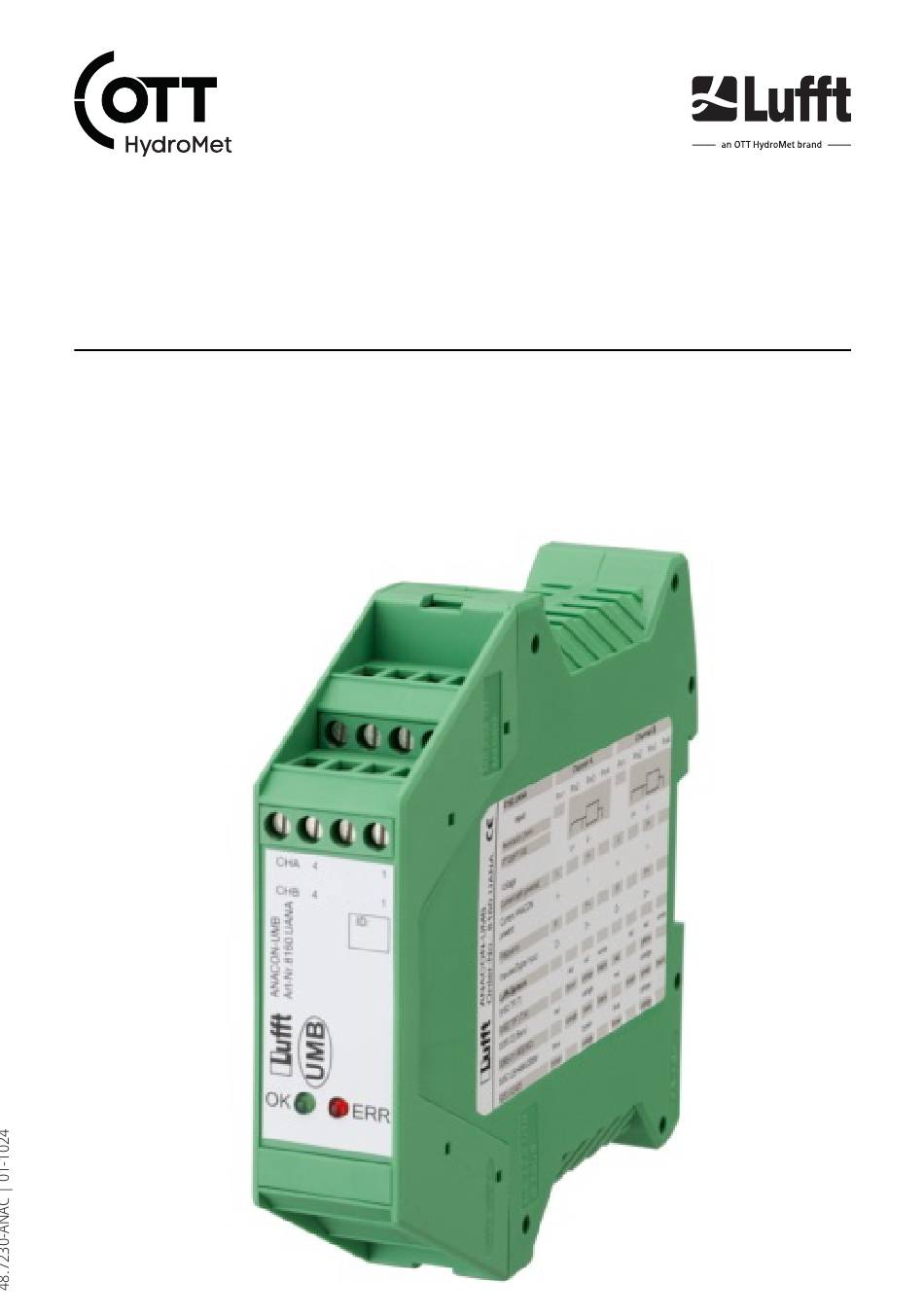

  • Page 1 UMB Analogue/Digital Converter ANACON Operational Manual...
  • Page 2 Copyright © OTT HydroMet Fellbach GmbH OTT HydroMet Fellbach GmbH Gutenbergstr. 20 70736 Fellbach Germany +49 711 51822 -0 met-info@otthydromet.com www.otthydromet.com All rights reserved. All content is the intellectual property of OTT HydroMet. Reprinting, duplication and translation (even as excerpts) are only permitted with the prior written consent of OTT HydroMet.
  • Page 3: Table Of Contents

    Transport, storage, and unpacking Transport Storage Unpacking Installation Mechanical installation 7.1.1 Installing mounting rail bus connector Electrical installation 7.2.1 Analogue inputs channel A and channel B 7.2.2 Mounting rail bus connection 7.2.3 Configuring and installing ANACON Commissioning Commissioning ANACON Status LED's <3>...
  • Page 4 Maintenance Troubleshooting 10.1 Error elimination Repair 11.1 Customer support Notes on disposing of old devices Technical data 13.1 General technical data 13.2 Electrical data 13.3 Data transfer 13.4 Dimensions and weight <4>...
  • Page 5: Scope Of Supply

    1 Scope of supply The following items are included with delivery: – UMB Analogue/Digital Converter (ANACON) <5>...
  • Page 6: Order Numbers And Variant Code

    2 Order numbers and variant code 2.1 Product variants Variant Order number UMB Converter ANACON 8160.UANA <6>...
  • Page 7: About This Manual

    3 About this manual 3.1 Other applicable documents The following documents contain further information on installation, maintenance and calibration: 4 Quick installation guide 3.2 General signs and symbols The signs and symbols used in the operational manual have the following meaning: Practical tip This symbol indicates important and useful information.
  • Page 8: General Safety Instructions

    4 Use the product only as described in the operational manual. 4.3 Pay attention to all documents The ANACON can be used to connect multiple devices in a network. To avoid damage and injury, read the manuals of all devices used.
  • Page 9: Certification

    4 Install and operate the product under the technical conditions described in the operational manual. 4 Do not change or convert the product in any way. 4 Do not perform any repairs yourself. 4 Get OTT HydroMet to examine and repair any defects. 4 Ensure that the product is correctly disposed of.
  • Page 10: Product Description

    UMB networks. The devices are easily installed on standard EN mounting rails and networked together by means of mounting rail bus connectors. The 24 V feed for the power supply takes place via the bus connector. Windows software is available for the configuration of the ANACON via RS-232 port and an additional ISOCON (8160.UISO).
  • Page 11: Transport, Storage, And Unpacking

    6 Transport, storage, and unpacking 6.1 Transport 4 Transport the product always in its original packaging. 4 Ensure that the product is not mechanically stressed during transport. 6.2 Storage 4 Store within specified temperature ranges. 4 Store in dry area. 4 Store in original box where possible.
  • Page 12: Installation

    7.2.1 Analogue inputs channel A and channel B Pay attention to all safety instructions and warnings regarding electricity in the manuals of the devices installed with ANACON. The terminals are suitable for stranded or rigid wires without end sleeves with cross section from 0,14 mm 2,5 mm...
  • Page 13: Mounting Rail Bus Connection

    4 Connect the 24 V power supply with the aid of the connector provided. Pay attention to the correct polarity and pin assignment of the connection. 4 Install the ANACON module on the mounting rail bus connector. 4 Clip an ISOCON module on the mounting rail and connect the module to the PC via the RS-232 interface.
  • Page 14: Commissioning

    4 Connect all ANACON modules. 4 Connect the sensors to the channels A and B of each ANACON module. Pay attention that a fixed assignment is specified for channels A and B for the combined sensors for temperature and relative humidity as well as the wind speed and wind direction sensors, see table below.
  • Page 15: Maintenance

    9 Maintenance The product does not require any maintenance. <15>...
  • Page 16: Troubleshooting

    10 Troubleshooting 10.1 Error elimination Error Possible cause Corrective action Red LED permanently lit Configuration fault 4 Check wiring or configuration in the UMB-Config-Tool software. Red LED lights briefly Unforeseen fault has occurred 4 Reset the device. <16>...
  • Page 17: Repair

    11 Repair 11.1 Customer support 4 Have repairs carried out by OTT HydroMet service personnel. 4 Only carry out repairs yourself, if you have first consulted OTT HydroMet. 4 Contact your local representative: www.otthydromet.com/en/contact-us 4 Include the following information: – instrument model –...
  • Page 18: Notes On Disposing Of Old Devices

    12 Notes on disposing of old devices Member States of the European Union In accordance with the German Electrical and Electronic Equipment Act (ElektroG; national implementation of EU Directive 2012/19/EU), OTT HydroMet takes back old devices in the Member States of the European Union and disposes of them in the proper manner.
  • Page 19: Technical Data

    13 Technical data 13.1 General technical data Specification Value Housing PA-V0, green Connections COMBICON plug-in connectors 0.2 – 2.5 mm (AWG 24 – 12) Protection type IP20 Operating temperature range -30 to +60 °C Storage temperature range -40 to +70 °C Humidity range 0 to 95 % 13.2 Electrical data Specification Value Power supply 24 V ±10 % Power consumption 50 mA at 24 V;...
  • Page 20: Dimensions And Weight

    13.4 Dimensions and weight 99 mm 6.7 mm Specification Value Width 22.5 mm Height with interface 118.6 mm Weight approx. 120 g <20>...
  • Page 21 <21>...
  • Page 22 <22>...
  • Page 23 <23>...
  • Page 24 Contact Information...
