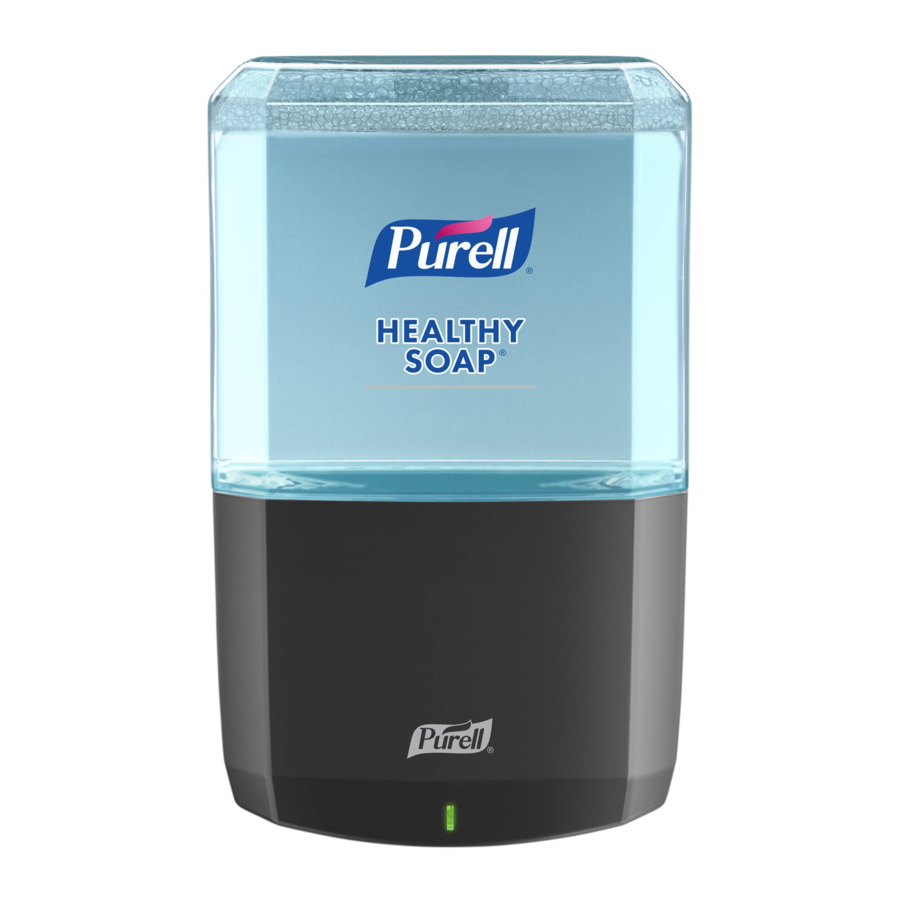

Purell ES6 - Dispenser Manual

Dispenser Installation

  1. Open dispenser by pressing release buttons onside of dispenser and slide the front cover down
  2. Check label inside dispenser before installing.
    ES6 SOAP = soap dispenser
    ES6 SAN = hand sanitizer dispenser
  3. Install dispenser with at least 7" free space above counter top to allow routine service

If installing with wall fasteners

  1. Using the dispenser as a template, pierce the tape on the back plate to mark and drill four holes using 1 /4"drill bit Use the supplied wall anchor and x 1" screws to secure the dispenser in pace, being careful not to over tighten It is recommended to use 4 screws. If only two are possible, the top two holes should be used. Recommended holes shown

If installing with tape

  1. Clean installation surface with an alcohol pad. Allow surf ace to dry for 60 seconds, then peel paper off installation tape and press firmly on back plate for10 seconds. For maximum adhesion, wait 24 hours before loading refill or using dispenser.
  2. Attach the back plate by pressing on the top two corners and the bottom middle section Audible clicks will confirm proper installation.
  3. Install the SHIELD'* Floor and Wall Protector into the bottom of the dispenser by aligning plastic tabs on the SHIELD with slots on the dispenser and sliding up until the tabs snap into place. (SHIELD is included with Sanitizer Systems and can be ordered for Soap systems)
    7745WHT-18 White SHIELD Floor and Wall Protector
    7745 GPH-18 Graphite SHIELD Floor and Wall Protector
  4. Remove battery tab to activate the dispenser.
  5. Match label on refill with label on dispenser.
  6. Remove refill cap and push the new refill dispenser until it clicks in place.
  7. Close dispenser cover. The green status light will blink after closing, indicating the dispenser
  8. Place palms approximately 2" below dispenser, product will dispense within 1 second of sensor activation.

Refill Replenishment

  1. Open the dispenser by pressing release buttons onside of dispenser and slide the front cover down.
  2. Push green release button and remove empty refill
  3. Match label on refill with label on dispenser.
  4. Remove refill cap and push the new refill into dispenser until it clicks in place
  5. Close dispenser cover. The green status light will blink after closing, indicating the dispenser is ready to use
  6. Place palms approximately 2" below dispenser, product will dispense within 1 second of sensor activation.

Disposal/Recycling

  1. Insert a flat blade screwdriver into the slots on the refill collar and twist to separate the collar from the refill.
  2. Unscrew the pump from the bottle and discard. Dispose/Recycle the PET bottle and collar.

Locking the dispenser with LOCK OR NOTTM Technology

  1. Lock the dispenser by aligning the key with the keyhole on the top of the dispenser and push down until a click is heard
  2. Check for a successful lock by pressing the release buttons on the side of the dispenser to see if the front cover releases and slides down. Once locked, the dispenser will remain in the locked state To open a locked dispenser, insert the key into the keyhole and press down until the front cover is released.
  3. Locked position visual shown as reference, back plate does not need to be removed to lock dispenser.

Disabling the locking mechanism

  1. Open a locked dispenser by inserting the key into the keyhole on the top of the dispenser to release the front cover.
  2. Remove the back plate by lifting the bottom right hand corner in an upward and away motion.
  3. Restore to the unocked position by pushing the locking mechanism toward the top of the dispenser.
  4. Attach the back plate by pressing on the top two corners and the bottom middle section.

TRUE FITTM Wall Plate and MESSENGERTM Dispenser Station Installation

The TRUE FIT & MESSENGER Station are optional accessories that can be utilized with the dispensing systems. Use the TRUE FIT Wall Plate to cover any wall damage from removing old dispensers. The MESSENGER Station lets you add a sign to promote good hand hygiene.

  1. Install the TRUE FIT wall plate at the designated anchor holes. Place the TRUE FIT wall plate between the dispenser and the wall during installation.
  2. Slide two prongs at the bottom of the MESSENGER Dispenser Station into the inlet holes above TRUE FIT Wall Plate until t hey set in. The MESSENGER Dispenser Station accepts a standard 3"x4"clear name badge holder with a 4" name badge card that can be ordered from most office supply vendors. Print a message on a 4" name badge card and insert the message between the frame and back with message facing out

Dispenser Status LED
Green Flash - every 7 seconds = good
NO LED - batteries need replaced

  • no refill installed


Use dispenser only as directed.
Do not use in areas where the dispenser may be exposed to wet environments, such as showers or outdoors.
Do not install or use in extreme hot or cold locations.
Dispensed product intended for external use only. Refer to refill for actions in case of ingestion.

Cleaning and Maintenance

Clean exterior surfaces of the dispenser using warm water and mild soap.

DO NOT USE ABRASIVE CLEANERS.

Dry with a soft cloth

Troubleshooting

No Dispensing, Motor Does Not Run

  • Hands are not directly beneath sensor
  • No refill is loaded

No Dispensing, Motor Runs

  • Refill is empty or loaded incorrectly
  • Refill pump is not primed

Rated 6Vdc
Battery Operated Appliance
Classification, per UL 60601-1
Internally Powered
Type B Applied Part
IXPO
Not suitable for use in the presence of flammable anesthetics

Definitions of Symbols
Type B Applied Part
warningAttention, consult accompanying documents

MEDICAL EQUIPMENT WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL60601-1.1EC60601-1 CAN/CSA C22.2 No. 601.1

GOJO Industries, Inc
One GOJO Plaza, Suite 500
PO Box 991 • Akron, OH 44309-0991
Tel: 1-330-255-6000
Toll-free: 1-800-321-9647
Fax: 1-800-FAX GOJO
