H-9593

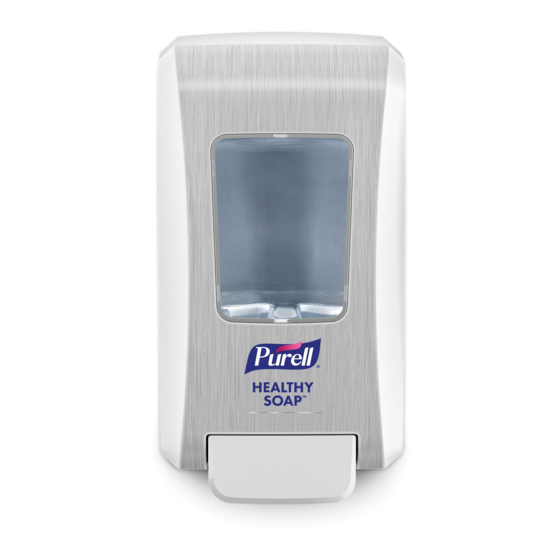

PURELL HEALTHY SOAP
FMX-20 DISPENSER
TOOL NEEDED
Drill
1. Open dispenser by
pressing release
button on bottom
and allow front
cover to descend
forward. Use
separate key tab to
unlock cover.
(See Figure 1)
2. Install dispenser
at least 10" above
countertop.
(See Figure 2)
PAGE 1 OF 2
1-800-295-5510
uline.com

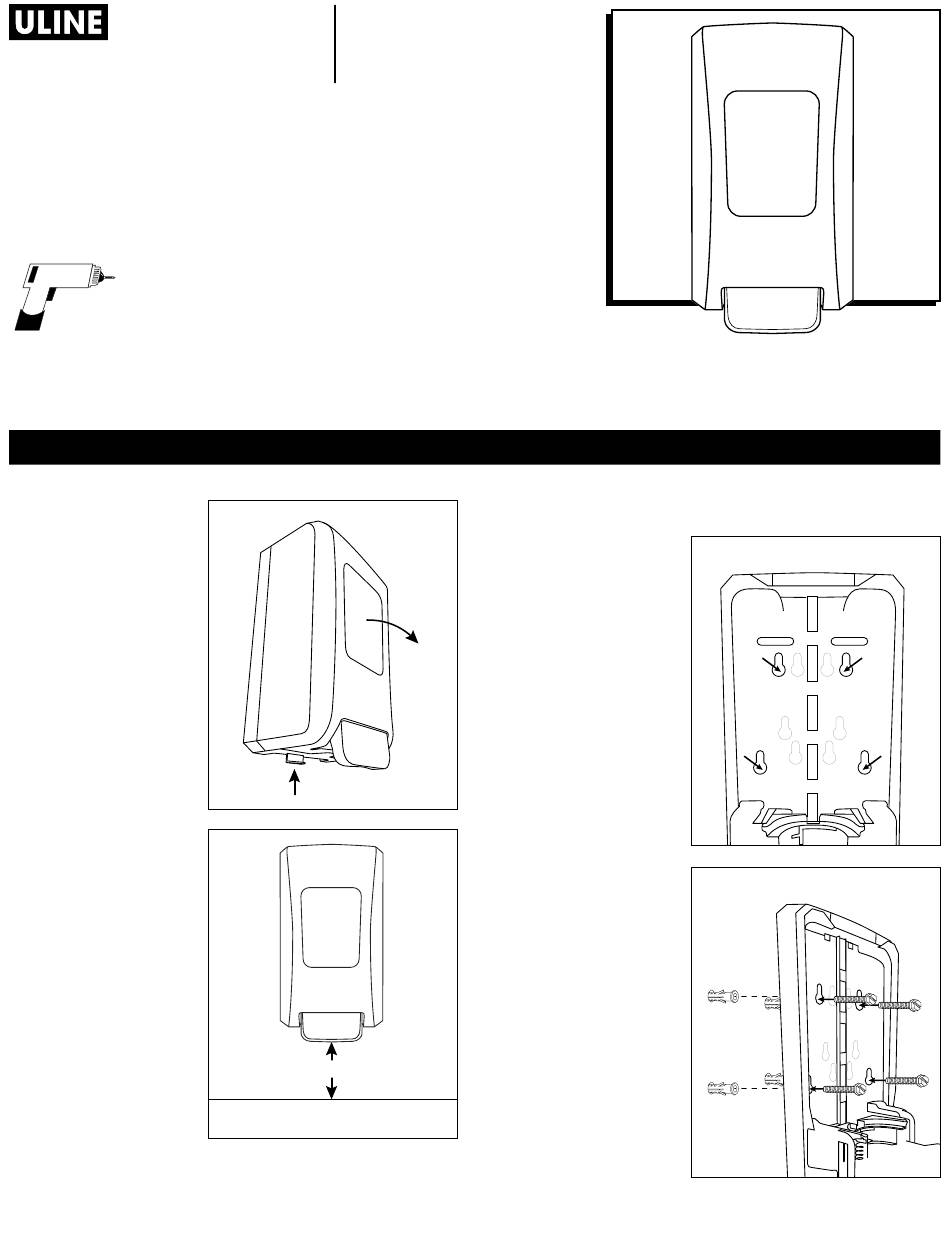

INSTALLATION
Figure 1
Figure 2
10"
Countertop
INSTALLING WITH WALL FASTENERS
1.
Using back plate as
template, mark and
drill center holes
into wall using 1/4"
spiral masonry drill
bit or 1/4" wood drill
bit (not included).
(See Figure 3)
2. Install #10 x 1"
anchors (not
included) into
drilled holes,
flush against
surface. Insert type
#10 x 1" fasteners
(not included) into
four installation
holes in back plate,
through installation
tape. Tighten
fasteners securely.
Be careful not to
overtighten.
(See Figure 4)
Figure 3
Figure 4
0921 IH-9593
