AQUAJOE SJI-OMS20 - Oscillating Sprinkler Manual

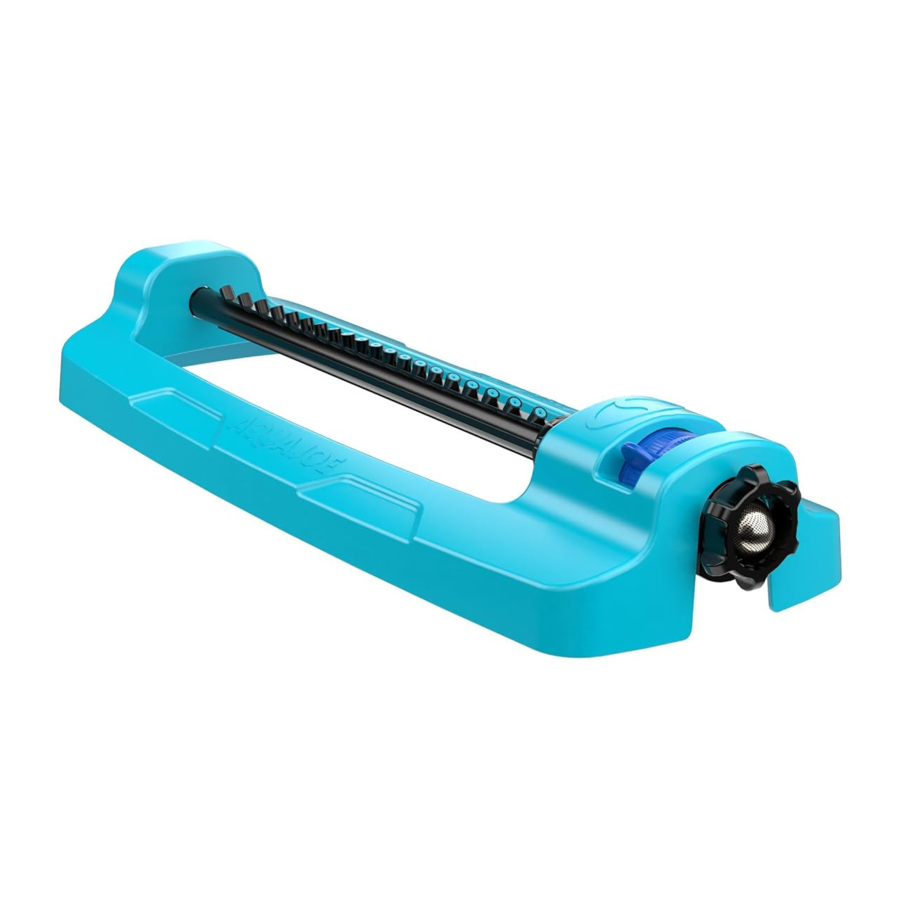

Know Your Product

Base
Spray nozzles (20)
Oscillator tube
Hose-end
Sliding tabs
Inlet filter
Cleaning pin

Technical Data

Plastic nozzle heads	20
Coverage Max	4400 sq ft (409 m²)
Spray Distance Max	70 ft (21.3 m)
Spray Width Max	63 ft (19 m)
Max Pressure*	150 PSI
Max Flow	8 GPM (30 l/min)
Motor	Turbo drive
Adjustable range control	Yes
Net Weight	1.8 lbs (0.8 kg)

* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.

Operation

Device Operation
Use sliding tabs to select desired position and take advantage of the sprinkler's adjustable range control (Fig.1). Refer to (Fig. 2) to see the different sprinkler options.

Watering Tips
Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

Maintenance + Care

Follow the steps below if the sprinkler stops working or exhibits poor water quality due to debris or dirt build-up.

Remove the inlet filter from the hose-end of the oscillator and run under water (Fig. 3).
Remove the cleaning pin from the opposite end of the oscillator (Fig. 4).
To flush, connect the oscillator to a spigot. Turn on the faucet and while the water continues running, spin the tube gently back and forth for few minutes. Then screw the inlet filter firmly back in place (Fig. 5)
Use the provided cleaning pin to clear any clogs from the spray nozzles. Fit cleaning pin firmly back in place before using the sprinkler (Fig. 6).

Storage

Draining the unit for Storage
Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 7).

Service + Support

If your Aqua Joe SJI-OMS20 oscillating sprinkler requires service or maintenance, please call All Season Power customer service at 1-866-225-9723 for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler.

Product Registration

All Season Power strongly encourages you to register your Product. You can register online at shopjoe.com/register, or by printing and mailing in a registration card available online from our website, or by calling our Customer Service Department at 1-866-225-9723, or by e-mailing us at help@allseasonpower.com.

SCAN TO REGISTER ONLINE TODAY

ACTIVATE YOUR 2 YEAR WARRANTY
RECEIVE 90 DAYS BONUS COVERAGE
VISIT SHOPJOE.COM/REGISTER

Failure to register your product purchase will not diminish your warranty rights. For more information visit shopjoe.com

Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at shopjoe.com/support or by calling 1-866-225-9723.
Genuine parts + accessories can be found and purchased online at shopjoe.com/support by entering the model number of your product.
