Summary of Contents for AQUAJOE AJ-OSPR20

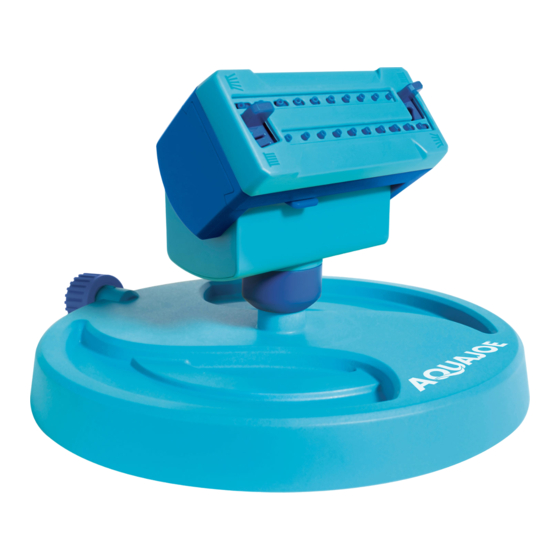

- Page 1 SJ-AJ-OSPR20-880E-M OSCILLATING SPRINKLER ROCIADOR OSCILANTE | ARROSEUR OSCILLANT Model AJ-OSPR20...
-
Page 2: Technical Data
Know Your Oscillating Sprinkler Read the owner’s manual and safety instructions carefully before using the oscillating sprinkler. Compare the illustration below to the oscillating sprinkler in order to familiarize yourself with the various parts and components. Save this manual for future reference and reread it at the start of the season to familiarize yourself with the use, handling and features. -
Page 3: Operation
Assembly Fig. 3 Connect the sprinkler head to the base by rotating it clockwise until tight (Fig. 1). Fig. 1 Sprinkler head Base Operation Width Control Use the spray width adjusters to select desired position and take advantage of the sprinkler’s adjustable range control (Fig.2). -
Page 4: Flow Control
360º Adjustability Fig. 5 Rotate 360º adjustable neck clockwise or counterclockwise as desired to adjust spray coverage area (Figs. 8 & 9). Fig. 8 360º adjustable neck Flow Control Turn the water flow control to increase or decrease water flow through the sprinkler (Figs. -
Page 5: Model + Serial Numbers
Watering Tips Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off. NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32 F (0...
