Weber Q 1000, Q 1200, Q 2000, Q 2200 - Barbecue Manual

WARNINGS

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury or death.

1. Never operate this appliance unattended.
2. Never operate this appliance within 610 mm (2 ft) of any structure, combustible material or other gas cylinder.
3. Never operate this appliance within 7.5 m (25 ft) of any flammable liquid.
4. If a fire should occur, keep away from the appliance and immediately call your fire department. Do not attempt to extinguish an oil or grease fire with water.

Failure to follow these instructions could result in fire, explosion or burn hazard, which could cause property damage, personal injury or death.

Failure to follow the DANGERS, WARNINGS and CAUTIONS contained in this Owners Guide may result in serious bodily injury or death, or may result in a fire or an explosion causing damage to property.

WARNINGS:
Do not use this barbecue unless all parts are in place. The barbecue must be properly assembled according to the assembly instructions.
Your Weber gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young children and pets away while barbecue is in use.
This Weber gas barbecue is not intended for commercial use.
This Weber gas barbecue is not intended for and should never be used as a heater.
Exercise caution when using your Weber gas barbecue. It will be hot during cooking or cleaning, and should never be left unattended, or moved while in operation.
Do not use charcoal or lava rock in your Weber gas barbecue.
While igniting the barbecue or cooking, never lean over open barbecue.
Never place hands or fingers on the front edge of the cookbox when the barbecue is hot or the lid is open.
Do not attempt to disconnect the gas regulator and hose assembly or any gas fitting while your barbecue is in operation.
Use heat-resistant barbecue mitts or gloves when operating barbecue.
Use the pressure regulator and hose assembly that is supplied with your Weber® gas barbecue.
Should the burner go out while barbecue is in operation, turn the gas valve off. Open the lid and wait five minutes before attempting to relight barbecue, using the igniting instructions.
Do not use the Weber barbecue in any vehicle or in any storage or cargo area of any vehicle, including cars, trucks, station wagons, mini-vans, sport utility vehicles (SUVs) or recreational vehicles (RVs).
Do not place barbecue on glass or a combustible surface.
Do not build this model of barbecue in any built-in or slide-in construction. Ignoring this WARNING could cause a fire or an explosion that can damage property and cause serious bodily injury or death.
Do not store an extra (spare) or disconnected LPG cylinder under or near this barbecue.
After a period of storage and/or non-use, the Weber gas barbecue should be checked for gas leaks and burner obstructions before use. See instructions in this Owner's Guide for correct procedures.
Do not operate the Weber gas barbecue if there is a gas leak present.
Do not use a flame to check for gas leaks.
Do not put a barbecue cover or anything flammable on the barbecue while barbecue is in operation or is hot.
Universal liquefied petroleum gas is not natural gas. The conversion or attempted use of natural gas in a universal liquefied petroleum gas unit or universal liquefied petroleum gas in a natural gas unit is dangerous and will void your warranty.
Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
Do not enlarge valve orifice or burner ports when cleaning the valve or burner.
The Weber gas barbecue should be thoroughly cleaned on a regular basis.
If you see, smell or hear the hiss of gas escaping from the refillable LPG cylinder:

1. Move away from refillable LPG cylinder.
2. Do not attempt to correct the problem yourself.
3. Call your fire department.

Should a grease fire occur, turn off the burner and leave lid closed until fire is out.
The use of alcohol, prescription drugs, non-prescription drugs, or illegal drugs may impair the consumer's ability to properly and safely assemble, move, store or operate the appliance.
A dented or rusty LPG cylinder may be hazardous and should be checked by your LPG supplier. Do not use a LPG cylinder with a damaged valve.
Although your LPG cylinder may appear to be empty, gas may still be present, and the LPG cylinder should be transported and stored accordingly.

WARRANTY

WEBER-STEPHEN PRODUCTS LLC
R. McDonald Co. PTY. LTD.
A.C.N., 007 905 384
104 South Terrace
Adelaide, SA 5000
61.8.8221.6111

WEBER-STEPHEN PRODUCTS LLC
Supreme Barbecues LTD. Sup
6 Maurice Road
Penrose, Auckland 1643
64.579.6630

PARTS LIST

ASSEMBLY

EXPLODED VIEWS

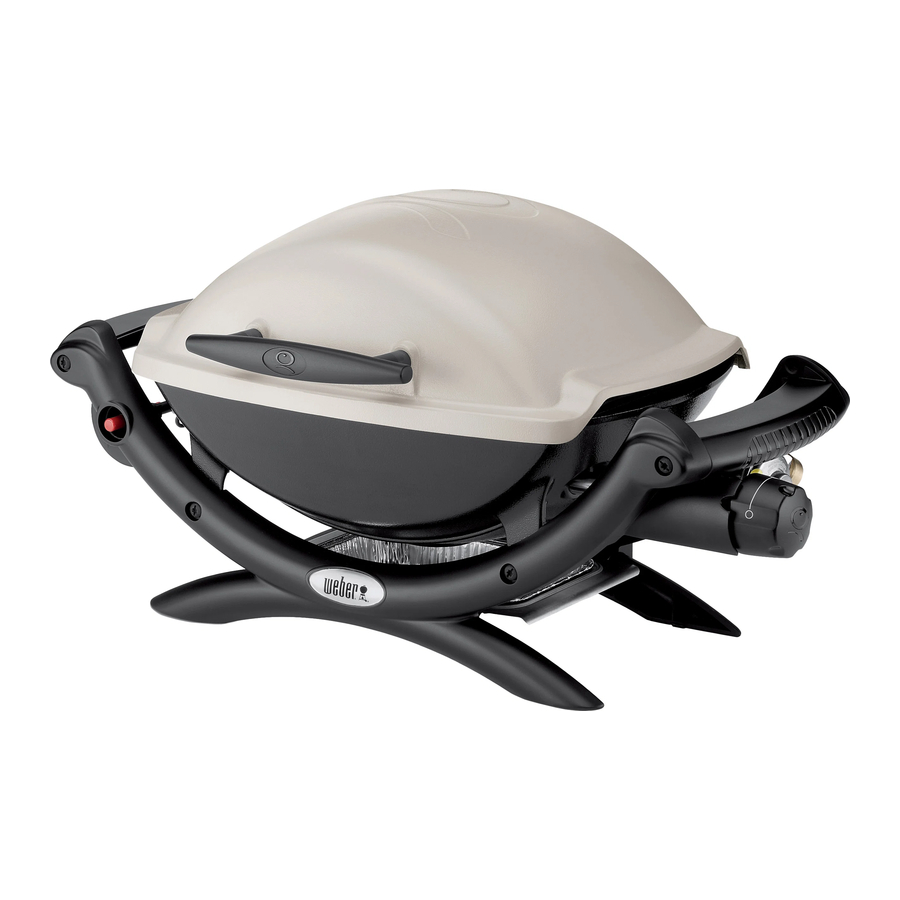

WEBER Q 1000

1. Lid
2. Handle Spacer
3. Handle
4. Cooking Grate
5. Burner Tube
6. Igniter Electrode Assembly
7. Cookbox
8. Carrying Handle
9. Rear Cradle
10. Front Cradle
11. Push Button Igniter
12. Hose Bracket
13. Valve, Hose and Regulator Assembly
14. Disposable Drip Pan
15. Removable Catch Pan
16. Control Bracket
17. Burner Control Knob

WEBER Q 1200

1. Lid
2. Thermometer
3. Handle Spacer
4. Handle
5. Cooking Grate
6. Burner Tube
7. Igniter Electrode Assembly
8. Cookbox
9. Carrying Handle
10. Rear Cradle
11. Front Cradle
12. Electronic Igniter Button/ Electronic Igniter Module
13. Hose Bracket
14. Valve. Hose and Regulator Assembly
15. Disposable Drip Pan
16. Removable Catch Pan
17. Control Bracket
18. Burner Control Knob

WEBER Q 2000

1. Lid
2. Handle Spacer
3. Handle
4. Cooking Grate
5. Left Side Table
6. Right Side Table
7. Burner Tube
8. Igniter Electrode Assembly
9. Cookbox
10. Carrying Handle
11. Rear Cradle
12. Front Cradle
13. Push Button Igniter
14. Hose Bracket
15. Valve, Hose and Regulator Assembly
16. Disposable Drip Pan
17. Removable Catch Pan
18. Control Bracket
19. Burner Control Knob

WEBER Q 2200

1. Lid
2. Thermometer
3. Handle Spacer
4. Handle
5. Cooking Grate
6. Left Side Table
7. Right Side Table
8. Burner Tube
9. Igniter Electrode Assembly
10. Cookbox
11. Carrying Handle
12. Rear Cradle
13. Front Cradle
14. Electronic Igniter Button/Electronic Igniter Module
15. Hose Bracket
16. Valve, Hose and Regulator Assembly
17. Disposable Drip Pan
18. Removable Catch Pan
19. Control Bracket
20. Burner Control Knob

PRODUCT LOCATION REQUIREMENTS

CONSIDERATIONS FOR LOCATING YOUR BARBECUE
Any enclosure in which the appliance is used shall comply with one of the following:

1. An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.

2. Within a partial enclosure that includes an overhead cover and no more than two walls.

3. Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply:

   1. at least 25% of the total wall area is completely open; and
   2. at least 30% of the remaining wall area is open and unrestricted.

• In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

IMPORTANT INFORMATION ABOUT UNIVERSAL LIQUEFIED PETROLEUM GAS

WHAT IS UNIVERSAL LIQUEFIED PETROLEUM GAS

Universal liquefied petroleum gas is the flammable, petroleum-based product used to fuel your barbecue.
It is a gas at moderate temperatures and pressure when it is not contained. But at moderate pressure inside a container, such as a cylinder, it is a liquid. As pressure is released from the cylinder, the liquid readily vaporizes and becomes gas.

• Universal liquefied petroleum gas has an odour similar to natural gas. You should be aware of this odour.
• Universal liquefied petroleum gas is heavier than air. Leaking universal liquefied petroleum gas may collect in low areas and resist dispersion.

SAFE HANDLING TIPS FOR LPG CYLINDERS

There are various guidelines and safety factors that you need to keep in mind when using universal liquefied petroleum gas. Carefully follow these instructions before using your Weber gas barbecue,

• Always close the LPG cylinder valve before disconnecting regulator.
• Do not use a damaged LPG cylinder. A dented or rusty LPG cylinder or a LPG cylinder with a damaged valve may be hazardous and should be replaced with a new LPG cylinder immediately.
• Handle "empty" LPG cylinders with the same care as you treat full LPG cylinders. Even when a LPG cylinder is empty of liquid, there may still be gas pressure inside the LPG cylinder.
• The LPG cylinder must be installed, transported, and stored in an upright position. LPG cylinders should not be dropped or handled roughly.
• Never store or transport the LPG cylinder where temperatures can reach 51°C (125°F) the LPG cylinder wilt become too hot to hold by hand). For example: do not leave the LPG cylinder in a car on a hot day.
• Leak test the fitting where the regulator connects to the LPG cylinder each time a reconnection occurs. For example: test each time the LPG cylinder is refilled and reinstalled.
• LPG cylinders must be kept out of reach of children.

STORAGE AND/OR NONUSE GUIDELINES

For barbecues that have been stored or left unused for a while, it is important to follow these guidelines:

• The gas must be turned off at the LPG cylinder when the Weber gas barbecue is not in use.

Make sure that the LPG cylinder valve is closed when the barbecue is not in use. Close by turning valve clockwise.

• If storing the Weber' gas barbecue indoors, first DISCONNECT the gas supply and store the LPG cylinder outdoors in a well-ventilated space.
• Do not store a disconnected LPG cylinder in a building, garage, or any other enclosed area.
• If you do not disconnect the LPG cylinder from the Weber gas barbecue, be sure to keep both the barbecue and the LPG cylinder outdoors in a well-ventilated area.
• The Weber gas barbecue should be checked for gas leaks and any obstructions in the burner tubes before it is used. Refer to "CHECKING FOR GAS LEAKS" and "ANNUAL MAINTENANCE"
• Check that the areas around the LPG cylinder and under the cookbox and the removable catch pan are free from debris that might obstruct the flow of combustion or ventilation air,
• The spider/insect screens should also be checked for any obstructions. (Refer to "ANNUAL MAINTENANCE.")

GENERAL SAFETY GUIDELINES

• This appliance shall only be used in an above ground, open-air situation with natural ventilation, without stagnant areas, where gas leakage and other products of combustion are rapidly dispersed by wind and natural convection.
• Refer to data plate on barbecue for gas type, consumption, pressures and injector sizing details.
• This Weber gas barbecue is not intended for commercial use.
• This Weber gas barbecue is not intended for and should never be used as a heater.
• Use only AGA approved hose assemblies.

IMPORTANT INFORMATION ABOUT LPG CONNECTIONS

WHAT IS A REGULATOR

Your Weber gas barbecue is equipped with a pressure regulator, which is a device to control and maintain uniform gas pressure as gas is released from the LPG cylinder.

REGULATOR CONNECTIONS

Your Weber gas grill is equipped with a pressure regulator, which is a device to control and maintain uniform gas pressure as gas is released from the LPG cylinder. Each Weber pressure regulator is designed for vapor withdrawal.

• The pressure regulator supplied with the Weber° gas barbecue must be used. This regulator is set for 2.75 kPa.
• Replacement pressure regulator and hose assemblies must be those specified by Weber-Stephen Products LLC.
• Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water. This vent should be free of dirt, grease, bugs, etc.

Replacement LPG cylinders must match the regulator connection supplied with this Weber gas appliance.

POL CONNECTION

1	Valve handwheel - close clockwise
2	Hose
3	Regulator
4	POL connection - tighten anticlockwise
5	Regulator vent hole - point hole downward

REPLACEMENT HOSE, REGULATOR AND VALVE ASSEMBLY

IMPORTANT NOTICE:
We recommend that you replace the gas hose assembly on your Weber gas barbecue every five years. Some countries may have requirements that the gas hose be replaced within less than five years, in which case that country's requirement would take precedence.
For replacement hose, regulator, and valve assemblies, contact the Customer Service Representative in your area using the contact information on our web site. Log on to www.weber.com.

LPG CYLINDER INSTALLATION AND REMOVAL

FUELING YOUR DEVICE

Before using your grill for the first time, you need to obtain a LPG cylinder. New LPG cylinders can be purchased full; empty LPG cylinders can be refilled or exchanged. You may choose to purchase a spare LPG cylinder so that you don't run out of fuel in the middle of cooking a meal. it

NEVER store a spare LPG cylinder under or near Weber gas appliances. NEVER fill the tank beyond 80% full. Failure to follow these statements exactly may result in a fire causing death or serious injury.

INSTALLING THE LPG CYLINDER

Use LPG cylinders with a minimum capacity of 4.5 kg and a maximum capacity of 9 kg.

Use LPG cylinders that are marked "Liquefied Petroleum Gas" only.

1. Make sure burner control knob is turned off by pushing it in and turning it clockwise to the off 101 position(1)
2. Connect the hose and the regulator to the LPG cylinder by screwing the POL coupling into the LPG cylinder valve, turning anticlockwise, or to the left (2). Hand-tighten only. The regulator vent hole should be pointing down.

Do not use a wrench to tighten the connection. Using a wrench could damage the regulator coupling and could cause a leak.

The regulator has left hand screw threads. It tightens by turning anticlockwise.

No sealant is required on the POL fitting. Do not use pipe dope, tape or any other sealant on the POL fitting or LPG cylinder.

REMOVING THE LPG CYLINDER FOR REFILLING OR REPLACEMENT

The amount of cooking time a full LPG cylinder will last varies depending on use. You do not have to run out of fuel before you can refill the LPG cylinder. In fact, we recommend that you refill the LPG cylinder before it is completely empty.

Removal of the LPG Cylinder

1. Close LPG cylinder valve (turn clockwise) (3)
2. Unscrew regulator by turning POL coupling clockwise by hand (4).

FILLING THE LPG CYLINDER

We recommend that your LPG cylinder be filled at an authorized LPG dealer, by a qualified attendant, who fills the LPG cylinder by weight. IMPROPER FILLING IS DANGEROUS.

NOTE: Be certain LPG cylinder is purged of trapped air prior to first filling. Your gas supplier is equipped to do this

The minimum LPG cylinder capacity for this barbecue is 4.5 kg.
The maximum LPG cylinder capacity for this barbecue is 9 kg.

PREPARING TO USE YOUR PRODUCT

WHAT IS A LEAK CHECK

The fuel system in your barbecue features connections and fittings. A leak check is a reliable way to make sure that no gas is escaping from any of the connections or fittings.
Although all factory-made connections have been thoroughly checked for gas leaks, its important to perform a leak check before using your barbecue for the first time, as well as anytime you disconnect and reconnect a fitting and each time you perform routine maintenance.

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property.

The gas connections of your gas barbecue have been factory tested. We do, however, recommend that you leak check all gas connections before operating your gas barbecue.

Perform these leak checks even if your barbecue was dealer or store assembled.

You should check for gas leaks every time you disconnect and reconnect a gas fitting.

NOTE. All factory-made connections have been thoroughly checked for gas leaks and the burner has been flame-tested. As a safety precaution, however, you should check all fittings for leaks before using your Weber gas barbecue. Shipping and handling may loosen or damage a gas fitting.

CHECKING FOR GAS LEAKS

You will need: A spray bottle or brush or rag and a soap and water solution. You can make your own soap and water solution by mixing 20% liquid soap with 80% water; or, you can purchase leak check solution in the plumbing section of any hardware store]

1. Make sure burner control knob is turned off by pushing it in and turning it clockwise to the off (O) position (1)

2. Turn gas supply on at source (2)


Do not ignite burner when leak checking.

3. To check for leaks, wet fittings with the soap and water solution, using a spray bottle, brush or rag. If bubbles form, or if a bubble grows, there is a leak. Apply the soap and water solution to the following connections:

   1. Regulator-to-LPG cylinder connection (3)
   2. Regulator hose-to-regulator connection (4)
   3. Valve-to-regulator hose connection (5)

If there is a leak at connection (3, 4 or 5) turn off the gas. DO NOT OPERATE THE BARBECUE. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com.

4. When leak checking is complete, turn gas supply off at the source and rinse connections with water.

NOTE: Since some leak test solutions, including soap and water: may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

Now you are ready to use your barbecue.

SAFETY CHECKS BEFORE USING YOUR PRODUCT

SAFETY FIRST

It's a good idea to get in the habit of performing a few safety checks before barbecuing.

Safety must be considered when you are deciding where to place and operate your barbecue. Be sure to read the following warnings before installing or using your barbecue.

WARNINGS:
Only use this barbecue outdoors in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.
Your Weber gas barbecue shall not be used beneath overhead combustible construction.
Your Weber gas barbecue is not intended to be installed in or on recreational vehicles and/or boats.
Keep the cooking area clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible materials.
The entire cookbox gets hot when in use. Do not touch.
Do not move the Weber gas barbecue when operating or while barbecue is hot.
When cooking, the appliance must be on a level, stable surface in an area clear of combustible material. An asphalt surface (blacktop) may not be acceptable for this purpose.

REMOVABLE CATCH PAN AND DISPOSABLE DRIP PAN

Your barbecue was built with a grease collection system, which funnels grease away from food and into a removable catch pan. For your convenience, you can also line the removable catch pan with a Weber disposable drip pan, which will help keep the removable catch pan cleaner longer.

Cleaning the removable catch pan is just as important as cleaning the cookbox. Check the removable catch pan for grease build-up each time you use your barbecue. Remove excess grease with a plastic scraper (1). Wash the removable catch pan with warm, soapy water and rinse with water

Check the removable catch pan or disposable drip pan for grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily injury or damage to property.

Do not line the cookbox, removable catch pan or disposable drip pan with aluminium foil.

HOSE INSPECTION

The hose should be inspected routinely for any signs of cracking (2)

Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorised replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com.

BURNER IGNITION & USAGE

METHODS OF BURNER IGNITION

There are two ways to ignite the burner. The first is by using the ignition system built into your barbecue. The second is with a match.
Next are the steps for igniting your barbecue using the ignition system. See below for igniting your barbecue with a match.

Summary lighting instructions are on the instruction tag (Q 1000, Q 1200) or the right fold-out table (Q 2000, Q 2200).

BURNER IGNITION

1. Open the barbecue lid (1).


Failure to open the lid before igniting the barbecue's burner, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up which can cause serious bodily injury or death.

2. Unfold the side tables (2) (Q 2000, Q 2200).

3. Make sure the burner control knob is turned to the off position (3). Check by pushing burner control knob in and turning it clockwise until it stops.

4. Turn gas supply on at source.
5. Push burner control knob in and turn it counterclockwise to start/high III position (4).

6. 1. Push the red igniter button several times, so it clicks each time (5) (Q 1000, Q2000)
      OR

   2. Push and hold in the electronic igniter button (6) (Q 1200, Q 2200). You will hear the igniter clicking.

7. Check that the burner is lit by looking through the cooking grates You should see a flame.

Do not lean over the open barbecue while igniting.

If burner fails to ignite within five seconds, stop, turn the burner control knob to off and wait five minutes to allow the gas to clear before you try again or light with a match.

TO EXTINGUISH BURNER
Push burner control knob in and turn it clockwise to the off (O) position

Do not fold in side tables until barbecue is cold (Q 2000, Q 2200).

Some batteries have a plastic protective wrap around them. This plastic must be removed before you attempt to ignite your barbecue. Do not confuse this plastic with the battery label.

LIGHTING A BURNER WITH A MATCH

1. Open the barbecue lie (1)


Failure to open the lid before igniting the barbecue's burner, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up which can cause serious bodily injury or death.

2. Unfold the side tables (2) (Q 2000, Q 2200)

3. Make sure the burner control knob is turned to the off (O) position (3). Check by pushing burner control knob in and turning it clockwise until it stops.

4. Turn gas supply on at source.
5. Strike a match and put the flame under the matchlight hole (4). While holding lit match, push burner control knob in and turn it counterclockwise to start/high ( ) position (5).

6. Check that the burner is lit by looking through the cooking grates (6) You should see a flame.

Do not lean over the open barbecue while igniting. Keep your face and body at least 30 cm (12 in) away from the matchlight hole when lighting the barbecue.

If the burner fails to ignite within five seconds, stop, turn the burner control knob to off and wait five minutes to allow the gas to clear before you try again.

TO EXTINGUISH BURNER
Push burner control knob in and turn it clockwise to the off (O) position.

Do not fold in side tables until barbecue is cold (Q 2000, Q 2200).

TROUBLESHOOTING

PROBLEMS	SOLUTIONS
Burner does not ignite when you push the igniter button	Be sure that there is gas flow to the burner by attempting to match light your burner. Refer to "LIGHTING A BURNER WITH A MATCH". If match lighting is successful, the problem lies in the ignition system. Refer to "IGNITION SYSTEM OPERATIONS" Be sure that wires are correctly inserted into terminals on igniter electrode assembly. Check that the wires are connected to terminals on the push button igniter (Q 1000, Q 2000 & Q 3100) or the electronic igniter module (Q 1200, Q 2200, Q 3200). Refer to "MAINTAINING THE PUSH BUTTON IGNITION SYSTEM" or "MAINTAINING THE ELECTRONIC IGNITION SYSTEM". If a new battery is installed, confirm that battery's plastic wrapping has been removed. Verify that the battery is in good condition and has been installed correctly. Refer to "MAINTAINING THE ELECTRONIC IGNITION SYSTEM"
Burner does not ignite, or flame is low when burner control knob is on high ( ) position.	Fuel could be low or empty. Refill LPG cylinder. Fuel hose could be bent or kinked. Straighten fuel hose.
Burner flame pattern is erratic	Clean burner ports that run down the entire length of burner tube. Refer to -ANNUAL MAINTENANCE...
Flame is low when burner control knob is on high ( ) position.
Flames do not run the whole length of the burner tube.
Burners burn with a yellow or orange flame, in conjunction with the smell of gas.	Inspect spider/insect screens for possible obstructions. (Blockage of holes.) Clean spider/insect screens. Refer to "ANNUAL MAINTENANCE."
Experiencing flare-ups Do not line the cookbox with aluminum foil.	Barbecue must be preheated with all burners on high for 10 to 15 minutes. Clean the cooking grates thoroughly to remove grease. Refer to "CLEANING THE INSIDE OF THE PRODUCT" The cookbox may be dirty and is not allowing grease to flow into removable catch pan. Clean cookbox. Refer to "CLEANING THE INSIDE OF THE PRODUCT"
Inside of lid appears to be peeling (Resembles paint peeling.)	The inside of the lid is cast aluminum. It is not painted. It cannot -peel.- What you are seeing is baked-on grease that has turned to carbon and is flaking off. THIS IS NOT A DEFECT. Clean thoroughly. Refer to "CLEANING THE INSIDE OF THE PRODUCT"

If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

ANNUAL MAINTENANCE

KEEPING YOUR PRODUCT IN TIP-TOP SHAPE

Failure to correct any problems described below may result in a fire, which can cause serious bodily injury or death, and cause damage to property.

To keep your Weber gas barbecue performing as safely and efficiently as on day one, we strongly recommend that you inspect and clean the spider/insect screen's) and burner tube's) at least once a year. Below is important information about these two areas of the barbecue that should undergo annual maintenance.

If you observe an incorrect flame pattern or blocked burner port, proceed to the "BURNER TUBE CLEANING OR REPLACEMENT" instructions below.

BURNER FLAME PATTERN

The burner tube's) in your Weber' gas barbecue was/ were factory set for the correct air and gas mixture. The correct flame pattern is shown in illustration and described below:

• Burner tubels (1)
• Tips occasionally flicker yellow (2)
• Light blue (3)
• Dark blue (4)

Check burner flame pattern. If the flames do not match the above description, it could be an indication that the spider/insect screen's) has/have become dirty or blocked.

WEBER SPIDER/INSECT SCREENS

The combustion air opening(s) of the burner tube(s) (5) is/are fitted with stainless steel screen's) to help prevent spiders and other insects from spinning webs and building nests inside the venturi section (6) of the burner tube's). These nests can obstruct the normal gas flow, and can cause gas to flow back out of the combustion air opening's) (7). Symptoms of this kind of obstruction include the odor of gas in conjunction with burner flames that appear yellow and lazy.
This obstruction could result in a fire (8) in and around the gas valve's), causing serious damage to your barbecue.

NOTE: If a spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

BURNER TUBE PORTS

Over time, from repeated use of the barbecue, the burner tube ports will become dirty. Blocked and dirty ports can restrict full gas flow. Following are ways to determine whether burner tube ports are dirty or blocked.

• Barbecue does not reach desired temperature
• Barbecue heats unevenly
• One or more of the burner(s) do not ignite

BURNER TUBE CLEANING OR REPLACEMENT

Confirm that Barbecue Is Off and Cool

1. Check that the burner control knob is in the off (O) position. Check by pushing burner control knob in and turning it clockwise until it stops.
2. Turn gas supply off at the source and disconnect gas fitting.
3. Remove the lid.
4. Remove cooking grates.

Remove Burner Tube
You will need: A 3/8" nut driver.

1. Remove the screw that holds the burner tube to the cookbox (1).

2. Carefully slide the burner tube out from the cookbox (2)


Clean Burner Tube
You will need: A flashlight, a wire la straightened-out coat hanger), a suitable stainless steel bristle brush, and a soft bristle brush [toothbrush).

1. Look inside the burner tube with a flashlight (3).

2. Clean any debris or blockage from the inside of the burner tube with the wire (4).

3. Check spider/insect screen at the end of the burner tube and clean it using the soft bristle brush (5).


Do not clean the spider/insect screen with hard or sharp tools. Do not dislodge the spider/insect screen or enlarge the screen openings.

4. Use the steel bristle brush to clean the outside of the burner tube. This is done to make sure all burner ports (openings) running along the length of the tube are fully open (6).


Do not enlarge the burner ports when cleaning.

Reinstall Burner Tube
You will need. A 3/8- nut driver

1. Carefully slide the burner tube back into hole in right side of cookbox, aligning burner tube opening with valve orifice.
2. Reinstall screw that holds the burner tube to the cookbox

The burner tube opening (7) must be positioned properly over the valve orifice (8).

You should check for gas leaks every time you disconnect and reconnect a gas fitting. Refer to "CHECKING FOR GAS LEAKS."

3. Reinstall the lid.
4. Replace cooking grates

ROUTINE MAINTENANCE

BEAUTIFUL- INSIDE AND OUT
Weber barbecue owners take a lot of pride in their barbecues. Flaunt your pride and joy. Keep your barbecue clean and beautiful—inside and out—by following these routine maintenance steps.

CLEANING THE OUTSIDE OF THE PRODUCT

To keep the outside of your barbecue looking its best, use the following guidelines for safe cleaning,

Turn your Weber gas barbecue off and wait for it to cool before cleaning it.

Painted. Enameled and Plastic Surfaces
Use a warm, soapy water solution to clean outside surfaces; then rinse with water,

Do not use cleaners that contain acid, mineral spirits, or xylene. Do not use oven cleaner, abrasive cleansers (kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

Fold-out tables (Q 2000, Q 2200) are not to be used as cutting boards.

CLEANING THE INSIDE OF THE PRODUCT

To keep your barbecue performing safely and efficiently, it is important to remove any debris and excess grease that may have accumulated on the inside of the barbecue. Use the following guidelines for safe cleaning.

Inside Lid

Flaking, built-up grease resembles paint flakes. Wipe inside of lid with paper towel to prevent grease build-up. Wash inside lid with warm, soapy water; then rinse with water.

Cookbox Components & Burner Tube

You will need: A stainless steel bristle brush, and a stiff plastic scraper.

1. Scrape and brush the cooking grates with the scraper and brush. Remove the cooking grates and set aside.

•
  Barbecue brushes should be checked for loose bristles and excessive wear on a regular basis. Replace brush if any loose bristles are found on cooking grates or brush. Weber recommends purchasing a new stainless steel barbecue brush at the beginning of every spring.
•
  Do not clean cooking grates in a self-cleaning oven.

2. Brush any debris off of burner tube. Do not enlarge burner ports (openings) running along length of burner tube (1).

3. When cleaning is complete, replace the cooking grates

Cookbox

Wash inside of cookbox with warm, soapy water; then rinse with water

Removable Catch Pan and Disposable Drip Pan

Your barbecue was built with a grease collection system, which funnels grease away from food and into a removable catch pan. For your convenience, you can also line the removable catch pan with a Weber disposable drip pan, which will help keep the removable catch pan cleaner longer.
Cleaning the removable catch pan is just as important as cleaning the cookbox. Check the removable catch pan for grease build-up each time you use your barbecue. Remove excess grease with a plastic scraper (2). Wash the removable catch pan with warm, soapy water and rinse with water.

Check the removable catch pan or disposable drip pan for grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily injury or damage to property.

Do not line the cookbox, removable catch pan or disposable drip pan with aluminum foil.

IGNITION SYSTEM OPERATIONS

The igniter supplies a spark to the igniter electrode assembly. Whether you are performing routine maintenance or a troubleshooting check on the ignition system, read the following to keep your ignition system working properly

All gas controls and supply valves should be in the OFF position.

If the igniter fails to ignite your Q barbecue, you will need to pinpoint where the problem is occurring: with the gas flow or with the ignition system. Begin by attempting to match light your burner. Refer to "LIGHTING A BURNER WITH A MATCH". If match lighting is successful, the problem lies in the ignition system

MAINTAINING THE PUSH BUTTON IGNITION SYSTEM

(Q 1000, Q 2000, Q 3100)

• Check that both the white (1) and black (2) ignition wires are attached properly.

• Verify that the igniter button pushes in, clicks and returns to the out position

MAINTAINING THE ELECTRONIC IGNITION SYSTEM

(Q 1200, Q 2200, Q 3200)

• Verify that the AAA battery (alkaline only) is in good condition and is installed correctly (3). Some batteries have a plastic protective wrap around them. This plastic must be removed before installing battery. Do not confuse this plastic with the battery label.
• Make sure that both igniter wires are property attached to the igniter module. Black wire to black terminal (4), white wire to white terminal (5).
• Make sure the electronic igniter button is working by listening for clicking and looking for sparks at burner.

If the electronic ignition system still fails to ignite, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com.

ATTENTION: This product has been safety tested and is only certified for use in a specific country. Refer to country designation

Located on outer carton. These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.

Do not attempt to make any repair to gas carrying, gas burning, igniter components or structural components without contacting Weber-Stephen Products LLC Customer Service Department. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property.

Now take a few minutes and protect it by registering your product online at www.weber.com.

WEBER-STEPHEN PRODUCTS LLC
www.weber.com
200 East Daniels Road. Palatine. Illinois 60067 U.S.A.

Documents / Resources

References

• BBQ Grills | Weber Charcoal & Gas Grills

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Weber Q 1000, Q 1200, Q 2000, Q 2200 - Barbecue Manual
