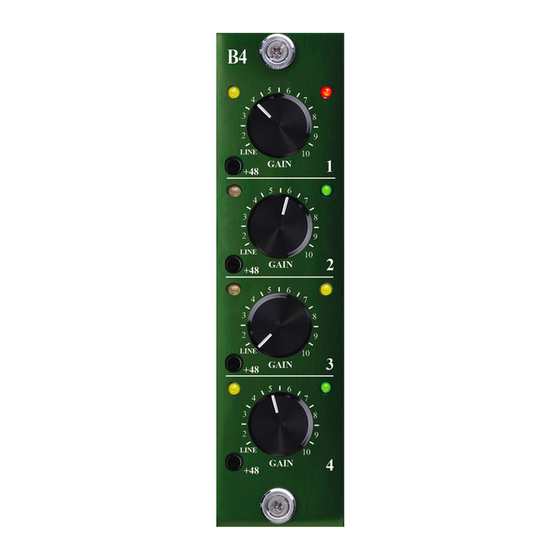

BURL B4 Quick Start Manual

Mic pre daughter card
Hide thumbs
1
2

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
MAXIMUM GAIN SETTING
56dB maximum gain with LINE level calibrated to +4dBu = -18dBFs, default
59dB maximum gain with LINE level calibrated to +4dBu = -16dBFs, highest trim level
Gain scales with calibration
Frequency Response
LINE level, 0dB Gain, -0.03dB @ 10Hz, -1.5dB @ 30kHz
Full Gain, 59dB Gain, -0.03dB @ 10Hz, -2.5dB @ 30kHz
Input Impedance
LINE 10k Ohms
MIC 2.5k Ohms
B4 MOTHERSHIP 3 rev C and later
B4 MIC PRE
DAUGHTER CARD
Calibrated to -18dBFs = +4dBu

Advertisement

loading
Need help?

Need help?

Do you have a question about the B4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BURL B4

Summary of Contents for BURL B4

  • Page 1 B4 MOTHERSHIP 3 rev C and later B4 MIC PRE DAUGHTER CARD QUICK START GUIDE Calibrated to -18dBFs = +4dBu MAXIMUM GAIN SETTING 56dB maximum gain with LINE level calibrated to +4dBu = -18dBFs, default 59dB maximum gain with LINE level calibrated to +4dBu = -16dBFs, highest trim level...
  • Page 2 1. Register Your Device Please take a moment to register serial numbers for your MOTHERSHIP chassis, all Daughter Cards, and BP-300. You must register to activate your warranty! Please visit: www.burlaudio.com/register. 2. Jumper Settings for “JP1” Jumper B - Avid Delay Matching: Installing a jumper on “B”...
