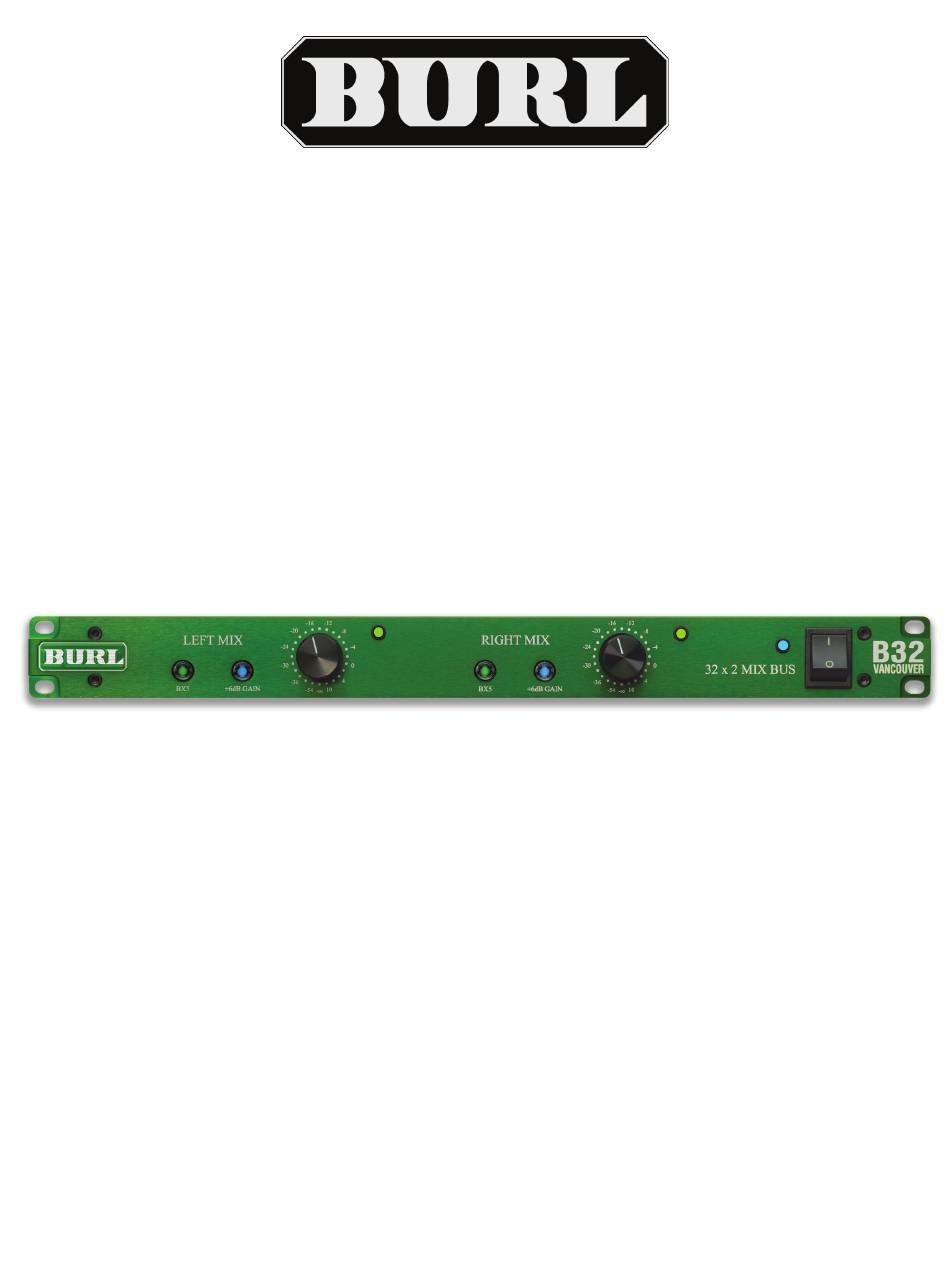

- Page 1 User Guide B32 Vancouver Mix Bus Burl Audio January 2016 info@burlaudio.com www.burlaudio.com © 2016 Burl Audio. All rights reserved MADE IN USA...
- Page 2 • Discrete, class-A signal path • 8 mono inputs, 24 stereo inputs • Audiophile 0.1% stepped attenuators • Switchable BX5 output transformer • Summing amp GAIN BOOST • Dual stereo outputs ABOUT BURL AUDIO: Founded in 2006, BURL Audio is a pro audio gear engineering and manufacturing company based in Santa Cruz,California. Based out of Paradise Recording and spearheaded by Rich Williams, BURL Audio’s gear is designed in a commercial recording studio, by professional recording engineers, for recording engineers. The philosophy of BURL Audio is to provide the best possible recording devices, in modular,v outboard units, to all levels of recording engineers at a reasonable price. All BURL Audio products are designed to improve your recording, mixdown, and mastering significantly. BURL Audio’s products are designed to be a life-long asset to your studio. BURL Audio is dedicated to bringing you ground-breaking studio gear that will change your life. This B32 was forged from BURL Audio’s deep dedication to analog class-A circuitry. The result is not only heard, it is felt. Burl is also defined as a tough, yet beautifully knotty base of 2000 year old redwood tree trunks. Burly is the heavy surf and fog that descends without warning over Santa Cruz, California. Burly is 32 channels of B80 Mothership into the B32...
- Page 3 B32 VANCOUVER QUICK START UNPACK AND CONFIRM VOLTAGE: Remove the B32 from the box. Before racking and plugging in the B32, confirm the voltage setting of the B32 is correct for your region. From above the unit, look through the lid to see if it’s set to 115V or 230V. If voltage is set correctly, skip to page 4. Powering the unit up at 220V while the unit is set to 115V will result in a blown fuse and the unit will not power up.
- Page 4 Start to experiment to find the sweet spot Add BX5 output transformers. Add +6 dB Gain and attenuate the B32 down 6dB on each side. NOTE: When mixing back into a Burl Audio B2 Bomber or Mothership experiment with the output level of the B32, to saturate the input transformers more or less. Enjoy! Burl Audio products are all Class-A, discrete circuits, with no capacitors in the signal path, made in Santa Cruz CA.

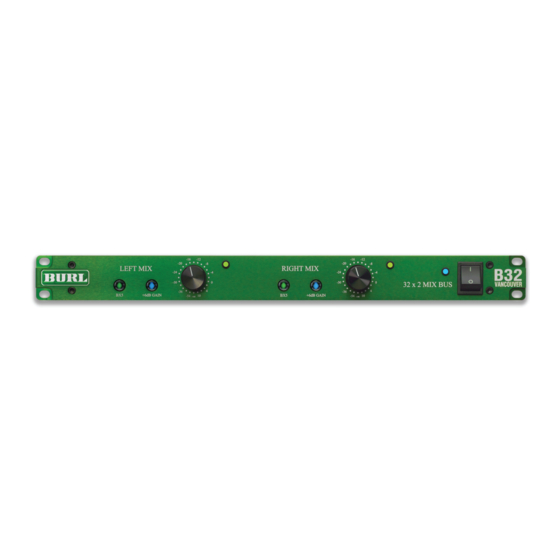

- Page 5 B32 VANCOUVER FRONT PANEL: 1. Left BX5 Switch: Engages proprietary Burl Audio BX5 Nickel core output transformer. 2. Left +6dB Gain Boost: Engages +6db gain boost through the summing amplifier. 3. Left Attenuator: 24 step audiophile resistor matched attenuator with .01% variance. Allows for proper imaging at all levels. 4. Gain LED: Tri Color LED shows gain at the summing amplifier. 5. Right BX5 Switch: Engages proprietary Burl Audio BX5 Nickel core output transformer.
- Page 7 PINOUT FOR MALE XLR BALANCED OUTPUTS PINOUT FOR TASCAM DB25 8 CHANNEL BALANCED INPUTS B32 CIRCUIT DIAGRAM (SIMPLE)
