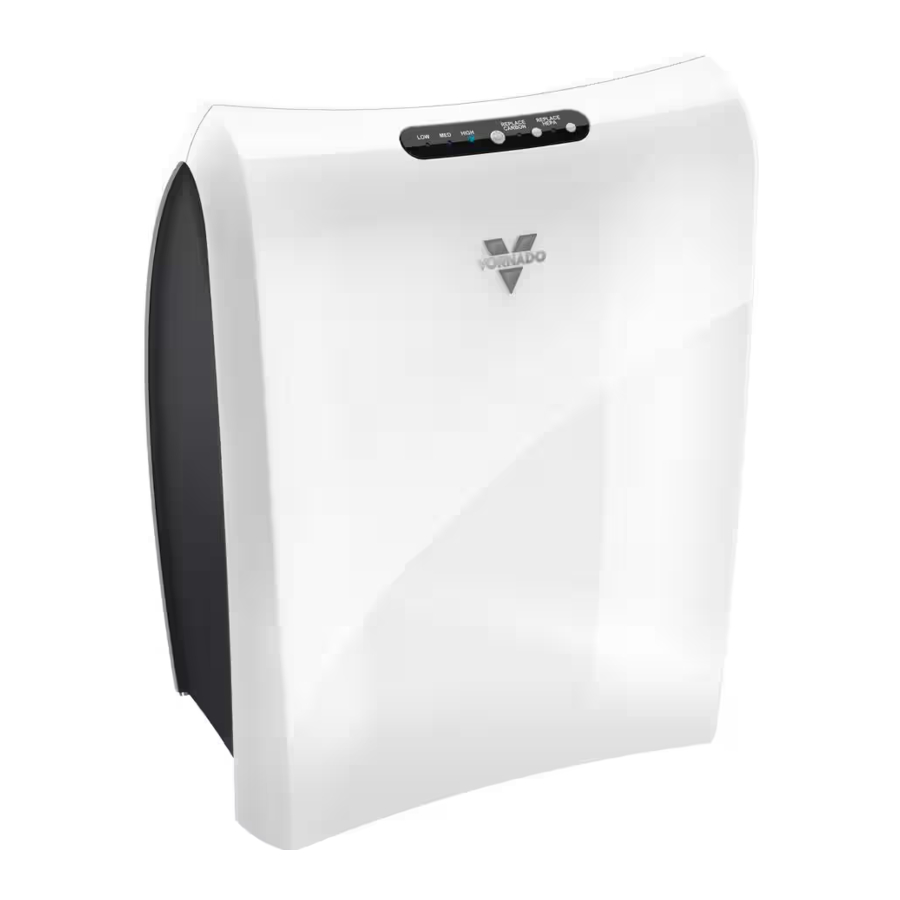

Vornado AC350 (AC1-0038-43, AC1-0039-43) - Whole Room Air Purifier Manual

Introduction

The Vornado Difference
Filter All The Air

An air purifier, even at 99.97%* capture rate, is only effective if it is able to pull large volumes of air through the unit and dispurse the purified air throughout the room. Vornado has combined a powerful blower with precise aerodynamics, to effectively clean all the air in the room. With Vornado's two stage Carbon and True HEPA filtration – the air leaving the unit is 99.97%* filtered of airborne particles such as dust, pollen, dander, smoke, bacteria, mold spores and dust mite debris.
*0.3 microns or larger.

True HEPA Filtration

What is CADR?
CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of the air purifer at capturing fine particles. Higher CADR rates indicate improved performance in all room sizes.
Note: This air cleaner is suggested for use in a single, closed room up to 220 square feet. Portable air cleaners will be much more effective in rooms when all the doors and windows are closed.
Tested per ANSI/AHAM AC-1 National Standard.

Vornado Whole Room Air Purifiers Feature Precision True HEPA Calibration
Without properly calibrated airflow, products with a True HEPA Filter will not achieve their full filtration potential. Gaps, poorly sealed filter housings, and excessive air velocity all reduce the effectiveness of the product. Independent testing laboratory verifies that the precise calibration of a Vornado Air Purifier allows it to perform at True HEPA standards.

Understanding CADR

Product Information

1. Front Panel
2. Plastic Support Filter Frame
   The frame secures both Carbon and HEPA Filters in place.
3. Carbon Filter
   Captures larger initial particles and odors passing through the unit.
4. HEPA Filter
   Captures 99.97% of particles 0.3 microns or larger passing through the unit, allowing only filtered air back into the environment.
5. Control Panel
   Push button controls for easy and intuitive operation.
6. Power Cord
   Convenient 6 ft. cord.

How to Use

1. Power, Function ON and OFF by pressing the Power button.
2. Fan Speed, 3 fan speed settings to meet any need. Select Low, Medium, or High by pressing the Power button until desired speed is illuminated.
   Note: Dust and allergens are most airborne when persons and pets are active in the room. For best results, set the unit on a higher speed setting during these times for high demand cleaning and circulation. Set the unit to a lower setting for quieter operation when activity is reduced.
3. Carbon Filter Replacement, Equipped with Replace Carbon filter indicator light to show when it is recommended to change the carbon filter. Please refer to FILTER RE- PLACEMENT for instructions. This feature is controlled by time of use. The light will illuminate after 4,000 hours of run time has accumulated.
4. HEPA Filter Replacement, Equipped with Replace HEPA filter indicator light to show when it is recommended to change the HEPA filter. Please refer to FILTER REPLACE- MENT for instructions. This feature is controlled by time of use. The light will illuminate after 9,000 hours of run time has accumulated.
   Note: User environments will differ. The filter replacement time is based on average use situations, if you are using the air cleaner in a more demanding environment, you may need to change your filter more frequently. In less polluted environments the filter life may extend beyond the notification.

Filter Replacement

Genuine Vornado Filters Are Recommended
Peak performance is only realized when genuine Vornado Carbon and HEPA filters are used. Others may claim to be compatible with Vornado units, but the Vornado Air Purifier is calibrated to achieve a 99.97% capture rate of particles 0.3 microns or larger, only when used with Vornado Filters.

How To Replace Your Filters

1. Unplug unit.
2. Remove Front Panel by lifting up and away from unit.

   Note: The Front Panel is held in place by magnets, you will need to lift the Front Panel hard enough to overcome the resistance of the magnets.
3. Remove the Plastic Support Filter Frame by pulling on the center tabs (A). You may need to flex the Plastic Support Filter Frame slightly to release the tabs at the top and bottom.

4. Remove and discard used Filters. Simply take hold of the Carbon Filter at any place along the perimeter and remove. To remove the HEPA Filter, take hold of the tab (Figure 1) and pull to release. Replace with genuine Vornado Filters. Place the Filters in the unit and gently press around the perimeter of the Filter to ensure secure placement (Figure 2).

5. Replace the Plastic Support Filter Frame by securing the bottom 2 tabs into bottom slots (B). Slightly flex the Plastic Support Filter Frame to secure the top 2 tabs into the top slots (A).

6. Replace Front Panel by positioning the Panel slightly above the unit and aligning the tabs of the Front Panel with the holes in the unit (A). Gently press the Front Panel down, sliding into the tab slots and allowing the magnets to securely lock the Front Panel in place.

   Safety Shut-Off Feature
   For your protection, the unit is designed to operate only if the Front Panel is in place. Do not attempt to override this safety feature. If, after the Front Panel has been removed, the unit does not operate, remove and reinstall the Front Panel to assure proper placement.
7. To reset the Replace Filter notification - press and hold the REPLACE CARBON or REPLACE HEPA button, depending on which filter was replaced, for at least 3 seconds. The light will turn off confirming the indicator is reset.

   Note: Do not operate the Air Purifier without Vornado Carbon and Vornado HEPA Filter in place.

Automatic Filter Refill Program
A convenient way to receive regular shipments of Vornado Filters, direct to your door.
Cancel at anytime. To sign up:
www.vornado.com
consumerservice@vornado.com
1-800-234-0604

HEPA Filter Part # MD1-0022
Carbon Filter Part # MD1-0023

Cleaning and Maintenance

How to Clean

Because large volumes of air pass through your Vornado Air Purifier each day, it will need regular cleaning.

1. Unplug the unit before cleaning.
   Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning.
2. Wipe down with a soft, damp cloth.

3. Dust or vacuum the interior and along the sides. It is recommended to clean the interior when the filters are changed.


Other Maintenance

The motor is permanently lubricated so it needs no service. No other serviceable parts, other than filters, are contained within the unit.

User Tips

1. Keep retail carton to store unit when not in use.
2. Use the hand holds on either side of the unit for easy carrying.

3. For best results, position the front of the unit (side with logo) towards the center of the room, leaving at least a 6 inch distance away from walls or furniture on every side.

Note: For optimum airflow, air outlet should be unobstructed. Ensure curtains and other items are far enough away from the unit to not be pulled in side inlets or interfere with airflow.

Troubleshooting

Storage

Follow the steps below when you are ready to store your unit.

1. Unplug power cord and bundle loosely.
2. Lift unit with both hands, using hand holds. Refer to USER TIPS.
3. Cover, or place back in retail carton if available. This will prevent the unit from accumulating dust overtime.
4. Store unit in a cool and dry location.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
This appliance has a polarized plug. (One blade is wider than the other.) To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

To reduce the risk of fire or electric shock, do not use this product with any solid state control device. Unplug the appliance from the power supply before cleaning, moving or servicing.

• †Do unplug your Vornado Air Purifier before cleaning.
• †Do clean your Vornado Air Purifier regularly. Refer to the Cleaning and Maintenance instructions provided. Never clean the Vornado Air Purifier in any manner other than as instructed in this manual.
• †Do Not tamper with or modify this product in any way.
• †Do Not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning.
• †Do Not immerse this product in water or allow water to drip into the motor housing.
• †Do Not use near furnaces, fireplaces, stoves or other high temperature heat sources.
• †Do Not block the top air vent so purified air cannot be circulated throughout the room.
• Do Not use this product outdoors.
• †Do Not use this product on wet surfaces.
• †Do Not use this product in a bathtub or shower.
• †Do Not operate any purifier with a damaged cord or plug. Discard purifier or return to an authorized service facility for examination and/or repair.
• †Do Not carry this product by the cord, or use the cord as a handle.
• †Do Not attempt to repair or replace parts, except for Filters.
• †Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• †Do use common sense when using this product and/or any electrical appliance.

The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use, or unauthorized product modification. Any such actions will invalidate the product warranty.
