AT&T Bell System Dataspeed 5A Installation Manual

(

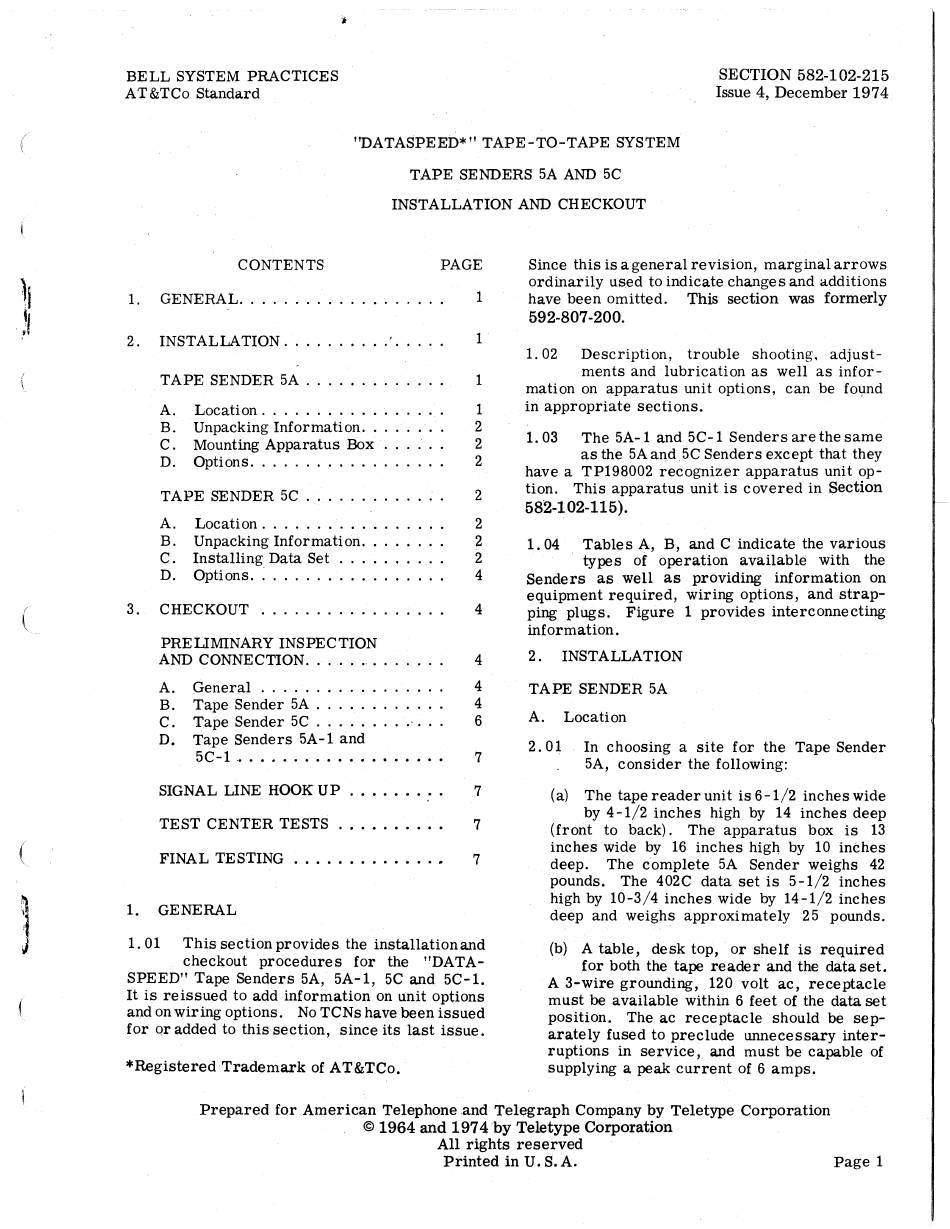

BELL SYSTEM PRACTICES
AT &TCo Standard
SECTION 582-102-215
Issue 4, December 1974
"PATASPEEP*" TAPE-TO-TAPE SYSTEM
TAPE SENOERS 5A ANO 5C
INSTALLATION ANO CHECKOUT
1.
2.
CONTENTS
GENERAL ....... .
PAGE
1
INSTALLATION ....... .
TAPE SENDER 5A . . . . . . . . . .
A. Location ............. .
B. Unpacking Information .... .
C. Mounting Apparatus Box .. .
D. Options .............. .
1
1
1
2
2
2
TAPE SENDER 5C . . . . . . . . . . . . . 2
A. Location ................ .
B. Unpacking Information ....... .
C. Installing Data Set . . . . . . . . ..
D. Options ................ .
2
2
2
4
3. CHECKOUT ............. .
4
PRELIMINARY INSPECTION
ANO CONNECTION ....... .
A. General ................ .
B. Tape Sender 5A ........... .
C. Tape Sender 5C ......... · .. .
D. Tape Senders 5A-l and
5C- l ..............•.....
4
4
4
6
7
SIGNAL LINE HOOK UP ........ · . 7
TEST CENTER TESTS . . . . . . . . . . 7
FINAL TE STING . . . . . . . . . . . . . • 7
1. GENERAL
1. 01 This section provides the installationand
checkout procedures for the "DATA-
SPEEP" Tape Senders 5A, 5A-1, 5C and 5C·l.
It is reissued to add information on unit options
and on wiring options. No TCNs have been issued
for qr added to this section, since its last issue.
*Registered Trademark of AT&TCo.
Since this is a general revision, marginal arrows
ordinarily used to indicate changes and additions
have been omitted. This section was formerly
592-807-200.
1. 02 Description, trouble shooting, adjust-
ments and lubrication as well as infor-
mation on apparatus unit options, can be fo9-nd
in appropriate sections.
1. 03 The 5A-1 and 5C-1 Senders are the same
as the 5A and 5C Senders except that they
have a TP198002 recognizer apparatus unit op-
tion. This apparatus unit is covered in Section
582-102-115).
1. 04
Tables A, B, and C indicate the various
types of operation available with the
Senders as well as providing information on
equipment required, wiring options, and strap-
ping plugs. Figure 1 provides interconnecting
information.
2. INSTALLATION
TAPE SENDER 5A
A. Location
2. 01 In choosing a site for the Tape Sender
5A, consider the following:
(a) The tape reader unit is 6-1/2 inches wide
by 4-1/2 inches high by 14 inches deep
(front to back). The apparatus box is 13
inches wide by 16 inches high by 10 inches
deep. The complete 5A Sender weighs 42
pounds. The 402C data set is 5-1/2 inches
high by 10-3/4 inches wide by 14-1/2 inches
deep and weighs approximately 25 pounds.
(b) A table, desk top, or shelf is required
for both the tape reader and the data set.
A 3-wire grounding, 120 volt ac, receptacle
must be available within 6 feet of the data set
position. The ac receptacle should be sep-
arately fused to preclude unnecessary inter-
ruptions in service, and must be capable of
supplying a peak current of 6 amps.
Prepared for American Telephone and Telegraph Company by Teletype Corporation
©
1964 and 1974
by Teletype Corporation
All rights reserved
Printed in U.S. A. Page 1
