Nux B-5RC - 2.4GHz Wireless System for Guitar / Bass Manual

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

The lightning symbol within a triangle means, "Electrical caution!" It indicates the presence of information about operating voltage and potential risks of electrical shock.

The exclamation point within a triangle means, "Caution!" Please read the information next to all caution signs.

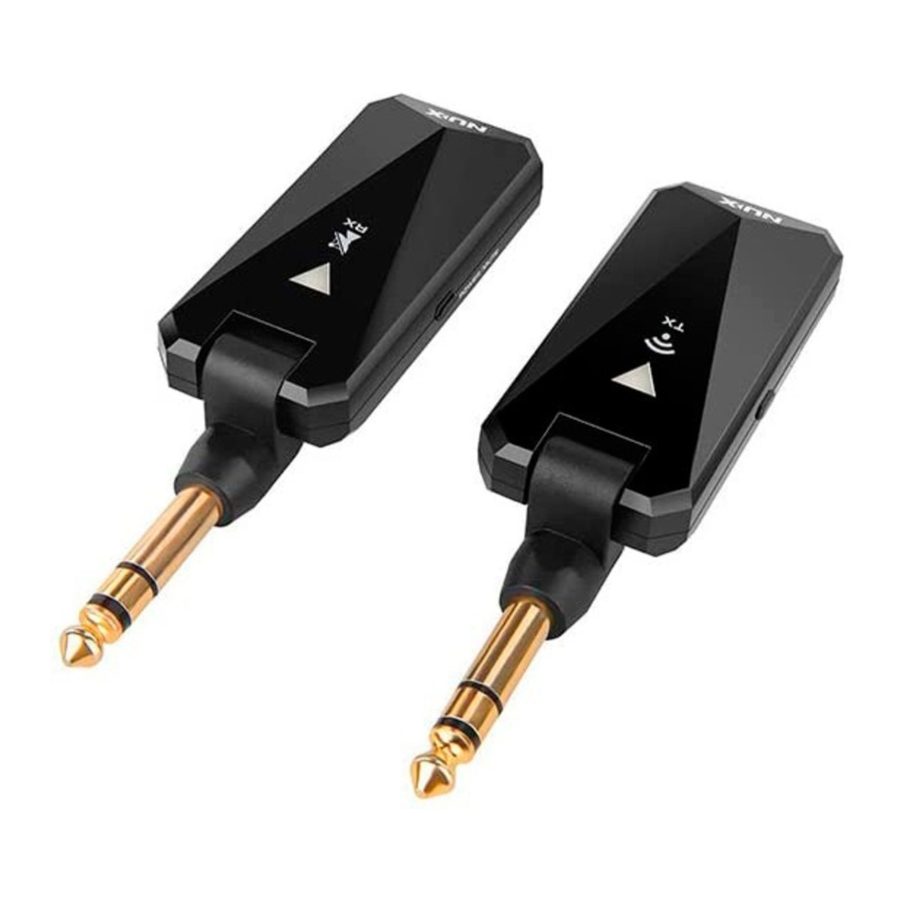

NUX B-5RC wireless guitar system features with automatic setup, 2.4 GHz interference free broadcasting frequency and 24-bit 44.1 kHz high quality audio transmitting. The signal latency is super low and less than 5 ms. The operation range is around 15 meters 45-feet). It's a super light-weight wireless, mini compact design that fits all types* of electric guitar, electric-acoustic guitar, bass guitar, and ukulele.

*Tested on 25 variety of different instruments, body types, and brands.

The user-friendly matching system makes it easier to use, just turn ON both wireless units and it will be paired within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs. The signal never interferes with any other wireless including the WIFI*signal.

*Recommended: Please stay 2 meters (6 feet) away from the WIFI router for the best performance.

NUX B-5RC comes with the power case to keep the wireless unit charged. When the power case is fully charged, it can re-charge the wireless unit's battery 2-3 times.

How to operate

• Push and hold the power button to turn ON the transmitter and receiver.
• Before it gets paired automatically, you can see the battery status; if the triangle LED:
  • Blinks GREEN - Well Charged (100%~75%)
  • Blinks YELLOW -Medium Battery (75% ~ 50%)
  • Blinks RED- Lower Battery (50% ~ 25%)
  • Flashing RED for 10 times —Low Battery (<25%), turn off automatically to protect battery life.

*Regularly B-5RCcould work around 3.5 hrs since full-charged to low battery.

• After 2 seconds, it will be paired automatically, and the receiver triangle LED status will flash GREEN.
  * (B-5RC will detect the best channel in 2.4GHz frequency band, if the transmitter and receiver get paired, both will show GREEN. If the receiver doesn't receive signal, receiver's LED will flash RED.Since the receiver receive the signal, it will show GREEN.)


• Connect the transmitter to your instrument output, and connect the receiver to the unit where you want to send the signal (amplifier, pedal, audio interface or mixer, etc.)


Please turn off the unit (both the transmitter and the receiver.) and put them back to the power case each time after you use it. If the unit's battery is running low, you can press the power button on the power case to active its charging function. Once the unit is fully charged, the charging function will be shut down automatically. Do remember to recharge the power case once you noticed that there is only 1 indicator light on (low capacity indicator).

NOTICE: To recharge the power case, please make sure that your power adapter has a power output of 5V and IA (or higher).

• You can charge the wireless units directly by using the micro-B USBY cable (included)


NOTICE: ID MATCH-B-5RC already sets ID matched before shipping, but if you want to use different transmitter or receiver to get paired, please follow the steps to re-set ID match. Turn off the devices, hold the power button of transmitter and receiver for more than 5 seconds, then it will enter to ID match status. Since the receiver blink from RED to GREEN,it finishes ID match.

Function Introduction

Mute function

• While B-5RCworks, press transmitter's power button once, it will enter to MUTE, then the transmitter and receiver will show RED.
• Press transmitter's power button again, it will go back to work status. The transmitter and receiver will show GREEN.


Cabletone function

While B-5RC works, press receiver's power button, the receiver will enter to Cabletone mode.(Receiver's LED indicator will become "Orange".) It simulates around 21 feet (6.4 meters) length cable capacitor effect. (The default is "Regular" mode, if you need Cabletone, please operate the process manually.)

Auto Off function

If there is no signal till 10 minutes, B-5RC will turn off automatically to save battery power.

NOTE: W hile you are charging with USB port, B-5RCwill stop working, and go to battery charging. LED shows RED as charging, while it's full charged RED LED will turn off.

Specifications

• 2.4 GHz operating frequency
• 24bit 44.1 kHz audio quality
• Low latency signal transmitting, less than < 5ms
• Frequency response 20Hz—20kHz
• THD+ Noise <0.05% 1kHz @ -10dbFS
• Auto-sleep mode
• Transmitter and receiver: 3.711/500 mAh
• Battery run time 3.5 hours (approx)
• Power case: 4000 mAh
• Both wireless units can be charged3+ times
• Dimensions: 107(L)x25(W)x26(H) mm
• Weight: 68g

*Specifications and appearance subject to change without notice.
