Razer BLACKWIDOW V3 PRO - Gaming Keyboard Manual

INTRODUCTION

The world's first and most iconic mechanical keyboard makes its next game-changing evolution. Enter a new wireless meta with the Razer BlackWidow V3 Pro - with 3 modes of connection for unrivalled versatility, and a satisfying typing experience comprised of best-in-class switches and full-height keys,

WHAT'S INSIDE

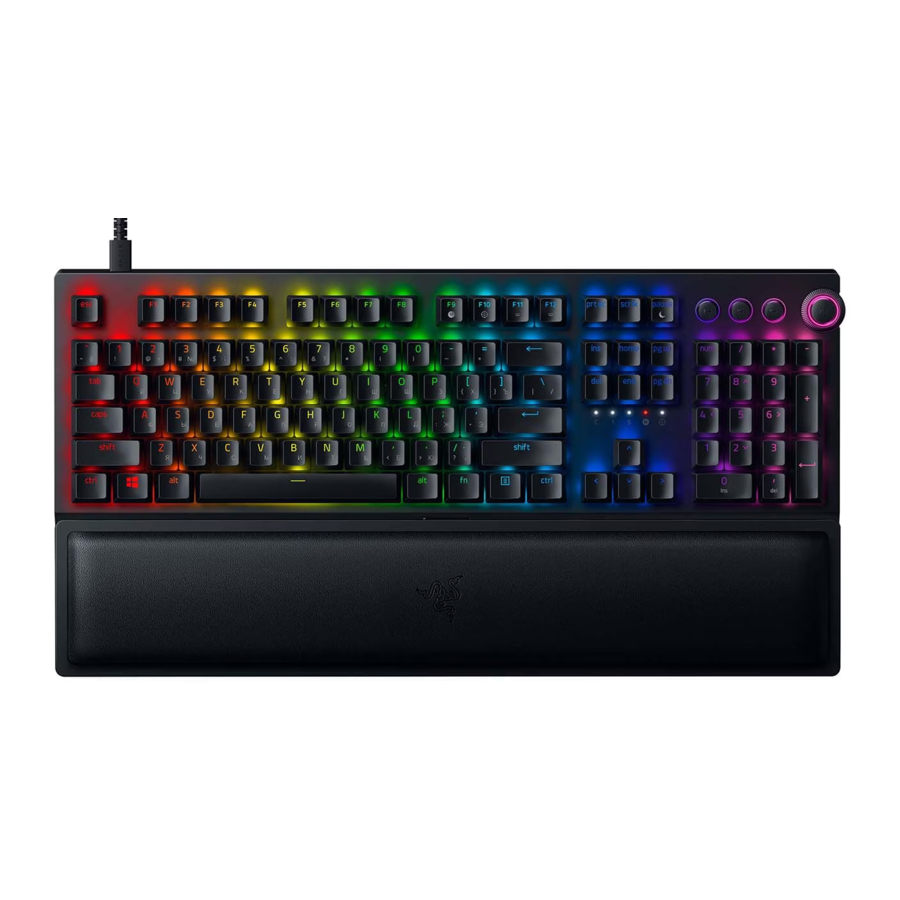

• Razer BlackWidow V3 Pro

  1. Mode switch (2.4 / OFF / BT)
  2. Power indicator
  3. On-the-fly macro record key
  4. Gaming mode key
  5. Backlight control keys
  6. Sleep mode key
  7. Media control buttons
  8. Multi-Function Digital Dial
  9. LED indicators
  10. Type C port
  11. Wireless USB dongle compartment
  12. Kickstand
• 2.4GHz wireless USB dongle

• Type A to Type C cable

• Ergonomic wrist rest

• Important Product Information Guide

WHAT'S NEEDED

PRODUCT REQUIREMENTS

• PC with a free USB Type A port or Bluetooth 4.0 connectivity

RAZER SYNAPSE REQUIREMENTS

• Windows 7 64-bit (or higher)
• Internet connection for software installation

LET'S GET YOU COVERED

You've got a great device in your hands, complete with a 2-year limited warranty coverage. Now maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com

Got a question? Ask the Razer Support Team at support.razer.com

TECHNICAL SPECIFICATIONS

FEATURES

• Razer HyperSpeed Wireless Technology
• Razer Mechanical Switches designed for gaming
• 80 million keystroke lifespan
• Razer Chroma customizable backlighting with 16.8 million color options
• Ergonomic wrist rest
• Multi-function digital dial
• 4 dedicated media keys
• Hybrid On-Board Memory and Cloud Storage — up to 5 profiles
• Razer Synapse 3 enabled
• N-key roll-over
• Fully programmable keys with on-the-fly macro recording
• Gaming mode option
• 1000 Hz Ultrapolling
• Aluminum construction

APPROXIMATE SIZE & WEIGHT

Without Wrist Rest

• Length: 450.7 mm / 17.7 in
• Width: 157.9 mm / 6.2 in
• Height: 43.2 mm / 1.7 in
• Weight: 1144.5 g/ 2.5 lbs

With Wrist Rest

• Length: 462.2 mm / 18.2 in
• Width: 225.1 mm / 9.7 in
• Height: 43.2 mm / 1.7 in
• Weight: 1244 g/ 2.7 lbs

GETTING STARTED

CHARGING YOUR DEVICE

Connect your keyboard to a powered USB port using the Type A to Type C cable to charge your keyboard. The status indicator will turn solid green when the keyboard is fully charged.

For best results, fully charge your keyboard before using it for the first time. It takes approximately 2 hours to fully charge your keyboard. You may continue using the keyboard while plugged in.

When your keyboard is not charging, the power indicator will only briefly display its battery status.

*Critical status indicates that the keyboard's battery is less than 3%.This lighting sequence will repeat until the battery is drained or the keyboard is being charged.

CONNECTING YOUR DEVICE

2.4 GHZ MODE

1. Set the mode switch to 2.4.

2. Remove the wireless USB dongle from the dongle compartment and connect it to your computer.

BT MODE

1. Set the mode switch to BT.

2. Your Razer BlackWidow \/3 Pro can pair up to 3 devices. To activate pairing mode, hold down one of the key combinations shown below for 5 seconds until its corresponding LED indicator blinks.

Profile	Key combinations	LED indicators
1
2
3

3. Enable Bluetooth on your device and select BlackWidow Pro from the list of devices found. The device will pair with your keyboard and the connection will be registered on the active profile.


Your keyboard will reconnect to the last paired device after it has been powered on again. To switch devices, simply press the keys that correspond to the device's profile number.

WIRED MODE

1. Set the mode switch to OFF.

2. Connect your Razer device to the USB port of your computer.


Install Razer Synapse 3 when prompted or download the installer from razer.com/synapse.

USING YOUR UNIT

MEDIA CONTROL BUTTONS

Use the media control buttons to play/pause ( ) a track or skip tracks backward ( ) and forward ( )

MULTI-FUNCTION DIGITAL DIAL

By default, you may rotate the Multi-function digital dial to increase/decrease the audio output volume or press the dial to mute/unmute the audio output. The dial will light up in red when the audio output is muted.

ON-THE-FLY MACRO RECORDING

Follow these steps to create an OTF Macro Recording:

1. Press the key combination to start recording.
2. The Macro Recording Indicator will light up to show that the device is ready to record.
3. Type in the keys you want to record.
4. Press the key combination to stop the recording or the ESC key to cancel recording. The Macro Recording Indicator will start blinking to show that the device has stopped recording and is ready to save the macro.
5. Press the desired key where you want to save your macro.

GAMING MODE

The Gaming Mode disables the Windows Key function to avoid accidental usage. Furthermore, you can maximize the effect of Anti-Ghosting by activating the Gaming Mode function. You can also choose to disable the Alt + Tab and Alt + functions by changing the Gaming Mode settings in Razer Synapse 3. An indicator will light up when Gaming Mode is active.

CONFIGURING YOUR UNIT

Disclaimer: The, features listed here require you to log into Razer Synapse 3. These features are also subject to change based on the current software version and Your Operating System.

SYNAPSE TAB

The Synapse tab is your default tab when you first launch Razer Synapse 3.

Dashboard
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer devices, modules, and online services.

Modules
The Modules subtab displays all installed and available modules for installation.

Global Shortcuts
Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse-enabled device inputs which apply across all device profiles.

Only Razer Synapse-enabled device inputs will be recognized.

KEYBOARD

The Keyboard tab is the main tab for your Razer BlackWidow \/3 Pro. From here, you can change your device settings such as key assignments, gaming mode settings, and your device's lighting. Changes made under this tab are automatically saved to your system and cloud storage.

Customize

The Customize subtab is for modifying your keyboard's key assignments and gaming mode settings.

Profile
Profile is a data storage for keeping all your Razer peripheral's settings. By default, the profile name is based on your system's name. To add, import, rename, duplicate, export, or delete a profile, simply press the profile's corresponding Miscellaneous button ( )

Hypershift
Hypershift mode is a secondary set of key assignments that is activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse 3 supported keyboard however, you can also assign any key as a Hypershift key.

Gaming Mode
Gaming Mode enables you to customize which keys to disable when Gaming Mode is activated. Depending on your settings, you may choose to disable the Windows key, Alt + Tab and Alt + F4.

Keyboard Properties
Allows you to open the Windows Keyboard Properties where you can modify other keyboard settings such as Repeat delay, Repeat Rate, and Cursor blink rate, or view all keyboard drivers installed in your PC.

Sidebar
Clicking the Sidebar button ( ) will reveal all current key assignments for your Razer BlackWidow V3 Pro.

Alternatively, you can skip to a specific key assignment by selecting it on the Customize tab.

Upon selecting a key assignment, you may then change it to one of the following functions:

Default
This option enables you to return the selected key to its original setting.

Keyboard Function
This option changes the key assignment into a keyboard function. You can also choose enable Turbo mode which allows you to emulate repeatedly pressing the keyboard function while the key is held down.

Mouse Function
This option allows you to change any key into a mouse function. Listed below are the functions which you can choose from:

• Left Click - Performs a left mouse click using the assigned button.
• Right Click - Performs a right mouse click using the assigned button.
• Scroll Click - Activates the universal scrolling function.
• Double Click - Performs a double left click using the assigned button.
• Mouse Button - Performs a "Backward" command for most internet browsers.
• Mouse Button 5 - Performs a "Forward" command for most internet browsers.
• Scroll Up - Performs a "Scroll Up" command using the assigned button.
• Scroll Down - Performs a "Scroll Down" command using the assigned button.
• Scroll Left - Performs a "Scroll Left" command using the assigned button.
• Scroll Right - Performs a "Scroll Right" command using the assigned button.

You can also choose to enable Turbo mode in some of the mouse functions which allow you to emulate repeatedly pressing and releasing said function while the key is held down.

Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the key function to Macro, you can conveniently execute a chain of commands. Do take note that this function will only be visible if you have installed the Macro module from the Modules tab.

Switch Profile
Switch Profile enables you to quickly change profiles and load a new set of key assignments. An on-screen notification will appear whenever you switch profiles.

Switch Lighting
Switch Lighting allows you to easily switch between all advanced lighting effects. Do take note that this function will only be visible if you have installed the Chroma module from the Modules tab.

Razer Hypershift
Setting the key to Razer Hypershift will allow you to activate Hypershift mode as long as the key is held down.

Launch Program
Launch Program enables you to open an app or a website using the assigned key. When you select Launch Program, two choices will appear which requires you to search for a specific app you want to open, or write the address of the website you want to visit.

Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:

• Volume Down - Decreases the audio output.
• Volume Up - Increases the audio output.
• Mute Volume - Mutes the audio.
• Mic Volume Up - Increases the microphone volume.
• Mic Volume Down - Decreases the microphone volume.
• Mute Mic - Mutes the microphone.
• Mute All - Mutes both microphone and audio output.
• Play / Pause - Play, pause, or resume playback of the current media.
• Previous Track - Play the previous media track.
• Next Track - Play the next media track.

Windows Shortcuts
This option allows you to assign your preferred key into a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kb/126449

Text Function
Text Function enables you to type a prewritten text with a touch of a key. Simply write your desired text on the given field and your text will be typed whenever the assigned key is pressed. This function has full Unicode support and you can also insert special symbols from character maps.

Disable
This option renders the assigned key unusable. Use Disable if you do not want to use the selected key or if it interferes with your gaming.

Lighting

The Lighting subtab enables you to modify your Razer device's light settings.

Brightness
You can turn off your Razer device's lighting by toggling the Brightness option or increase/decrease the luminance using the slider.

Switch Off Lighting
This is a power saving tool which allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer BlackWidow \/3 Pro has been idle for a set amount of time.

Quick Effects
A number of quick effects can be selected and applied to your device's lighting, as listed here:

Only devices that support the selected lighting effect will synchronize. LED indicators are not customizable.

If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ( )

Studio Effects
The Studio Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the Chroma CHROMA STUDIO Studio button ( )

Power

The Power subtab allows you to manage your device's energy consumption when running on batteries.

Dim Lighting
Set how long your device should be idle before it lowers its brightness.

Power Saving
Set your device to enter sleep mode when it has been idle for a certain amount of time.

PROFILES TAB

The Profiles tab is a convenient way of managing all your profiles and linking them to your games and applications.

Devices

View which games are linked to each device's profiles or which Chroma Effect is linked to specific games using the Devices subtab.

You can import Profiles / Chroma Effects from your computer or from the cloud through the import button( ), or create new profiles within the selected device or new Chroma Effects for specific games using the add button ( ).To rename, duplicate, export, or delete a profile, simply press the Miscellaneous button ( ). Each profile and/or Chroma Effect can be set to automatically activate when you run an application using the Linked Games option.

Linked Games

The Linked Games subtab gives you the flexibility to add games, view peripherals that are linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here even if it is not linked to a Razer device.

To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with.
Once linked, you may click on the Miscellaneous button ( ) of the corresponding Chroma Effect or device to select a specific Chroma Effect or profile.

SETTINGS WINDOW

The Settings window, accessible by clicking the ( ) button on Razer Synapse 3, enables you to configure the startup behavior and display language of Razer Synapse 3, view the master guides of each connected Razer device, or perform factory reset on any connected Razer device.

General tab
The default tab of the Settings window. The General tab enables you to change the software's display language, start-up behavior, and display theme; or view the master guide of all connected Razer devices. You may also manually sync your profiles to the cloud ( ) or view the master guide of all connected Razer devices.

Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse 3 tutorials to acquaint yourself again with Razer Synapse 3's new features on its next launch.

By resetting a Razer device, all profiles stored on the selected device's on-board memory will be erased.

About tab
The About tab displays brief software information, copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates, or as a quick access to Razer's social communities.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer BlackWidow \/3 Pro, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for support.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C(32°F) to 40°C (104°F).Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer BlackWidow \/3 Pro.

1. Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away and your keyboard within easy reach.
2. Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow height.
3. Keep your feet well supported, posture straight and your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
5. Do not rest your wrists on hard surfaces for long periods.
6. Use a wrist rest to support your wrist while gaming.
7. Customize the keys on your keyboard to suit your style of gaming in order to minimize repetitive or awkward motions while gaming.
8. Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

If you should experience any physical discomfort while using your keyboard, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer BlackWidow V3 Pro requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
