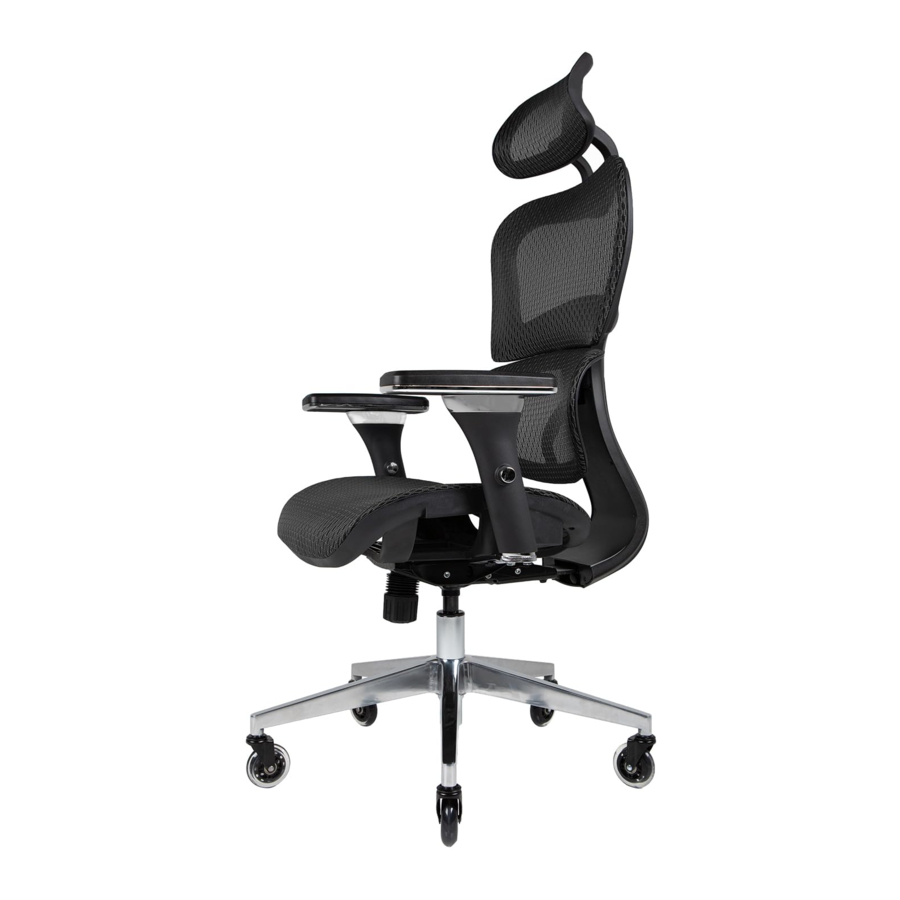

Nouhaus Ergo3D NHO-0001 - ERGONOMIC OFFICE CHAIR Manual

Nouhaus Ergo3D NHO-0001 - ERGONOMIC OFFICE CHAIR Manual

Also See for Ergo3D NHO-0001:

Advertisement

Nouhaus Ergo3D NHO-0001 - ERGONOMIC OFFICE CHAIR Manual

Assembly Parts

How to Assemble

Tools Needed: Allen Wrench - Provided
Please read all instructions before assembly.

Step 1
Insert Casters (H) or Blade Wheels (l) into Chair Base (E). Insert Gas Lift (G) into the hole in the center of the Chair Base (E).
How to Assemble - Step 1
*you can use the Blade wheels(l)

Step 2
Attach Arms (D) to both sides of the Chair Seat (C) using M6x 1.18" Screws (L).Tighten with Allen Wrench (N).

Step 3
Attach Seat Mechanism (F) using M6x0.79" Screws (J).Tighten with Allen Wrench (N).

Step 4
Attach Chair Back (A) to Chair Seat using M8xO.79" Screws (K).Tighten with Allen Wrench (N).
How to Assemble - Step 2

Step 5
Carefully place the assembled Chair Frame onto the GasLift (G).Aligning the hole into the Seat Mechanism on the Chair Seat (C) with the Gas Lift (G). Press down on the Chair Seat (C)to secure in place. Attach Headrest (B) to Chair Back, using two M6xO.79" Screws (M). Tighten with Allen Wrench (N).
How to Assemble - Step 3

How to Use

How to Use

  1. HEADREST
    Move the headrest up or down to adjust the height. Angle the headrest upward/ downward.
  2. 4-DIRECTIONAL ARMRESTS-HEIGHT
    Press and hold the outer side button to adjust the height of the armrests.
  3. 4-DIRECTIONAL ARMRESTS -DIRECTION
    Push the armrests to adjust
    1. from side to side,
    2. forward and backward, and
    3. pivot outwards and inwards.
  4. HEIGHT
    Pull the 'flap' of the handle up to adjust the height of the chair.
  5. TILT MECHANISM
    Right handle (while seated): Push inwards/ pull outwards to lock/ unlock the tilt mechanism. If in the reclined position and the tilt mechanism is unlocked, give the backrest a slight push to release.
    *Three tilt locking positions: upright, middle, and fully reclined)
  6. TILT TENSION
    Turn the knob counter-clockwise to loosen the tilt tension of the chair, clockwise to tighten. Adjust according to your own preference.
  7. WHEELS
    Caster Wheels: Suitable for carpet, chair mats, and soft floors. Blade Wheels: Suitable for hardwood and tile floors. They glide silently and smoothly.

Product Specifications and Information

Product Name Nouhaus Ergo3D
Model Number NHO-0001
Chair Dimensions W27.95 x D27.16x H44.09/49.01 In
Seat Depth 16.3"
Max Hip Width 19.7"
Net Weight 46.29 lbs
Gross Weight 54.89 lbs
Weight Capacity 85 lbs - 275 lbs
Height Capacity 5'4" - 6'1"
Fabric HD ElastoMesh Back and Seat with Soft PU Coated Armrests
Wheels XL Blade Wheels, 50R Nylon Casters
Base 5-Point ADC#12 Aluminum Wheelbase
Customer Service support@nouhaus.com
10985 Oleander Ave. Fontana, CA 92337
+1 (888)387-5949

Instructions on Safe Use

warning PLEASE READ

  1. Do not discard any of the packaging until you are certain that you have all the necessary parts for the assembly.
  2. Please ensure that the packaging is disposed of in a safe and environmentally responsible way.
  3. During assembly, tighten screws by hand only. Once all screws are in place, you may tighten all screws completely.

  1. NEVER use this chair as a step ladder.
  2. Check that screws have not become loosened every 6 months. Retighten if necessary.
  3. Do not allow children to play with or operate the mechanism.
  4. Keep hands and feet clear of the mechanism.
  5. Only the occupant should operate mechanism.
