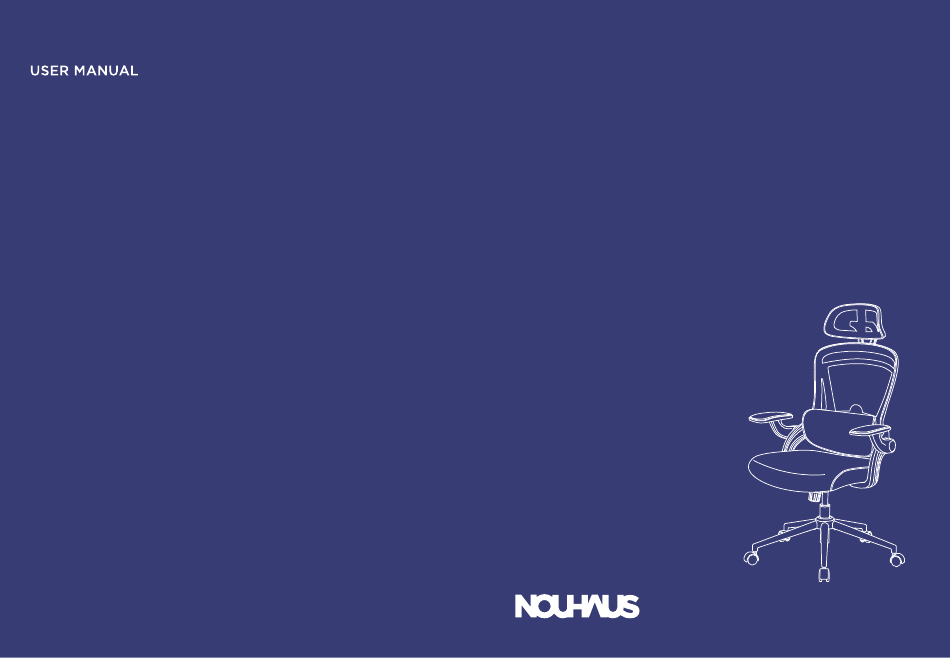

- Page 1 NOUHAUS OFFICE CHAIR ERGONOMIC OFFICE CHAIR USER MANUAL www.nouhaus.co.kr www.nouhaus.com www.nouhaus.cn...
- Page 2 NOUHAUS ERGONOMIC OFFICE CHAIR USER MANUAL Thank you for purchasing the NOUHAUS Ergonomic O ce Chair. Please read this manual carefully before using. Retain this manual for your reference. This user manual contains the product warranty information. The design and/or speci cation of this product is subject to change without notice.
- Page 3 CONTENTS Instructions on Safe Use Pg 05 Assembly Parts Pg 06 How to Assemble Pg 07 How to Use Pg 11 Product Speci cations and Information Pg 13 Customer Service Information Pg 14 Product Warranty Pg 15 NO-SN401E...
-
Page 4: Please Read
PLEASE READ 1. Do not discard any of the packaging until you are certain that you have all the necessary parts for the assembly. 2. Please ensure that the packaging is disposed of in a safe and environmentally responsible way. 3. - Page 5 Step 4 Tools Needed: Allen Wrench - Provided Please read all instructions before assembly. Step 1 Insert Chair Base 2 (G) into Chair Base 1 (F) and align it with the holes. Then use the Allen Wrench(O) to tighten the screws(M) to assemble. Step 2 Insert Casters (J) into Chair Base 2 (G).
- Page 6 Step 10 Step 7 Attach the Chair Seat (D) and Gas Lift (I). Step 8 Assemble the Armrest (E) and the assembled Chair Back (A) according to the hole. Step 9 Assemble a total of four Screws (K)x2, B1 hole, on the tted armrest at 50% strength. Step 10 Assemble a total of four Screws (K)x2, B2 hole, on the tted armrest at 50% strength.
- Page 7 HEADREST Move the headrest up or down to adjust the height. Angle the headrest upward/ downward. FLIP ARMRESTS When concentration is required, the armrest can be completely ip back. HEIGHT Pull the ‘ f lap’ of the handle up to adjust the height of the chair. TILT TENSION Turn the knob counter-clockwise to loosen the tilt tension of the chair, clockwise to tighten.
- Page 8 Product Name Nouhaus N20 Model Number NO-SN401E Chair Dimensions W72 x D72 x H118~133.5 cm Seat Depth 45 cm Max Hip Width 51.5 cm Net Weight 13.2 kg Gross Weight 16 kg Weight Capacity ≤125 kg Height Capacity 164 - 185 cm...
-
Page 9: Customer Service Center
Product Information Product Name Model Number NO-SN401E Manufacture Date Manufacture Number Purchase Store Purchase Store Contact Date of Purchase Order Number Warranty Date Date of Installation Customer Information Name Contact Address Customer Service Center KOREA 71, Hoenamu-ro, Yongsan-gu, Seoul, Republic of Korea 04344 02-3409-9500 10985 Oleander Avenue Fontana, CA92337 +1(888)387-5949...
