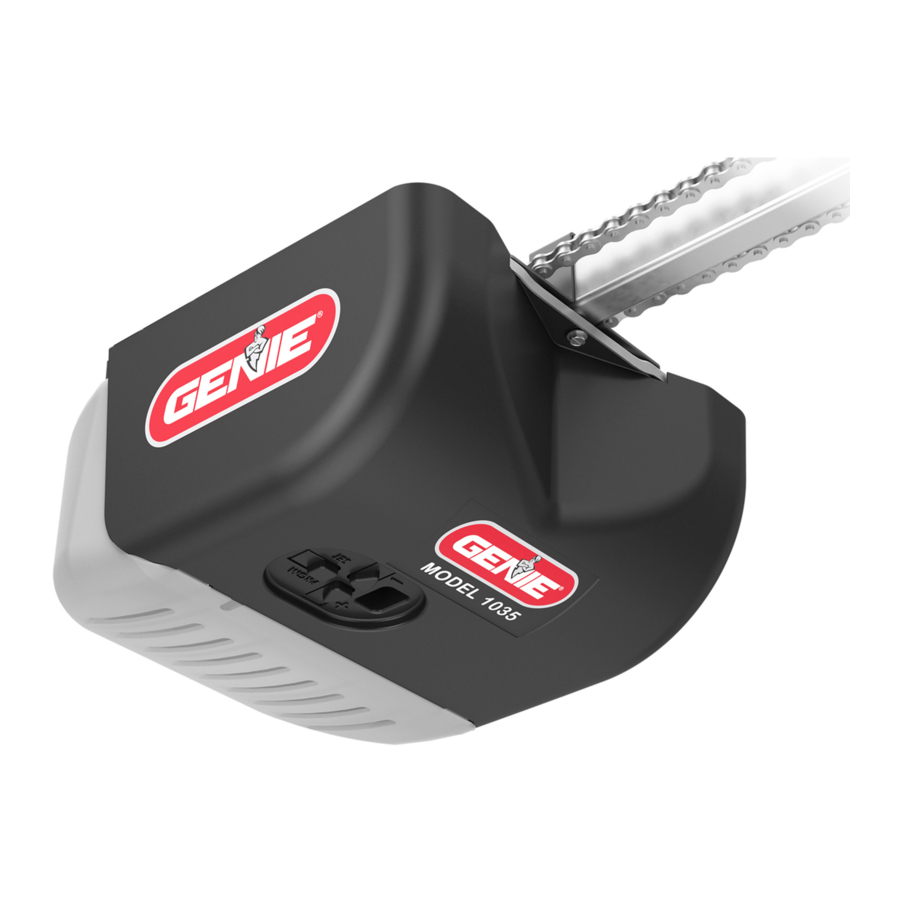

Genie 1035, 2035, 2055, 3053, 3055, 7035, 7055 - Door Opener Manual

INTRODUCTION

BELT/CHAIN DRIVE GARAGE DOOR OPENER MODELS
1035, 2033, 2035, 2036, 2053, 2055, 3033, 3035, 3053, 3055, 7033, 7035, 7053, 7055

Includes INTELLICODE® Remote Control.
The Included Safe-T-Beam® system MUST be installed to close the door. DO NOT use other brands or types. For use with residential sectional overhead garage doors ONLY. Homelink® and Car2U® compatible

Before setting up your new garage door opener, please locate and record the model plate on the opener. This information will be necessary should you seek technical support via our website, customer support department or local servicing Genie dealer.

NOTE: Keep an original or photocopy of receipt of opener purchase for warranty purposes.

SAFETY NOTIFICATIONS & INSTRUCTIONS

OVERVIEW OF POTENTIAL HAZARDS READ THIS SAFETY INFORMATION

To reduce the risk of injury to persons or damage to property, use this opener only with a sectional residential door.

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER
HOMEOWNER: SAVE THIS MANUAL FOR FUTURE REFERENCE

Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. Since moving objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others depend on you reading the information in this manual. If you have questions or do not understand the information presented, call your nearest trained door system technician or visit our website at www.geniecompany.com.

CONVENTIONS USED IN THESE INSTRUCTIONS

The following safety alert symbol and signal words are used throughout this manual to call attention to and identify different levels of hazards and special instructions.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION".

indicates an imminently hazardous situation which, if NOT avoided, will result in death or serious injury.

indicates a potentially hazardous situation which, if NOT avoided, could result in death or serious injury.

indicates a potentially hazardous situation which, if NOT avoided, may result in injury or property damage.

The word NOTE is used to indicate important steps to be followed or important considerations.

IMPORTANT SAFETY INSTRUCTIONS

POTENTIAL HAZARD	EFFECT	PREVENTION
MOVING DOOR	Could result in Serious Injury of Death	Do Not operate unless the doorway is in sight and free of obstructions. Keep people clear of opening while door is moving. Do Not allow children to play with the door opener. Do Not change opener control to momentary contact unless and external reversing means is installed. Do Not operate a door that jambs or one that has a broken spring.
ELECTRICAL SHOCK	Could cause Serious Injury or Death	Turn off electrical power before removing opener cover. When replacing the cover, make sure wires are not pinched or near moving parts. Opener must be electrically grounded.
HIGH SPRING TENSION	Could cause Serious Injury or Death	Do Not try to remove, repair or adjust springs or anything to which door spring parts are fastened such as wood block, steel brackets, cables or any other structure or like item. Repairs and adjustments must be made by a trained service representative using proper tools and instructions.

IMPORTANT INSTALLATION INSTRUCTIONS

TO REDUCE THE RISK OF SEVERE INJURY OR DEATH

READ AND FOLLOW ALL SAFETY, INSTALLATION AND OPERATION INSTRUCTIONS. If you have any questions or do not understand an instruction, call The Genie Company.

• DO NOT install opener on an improperly balanced door. An improperly balanced door could cause severe injury. Repairs and adjustments to cables, spring assembly and other hardware must be made by a trained service person using proper tools and instructions.
• Remove all ropes, and disable all locks connected to the door before installing opener.
• Where possible, install the door opener 7 feet or more above the floor. For products having an emergency release, mount the emergency release within reach, but at least 6 feet above the floor and avoiding contact with vehicles to avoid accidental release. DO NOT use emergency release cord to pull door.
• DO NOT connect the opener to the source of power until instructed to do so.
• Locate the wall control button:
  1. Within sight of door.
  2. At a minimum height of 5 feet, so small children cannot reach it.
  3. Away from all moving parts of the door.
• Install the entrapment WARNING label next to the wall button or console, in a prominent location. Install the emergency release handle on the emergency release cord.
• The opener must reverse when the door contacts a 1-1/2 inch high object on the floor at the center of the doorway. This is about the size of a 2" x 4" board laid flat.

Opener is equipped with grounded electrical plug for your protection, and only fits grounded electrical outlets. DO NOT alter plug in any way! If your have no grounded outlets, have one installed by a licensed electrician. Opener must be properly grounded to prevent personal injury and equipment damage. NEVER USE AN EXTENSION CORD! Check local building codes for any requirement that you must have a permanent hard-wired connection. Permanent hard-wired connections must be performed by a licensed electrician using proper tools and instructions.

SAFETY & STANDARD FEATURES

Safe-T-Beam® (STB) Non-Contact Reversing System

Puts an invisible beam across the door opening. The door stops and reverses to the full open position if anything passes through the beam. LED indicator lights on the powerhead and on the STBs provide self-diagnostics if an operational problems exists.

Safe-T-Beam® (STB) FUNCTION

1. The Safe-T-Beam® has no effect on the door during an opening cycle.
2. If the Safe-T-Beam® detects an obstruction when trying to close the door, it will not allow the door to close.
3. When the garage door is closing, if Safe-T- Beam® is interrupted by a person or obstacle, the garage door will stop its downward travel and reverse automatically to its fully opened position.
4. If the Safe-T-Beam® System fails, loses power, or is installed improperly, press and hold the wall console "open/close" button until the door reaches its fully closed position. If you release the "open/close" button on the wall console during the closing movement, the door will reverse automatically to its fully-opened position.

Door Detect™ Monitoring System

Monitors the Safe-T-Beam® system to ensure proper functionality and will automatically stop and reverse a closing door if a problem is detected.

Safe-T-Reverse® Contact Reversing System

Automatically stops and reverses a closing door within two seconds of contact with an object.

Manual Emergency Release

Manually releases door from door opener. Used during a power failure or other emergency to allow manual opening and closing of door. DO NOT use emergency release cord to pull door

SmartSet® Electronic Programming

Easily adjust the programming to set limits and program new remotes.

Automatic Lighting System

Single or Dual Bulb lighting system supplies light for safer evening exits and entries. Turn ON when door is activated and automatically turns OFF 4 minutes later.

Intellicode®

An encryption system that enhances the security of the door opener by continuously changing the access code each time the remote is used. The door opener responds to each new code only once. An access code copied from a working system and tried again, will not control the door opener.

Wall Console (With select models)

Operates door opener from inside garage. The wall console has an indicator light with: Open/Close, Sure-lock™, and independent light control buttons.

1. Indicator Light
   Large white button will display Red when wall console is properly wired and Sure-Lock™ is OFF. When Sure-Lock™ is ON, this light is off.
2. Open/Close Button
   Use this button to open or close garage door. When Sure-Lock™ is ON the Open/Close button will CLOSE the door only.
   NOTE: Constant button pressure in the CLOSE mode will override STB fault in the powerhead and close door.
3. Independent Light Control Button
   Use this button to turn the powerhead lights ON. Powerhead lighting will remain ON until this button is pressed again or a door action has been completed.
4. Sure-Lock™ Button
   When Sure-Lock™ is ON, and the door is closed, the powerhead cannot be activated by the wall console or a remote.
   • Slide switch up to activate Sure-Lock™ (red light goes off ).
   • Slide switch down to turn Sure-Lock™ OFF (red light goes on).

Home Link® and Car2U® compatible

See instructions in this manual, refer to the motor vehicle manual or visit www.geniecompany.com for instructions.

Factory Programmed Remote Control

For ease and speed of installation, the remote included with this opener comes from the factory, pre-programmed. No additional steps are required to activate the door using the remote.

Genie Battery Backup (BBU)

Available on some models. Provides power to opener in the event of a power failure.

NOTE: Genie Battery Backup will only operate after opener installation is completed and Travel Limits have been set.

DO NOT INSTALL BATTERY BACKUP UNTIL OPENER IS FULLY INSTALLED AND PROGRAMMED

OPENER PROGRAMMING

NOTE: Before programming the opener, check to make sure there are no objects in the garage door opening.

INTRODUCTION

Now that the Genie® garage door opener is installed, follow the steps in this manual to program the opener so that the door opens and closes properly and all remote devices operate correctly. The following steps are a guide to setting opener so it functions properly.

The following steps list the order of programming the opener's functional settings for use.

1. "TRAVEL LIMITS"
2. "FORCE CONTROL"
3. "REMOTE PROGRAMMING"

Term Definitions:
Travel Limits Programmable setting to adjust how far door travels up or down.
Force Control refers to how much power is needed to move (open/close) a particular door and does NOT require programming.
Remote Programming synchronizes remote devices (remote and keypad) with the powerhead.

OVERVIEW OF POWERHEAD CONTROLS

This section describes the programming functions of the opener. Use the following information to understand the buttons and LED indicators used to program functions.

Powerhead: There are 3 programming buttons and 2 LED lights on the powerhead. Each of the buttons are used to enter and complete the setup programming. The LED lights indicate status or a function change by illuminating ON, OFF, or ON FLASHING.

There are 3 programs:

1. Door Travel Limits. This program is used to set how far the door travels up and down.
2. Force Setting Program. This program controls the force applied during the closing and opening of the door. They are factory set and will rarely require adjustment.
3. Remote Programs (default menu)–only required for added remote control transmitters. Describes how to program remotes to sync with additional remote control devices, wall consoles, keypads and the powerhead.

NOTE: The 3 programming buttons are for programming ONLY. These buttons can NOT be used to operate the opener once the Required Programming section has been successfully completed.

ORIENTATION

Standing under the opener's powerhead – facing the door – looking up – this is the view you will see of the programming buttons and LEDs.

Enters into and selects programming menus.

Moves door up or down during programming and advances through menus.

NOTE: Each programming step has a 30 second time limit for completion after the function is initiated. After 30 seconds, two LED's will illuminate RED indicating time has expired and the step must be re-started. Restart the step as many times as necessary to complete the programming.

• Just remember — the pointed end of the button (like an arrowhead) points in the direction the carriage will move when that button is pushed.

PROGRAMMING DOWN TRAVEL LIMIT

• Make sure doorway is in full view and clear of obstacles and people to avoid injury or property damage.
• DO NOT operate this unit from the wall control before LIMITS are set. Severe damage to the opener could occur.
• The carriage MUST be engaged to turnbuckle BEFORE setting limits. See installation poster or call Customer Service at 1-800-35-GENIE or visit www.GenieCompany.com.
• DO NOT set limits with Battery Backup attached. AC power MUST be connected to the opener while setting limits for proper operation.

NOTE: Carriage should be locked to opener. Door should rest somewhere between full open and closed. Do not start with door fully open or closed.

Programming DOWN Limit:

1. Press and hold the DOWN arrow button.
   • Long LED will light BLUE.
2. Release DOWN arrow button.
   • Long LED will flash BLUE.
3. Press and hold the DOWN arrow button until door is fully closed.
   • Use the UP arrow button if door closes too far. Use both UP and DOWN buttons to adjust close travel as necessary.
     Door should rest on the floor until the weather strip is compressed enough to seal along the width of the door. Damaged doors or uneven floors may not seal properly. Repair these conditions to achieve a proper seal. DO NOT compress seal so much that the door will bend or buckle.
4. Press and release the SET/PRGM button
   • Both LEDs will flash BLUE then go out.

The DOWN limit is now programmed.

1-2. Enter Programming Mode

3. Adjust Door Position

4. Lock Programming


PROGRAMMING UP TRAVEL LIMIT

Programming UP Limit:

1. Press and hold the UP arrow button.
   • Long LED will light BLUE.
2. Release UP arrow button.
   • Round LED will flash BLUE.
3. Press and hold the UP arrow button until door is fully open.
   • Use the DOWN arrow button if door opens too far. Use both UP and DOWN buttons to adjust open travel as necessary.
     Door should fully open so that door seal is even with door header. Do Not adjust so much that the door will bend or buckle or stretch door spring cables backward.
4. Press and release the SET/PRGM button
   • Both LEDs will flash BLUE then go out.

The UP limit is now programmed.

1-2. Enter Programming Mode

3. Adjust Door Position

4. Lock ProgrammingFlashing Blue


PROGRAMMING FORCE AND CONTACT REVERSE

Force Control

The force controls are automatically set when the wall control is used for the first time with garage door opener. The door MUST complete one full cycle, from full open to full close and then, full close to full open, before the settings are automatically recorded.

TO AVOID INJURY OR DAMAGE

• NEVER adjust the force settings to adjust for damage, including an unbalanced door, binding door track or broken spring.
• Perform a CONTACT REVERSE TEST monthly.

1. Press and release the Wall Control button and allow the garage door to travel and stop at the DOWN limit.
2. Press and release the wall control button and allow the garage door to travel and stop at the UP limit.


Force Control Adjustments

Force settings are programmed from the factory to remain within safe parameters. These should not require adjustments. However, certain circumstances may require adjustment. See Maintenance and Adjustments section for detailed instructions pertaining to the adjustment of force controls.

Contact Reverse Test

NOTE: The limit and Force settings MUST BE COMPLETED before performing the Contact Reverse Test.

1. With the garage door open, lay a 2 X 4 board flat on the floor at the center of the door opening.
2. Close the garage door using the wall control.


• When the door contacts the board, it should stop and reverse direction within 2 seconds to the full open position.
• The long LED light on the powerhead will begin to flash RED with the reversal of the door.
• Remove the 2" x 4" board and operate the opener with the wall control again. This cycle will clear the flashing red LEDs.

Contact Reverse Adjustment

If the door stops before contacting the board or if it does not reverse direction to fully open after contact with the board, it may be due to an improperly set DOWN limit. Verify settings by:

1. Repeat the "Down Travel Limit" section to make certain the door is closing tight against the floor.
2. Repeat the "Force Control" section on the left to set force limits.
3. Repeat the "Contact Reverse Test" above.

Repeat this process as needed until the door passes the Contact Reverse Test. For further help, refer to the "Maintenance and Adjustment" section/Regular Maintenance.

PROGRAMMING ADDITIONAL REMOTE CONTROLS

THE REMOTE CONTROLS INCLUDED WITH THIS OPENER HAVE BEEN PROGRAMMED AT THE FACTORY FOR YOUR CONVENIENCE.

NOTE: The following instructions are for remote control transmitters purchased separately in addition to those provided with this opener, but can also be used if any remote(s) may require re-programming.

NOTE: Each programming step has a 30 second time limit for completion after the function is initiated. After 30 seconds, two LED's will illuminate RED indicating time has expired and the step must be re-started. Restart the step as many times as necessary to complete the programming.

NOTE: Do not hold remote too close to the powerhead when programming remote buttons.

NOTE: Each button on each remote must be programmed separately, following these steps.

1. Remove the battery's protective film from the remote by pulling straight down.
2. Press and hold the SET/PRGM button on the opener for two seconds.
   • The ROUND LED will turn BLUE.
   • The LONG LED will then flash PURPLE.
3. Stand at least 5 feet away from opener and slowly press and release the desired button on the remote two times.
   • Both opener LEDs will flash and turn off indicating the remote has been programmed.
4. Press the desired remote button again.
   • The opener should run.

To program the same remote for other garage door openers, repeat the steps above using one of the other remaining remote buttons.

REPEAT STEPS 1 TO 4 FOR EACH OPENER AND REMOTE

NOTE: It is possible to press the remote button too quickly or lightly. If the LEDs do not go off, press the remote button several more times to achieve confirmation.

BASIC PROGRAMMING IS COMPLETE AND YOUR GARAGE DOOR OPENER IS READY TO USE.

See back of this manual to erase remote devices from memory.

1. Activate Remote

2. Enter Programming Mode

3. Press Remote Button Twice

4. Test Remote


IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death, read and follow all instructions.

1. NEVER let children operate or play with the door controls.
2. Keep remote away from children.
3. ALWAYS keep the moving door in sight and away from people and objects until door is completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
4. NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR.
5. Test opener monthly. The door MUST reverse on contact with a 1-1/2" high object (or 2" x 4" board laid flat) at the center of the doorway on the floor. After adjusting either the force or limit of travel, retest door opener. Failure to adjust the opener properly may cause severe injury or death.
6. When possible, use emergency release only when door is closed. Use caution when using this release with the door open. Weak or broken springs are capable of increasing the rate of door closing and increasing the risk of severe injury or death.
7. KEEP DOORS PROPERLY BALANCED. See your garage door Owner's Manual. An improperly balanced door increases the risk of severe injury or death. Have a trained door system technician make repairs to cables, spring assemblies, and other hardware.

SAVE THESE INSTRUCTIONS

Opener is equipped with grounded electrical plug for your protection, and only fits grounded electrical outlets. DO NOT alter plug in any way! If your have no grounded outlets, have one installed by a licensed electrician. Opener must be properly grounded to prevent personal injury and equipment damage. NEVER USE AN EXTENSION CORD! Check local building codes for any requirement that you must have a permanent hard-wired connection. Permanent hard-wired connections must be performed by a licensed electrician using proper tools and instructions.

• Garage door hardware (springs, cables, brackets, pulleys, etc.) are under extreme pressure and tension.
• DO NOT attempt to repair or adjust door springs or any hardware, and DO NOT OPERATE garage door automatically or manually if door is improperly balanced or springs are broken.
• CONTACT A TRAINED DOOR SYSTEM TECHNICIAN.

MAINTENANCE & ADJUSTMENTS

Use of any other wall control can cause unexpected operation of the door and loss of lighting feature. Locate wall console within sight of the door but far enough from door to prevent contacting it while operating the console. Control must be at least 5 feet above the floor to prevent small children from operating it.

Regular Maintenance
Basic monthly maintenance tasks include:

• Contact Reverse Test
• Lubricate door hardware
• Safe-T-Beam® System check
• Door balance
• Remote Battery Replacement (As needed)
• Light Bulb Replacement (As needed)
• Chain/Belt Tension

1. Contact Reverse Test
2. Lubricate Door Hardware
   Inspect door rollers and hinges and lubricate as needed using a light weight general purpose grease.
3. Safe-T-Beam^® (STB) System Check
   Check that both the RED and GREEN LEDs are ON steady. This indicates the system is working properly. If both LEDs are not ON steady, check the appropriate items below:
   • STB red LED flashes.
     • Check for obstruction.
     • Check alignment.
     • Verify wire routing from STBs to STB connection in powerhead
     • Check for signal interference from another Safe-T-Beam® unit (for multiple door installations).
   • No STB red or green LED displayed.
     • Check wiring and wire connections

If system appears to be working properly, perform check as follows:

1. Start the door closing.
2. Pass an object through the beam. The door should stop and reverse to the fully open position.

4. Door Balance (Spring Tension)
   Perform the check as follows:
   • With the door closed, pull manual emergency release handle DOWN and away from door and let go to disengage the carriage from the drive chain or belt (see illustration).


• Raise and lower the door manually — it should move freely and smoothly.
• Raise door manually about 3' to 4' feet and let go.

  • Door should remain stationary or move very slowly.
  • If door moves quickly, CONTACT A TRAINED DOOR SYSTEM TECHNICIAN to have your door springs serviced.
• Close the door.
• Place the carriage in the "engage" position (see illustration).
• Operate door using remote or wall control. The carriage will reattach itself to the drive chain/belt.

5. Remote Battery Replacement (As needed)

Remote Battery Replacement (1-button)
Replace remote battery with a CR2032 coin cell battery.

1. Slide the battery cover o (it's the lower half of the remotes case) by pressing on the case just below the indentation at the top of the cover and sliding it down. Alternately, insert a coin or small washer into the indentation in the front of the case and pry to unlatch the battery cover in order to slide it o.
2. Slide out the old battery and slide in the new. Be sure positive side (+) is UP.
3. Slide the battery cover on until it snaps into place.

Remote Battery Replacement (3-button)
Replace remote battery with a CR2032 coin cell battery.

1. Open remote case using a washer or coin that ts into the slot on the top of the remote.
2. Replace battery. Be sure positive side (+) is UP.
3. Align components and snap case closed.

6. Light Bulb Replacement

• Use extreme caution when working from a ladder or step stool or serious injury can occur.
• When replacing light cover, make sure wires are not pinched or near moving parts.
• Use only properly rated incandescent, LED or CFL light bulbs.
• DO NOT use bulbs with a rating greater than 60 Watts.
• Use A19 size light bulbs. DO NOT use bulbs having a short neck.

Changing Light Bulbs

1. Disconnect power to door opener. Open powerhead light cover(s) by pressing down on upper locking tabs.
   • Replace old light bulb(s) with new.
   • Use 60 Watt MAX. incandescent bulbs or the CFL or LED equivalent.

   • Close powerhead light cover(s).
2. Reconnect power to door opener.
   • Test light operation.

NOTE: Use of LED bulbs may reduce the range of your remote controls. Visit www.GenieCompany.com for more information and recommendations for LED bulbs.

NOTE: SilentMax Connect™ models require a minimum 40 Watt or equivalent bulb, 60 watt maximum.

* Genie LED light bulbs are designed to reduce or eliminate reduced remote range issues caused by common LED bulbs. They also o er better product life by making them resistant to vibration caused by the opener, and cold or damp weather. See website for details at www.GenieCompany.com.

1 Light Models

2 Light Models

7. Chain/Belt Tension

   If excessive chain/belt sag is noticed below the rail:
   1. Open the door until carriage is about mid travel and stop.
   2. Disengage the carriage and manually close the door.
   3. Loosen nuts on turnbuckle using 7/16" wrenches.
   4. Rotate turnbuckle counter-clockwise until slack is removed from chain/belt.
   5. When measured on the opposite side of the rail from the turnbuckle, a properly adjusted chain will have a 1/4" gap to the bottom of the rail.
   6. Tighten nuts to secure turnbuckle.
   7. Be sure that chain/belt is not twisted or bound.
   8. Manually open door to re-engage carriage to turnbuckle.


8. Adjust Carriage for (optional) Emergency Release System

   The carriage on this opener can be adjusted to work with the Emergency Release Cable Lock System (available at your local Genie® Retailer).
   1. Operate door to mid position.
   2. Pull emergency release cord and manually close door.
   3. Make sure carriage latch is in the upright (engaged) position.
   4. Remove (2) 5/16" machine screws and cap.
   5. Pull spring assembly out and reverse direction.
   6. Install cap and machine screws.
      Emergency Release cable can now be assembled to the carriage assembly.
9. Adjustment Guides

   TO AVOID INJURY OR DAMAGE
   • NEVER adjust the force settings to adjust for damage, including an unbalanced door, binding door track or broken spring.
   • Perform a CONTACT REVERSE TEST monthly.

Force Settings
Force settings are pre-programmed at the factory and applied during the Open/Closed Limit settings steps. For normal use, these settings should not need adjustments with this unit.

Conditions possibly requiring adjustments are:

1. Doors with very stiff weather seals.
2. Doors that start down, STOP, and reverse before closing.
3. Doors that start up, but STOP before they completely open.

10. Resetting Travel Limits
    See to reset travel limits. Force setting and contact reverse test must be performed in the event of a travel limit change.
    LOCATING SAFE-T-BEAM® PAIRS Transmitter (RED LED) and Receiver (GREEN LED)


Single Garage Door

• Determine which side of the garage receives direct sunlight.
• Position the Transmitter (Red LED) on the direct sunlight side.

Multiple Garage Doors

• NEVER position Safe-T-Beam® modules where signals will cross.
• Place the Transmitter (Red LED) Safe-T-Beams on adjacent doors facing in opposite directions.

NOTE: Direct sunlight creates interference with Safe-T-Beam^® Receiver (Green LED). STB modules CAN be positioned further away from the door opening if necessary to avoid sunlight but no further off the wall to maintain alignment with the Transmitter (Red LED) module.

NOTE: Only use Safe-T-Beams® that are included with this opener. DO NOT use other brands or types of photocells on this opener.

WIRE DIAGRAM

ELECTRICAL SHOCK
OPENING COVER MAY CAUSE ELECTRICAL SHOCK
Disconnect power from opener prior to removing cover

TROUBLESHOOTING

Need help or have questions? DO NOT RETURN to the store.
Visit www.genicompany.com or call Customer Service at 1-800-35-GENIE.

PROBLEM:		WHAT TO DO:
Opener does NOT operate when wall control is pressed.		Turn Sure-Lock™ OFF. Check power source. Plug a lamp into outlet used for powerhead. If lamp works, power source is OK. If not, check fuse or circuit breaker. If power is OK, Check connections at powerhead terminals and at wall console. Check for reversed, broken or cut wires. Staples can cut insulation and short wires. Repair or replace.
Opener runs, but door does not move.		Make sure carriage is engaged with chain/belt turnbuckle. Refer to installation poster or download poster from www.GenieCompany.com Check to make sure chain/belt is not broken or off its pulley.
Opener works from wall control, but NOT from remote.		Check all remotes. Replace remote battery. Program remotes to powerhead.
Remote has less than 25 feet operating range or no operation.		Relocate remote inside car and /or point remote at garage door. Replace battery. Reposition door opener antenna. Eliminate possible competing signals (radio, etc.). LED bulbs may be interfering with remote signal.
Door starts down, then STOPS and goes back up. OR Safe-T-Beam® System malfunction.		If a NEW installation, check Door Arm position. Refer to Installation poster or download poster from www.GenieCompany.com. If NEW Installation, make sure ONLY the Safe-T-Beams® that came with this opener are installed. Check if limits are properly set. Adjust limits as needed. Check if Safe-T- Beam® red LED is flashing. Safe-T-Beam® system check. Check Safe-T-Beam® system for beam obstruction or misalignment of lenses. Safe-T-Beam®system. Check garage door for binding. If an operational problem exists, and opener will not close, the opener can be forced to close as follows: Press and hold the wall control button until door is completely closed. Check for interference from adjacent Safe-T-Beam® units. Contact Genie at 1-800-35-GENIE.
Door starts down, then STOPS before it is closed. OR Door will only open.		Check Safe-T- Beam®wire connection at powerhead and at STBs. Safe-T-Beam® system check. Check if limits are properly set. Adjust limits as needed. Check CONTACT REVERSE. Check garage door for binding. See maintenance and adjustment. Check closing "FORCE" control. See Force settings.
Door starts up, but STOPS before it is completely open.		Check if limits are properly set. Adjust limits as needed. Be sure door, opener, springs are in good repair, properly lubricated and balanced. Check closing/opening "FORCE" control. See Force settings. If you suspect a problem with the garage door hardware or springs, visit www.GenieCompany.com ; and use the "dealer locater" to hire a local door service professional. NEVER try to repair door hardware or springs yourself.
Door will only run closed.		Turn Sure-Lock™ OFF. Check if limits are properly set. Check door balance, condition, and door spring. Check opening "FORCE" control. See Force settings. If you suspect a problem with the garage door hardware or springs, visit www.GenieCompany.com ; and use the "dealer locater" to hire a local door service professional. NEVER try to repair door hardware or springs yourself.
Door opener starts for no reason.		Button stuck on wall control or remote. Was remote lost or stolen? Erase all remotes from powerhead memory and program new remotes.
Noisy operation.		Be sure all door fasteners are tight. Be sure garage door is in good repair, properly lubricated and balanced. Be sure opener is in good repair.
Door opener runs slow.		Check operating condition of door. Door may need professional repair/adjustment. Is this opener installed on a one-piece door? This opener is not designed to operate a one-piece door.

POWERHEAD LEDS

Powerhead LED		Possible Problem	Solution
Round LED	Long LED
OFF	OFF	Normal operation.	None required.
		No response from unit.	Check power supply. Contact a trained door system professional.
ON/RED/ STEADY	ON/RED/ STEADY	Limits NOT set properly.	Re-program limits.
ON/RED/ FLASHING	ON/RED/ FLASHING	Program error.	Unplug unit, wait 5 seconds, plug in.
		Component failure.	Contact a trained door system technician.
ON/BLUE/ FLASHING	OFF	Remote NOT programmed.	Program remote.
ON/PURPLE/ FLASHING	OFF	Remote NOT programmed.	Program remote.
ON/RED/ FLASHING	OFF	Safe-T-Beam® physical obstruction.	Remote obstruction, recheck unit.
		Safe-T-Beam® signal interference.	Check alignment of Safe-T-Beam® pair and nearest other Safe-T-Beam® pair.
OFF	ON/RED/ FLASHING	Door contact in UP or DOWN travel.	Remove obstruction.
		Door component failure detected.	Check door spring, track, rollers, hinges and fixtures.
OFF	ON/RED/ STEADY	Thermal cutout.	DO NOT unplug unit. Wait until LED clears before operating.
ON/PURPLE/ STEADY	ON/PURPLE/ STEADY	Component error.	Contact a trained door system technician.
OFF	ON/BLUE/ FLASHING	Door will not open.	Check Sure-Lock™. Sure-Lock™ should be OFF for normal operation.
ON/PURPLE/ FLASHING	ON/PURPLE/ FLASHING	Radio receiver error.	Unplug the unit. Wait 5 seconds and plug the unit back in. If problems persist, contact a trained door system technician.
ON/GREEN STEADY	ON/GREEN STEADY	OK=Charged, Battery Backup	None Required
ON/GREEN FLASHING	ON/GREEN FLASHING	Discharging, Battery Backup	Power is out. Battery in use.
ON/YELLOW FLASHING	ON/YELLOW FLASHING	Charging, Battery Backup	None Required
ON/RED TO YELLOW FLASHING	ON/RED TO YELLOW FLASHING	Dead Battery, Battery Backup	Allow to charge 48 hours. If charging fails, Replace Battery.
ON/WHITE STEADY	ON/WHITE STEADY	Battery Backup in Operation	No Fault. Courtesy light while in battery backup mode. Light will turn off after 4 minutes.

GENIE® BATTERY BACKUP INSTALLATION

Battery backup devices from other manufacturers will not operate with this opener.
Use only Genie Battery Backup type battery that was provided. Genie P/N 111658-0002 Installing Genie Battery Backup

TO PREVENT POSSIBLE SERIOUS INJURY or DEATH from electrocution AND REDUCE RISK of FIRE

• Disconnect ALL electric power sources and battery power BEFORE performing ANY service or maintenance.
  Install only in DRY locations - NOT INTENDED FOR OUTDOOR USE.
  Use only 12V, 5AH, SLA replacment battery (P/N 111658.0002.S).

For units that included with optional battery backup (BBU)

1. Unplug powerhead from power source.
2. Tilt BBU approximately 450 and lower into slots in the top rear of the powerhead.
3. Fasten to powerhead with 2 supplied self tapping screws.
   NOTE: There are no holes in rear cover. Self Tapping screws will self tap through cover.
4. Plug battery harness into plug located at the top of the powerhead.
5. Reconnect powerhead to power source.


See Condition LED's
That will illuminate once Genie Battery Backup is operational. Both LEDs will signal solid GREEN under normal, fully charged, operation.

Testing The Genie Battery Backup

NOTE: It is recommended that the battery backup be allowed to charge for 24 to 48 hours prior to testing. Initially, the opener may not operate from the battery backup mode if battery is not fully charged.

1. Run the opener using the wall control or remote to ensure it is working properly.
2. Turn o power to opener by unplugging from outlet or turning o breaker.
3. Press wall control or remote control. Opener will run at a slower speed than normal.
   NOTE: See troubleshooting guide in this manual if any of the steps above fail. Work light will not operate while in battery backup mode. (Courtesy white LED's will illuminate.)
4. After successful test, reconnect powerhead to power source.


Replacing The Battery in the Genie Battery Backup

Proper care should be used when handling a battery. Eye protection should be worn.

NOTE: DO NOT reverse polarity (+) and (-) as this will damage the powerhead.

1. Unplug powerhead from power source.
2. Unplug battery backup from harness connection.
3. Remove both mounting screws from rear of battery backup.
4. Detach battery backup from back of opener by tilting the BBU approximately 45 degrees and lifting up towards the ceiling.
5. Remove 4 screws from battery hold down bracket.
6. Remove battery.
7. Disconnect harness wires from the (+) and (-) terminals.
8. Replace in reverse order
   NOTE: Allow 24-48 hours to charge battery before testing.
9. Test as noted above.

OPTIONAL PROGRAMMING & ACCESSORIES

CLEARING MEMORY OF REMOTES

NOTE: Clearing memory of remotes from the powerhead will clear ALL programmed remotes, wireless keypads and vehicle transmitters. The opener will no longer recognize any signal from any remote device, including a missing remote device.

All remaining (or recovered) remotes, vehicles and wireless keypads MUST be reprogrammed.

NOTE: The garage door opener will operate normally using the wall console.

1. Press and hold the SET/PRGM button on the opener for two seconds.
   • The ROUND LED will turn BLUE.
   • The ROUND LED will then flash PURPLE.
2. Press and hold the UP & DOWN buttons at the same time until both LEDs turn off.
   • Both opener LEDs will flash and turn off indicating that all remotes have been erased.
3. Press any remote button.
   • The opener should NOT run.

To deprogram the same remote for other garage door openers, repeat the steps above using one of the other remaining remote buttons.

1. Enter Programming Mode

2. Press and Hold + & - Buttons

   Release when LEDs turn off


3. Test Remote


VEHICLE PROGRAMMING

Programming HomeLink® System

Step 1 Clear HomeLink

Clear HomeLink by pressing and holding down the first and third buttons until the indicator on the HomeLink blinks slow and then fast for 20 seconds; then release both buttons.

NOTE: Clearing the HomeLink will remove all previously programmed garage door openers.

Step 2 Train HomeLink to the Genie Remote

Choose the button on the HomeLink that will be used to open the door.

NOTE: Hold the Genie Remote two inches from the HomeLink button.

Hold down the Genie remote button. While holding, press and hold the chosen HomeLink button.
Hold down both buttons until the indicator on the HomeLink blinks slow then fast. Once it blinks, release both buttons.

Step 3 Program HomeLink to the Genie Opener

1. Press and hold the PROGRAM button on the opener until the round blue LED is ON. Release the button. The long purple LED will begin flashing.

2. Press the chosen HomeLink button for two seconds and release. Press that same button again for two seconds and release. The long LED will flash blue and then turn off.

3. Press the HomeLink button a few more times until door moves.

NOTE: For additional instructions, see the motor vehicle manual, www.homelink.com or visit www.GenieCompany.com

Programming Car2U^® System

Step 1 Clear Car2U to default settings

The default setting for the Car2U system is:

• Button 1 = Genie® Manufactured Openers
• Button 2 = LiftMaster® Manufactured Openers
• Button 3 = Wayne Dalton® Manufactured Openers

1. Press and hold buttons 1 and 3 for 20 seconds or until all three LEDs begin to flash.
2. Release both buttons. The Car2U system is now set to the Factory Default settings

NOTE: Clearing the Car2U remote will remove all previously programmed garage door openers.

Step 2 Program Car2U to the Genie Opener

1. Press and hold the PROGRAM button on the opener until the round blue LED is ON—release the button. The long purple LED will begin flashing.

2. Press the designated Genie Car2U button for two seconds and release. Press that same button again for two seconds and release. The long LED will flash blue and then turn off.

3. Press the Car2U button a few times more until door moves.

Step 3 Changing Factory Default Button for a Genie Opener

1. Press and hold buttons 1 & 3 for ONE SECOND and release—all three LEDs will light solid red.
2. Press and hold the button (2 or 3) to change it to Genie—the corresponding LED will flash. While continuing to hold that button, press and release button 1. Press and release button 1 again.
3. Release the button being held in step B and wait for the LED to stop flashing. This button is now set for Genie. Repeat Step 2 for second Genie Opener.

NOTE: For additional instructions see the motor vehicle manual, learcar2u.com or visit www.GenieCompany.com

WIRELESS KEYPAD PROGRAMMING

Tip: Program Keypad before mounting.

Keypad Overview:

STEP 1: PROGRAMMING A PIN NUMBER

Program the keypad for the first time* with a Personal Identification Number (PIN). This PIN must be 3 to 8 digits.

1. Ensure number pad back lighting is off.
2. Press 3-5-7 in sequence.
3. Press PROGRAM key.LED will blink once per second.
4. Enter a PIN number (3-8 digits).
5. Press PROGRAM key.LED will blink twice and shut off.

• The keypad is now programmed with a PIN number and ready to program to Genie® Intellicode® garage door opener(s).
• See STEP 2A to program 1 Genie® Opener.
• See STEP 2B PROGRAMMING FOR MULTIPLE OPENERS if using keypad to operate up to 3 doors.
• If LED did not blink twice and shut off, please see RESETTING THE KEYPAD (FACTORY DEFAULT) section.

STEP 2A: PROGRAMMING THE KEYPAD TO 1 OPENER

1. Place garage door opener into PROGRAMMING MODE.
2. Ensure number pad back lighting is off.
3. Enter the PIN number on keypad.
4. Press the UP/DOWN key 3 to 4 times slowly until garage door opener operates.

• This completes the programming of a single door. See STEP 3 SINGLE DOOR OPERATION for further instruction.

STEP 2B: PROGRAMMING THE KEYPAD FOR MULTIPLE OPENERS (UP TO 3)

Program the keypad with a Personal Identification Number (PIN) as described in step 1. Then follow these additional steps.

1. Ensure number pad back lighting is off.
2. Enter PIN as programmed in STEP 1.
3. Press PROGRAM key twice.LED will blink once per second.
4. Enter total number of openers that keypad will be operating.(2 or 3).
5. Press PROGRAM key once.LED will blink twice and shut off.

• NOTE: Only one PIN number can be used.
• The keypad is now programmed with a PIN number and set up for multi opener operation. Keypad is now ready to program to multiple Genie® Intellicode® garage door openers.
• If LED did not blink twice and shut off, please see RESETTING THE KEYPAD (FACTORY DEFAULT) section.

PROGRAMMING THE KEYPAD TO MULTIPLE OPENERS (UP TO 3)

1. Place desired garage door opener (1, 2, or 3) into PROGRAMMING MODE as illustrated in the section below.
2. Ensure number pad back lighting is off.
3. Enter the PIN number on keypad.
4. Press the UP/DOWN key once.
5. Press the number of the desired door (1,2 or 3).
6. Press the UP/DOWN key 3-4 times slowly until garage door opener operates.

• Repeat steps 1 through 6 to program second and third openers.
• This completes programming of multiple doors. See STEP 3 MULTI-DOOR OPERATION for further instruction.

PUTTING OPENER INTO PROGRAMMING MODE:

1. Press and hold the program button until the round LED turns blue, then release.
2. The round LED will go out and the long LED will begin ashing purple.
3. Return to STEP 2A or 2B.


NOTE: The openers LEARN LED will time out in 30 seconds.
Programming must be completed within 30 seconds.

* RESETTING THE KEYPAD (FACTORY DEFAULT):
If the keypad has already been programmed or at any time the programming should be erased and started from the factory default, follow these steps.

1. Ensure that number pad back lighting is off.
2. Press and hold the PROGRAM and UP/DOWN Keys together for approximately 5 seconds.
3. The LED will flash twice and all lights will go out indicating the keypad has been reset.
4. Start at STEP 1 to program a new PIN number.

STEP 3: OPERATING THE KEYPAD WITH THE OPENER(S)

Single Door Operation:

1. Ensure number pad back lighting is off.
2. Enter PIN number.
3. Press the UP/DOWN key.
4. Opener will operate.

Multi-Door Operation:

1. Ensure number pad back lighting is off.
2. Enter PIN number.
3. Press the UP/DOWN key.
4. Press number key corresponding with desired door (1, 2, or 3).
5. Desired opener will operate.

NOTE: Keypad will remain active for 15 seconds after a successful entry is made. During this 15 seconds ANY key will operate the opener.

STEP 4: MOUNTING THE KEYPAD

Keypad MUST be mounted within sight of the garage door(s) at least 5 feet above floor and clear of any moving door parts.

• Programming will not be lost during battery change.

1. Remove battery cover and batteries.

2. Drill a 3/32" pilot hole for the top mounting screw.
3. Install included screw into pilot hole, leaving 1/8" gap between the screw head and wall.
4. Hook the slotted mount on back of keypad over the screw.

5. Mark and drill a 3/32" pilot hole for the bottom screw and secure keypad to the wall. (Do not over-tighten).
6. Reinstall batteries.


REPLACING BATTERIES

If the keypad back-lighting fails to operate, Batteries may require replacement.

• Programming will not be lost during battery change.


1. Remove battery cover and batteries.
2. Replace batteries with same type alkaline (AAA) and check for proper direction of (+) and (-) terminals.
   Rechargeable batteries are NOT recommended.

ADDITIONAL (OPTIONAL) PROGRAMMING

Changing an Existing PIN:

1. Enter current PIN
2. Press PROGRAM key once.
3. Enter new PIN.
4. Press PROGRAM key once.

• Original PIN will no longer operate keypad or opener.

Setting a Temporary PIN:
A temporary PIN allows temporary access to the garage by, normally unauthorized, personnel such as repairmen or neighbor.

1. Enter current PIN.
2. Press PROGRAM key 3 times.
3. Enter a temporary PIN (3 to 8 digits)
4. Press PROGRAM key once.

• The Temporary PIN will operate garage door opener until the original PIN is used. Use of the original PIN will delete temporary PIN.

Scan this code with a QR code reader app on a smart device to view a video of these instructions.

or visit www.GenieCompany.com

REPLACEMENT PARTS

Item #	Part Number	Description	Qty.
A	39010R.S	PARTS PK,MOUNTING,ORANGE	1
1		TURNBUCKLE	1
2		PIN,CLEVIS,5/16 X 1-3/4	2
3		COTTER,HAIRPIN,.0725 DI	2
4		BOLT,HH,PLD,5/16-18 X 2	1
5		NUT,5/16-18 HX SERR FLG	1
6		STRAP,RAIL,RECT	1
7		SCR,SERR HWH,AB,1/4-14	4
8		BRKT, HEADER,RECT RAIL	1
9		SCR,LAG,HWH,TPG,5/16"X1	2

Item #	Part Number	Description	Qty.
B	39011R.S	PARTS PK,MOUNTING,BLUE	1
1		TURNBUCKLE	1
2		PIN,CLEVIS,5/16 X 1-3/4	2
3		COTTER,HAIRPIN,.0725 DI	2
4		BOLT,HH,PLD,5/16-18 X 2	1
5		NUT,5/16-18 HX SERR FLG	1
6		STRAP,RAIL,RECT	1
7		SCR,SERR HWH,AB,1/4-14	4
8		BRKT,HEADER,RECT RAIL	1
9		SCR,LAG,HWH,TPG,5/16"X1	2

Item #	Part Number	Description	Qty.
C	37105S.S	PARTS PK, INSTALL, GREEN	1
1		BOLT,HH,PLD,5/16-18 X 3	2
2		NUT,5/16-18 HX SERR FLG	2
3		SCR,LAG,HWH,TPG,5/16"X1	2
4		PARTS PK,INSULATED STAP	30

Item #	Part Number	Description	Qty.
D	39012R.S	PARTS PACK, CLEAR, BELT RETN	1
1		COVER,BELT RETAINER	1
2		SCR,SF TP #6-18 X 3/8	2

Item #	Part Number	Description	Qty.
E	37220R	Safe-T-Beam Set	1
1		XMTR ASSY,STB	1
2		RCVR ASSY,STB	1
3		SCR,#10-16 X 1.25	4

Item #	Description	Qty.
A	5-pcs. Rail Assembly Complete (Chain)	1
	5-pcs. Rail Assembly Complete (Belt)	1
B	Sprocket Support Assembly (Chain)	1
	Sprocket Support Assembly (Belt)	1
C	Carriage Assembly	1
D	Idler Pulley	1
E	Chain Assembly (7Ft)	1
	Belt Assembly(7Ft)	1
F	Door Arm, Curved	1
G	Door Arm, Straight	1
H	Strap, Hanging, 3/4 X 25.	2
I	90 Ft. Wire Spool	1
J	Wall Console	1
K	Wall Button	1
L	Battery Backup Battery (Cover not included)
N/S	Rail Extension Kit (Chain)
N/S	Rail Extension Kit (Belt)

NOTE: The following kits will include all necessary harnesses, and/or hardware required for reassembly and detailed assembly instructions.
Motor Assemblies
Idler Pulley Assembly
Covers
PCB DC Controllers
Transformer Assembly
Light Sockets
Chain & Belt Kits

SINGLE BULB POWERHEAD

Item #	Description	QTY.
1	COVER,SINGLE BULB	1
2	LENS	1
3	MOTOR ASSEMBLY	1
4	SOCKET,LIGHT,30 DEG ANG	1
5	TRANSFORMER,120VAC	1
6	PCBA,DC CONTROLLER	1
7	POWER CORD,45"	1
8	SCR,M6-1 X 12 HWH THDF (3pk.)	1
9	SCR,HHD,SLTD,TAP,#8X5/1 (3pk)	2
10	Optical Encoder Assembly	1

Specify model number when ordering parts from Genie Customer Care.

DUAL BULB POWERHEAD

Item #	Description	QTY.
1	COVER, DUAL BULB	1
2	LENS	2
3	MOTOR ASSEMBLY	1
4	SOCKET,ANGLED LIGHT	2
5	TRANSFORMER,120VAC	1
6	PCB, DC CONTROLLER	1
7	POWER CORD,45"	1
8	SCR,M6-1 X 12 HWH THDF (3pk)	1
9	SCR,HHD,SLTD,TAP,#8X5/1 (3pk)	2
10	ICDM BOARD (Integrated Aladdin Models Only)	1
11	OPTICAL ENCODER ASSEMBLY	1

Specify model number when ordering parts from Genie Customer Care.

DASMA INFORMATION

Automatic Garage Door Opener and Garage Door Safety and Maintenance Guide

Garage Door System Safety - An Automatic Decision

A garage door is the largest moving object in the home. They are often operated by electric door openers. Proper installation, operation and maintenance and testing of the garage door and automatic opener are necessary to provide safe, trouble-free operation. An improperly adjusted garage door or automatic opener can exert deadly force when the door closes. This could lead to serious injury or death from being hit by a closing garage door or from being trapped under the door.

Safety if Everyone's Business

A few simple precautions can protect our family and friends from potential harm. Please take a few minutes to read the following safety and maintenance tips. Refer to your garage door and opener owner's manual for details specific to your garage door and automatic opener.

Some of the following precautions and warnings are identified with this "Safety and Alert Symbol. " This symbol indicates a potential personal safety hazard that can result in injury or death.

Garage Door Openers Are Not Toys

Do not stand or walk under a moving door! Do not let children or adults play "beat the door. " It is dangerous and can result in serious injury or death. Adults should set a good example. Know how to use the emergency release, in case someone is pinned by the door.

Do not let children play with or use the transmitters or remote controls. Always place or store them out of the reach of children.

The pushbutton wall control should be out of the reach of children (at least 5 feet from the floor) and away from all moving parts. Mount and use the button where you can clearly see the moving garage door

Teach Your Children About Garage Door and Opener Safety

Garage door openers are not toys. Careless operation and allowing children to play with or use garage door opener controls can lead to tragic results. Discuss garage door safety with your children. Explain the danger of being trapped under the door.

When using the pushbutton or transmitter, keep the door in sight until it completely stops moving. Teach children never to play under or near an open garage door.

Teach children to keep their hands and fingers clear of section joints, hinges, track, springs and other door parts. Contact with a moving door or its hardware could cause serious injury. These injuries can also happen with garage doors that don't have automatic openers.

Routine Maintenance Can Prevent Tragedies

Take a few minutes to inspect and test your complete garage door system. Make monthly inspection and testing a part of your regular routine. Safety is everyone's business. Make garage door and garage door opener safety automatic in your home.

Monthly Maintenance Checklist.

Garage Door Opener

• Reversal Test
• Force Setting Test
• Additional safety devices

Garage Door

• Visual inspection-springs, rollers, pulleys, cables and track
• Lubrication
• Door balance test

Consult owner's manual for additional recommended maintenance for your models of door and manual.

Testing and Maintaining The Garage Door Opener

There are routine Safety and Maintenance steps that you should follow once a month. Review your owner's manual for the door opener. If you don't have the owner's manual, look for the opener model number on the back of the power unit and request a manual from the manufacturer

Reversal Test
Make sure your opener has a reversing feature. If a reversing feature is not present, it should be replaced. Garage door openers manufactured after January 1, 1993 are required by federal law to have advanced safety features which comply with the latest UL 325 Standards. Contact your manufacturer or installer for additional information.

Test the Reversing Feature every month

• First test the balance of the door (see "Testing and Maintaining the Garage Door"). If the door is properly balanced, proceed.
• With the door fully open, place a 1-1/2" thick piece of wood (a 2" x 4" laid flat) on the floor in the center of the door opening.
• Push the transmitter or wall button to close the door. The door must reverse when it strikes the wood. (Note that the bottom part of "one-piece doors" must be rigid so that the door will not close without reversing.)
• If the door does not reverse, have it repaired or replaced. Have a qualified individual adjust, repair or replace the opener or door.


Force Setting Test
Test the force setting of your garage door opener by holding the bottom of the door as it closes. If the door does not reverse readily, the force may be excessive and need adjusting. See your owner's manual for details on how to make the adjustment. Test the reversing feature after any adjustment.

Additional Safety Devices
Many garage door openers can be equipped with additional safety devices. Consider adding a photo eye or edge sensor as an extra measure of safety to protect against entrapment. Keep in mind that adding more safety devices will not make an old opener meet current UL Standards.
Make sure the additional safety devices, such as photo eyes or edge sensors, are properly installed and adjusted (see owner's manual).

Testing and Maintaining The Garage Door

Perform routine maintenance steps once a month.
Review your owner's manual for the garage door. If you don't have a manual, look for the model number on the back of the door, or check the lock handle, hinges or other hardware for the manufacturer's name and request a manual from the manufacturer.

Visual Inspection
Look at the garage door springs, cables, rollers, pulleys and other door hardware for signs of wear. If you suspect problems, have a qualified person make repairs.

Springs are under high tension. Only qualified persons should adjust them.

Garage door springs, cables, brackets and other hardware attached to the springs, are under very high tension and, if handled improperly, can cause serious injury. Only a qualified professional or a mechanically experienced person carefully following the manufacturer's instructions should adjust them. The torsion springs (the springs above the door) should only be adjusted by a professional. Do not attempt to repair or adjust torsion springs yourself. A restraining cable or other device should be installed on the extension spring (the spring along the side of the door) to help contain the spring if it breaks.

Never remove, adjust or loosen the screws on the bottom brackets of the door. These brackets are connected to the spring by the lift cable and are under extreme tension.

Lubrication
Regularly lubricate the moving parts of the door. However, do not lubricate plastic parts such as plastic rollers and plastic idler bearing. Consult the door owner's manual for the manufacturer's recommendation.

Door Balance
Periodically test the balance of your door.

• Start with the door closed.
• If you have a garage door opener, use the release mechanism so you can operate the door by hand when doing this test.
• You should be able to lift the door smoothly and with little resistance. It should stay open around three or four feet above the door. If it does not, it is out of adjustment. Have it adjusted by a qualified service person.

Visit our website at: www.GenieCompany.com

or call Customer Service at: 1-800-35-GENIE (1-800-354-3643),

For SilentMax Connect® Models, call 1-866-599-4995

Documents / Resources

References

• Garage Door Openers and Accessories | The Genie Company
• Garage Door Openers and Accessories | The Genie Company
• genicompany.com
• Homelink

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Genie 1035, 2035, 2055, 3053, 3055, 7035, 7055 - Door Opener Manual
