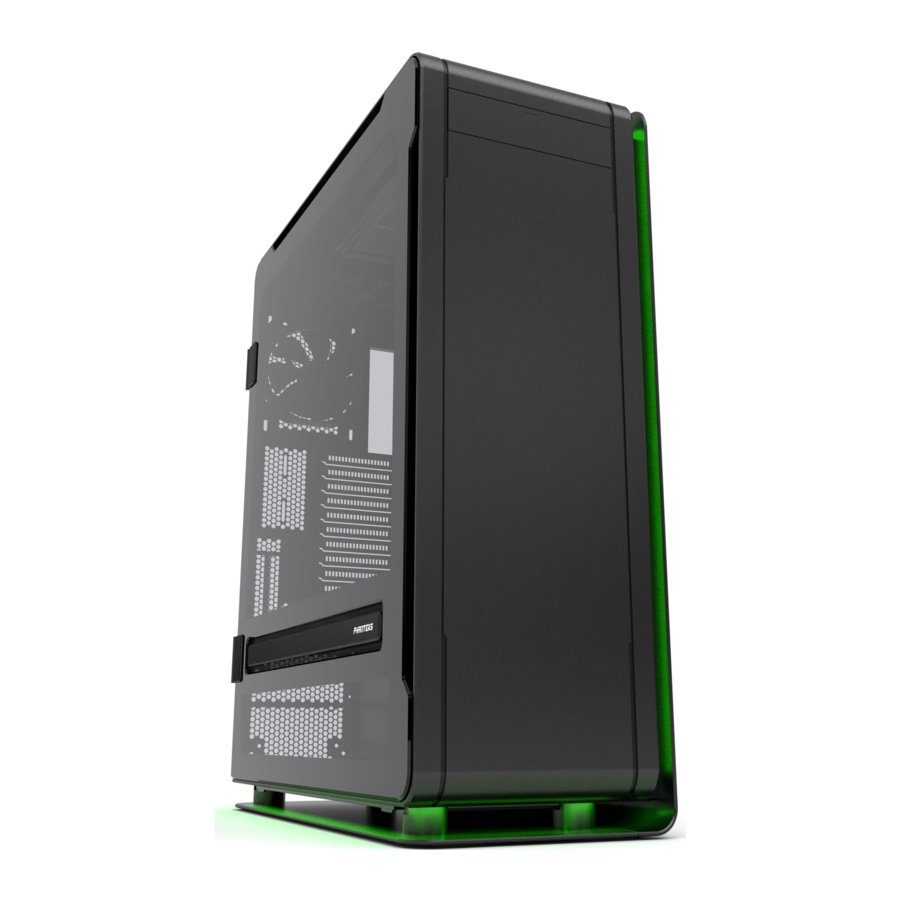

Phanteks Enthoo Elite - PC Case Manual

SPECIFICATIONS

EXPLODED VIEW

1. Chassis
2. Front Panel
3. Top Panel
4. Mesh Panel
5. Right Side Panel
6. Right Side Cover
7. Left Side Panel
8. Mid Plates
9. Top Radiator Bracket
10. Bottom Radiator Bracket

ACCESSORIES

3.5" MODULAR HDD BRACKET

• 6 included in accessory box
• For 3.5" or 2.5" Drive

CLOSED TOP PANEL

• 1 included in accessory box
• Anodized aluminum

SIDE RADIATOR BRACKET

• 1 included in accessory box
• Up to 280/360 radiators
• Universal reservoir mounts

PREMIUM FAN 140 MM

• 5 Pre-installed
• Hight static pressure
• Silent operation

GET STARTED

PREPARATIONS

• The Enthoo Elite case is designed to support installation in standing position. Make sure the case is standing stable while building.
• Don't turn on the power to your system until installation is complete.
• Discharge your body's static electric charge by touching a grounded surface before performing any hardware procedure.
• Make sure to consult the manuals of your hardware before installation.

If you do not feel comfortable with performing the installation procedure, consult a qualified computer technician.

Take out the EVA-foam from the top cover of the packaging to use as base for your hardware placement.

1. Slide and position this panel to create more clearance for easier cable management and installation of your hardware.
2. Use this panel to cover your cables after installation.
3. Slide this panel to position mounted components, e.g. water reservoir.

INSTALLING POWER SUPPLY

INSTALLING FANS

CONNECTING PWM HUB

The "Fan 1" connector should always be connected to a fan. The motherboard will read the RPM signal from this fan and all other fans will be regulated according to FAN 1. Y-splitters should not be connected to FAN 1.

1. CONNECT THE-PIN CABLE TO THE MOTHERBOARD PWM FAN HEADER
   Not all 4-pin fan headers on a motherboard provides true PWM signal. Please consult the motherboard manual for the correct fan header.
2. CONNECT YOUR FANS TO THE PWM HUB
3. CONNECT THE V SATA CABLE TO THE POWER SUPPLY
   Please connect the 12V SATA cable if your motherboard 4-pin PWM fan header is providing insufficient power to the PWM hub.


INSTALLING DRIVES

2. 5" SSD INSTALLATION

3. 5" HDD INSTALLATION

INSTALLING WATER COOLING

RADIATOR INSTALLATION

Remove

1. Top panel
2. Front panel in order to install the front radiators.

RESERVOIR INSTALLATION

PUMP INSTALLATION

CONNECTING FRONT I/O

Please make sure to consult your motherboard manual before connecting your front I/O.

RGB LIGHTING

TO PSU

SYNC CASE LIGHTING WITH RGB MOTHERBOARD

1. Switch off the case LED control panel. Press and hold until lights turn off.


2. Connect the RGB LED Adapter to the case RGB connector.


Use the included RGB Extension cables (in accessory bag).

3. Connect the RGB LED adapter to the motherboard's RGB LED header


4. Run the Motherboard RGB LED software and follow the instructions to set up your RGB LED lights.


Selected motherboard brands will allow color callibration of your connected LED strips.

INSTALLING VERTICAL GPU BRACKET

The vertical GPU bracket can't be installed in the first PCI slot. Install the GPU bracket in the 2nd, 3rd or 4th slot. Plug the Riser cable to your motherboard before mounting the vertical GPU bracket.

USING THE 2ND SLOT ON THE VERTICAL GPU BRACKET

INSTALLING 5.25" ODD BAY

The clearance between the 5.25" devices and the Tempered Glass side panel is 6,5 mm (2.5 in). Make sure your 5.25" device front panel won't be higher than 6,5 mm (2.5 in) so there will be no conflicts when closing the Tempered Glass side panel.

INSTALLING POWER SPLITTER / COMBO BRACKET

INSTALLING DUAL SYSTEM

DUST FILTERS

We recommend to clean your filter once a month for optimal performance. Use running water to clean your filters and let it dry up before putting back to use.

MORE RGB

The RGB controller in the Enthoo Elite supports up to 5 meters of LED strips. This allows you to expand your LED lighting throughout the entire case as well as outside the case.

• INTEGRATE DMAGNETS
• QUALITY 3M ADHESIV E
• DURABLE WATER PROOF SILICON HOUSING
• EASY INSTALLAT ION WITH 1 ORIENTATION CONNECTORS
• EXPANDABLE DAISY CHAIN CONNECTORS

EXPAND AND UPGRADE

The Enthoo Elite has been designd for maximum compatibility for any type of system. With these upgrades you can maximize your storage capability's and expand your power options.

3.5" MODULAR HDD BRACKET
PH-HDDKT_02

• For 3.5" or 2.5" Drive

2.5" SSD BRACKET
PH-SDBKT_01

• For 1x 2.5" SSD

3.5" HDD BRACKET
PH-HDDKT_01

• For 1x 3.5" HDD drive
• Can be mounted on the power splitter bracket

CABLE EXTENSION SET
PH-CBCMBO

• Available in multiple colors
• Includes clear cable combs
• Also available as seperate cables

POWER SPLITTER HUB
PH-PWSPR_1P2M

• Power a Dual System with one power supply

POWER COMBO HUB
PH-PWCOB_2P1M

• Combines 2 power supply's to maximize your power output and stability of your system with redundancy feature

PHANTEKS PH-F120MP / PH-F140MP

• High static pressure
• Silent operation
• 120 mm and 140 mm sizes
• Available in Black or White

Included cables:

• Motherboard 24-pin
• CPU 4+4-pin
• 2x GPU 6+2-pin

CUSTOMER CARE
RMA and Technical Support
Hours : Monday-Friday 9:00-5:00 PST
Phone number : +1(909)598-2115
Email us : support@phanteksusa.com (US)
Email us : support@phanteks.com (International)

Duration of warranty:

1. FANS - 5 years
2. I/O Port - 2 years
3. PWM Hub -2 years
4. LED Strip - 2 years
5. LED On/Off Switch - 2 years
6. Chassis - 5 years
7. Front and Top Panels - 5 years

Please check www.phanteks.com/Warranty for more information.
