Cubitt Jr. - Smartwatch Manual

Product specification

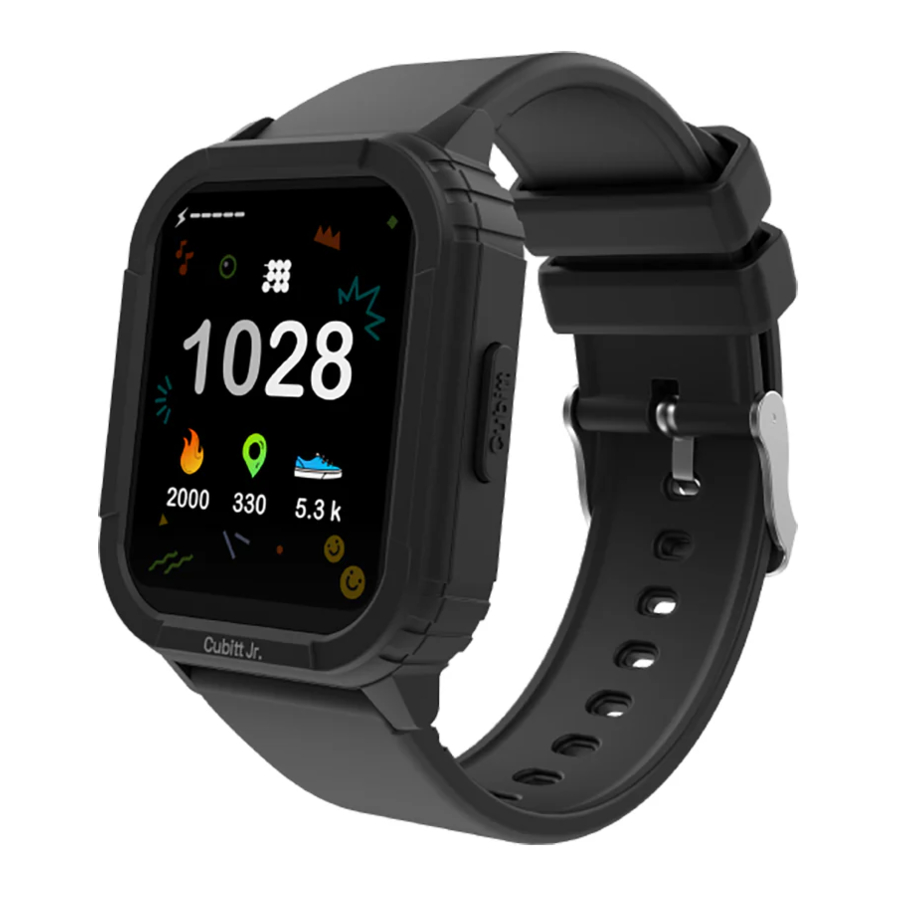

Product details

Please read the manual before use.

• The information in this document won't be modified or extended in accordance with any notice.
• The watch should be charging 3 hours at least before use.

Charge your device

Connect and charge the watch according to the picture. It needs to be charged to activate the watch when it is started for the first time.
Notice: Do not use a charger exceeding 5V 2A for charging.

Operate your unit

1. Power on: When the watch is Off status, press and hold the power button for 5 seconds to turn it on. The home screen of the watch will be displayed after booting.
2. Touch screen operation: From the home screen, swipe to the left to the menu screen, then tap the function icon to enter the corresponding sub-menu.
3. Wake up screen: When the watch screen is Off status, you can press the power button to wake up the screen. If the Gesture control button is turned on in the APP, you can also wake up the screen by turning the wrist.
4. Shutdown: Click the Setting icon, click System - Shut down, click to shut down.

Replace the strap

Remove the strap from the watch by sliding the quick release on the strap.

Products quick into

Products quick into

1. Long press the main interface to enter the home page thumbnail. You can view it left and right, click touch to switch the home page.
2. Swipe to the right: Display the games list.
3. Swipe down: Display Battery, Bluetooth, Date, and shortcut icons.
4. Swipe up: Storage information.
5. Swipe to the left: Display Daily activity, Sports, Heart rate, Temperature, etc., click to enter the corresponding function, right stroke to return to the previous level.


Setting Menu style method:
You can choose the Menu Style from menu screen:

Clock Display

Setting method:
When the watch in clock mode, please long press on the middle screen and set different clock interfaces if you like.

Child lock

Setting path: in the APP "Personal center" - "Device" - "Child lock". You can turn on the Child lock or Games lock after setting a password to prevent your children from overusing. If the Child lock is turned on, a password is required when using the watch.

Product quick use

Download and install App

You can set up the watch through the "Cubitt Jr + Teens" App for iOS or Android devices. You need download and install the "Cubitt Jr + Teens" App from APP Store or Google Play Store:

Or you can scan the following QR code to download the app:

Android+iOS

Connection and Synchronize data

Turn on the Bluetooth and GPS on your mobile phone.

Bluetooth connection

1. Install and open "Cubitt Jr + Teens"App.
2. In the home page, press "Personal center" - "Device" menu to Searching for nearby devices page.
3. Press "More" to searching device, select product mode Cubitt Jr. and click "Action" to bind watch as below.
   In "Setting" menu on the watch - find "System" - "System version" to check the watch Bluetooth name.



After connected successfully, shown as the icon in the watch status bar:

Notice:
* If your phone is iOS system, you need agree to pair with your phone and display your iPhone notifications. The Bluetooth menu of the phone interface displays Cubitt Jr. connected successfully as below picture shows.

*During binding process, "Cubitt Jr + Teens" will prompt you to enable GPS and Bluetooth, and authorize "Cubitt Jr + Teens" to get access to the GPS on you mobile phone. Please agree to all the permission prompt.
* iPhone will not prompt you with any information unless you complete Bluetooth pairing on your Cubitt Jr. watch in the built-in Bluetooth in your mobile phone after binding.

Synchronizing data

Pair your watch with "Cubitt Jr + Teens" App, open App, in the home page screen, swipe down or click the Sync icon to synchronize data. Your data will be shown on App accordingly.

Notice:
*Wrong operation: Pair the watch directly with the Bluetooth in your mobile phone's settings.
*Please don't shut the Bluetooth notify service when you are clearing software by background or close background application software. It will affect the sync function between watch and phone if shut it.
*If you want your watch to receive third-party notifications, you need to turn on the notification permissions.

Basic functions

Daily activity
The watch will display the user's total number of steps on the day, walking distance, calories burned on the same day, and the data will be cleared at 0 o'clock (midnight) every day.

Sports
In sports mode: the single-point function icon allows you to enter sports modes such as Walking, Running, Climbing, Riding, Basketball, Football, Baseball, Tennis, Rope skipping and Free sports.

Heart rate

1. Function introduction: The watch will measure the user's heart rate under the heart rate measurement interface. After the test is completed, the vibration will display the result. After no operation, the screen will automatically go out.
2. Operating instructions: Swipe to the left on the main interface and click the heart rate static icon to switch to the heart rate measurement interface. Once the interface is entered, the measurement will start. During the measurement, the interface value will be zero. After the measurement is completed, the value will be displayed.


Temperature

1. Function introduction: The watch will measure the user's temperature under the temperature measurement interface. After the test is completed, the vibration will display the result.
2. Operating instructions: Swipe to the right on the main interface and click the temperature static icon to switch to the temperature measurement interface. Once the interface is entered, the measurement will start. The first row of data is for Body surface temperature, it is changed in real time. The second row of data is for Body temperature, measuring 60s to complete the measurement. During the measurement, the interface value will be show "--°". After the measurement is completed, the value will be displayed.

Remark: During testing body temperature, environment temperature requires within 18-30°C.

Games
There are 8 games in the watch which are fun and you can choose one to play. You can also download games through the "Cubitt Jr + Teens" App

Alarms
You can set alarms in the APP, the watch will show the alarms information. When the alarm time is up, the watch will pop up a reminder icon. In the APP alarms setting, if you allow to operate the alarms On/Off in watch, you can also open or close it in the watch.

Sport habit
You can set up 30 minutes daily exercise reminder to form your good habit.

Sports record
If you have done any sports and saved, in this function will show the information of sports record.

Sleep

1. Function introduction: The watch will display the user's sleep time the night before. (Sleep measurement time 21:30 - 12:00 next day)
2. Operation instructions: Swipe the main interface left and right, click sleep to switch to the sleep interface, you can view the sleep time of the previous day.


Date&time
You can set the time, set the date, choose the time display mode.

Blood pressure
Switch to the blood pressure interface, once you enter the blood pressure interface, the bracelet will start measuring blood pressure, during the measurement process (for about 30s).

Blood oxygen
Switch to the blood oxygen interface, once you enter the blood oxygen interface, the bracelet start measuring blood oxygen, during the measurement process (for about 30s).

Calculator
The numerical input is in the upper limit of 7 digits (input of negative numbers is not processed), and the result of the calculation is within the upper limit of 8 digits. If the result exceeds the calculated value, it will be displayed with "---" that cannot be calculated.

Weather
After connected with APP, the watch will show local weather information.

Timer
Switch to the timer interface, click to start timing. During the timing, you can start/pause/reset switching with a single touch.
Switch to the stopwatch interface, you can choose 1min, 5min, 10min, or set any time you want to use countdown function. You can start/pause/reset switching with a single touch.

Music
After connected with the Bluetooth, you can manipulate Mobile to play music and adjust the volume, voice will come out from mobile phone.

Style
The Ul include Stylel and Style2, you can choose different style to show.

Setting

• Language: Including different languages you can choose.
• Screen display: Including Change dial, Brightness, Screen time, Turn wrist wake setting.
• Do not disturb: Set enter or exit do not disturb mode.
• Vibration: Set vibration intensity.
• Battery: Show the battery power, set Power saving mode.
  When you open it, the watch Bluetooth will be disconnected.
• Unit setting: Set units or temperature unit.
• System: Including System version, Reset, Shut down settings.

Caveat

Please note that Cubitt smartwatches are not intended for medical purposes. While they offer various features and functionalities that can enhance your everyday life and promote an active lifestyle, they should not be relied upon as medical devices. If you have any specific health concerns or require medical monitoring, we recommend consulting with a healthcare professional.

Caution

Waterproof and dustproof
The watch supports waterproof and dustproof. Please follow below guidelines to maintain the waterproof and dustproof function. Otherwise your device might be damaged.

• Do not use watch under the strong pressure water.
• Do not use watch when diving, snorkeling or other sports in turbulent water.
• Please dry your hands or watch fully before operating.
• If the watch is exposed to water, please dry it fully with soft cloth. If it is exposed to other liquids (such as salt water, pool water, soapy water, oil, perfume, sunscreen, hand sanitizer) or chemicals (such as cosmetics), please wash it with clean water and dry it fully with soft cloth. Do not follow these instructions may damage its performance and appearance.
• If the watch is dropped or hit, the waterproof and dustproof function may be damaged.
• Do not disassemble your watch. The waterproof and dustproof function may be damaged.
• Do not use watch in extremely high or low temperature environments.
• Do not use blowers and other heated equipment to dry the watch.
• In sauna room, the waterproof function may be damaged.

Cleaning and management of Cubitt Jr.
Follow the below points to ensure that Cubitt Jr. is operating normally and looks good. Otherwise, maybe damage Cubitt Jr. and cause skin irritation.

• Protect watch from dust, sweat, ink, oil and chemical products (such as cosmetics, antibacterial sprays, hand sanitizers, detergents, and insecticides). Otherwise, the internal and external parts may be damaged or causes performance degradation. If Cubitt Jr. is stained with above substances, please clean it with lint-free soft cloth.
• When cleaning Cubitt Jr., do not use soap, detergent, abrasive materials, compressed air, ultrasonic waves or external heat sources. Otherwise, Cubitt Jr. may be damaged. Soap, detergent, hand sanitizer, or detergent residue may cause skin irritation.
• After exercising or sweating, please clean your wrist and strap. Use water to clean Cubitt Jr. and dip a small amount of alcohol to wipe, then dry it thoroughly.
• If Cubitt Jr. is stained or infiltrated with other objects, please use wet soft toothbrush to clean it.

If you are allergic to material on Cubitt Jr., please pay attention when using

• Manufacturer conducted testing about hazardous materials on Cubitt Jr. by internal and external certification agency, including testing of all materials contact skin, skin toxicity testing, and wearing testing.
• Cubitt Jr. contains nickel. If your skin is very sensitive or you are allergic to the materials on Cubitt Jr., please take necessary precautions.
• Nickel: Cubitt Jr. contains a small amount of nickel. The content is lower than the reference value of European REACH regulations. You will not be exposed to the nickel in Cubitt Jr. and our device has passed the international certification test. However, if you are allergic to nickel, please use Cubitt Jr. with caution.
• All materials used on Cubitt Jr. comply with relevant inspection standards such as REACH and RoHS.
