TRIBIT StormBox Micro 2 - Speaker Manual

Packing List

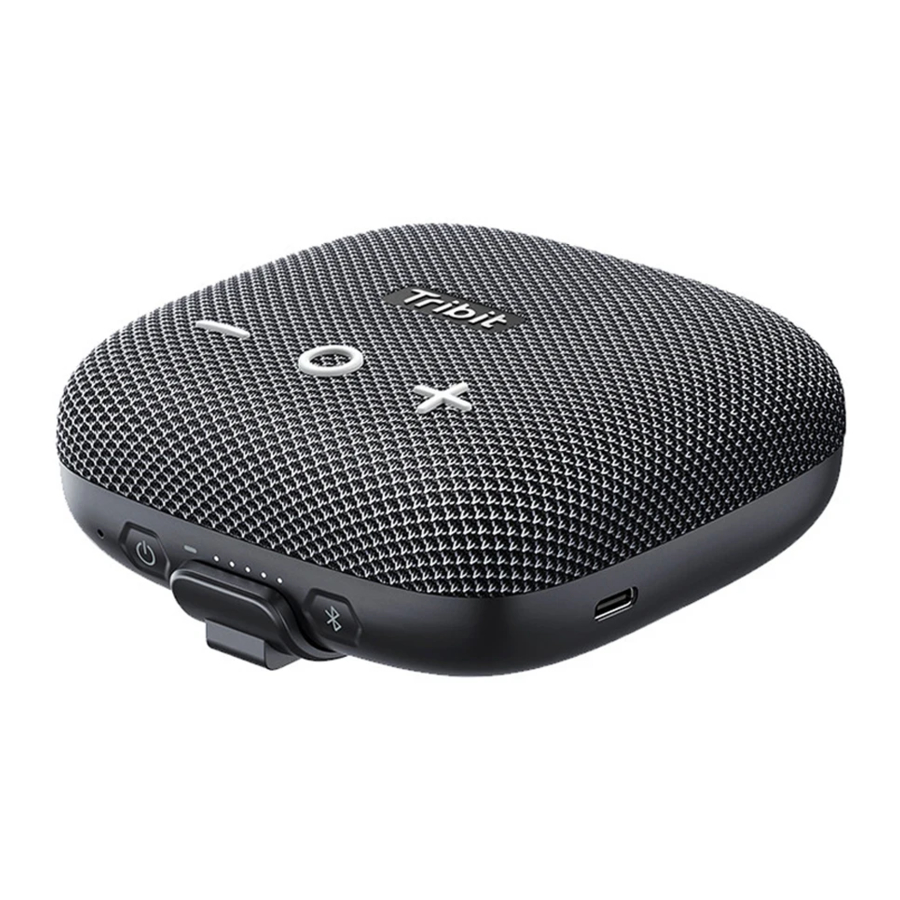

Product Illustration

Charging

Connect this speaker to a 5V power outlet via the providing USB-C charging cable.
Charge other devices: Connect the speaker with your USB-enabled device via a USB-C charging cable.

Battery Indicator

Red indicator is flashing Low battery

White indicator is flashing Charging

All indicators turn off Full charged

Indicator Instruction

0-30% 30-50% 50-70% 70-80% 80-100% Full charged

Button

Power on/off

Short press Power on Blue indicator is flashing

Short press Power off All indicators turn off

Press and hold it for 8s Reset Blue indicator is flashing

Bluetooth Connection

	Press and hold it for Is	Enters pairing mode		Blue indicator is flashing	Pairing status
	Press and hold it for IOS	Factory reset		Bluetooth indicator is steadily on	Successfully connected

The StormBox Micro 2 Speakerwill automatically connect to the last paired device again if available. If it fails, the speaker will enter to pairing mode. The speaker can remember up to 8 paired Bluetooth devices. Better still, it can connect to 2 devices simultaneously at a time.

Conversion betwen 2 Connected Devices

Pause the playback of the current device
Play the audio file of the other device

Volume Adjustment

Multifunctional Button (MFB)

Music Mode	Short press	Play/ Pause
	Double press	Next Track
	Press it for 3 times	Previous Track
	Press and hold it for Is	Activate Siri
Conversation Mode	Short press	Answer / End phone call
	Press and hold it for Is	Reject phone call
	Short press	Pause the current call and answer the incoming call
	Short press	Switch between two phone calls

Party Mode

Make sure both two speakers are turned on.

Long press the Bluetooth button of speaker A for 5s to enter the party mode pair ing. (Note: this speaker will be regarded as the main speaker)
Long pressthe Bluetooth button of speaker B for 1s to enter the pairing mode. (Note: this speaker will be regarded as a secondary speaker). When you hear the prompt tone "party mode", the speaker A and Bsuccessfully enter the party mode.

Note: The function of party mode can be realized only when you have 2 Tribit StormBox Micro 2 speakers.

Stereo Mode

Make sure both two speakers have entered party mode.

Short press the Bluetooth button on any of the two speakers.
Releasethe buttons when you hear the voice of Stereo Mode. One speaker will sound "Left" and the other will sound "Right", and then the stereo mode is activated.

Note: The function of stereo mode can be realized only when you have 2 Tribit StormBox Micro 2 speakers.

Conversion between Party Mode and Stereo Mode
Short press the Bluetooth button on any of the two speakers.
Disable the Party Mode or Stereo Mode
Press and hold the Bluetooth button for 5s on any of the two speakers, then both will re-enter Bluetooth pairing mode.

Specifications

Bluetooth Version	5.3
Output Power	10W
Frequency	70Hz - 20KHz
Battery Type	3.6V/ 4700mAh Lithium battery
Dimensions	99.8 x 99.8 x 42.9 mm
Waterproof Grade	IP67
Frequency band	2.402GHz - 2.480GHz
Maximum transmission power	6dBm
