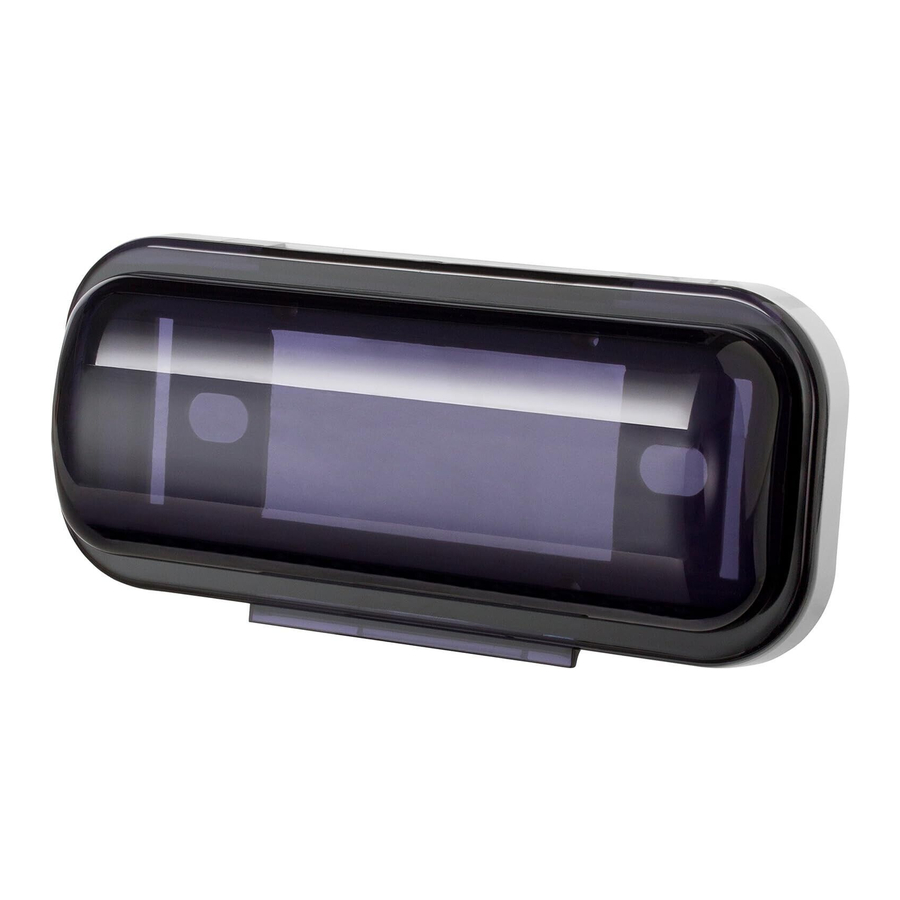

Boss Audio Systems MRC5, MRC5B - Marine Radio Manual

Package Contents

• 1x Marine radio cover
• 6x Pan head screws (M4 x 25mm) and clip nuts
• Sticky EVA gasket ring
• Warranty

Introduction and Features

• Head unit installation opening (W x H): 7.18" x 2.11" (182.4 x 53.5 mm)
• Fits single DIN head units (W x H): 7" x 2.0" (178 x 51 mm)
• Marine radio cover dimensions (W x H x D): 9.09" x 4.02" x 1.92" (231 x 102 x 48.8 mm)
• UV-stabilized ABS plastic housing
• Impact-resistant ABS
• Door sealed with an EVA gasket for water resistance

Product Overview

Installation

1. If your single DIN head unit does not fit in the center opening of the radio cover, use a proper tool to cut out the two tabs (ABS plastic) in the center opening.

2. The head unit installation opening is 7.18" x 2.11". Attach your single DIN head (7" x 2.0") unit to the radio cover through the opening, then place in the supplied EVA ring around the head unit face for shock absorption and added protection against the elements.

3. Secure the radio cover in the dash via the six screw holes using the supplied screws and clip nuts. Make sure the head unit is securely attached.
