CYCPLUS A2 - Tire Inflator Manual

Packing List

1. Inflator
2. Air Tube
3. Presta Valve Converter
4. Ball Needle
5. Type-C Charging Cable
6. Storage Bag
7. Bike Mount
8. Screwdriver
9. Screw*2
10. Non-slip Mat
11. Velcro
12. User Manual

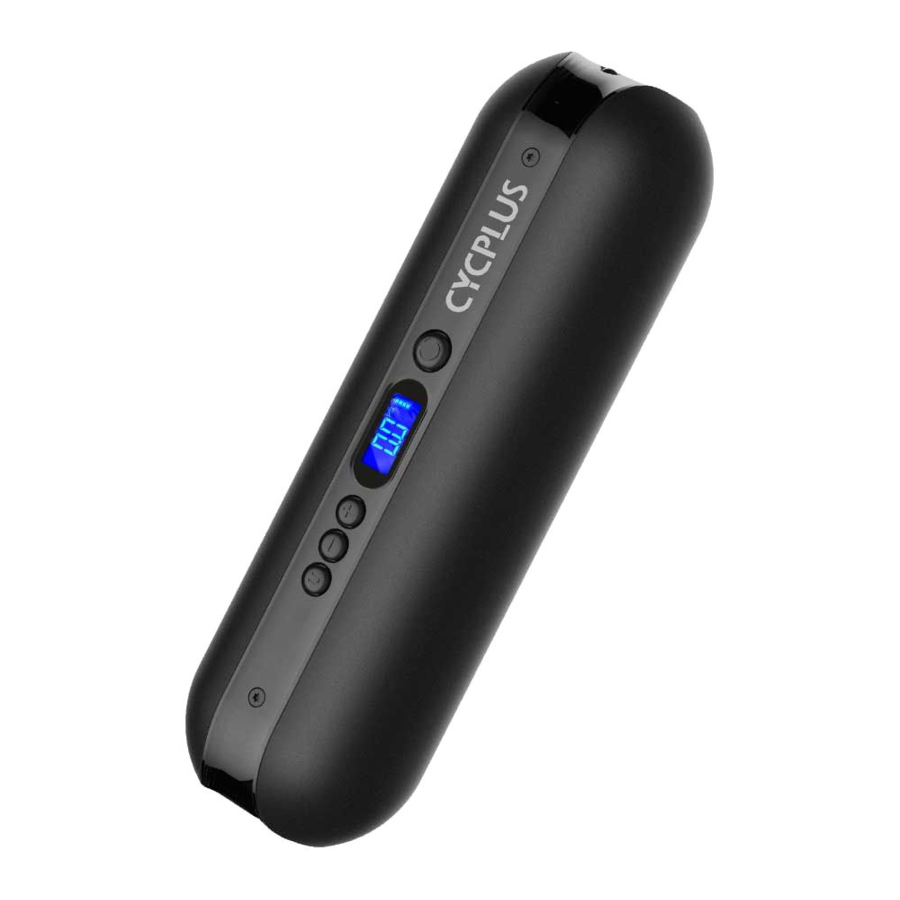

Product Details

About Buttons

About Inflation

Valve Installation

Operation

Connection

Connect the metal end to the pump, and thread the other end onto the valve stem. For Presta valves, please install the Presta Valve Converter first. For balls, install the Ball Needle first.

Start up

Long press the Power Button to turn on the power. The screen will display the current pressure.

Set Target Pressure

Press Unit Button to choose the pressure unit among PSI, BAR, KPA and kgf/cm2. Use + Button and - Button to adjust the target air pressure value. The screen will flash twice when you stop setting, then it will display the current air pressure.

Inflation

Press Power Button to start inflating. Press again to pause/continue. It will stop automatically when the target pressure is reached.

Shutdown

Long press Power Button to turn off Or it will shut down automatically after 1 minute without operation.

Flashlight

Long press Unit Button to turn on/off flashlight.

Power Bank

Charge your mobile device via the USB output port.
The power output is 5V 2A max.
The inflator will stop working as a power bank while inflation.

Recharging

1. Fully recharge the inflator before use especially after long-time idleness.
2. During the charging process, the battery level indicator on the screen will flash, and it will light up when fully charged
3. Please charge the inflator once every three months even if not in use to avoid battery damage.

Attentions

1. It's normal that the inflator becomes hot after working more than 1 min. Please don't touch the hot part of the air tube!
2. Please check the inflator before inflating. If find any exception, don't use it.
3. If find any abnormal sounds or excessive temperatures during the inflation, please stop it immediately.
4. Please ensure the smooth flow of air during the inflation.
5. The compressor in the inflator may produce electric sparks at work. Please keep it away from flammable
6. and explosive objects. Do not leave the working area in case of accidents.
7. After long-time using, the inflator and the air tube will become hot. Please take a break before using it again.
8. Please try to avoid silt invasion, soaking and bad fall.
9. Harsh chemicals, cleaning agents, detergents and other chemicals are forbidden to be used during the cleaning.
10. Don't store the inflator in a cold, hot or humid place.
11. Children are forbidden to use the inflator. Please keep it away from children.
12. Don't inflate the air into the mouth, ear, eye, etc. of the persons or animals.
13. Do not use the inflator when it's being charged.

Bike Mount

1. Fix the bike mount on the bike and fasten screw.
2. Paston non-slip mat.
3. Pull the inflator in. Please note that the screen is facing up. Tense the velcro and fix it well

Specification
