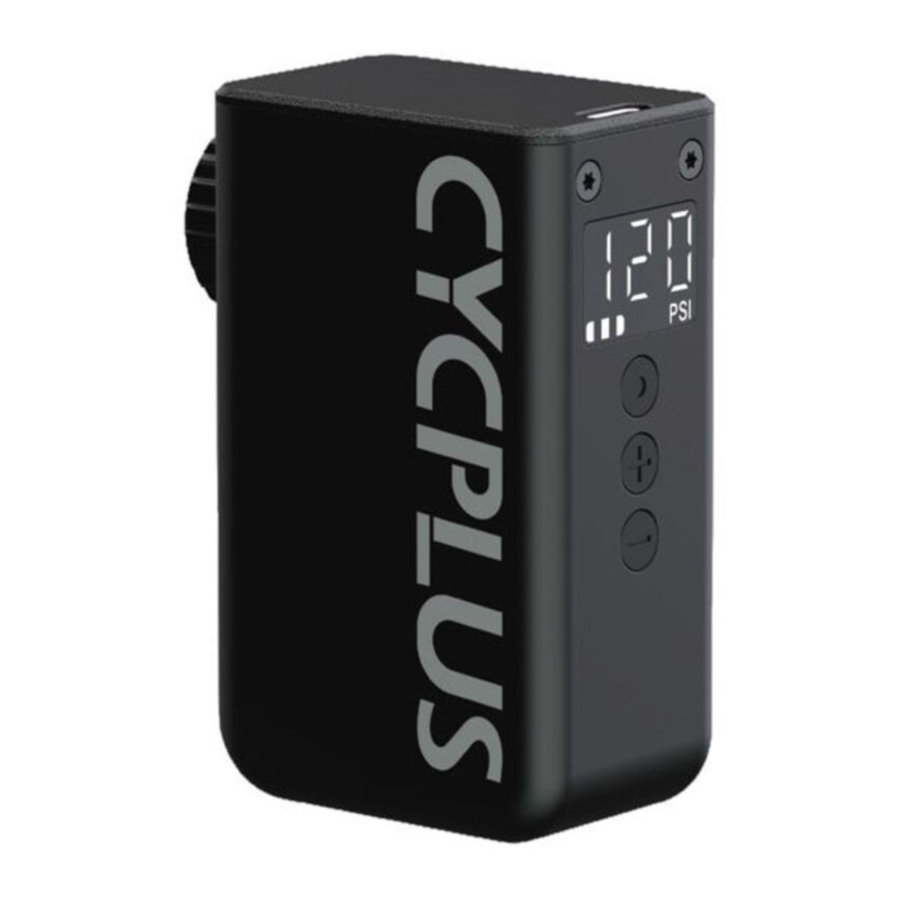

CYCPLUS AS2 Pro - Bicycle Tire Inflator Manual

Packing List

Details

Air Nozzle Adaptation

The inflator is ready for Presta valve right out of the box. For Schrader valve, please adjust the nozzle accordingly. The hose can be directly connected and used, regardless of the presence of pillar in the nozzle.
When the target air pressure is above 100 PSI, please use with the hose to prevent air leakage from the nozzle.

Operation

1. Connect the air valve
   1. Connect the nozzle directly to the valve
      Adjust the nozzle mode and connect it to the valve.
      Keep a tight grip on the nozzle while inflating.

   2. Use the hose
      Hold the hose and the suitable adapter, then connect it to the valve. it's recommended to use the hose when using Schrader valve.

2. Power on and set target air pressure
   Long-press the Power button to power on, and the screen illuminates, showing the real-time air pressure reading.
   Press '+' and '-' together to switch between PSI and BAR. Adjust target pressure using '+' and '-' buttons. The set pressure will display for 3 seconds before reve ing to current pressure.

3. Inflating
   Press the Power Button to start inflation. It will auto shut off when the target air pressure is reached.

4. Shut down
   Long-press the Power Button to power off. If the air pump is not started and there is no operation within 1 minute while it is powered on, the air pump will automatically shut down.

Notes

1. Fully charge the inflator before use.
2. The inflator may get hot during operation, and please use it with the silicone case.
3. Press the inflator against the valve before and during inflation, and adjust the position to prevent air leakage.
4. It is normal to feel a sense of traction when pulling the inflator off a presta valve after inflation.

Charge

Charge it with a suitable charger. While charging, the screen battery indicator light illuminates and flashes incrementally.
Once the battery is fully charged, all the battery indicator lights will be illuminated.

Specifications

Size: 70*49*28 mm
Weight: 120g
Battery: 420mAh 7.4V 3.11Wh
Charging Po: Type-C 5V 1.5A
Current: 2.5~7.5 A
Max Pressure: 120 PSI

Warning

For TPU inner tubes with resin valves, be sure to connect them with an extension air hose, or the valves may melt due to overheating.

Factory Info

Manufacturer:
Chengdu Chendian Intelligent Technology Co., Ltd
Warranty:
Free repair or replacement within one year after purchase.
After-sales email: steven@cycplus.com
