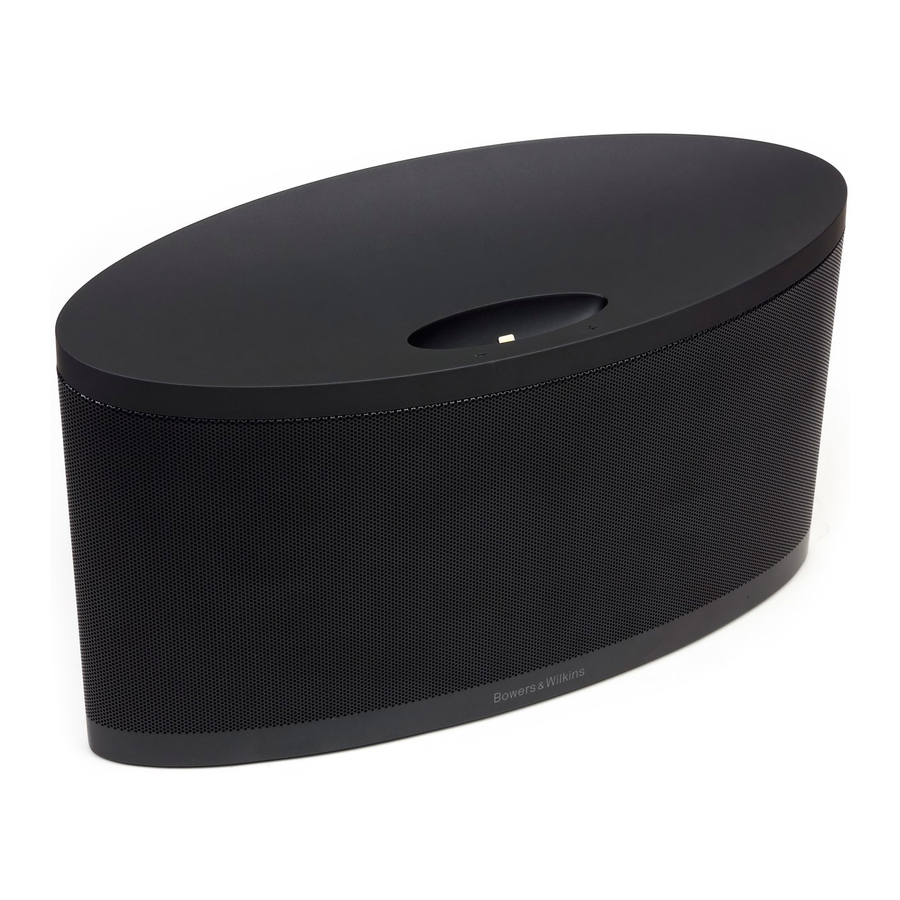

Introduction

Z2 is more than just an iPod^® dock. As well as listening to audio stored on your iPod or iPhone^® you can use it to:

• Play audio directly from iTunes^® via either a cable or wireless network connection.
• Connect and listen to an external audio source such as a TV or a non-USB portable music player.

This manual will tell you everything you need to know to get the most from your Z2. It begins by describing the contents of the Z2 carton.

www.bowers-wilkins.com

Carton Contents

1. Z2
2. Power supply
3. Remote control
4. Document pack

The Lightning connector works with iPhone 5, iPod touch (5th generation) and iPod nano (7th generation).

AirPlay works with iPhone, iPod touch and iPad with iOS 4.3.3 or later, Mac with OS X Mountain Lion, or Mac and PC with iTunes 10.2.2 or later.

Connecting to your Z2

Diagram 1
Z2 back panel

You can connect to your Z2 three different ways:

• Using AirPlay^® .
• Using the Lightning^™ connector.
• Using the Auxilary input.

Diagram 1 illustrates the Z2 rear panel connection sockets.

AirPlay Connection

Z2 is able to play audio from iTunes either wirelessly or via a wired (Ethernet) connection using AirPlay streaming technology. When connected to the same network as a computer running iTunes, Z2 can appear as an output option in the pop-up AirPlay menu. See Joining Wireless Networks and configuring iTunes Section for information on configuring Z2 to join your home network and on configuring iTunes to play through Z2.

Note: Please ensure you have installed the latest version of iTunes.

Note: A standard Ethernet cable is required if you wish to connect your Z2 to an Ethernet network.

As well as streaming audio from iTunes, AirPlay also makes it possible to stream audio directly to Z2 from an iPod touch, iPhone or iPad^®. Any iPod touch, iPhone or iPad application that incorporates a volume control will have an additional icon that enables selection of available remote speakers for playback. Any AirPlay device within wireless range will be included in the selection list.

Lightning Connector

Z2's Lightning connector is compatible with iPhone 5, iPod touch (5th generation) and iPod nano (7th generation). Older iPod or iPhone models, or alternative music players, may be used by connecting their headphone sockets to the Z2 rear panel AUX input. iPhone and iPod models are charged when docked if the Z2 is on or in Sleep or Standby mode.

Auxiliary Input (AUX)

If you wish to listen to an external analogue source, connect it to Z2 AUX input socket using an analogue cable terminated with a mini-jack plug.

Mains Input (POWER)

Connect Z2 to a mains outlet socket using the power supply. When first connected to mains power Z2 will automatically power up with its indicator pulsing red.

Note: The table in The Z2 Indicator Section describes all Z2 indicator colours and their meanings.

Using Z2

Diagram 2
Z2 controls explained

Z2 can be operated either from the controls on its body, or from the remote control. If the remote control is to be used, the battery insulating tab must first be removed. This is illustrated in Diagram 3 Diagram 4 illustrates the control key functions.

Diagram 3
Z2 insulating tab removal

Diagram 4
Z2 remote control explained

Switching On and Off

In addition to normal operating mode, Z2 has both Standby and Sleep modes. In Standby mode, all Z2 functions are switched off and the power consumption minimised. In Sleep mode, the Z2 wireless function remains connected to the network. The Z2 indicator illuminates dim red in Sleep mode and will turn off in Standby mode.

Z2 can be switched from Standby mode by the following actions:

• Pressing the Z2 Standby button
• Docking an iPod or iPhone.

Z2 can be switched from Sleep mode by the following actions:

• Pressing the Z2 Standby button
• Pressing remote control Standby key
• Docking an iPod or iPhone.
• Streaming music to Z2 by Airplay.
• Play music through the AUX input.

When Z2 is switched on from Standby or Sleep, the last input used will be selected if it is still connected. If the last input used is no longer connected, Z2 will automatically scan its inputs AUX, Dock, AirPlay, and select the first connected one it finds. The Z2 indicator will change to the colour that designates the selected input. If no connected input is found, Z2 will select the AirPlay input by default.

Note: For first time power up when AirPlay has not been set up the indicator will flash Yellow.

Note: The table in The Z2 Indicator Section describes all the Z2 indicator colours and their meanings.

To switch Z2 into Sleep mode, either press the remote control Standby key or press and hold the Z2 Standby button for 2 seconds. The Z2 indicator will illuminate dim red.

To switch Z2 into Standby mode, press and hold the Z2 Standby button for 4 seconds. The Z2 indicator will turn off.

Note: It is not possible to switch Z2 into Standby mode from the remote control.

Note: The Z2 will automatically enter Sleep mode if left inactive for more than 30 minutes.

Functions

Diagram 5 illustrates Z2's connectivity.

Diagram 5
Z2 connectivity

With the Z2 switched on from Standby or Sleep:

• You can listen to your iPod or iPhone audio.
• You can connect to a wired or wireless network and stream audio via AirPlay.
• You can listen to other analogue audio sources via the Z2 AUX input.
• You can use the remote control Volume keys or the Z2 Volume buttons to control volume.
• If an iPod or iPhone is docked, or Z2 is connected to iTunes via AirPlay, you can use the remote control Play/Pause key to play or pause audio, or the Next and Previous keys to select the next or previous track.
• You can use the remote control Input key or the Z2 Standby button sequentially to select connected inputs.

Automatic Input Switching

In some circumstances the Z2 will automatically switch to its AirPlay input or switch on from Sleep mode:

• If iTunes streamed audio is present on the AirPlay input when the dock input is selected and a docked iPod or iPhone stops playing, the AirPlay input will automatically be selected.
• If iTunes streamed audio is present on the AirPlay input when the AUX input is selected but no audio playing, the AirPlay input will automatically be selected.
• If iTunes streamed audio is present on the AirPlay input when Z2 is in Sleep mode, it will automatically switch on and play the streamed audio.
• When Z2 is in Sleep mode for more than one minute and an audio signal is detected through the AUX input, it will automatically switch on and play the AUX input audio.

The Z2 Indicator

The Z2 indicator illuminates in a range of colours to indicate different operational conditions. Table 1 describes the colours and their meanings.

Table 1
Indicator colour and meaning

Joining Wireless Networks and configuring iTunes

In order to play your iTunes music on your Z2 using AirPlay, your Z2 must join the same network as the computer on which iTunes is installed and running. Z2 network addressing is set to DHCP which means that once it has joined the wireless network it will not require any further configuration. You will need to know your home wireless network name and password before you start.

Note: You will need to disconnect the power if you have already used your product without configuring a wireless network.

Set up your Z2 with your iOS device (iPod touch, iPad or iPhone)

• Get 'Bowers & Wilkins Control' App from the App Store or by visitingwww.bowers-wilkins.com/control
• Follow the onscreen instructions.

Set up with Mac or PC

• Get 'Bowers & Wilkins Control' App from the App Store or by visiting www.bowers-wilkins.com/control

Setting up Z2 using a wired connection

To set up Z2 to join your wireless network you should first connect it physically to the Mac/PC using an Ethernet cable. You will need to ensure that your Mac/PC wireless capabilities are disabled. Once connected you can browse to the Z2 setup page. Follow the steps described below.

Note: Z2 can also use a wired network for AirPlay streaming.

• Unplug every cable from the Z2 and undock any docked iPod or iPhone.
• Using an Ethernet cable connect the Z2 rear panel ETHERNET socket to an Ethernet socket on the computer.
• Connect the power cable. Z2 will switch on with the indicator pulsing red.
• Once the Z2 indicator begins to flash yellow. Press and hold the '+' volume button on Z2 for 4 seconds. Z2's indicator will show solid purple once the wired network connection is established.
• Using an internet browser application running on the computer connected to the Z2 type the Z2 default network address (http://169.254.1.1) in the browser address field and press "return". This will open the Z2 setup page.
• The setup page provides the option to change the Z2 name. Changing the name is useful if more than one Z2 is to be connected to the network. Enter a new name (Z2 Kitchen for example) in the Name box.
• Select your home network Name from the drop down list and enter the Password in the appropriate box. Take care to type the password correctly.
• When you are finished, click on the Apply button, then close the Z2 setup page. Disconnect the Ethernet cable.
• The Z2 indicator will change to steady purple when the wireless network connection is established. This will take up to 3 minutes.

Note: If Z2 fails to connect to your home wireless network, the most likely fault is an incorrectly entered network password. Follow the reset instructions in Factory Reset Section and begin the network setup procedure again.

Configuring iTunes

With Z2 connected to your home network (wired or wireless) you can configure iTunes to use it as an output device. Select Z2 as an output option in the pop-up AirPlay menu. iTunes will now play through the Z2.

Multiple Z2 units can be connected to the wireless network and used to provide audio in separate rooms. Each will be available in the iTunes devices menu, identified by either the names specified in the setup page, or by default the last three digits of their serial numbers.

Firmware Update

Updated Z2 firmware may from time to time be made available for download from Z2's support section of the Bowers & Wilkins website.

Factory Reset

Diagram 6
Z2 factory reset

Z2 has a pin-hole reset button located on its rear connection panel. The reset button is illustrated in Diagram 6. To return the Z2 network settings (AirPlay input) to the factory defaults, ensure the power cable is connected, and power the Z2 on. Press and hold the reset button for 2 seconds. The indicator will flash red twice.

Cleaning Z2

Use a lint-free cloth to clean the Z2. If you wish to use a cleaning agent, apply it onto the cleaning cloth, not directly onto the Z2. Test a small area first, as some cleaning products may damage some of the surfaces. Avoid products that are abrasive, or contain acid, alkali or anti-bacterial agents.

Troubleshooting

If you need help troubleshooting a specific problem, or have a question you'd like answered, please consult our Troubleshooting guide, or Frequently Asked Questions section on the Z2 Product Support page of our website.
www.bowers-wilkins.com
