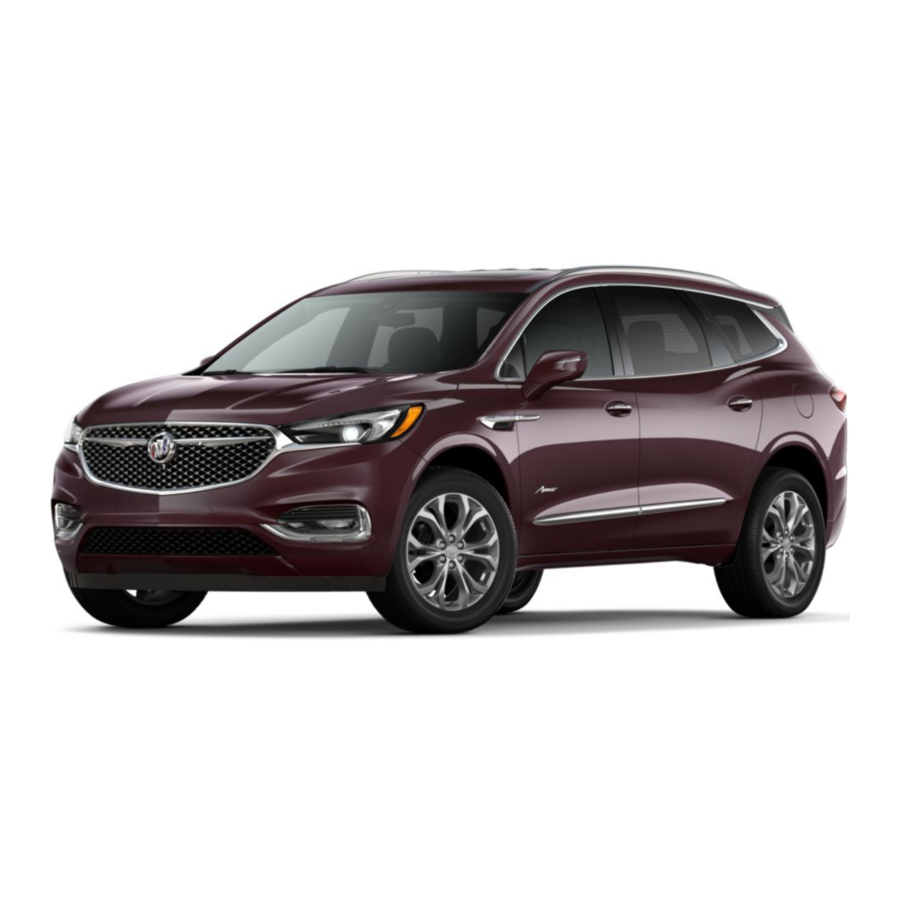

Buick ENCLAVE 2020 - Automobile Manual

Buick ENCLAVE 2020 - Automobile Manual

Also See for ENCLAVE 2020:

Advertisement

Buick ENCLAVE 2020 - Automobile Manual

INSTRUMENT PANEL

INSTRUMENT PANEL - Part 1
INSTRUMENT PANEL - Part 2

Symbols
Symbols - Part 1
Symbols - Part 2
Refer to your Owner's Manual to learn about the information being relayed by the lights, gauges and indicators on the instrument cluster. See Introduction in your Owner's Manual.

REMOTE KEYLESS ENTRY TRANSMITTER (KEY FOB)

Lock
Press to lock all doors.

Unlock
Press to unlock the driver's door. Press again to unlock all doors and liftgate.

Power Liftgate
Press twice to open or close the liftgate. Press once to stop power liftgate operation.

Vehicle Locator/Panic Alarm
Press and release to locate your vehicle. Press and hold to activate the alarm. Press again to cancel the alarm.
Note: To change the remote lock, unlock, and remote start settings, go to Settings > Vehicle > Remote Lock, Unlock, Start.

Remote Vehicle Start
Press and release the Lock button and then press and hold the button until the turn signal lamps flash to start the engine from outside the vehicle. After entering the vehicle, turn on the ignition.

  • During a remote start, the engine will run for 15 minutes. Repeat the steps for an additional 15 minutes.

  • To cancel a remote start, press and hold the button until the parking lamps turn off.

Key Release
In case of loss of vehicle power, press the button on the back of the transmitter to pull out the door lock key. Remove the cap on the rear part of the driver's door handle to access the lock.
See Keys, Doors and Windows in your Owner's Manual.

KEYLESS ACCESS SYSTEM

The Keyless Access System enables operation of the doors and liftgate without removing the Remote Keyless Entry transmitter from a pocket or purse. The transmitter must be within 3 feet of a front door or within 3 feet of the liftgate.
KEYLESS ACCESS SYSTEM

Keyless Unlocking
With the transmitter within range:

  • Press the button on the driver's door h andle to unlock the driver's door; press it again within 5 seconds to unlock all doors.
  • Press the button on a passenger's door handle to unlock all doors.
  • Press the touchpad above the license plate to open the liftgate.

Keyless Locking
With the ignition off, the transmitter out of the vehicle, and all doors closed:

  • Press the button on any door handle to lock all doors immediately.
  • If Passive Locking is turned on, all doors will lock automatically after a short delay.

Note: To change the lock and unlock settings, go to Settings > Vehicle > Remote Lock, Unlock, Start.
See Keys, Doors and Windows in your Owner's Manual.

KEYLESS (PUSHBUTTON) START

The Remote Keyless Entry transmitter must be in the vehicle to turn on the ignition.
KEYLESS (PUSHBUTTON) START

Starting the Engine

  • With the transmission in Park or Neutral, press the brake pedal and then press the ENGINE START/STOP button to start the engine. The green button indicator will illuminate.

Note: If the Remote Keyless Entry transmitter battery is weak, place the transmitter at the front of the center console storage compartment to enable the engine to start. Replace the transmitter battery as soon as possible.

Stopping the Engine/Off

  • Shift to Park and press the ENGINE START/STOP button to turn off the engine.

Accessory Mode

  • With the engine off and the brake pedal not depressed, press the ENGINE START/ STOP button to place the ignition in accessory mode. The amber button indicator will illuminate.

See Driving and Operating in your Owner's Manual.

AUTO ENGINE STOP/START OPERATION

The engine stop/start system automatically stops and restarts the engine to help conserve fuel. The system may turn off the engine, referred to as an Auto Stop, when the brake pedal is pressed and the vehicle is at a complete stop, if operating conditions are met. In Auto Stop mode, the tachometer gauge will read AUTO STOP. The audio system, climate controls and other accessories will continue to operate. When the brake pedal is released or the accelerator pedal is pressed, the engine will restart. After parking the vehicle and turning off the engine, the tachometer gauge will read OFF.
AUTO ENGINE STOP/START OPERATION

The engine may remain running or restart when the vehicle is stopped if:

  • A minimum vehicle speed is not reached.
  • The engine or transmission is not at the required operating temperature.
  • The outside temperature is not in the required operating range.
  • The shift lever is in any gear other than Drive (D).
  • The battery charge is low.
  • The climate control system requires the engine to run based on the current settings.
  • The Auto Stop time has reached the maximum allowed time.

See Driving and Operating in your Owner's Manual.

ELECTRONIC PRECISION SHIFT

The automatic transmission shift lever always starts in a center position, represented by a dot on the shift pattern displayed on top of the shift lever. The selected gear position illuminates in red. After shifting, the shift lever returns to the center position.
ELECTRONIC PRECISION SHIFT

Park — Press the button (A) on top of the lever to shift into Park.
To shift out of Park, with the ignition on and the brake pedal applied, press and hold the shift lock button (B) on the left side of the lever and select the desired gear.
Reverse — Press and hold the shift lock button (B) on the left side of the lever and move the lever forward and then left to shift into Reverse.
Neutral — Move and hold the lever forward for 2 seconds to shift into Neutral.
Note: The transmission will not stay in Neutral for an extended period. It will automatically shift into Park.
Drive — Move the lever rearward to shift into Drive.
Tap Shift Mode — With the transmission in Drive, pull back on the lever to activate Manual Mode. Press the left steering wheel paddle to downshift and the right paddle to upshift. Pull back on the lever again to return to Drive.
To temporarily take control of gear selection while in Drive (D), press either paddle behind the steering wheel. Automatic shifting returns after no manual shifts have occurred for 7 to 10 seconds.
The current gear will be displayed on the instrument cluster. If current speed is too high or too low for the requested gear, the shift will not occur.
Tap Shift Mode

Automated Car Wash Mode
There are different procedures for placing the transmission in Neutral with the engine on or off and if the driver exits the vehicle. Refer to your Owner's Manual for each procedure.
See Driving and Operating in your Owner's Manual.

DRIVER MODE CONTROL

The Driver Mode Control automatically adjusts the steering, suspension, and powertrain tuning based on the selected mode.

  • Press the AWD button to send power to all four wheels. The button indicator will stay on when AWD is active.
  • Press the Mode button to select Sport mode (for enhanced steering and suspension performance) or Tow/Haul mode (when towing or hauling a heavy load). The current mode is displayed on the Driver Information Center.

See Driving and Operating in your Owner's Manual.

POWER FRONT SEATS

Power Seat Adjustments
Power Seat Adjustments

  1. Seat Adjustment
    Move the horizontal control to move the seat forward or rearward and to tilt, raise or lower the seat.
  2. Seatback Recline Adjustment
    Move the vertical control to recline or raise the seatback.
  3. Lumbar Support Adjustment
    Press and hold the round control to adjust the lumbar support.

Massage Seats

  • Press the Massage button on the side of the seat to turn the massage feature on or off.

Memory Seats

  1. Adjust the seat, power outside mirrors and power steering wheel.
  2. Press and release the SET button; a beep will sound.
  3. Immediately press and hold button 1 or 2 until two beeps sound.
  • To save a seat position for more clearance when exiting the vehicle, repeat these steps using the Exit button instead of button 1 or 2.

Recall Memory Positions

  • Press and hold button 1, 2 or Exit until the saved position is reached.
    The memory/exit positions can be programmed to be recalled automatically when the ignition is turned on/off (for exit recall, the driver's door must be opened).
  • To set the recall options, go to Settings > Vehicle > Seating Position > Seat Entry Memory and Seat Exit Memory.

See Seats and Restraints in your Owner's Manual.

STEERING WHEEL ADJUSTMENT

  • With the vehicle parked, push down the lever or use the power control under the left side of the steering column to adjust the steering wheel. The steering wheel can be moved up or down and in or out. Pull up the lever to lock the steering wheel in place.
    STEERING WHEEL ADJUSTMENT

See Instruments and Controls in your Owner's Manual.

REAR SEATS

Enter or Exit the 3rd-Row Seats
Enter or Exit the 3rd-Row Seats

  1. Remove anything on the 2nd-row seat or the floor in front of or behind the seat.
  2. Pull the handle on the side of the passengerside seatback (A) and pull the seat forward.
  3. After entering/exiting, move the seatback rearward until it locks in place.

Note: The 2nd-row passenger-side seat can be moved for 3rd-row entry/exit with a forward facing child seat installed. Remove a rearward facing child seat before moving the 2nd-row seat.

Recline the 2nd-Row Seatbacks

  • While seated, pull the lever on the side of the seat cushion (B) and move the seatback to the desired position.

Slide the 2nd-Row Seats

  • Lift the bar under the seat cushion (C) to slide the seat forward or rearward.
    Slide the 2nd-Row Seats

Fold the 2nd-Row Seats

  1. Press the button on the head restraint. It will fold automatically.
  2. Pull the lever on the side of the seat cushion (B) and fold the seatback forward.
  3. To raise the seatback, lift it up until it locks in place.

Fold the 3rd-Row Seats

  1. Adjust the 2nd-row seat to allow the 3rd-row seat to fold fully flat.
  2. Remove anything on or under the 3rd-row seat.
  3. Use the door key from the Remote Keyless Entry transmitter in the mini-buckle slot to disconnect the mini-latch of the center seat belt and stow the mini-latch in the headliner.
  4. Pull the release strap to release the seatback and fold the seatback forward or press the power seatback switches (D) on the passenger's side of the rear cargo area.
    Fold the 3rd-Row Seats

Rear Seat Reminder
A Rear Seat Reminder message may display on the Driver Information Center when the vehicle is turned off. Check the rear seat before exiting the vehicle. The system does not actually detect people or items in the rear seat; instead, under certain conditions, it detects when a rear door has been opened, indicating that there may be something in the rear seat.
See Seats and Restraints in your Owner's Manual.

POWER LIFTGATE

Open/Close the Power Liftgate
Open/Close the Power Liftgate

  • Press the Power Liftgate button on the Remote Keyless Entry (RKE) transmitter twice.
  • Press the Power Liftgate knob (A) on the driver's door.
  • Press the touchpad on the liftgate handle to open the liftgate.
  • Press the button next to the latch to close the liftgate.

Programming the Liftgate Height

  • Turn the Power Liftgate knob to the 3/4 mode position.
  • Open the liftgate.
  • Adjust the liftgate manually to the desired height.
  • To save the setting, press and hold the button next to the latch until the turn signals flash and a beep sounds.

Hands-Free Operation
Hands-Free Operation

  • To open or close the liftgate hands-free, kick your foot straight under the driver's side of the rear bumper, left of center.

The kick should take about 1 second and come within 5 inches of the bottom of the bumper. The RKE transmitter must be within 3 feet of the liftgate.

Projected Logo
The vehicle logo is projected on the ground near the rear bumper, indicating the kicking motion location for hands-free operation, when an RKE transmitter is detected within 6 feet of the liftgate. The logo is shown for 1 minute, depending on operating conditions.
See Keys, Doors and Windows in your Owner's Manual.

UNIVERSAL REMOTE SYSTEM

The Universal Remote System on the overhead console enables your vehicle to control 3 different devices, ranging from garage doors and gates to home lighting. Go to homelink.com for detailed videos and instructions on how to program the Universal Remote System. For additional assistance, call 1-800355-3515.
UNIVERSAL REMOTE SYSTEM
See Instruments and Controls in your Owner's Manual.

DRIVER INFORMATION CENTER

The Driver Information Center (DIC) on the instrument cluster displays a variety of vehicle messages and system information.

DIC Controls
DIC Controls
Use the controls on the right side of the steering wheel to select the Info (includes trip and fuel information), Audio, Phone, Navigation, and Options menus.

  • Press the or button to move between the display zones. Press the button to go back to the previous screen.
  • Press the or button to scroll through the menus.
  • Press the button to open a menu, or to select or reset an item.

Changing Display Themes (Avenir model)
The DIC features 2 reconfigurable display themes: Sport and Touring.

  1. Use the controls to display the Options menu. Press.
  2. Select Display Themes.
  3. Select the desired theme.

See Instruments and Controls in your Owner's Manual.

AUDIO STEERING WHEEL CONTROLS

AUDIO STEERING WHEEL CONTROLS

Push to Talk
Press to answer an incoming call or to use natural voice recognition with the Bluetooth or OnStar® system.
Press and hold to activate Voice Pass-Thru (Siri Eyes Free or Voice Command) on a paired, compatible cell phone.

End Call/Mute
Press to end or decline a call.
Press to mute/unmute the speakers.


Volume
Press the switch up or down to adjust the volume.


Next/Previous Favorite Station

Press the top or bottom button to go to the next or previous favorite radio station or track.
See your Infotainment System Manual.

INFOTAINMENT SYSTEM

Refer to your Owner's Manual for important information about using the infotainment system while driving.
INFOTAINMENT SYSTEM
The infotainment system uses a Bluetooth or USB connection to link to a compatible device, such as a smartphone, cell phone, USB flash drive or portable audio player/iPod®, and offers hands-free voice control. You can use simple gestures on the touch screen, such as tap, drag, and swipe, to interact with the system.
For assistance, contact Customer Assistance at 1-855-4-SUPPORT (1-855-478-7767) or visit my.buick.com/learn.

Storing Favorites
Radio stations from all bands (AM, FM or SiriusXMF) can be stored in any order.

  1. Tune in the desired radio station.
  2. Select the desired page of favorite screen buttons.
  3. Touch and hold one of the favorite screen buttons until a beep is heard.
  4. Repeat the steps to store another favorite station.

See your Infotainment System Manual.

Natural Voice Recognition
Control the music source and make phone calls hands-free (after pairing your Bluetoothenabled phone) using the natural voice recognition system.

  1. Press the Push to Talk button on the steering wheel.
  2. The radio will play a prompt followed by a beep.
  3. After the beep, say what you want it to do using natural speech.
    Examples: "Call Dave" or "Tune to 99.5 FM." Say "Help" for assistance.

Apps
In-vehicle apps — connecting to music, news, weather, travel information and more — are available for download to the infotainment system through the Apps icon on the Home page. Downloading and using the apps requires internet connectivity and a data plan accessed through the vehicle's 4G LTE Wi-Fi hotspot, if active, or a mobile device hotspot.

Apple CarPlay™
Apple CarPlay capability is available through a compatible smartphone using the Apple CarPlay icon on the Home page of the infotainment system. No app is required.

  1. Connect your compatible phone by plugging the Lightning cable into a USB data port. Use your device's factory-provided Lightning cable. Aftermarket cables may not work.
  2. The Apple CarPlay icon will illuminate. Touch the icon to have your apps displayed.

Android Auto™
Android Auto capability is available through a compatible smartphone using the Android Auto icon on the Home page of the infotainment system.

  1. Download the Android Auto app to your phone from the Google Play Store.
    play.google.com
  2. Connect your compatible phone by plugging the phone USB cable into a USB data port. Use your device's factory-provided USB cable. Aftermarket cables may not work.
  3. The Android Auto icon will illuminate. Touch the icon to have your apps displayed.

SiriusXM® with 360L
SiriusXM with 360L provides subscribers an enhanced in-vehicle listening experience with unique satellite and streaming channels, on-demand content, personalized recommendations, and an interactive interface. For the full SiriusXM with 360L experience, OnStar Connected Access is required. Learn more about OnStar services at onstar.com.

Portable Audio Devices
An iPod®, iPhone®, MP3 Player, a USB flash drive or a portable USB hard drive can be connected to a USB data port located at the front of the center console or inside the center console storage compartment.

  • To play a device, touch Audio on the infotainment screen; and then touch USB from the Sources list or touch More to view the USB option.
    USB ports on the rear of the center console and by the 3rd-row seats are for charging only.

See your Infotainment System Manual.

BLUETOOTH® SYSTEM

Refer to your Owner's Manual for important information about using the Bluetooth system while driving.
Before using a Bluetooth-enabled device in the vehicle, it must be paired with the in-v ehicle Bluetooth system. The pairing process is disabled when the vehicle is moving. Not all devices will support all functions. Visit my.buick.com/learn for more information.

Pair a Phone

  1. To use voice recognition, press the Push to Talk button on the steering wheel; after the beep, say "Pair Phone."
    To use the infotainment screen, select the Phone icon > Phones > Add Phone.
  2. Start the pairing process on the phone. From your phone's Bluetooth settings, select the name shown on the infotainment screen.
  3. Follow the pairing instructions.
  4. When pairing is complete, the phone screen is displayed.

Secondary Phone
A secondary phone can be paired to the Bluetooth system. The system connects to the phone that is set to First to Connect. The secondary phone can only receive calls.

  • To set the first and secondary phones, go to Settings > System > Phones and select the Information icon next to the phone name.

See your Infotainment System Manual.

4G LTE WI-FI HOTSPOT

With the vehicle's built-in Wi-Fi hotspot, up to 7 devices (smartphones, tablets and laptops) can be connected to high-speed internet using the 4G LTE signal.

  • To retrieve the SSID and password for the hotspot, select the Wi-Fi Hotspot icon on the infotainment screen or go to Settings > System > Wi-Fi Hotspot.

Note: For more information on use and system limitations, visit my.buick.com/learn.
See your Infotainment System Manual.

WIRELESS CHARGING (AVENIR MODEL)

The Wireless Charging system for smartphones is located at the front of the center c onsole. Visit my.buick.com/learn to check device compatibility. See your phone retailer for details on required phone accessories.
WIRELESS CHARGING (AVENIR MODEL)

  1. The vehicle must be on, or Retained Accessory Power must be active.
  2. Remove all objects from the charging pad.
  3. Place the smartphone, face up, on the on the pad.
  4. The charging symbol will appear on the infotainment screen when charging. If not charging, remove the device for 3 seconds and rotate it 180 degrees.

See Instruments and Controls in your Owner's Manual.

VEHICLE CUSTOMIZATION

Some vehicle features can be customized using the Settings menus and the infotainment screen icons. The Settings menus include System, Apps, and Vehicle.
VEHICLE CUSTOMIZATION

  1. Select Settings on the Home page.
  2. Select the desired menu item.
  3. Select the desired feature and setting.
  4. Press BACK to exit each menu.

See Instruments and Controls in your Owner's Manual.

EXTERIOR LIGHTING

Exterior Lamp Controls
Off/On
AUTO
Automatically activates the exterior lamps depending on outside lighting conditions.
Exterior Lamp Controls

Parking Lamps
Headlamps

IntelliBeam System
The IntelliBeam system automatically turns the high-beam headlamps on/off based on traffic conditions. A green indicator displays on the instrument cluster when the system is on; a blue indicator displays when the high-beam headlamps are on.

  • To turn the IntelliBeam system on or off, press the button on the turn signal lever with the lamp control in the AUTO or Headlamps position.

Note: IntelliBeam activates the high-beam headlamps only when driving over 25 mph.
See Lighting in your Owner's Manual.

SUNROOF/SUNSHADE

  • Press and release the SLIDE switch to express-open the sunroof.
  • Press and release the Close switch to express-close the sunroof.
  • To open the sunshade, press the latch button on the handle while pushing up to unlatch it.
  • To close the sunshade, pull the handle forward until it latches.

See Keys, Doors and Windows in your Owner's Manual.

AUTOMATIC CLIMATE CONTROLS

AUTOMATIC CLIMATE CONTROLS

Automatic Operation

  • Press AUTO.
  • Set the temperature.

The system automatically controls the fan speed, air delivery, air conditioning and recirculation functions. Allow time for the system to reach the set temperature. If a function is manually adjusted, automatic operation for that function is turned off.

Rear Climate Controls
The rear climate control settings can be adjusted using the rear climate control buttons on the rear of the center console or the infotainment screen. When SYNC is active, the rear display is not shown on the rear center console.

  • To lock/unlock the rear controls from the front seat, press the CLIMATE button and select Rear > Rear Control Lockout on the infotainment screen.

Air Ionizer
The ionizer, which removes contaminants such as pollen and dust to help clean the air inside the vehicle, turns on automatically with the climate control system. The ionizer status is shown on the climate control display on the infotainment screen.

  • To turn on or off, go to Settings > Vehicle > Climate and Air Quality.

See Climate Controls in your Owner's Manual.

DRIVER ASSISTANCE SYSTEMS

Safety or driver assistance features are no substitute for the driver's responsibility to operate the vehicle in a safe manner. The driver should remain attentive to traffic, surroundings and road conditions at all times. Read your Owner's Manual for important feature limitations and information.
Safety Alert SeatF — The driver's seat pulses — left side, right side, or simultaneously — to alert the driver of the direction of potential hazards.

  • Audible alerts or seat pulsing alerts may be selected. To change the alert setting, go to Settings > Vehicle > Collision/Detection Systems > Alert Type.

Forward Collision Alert— The Vehicle Ahead Indicator is green on the instrument cluster when a vehicle is detected and is amber when following a vehicle ahead much too closely. When approaching a detected vehicle directly ahead too rapidly, a red alert flashes on the windshield and the Safety Alert Seat pulses or rapid beeps sound (if selected).

  • Press the Collision Alert button on the steering wheel to set the alert timing to Far, Medium or Near. The setting is displayed on the Driver Information Center.

Follow Distance IndicatorF — The follow distance to the vehicle ahead is indicated in seconds under the Info menu on the Driver Information Center. If no vehicle is detected ahead, dashes are displayed.

Enhanced Automatic Emergency Braking— In detected potential imminent collision situations with vehicles directly ahead, the system can provide alerts and enhance driver braking or apply the brakes, if you have not already done so, to help reduce the severity or help avoid collisions at very low speeds.

  • To set Enhanced Automatic Emergency Braking and Forward Collision Alert to Alert and Brake, Alert, or Off, go to Settings > Vehicle > Collision/Detection Systems > Forward Collision System.

Front Pedestrian Braking — During daytime driving, the system can detect pedestrians directly ahead up to a distance of approximately 131 feet and displays an amber indicator. When approaching a detected pedestrian too quickly, a red alert flashes on the windshield and the Safety Alert Seat pulses or rapid beeps sound (if selected). The system may enhance driver braking or automatically brake the vehicle, if you have not already done so.

  • To set the system to Alert and Brake, Alert, or Off, go to Settings > Vehicle > Collision/ Detection Systems > Front Pedestrian Detection.

Lane Keep Assist with Lane Departure Warning— The system may help avoid collisions due to unintentional lane departures. The Lane Keep Assist Indicator is green on the instrument cluster if the system is available to assist. If the vehicle approaches a detected lane marking without using a turn signal in that direction, the system may assist by gently turning the steering wheel and displaying an amber .
If active driver steering is not detected, the amber may flash and the Safety Alert Seat may pulse or beeps may sound (if selected) on the side of the departure direction as the lane marking is crossed. The Lane Keep Assist system does not continuously steer the vehicle; the driver needs to steer and be in complete control of the vehicle.

  • To turn the system on or off, press the Lane Keep Assist button (A) on the center of the instrument panel.

DRIVER ASSISTANCE SYSTEMS

Lane Change Alert with Side Blind Zone AlertF — While driving, the system displays a warning symbol on the left or right side mirror when a vehicle is detected in that side blind zone area or rapidly approaching that area. The warning symbol flashes if a turn signal is activated when a vehicle has been detected on the same side.

  • To turn the system on or off, go to Settings > Vehicle > Collision/Detection Systems > Lane Change Alert.

Traction Control and StabiliTrak Systems — The full-time traction control system limits wheelspin and the StabiliTrak electronic stability control system assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started. Traction control should be turned off if the vehicle is stuck and rocking the vehicle is required.

  • To turn traction control on or off, press the Traction Control/StabiliTrak Off button on the center of the instrument panel.

Rear Vision Camera — When the vehicle is in Reverse, a view of the area behind the vehicle displays on the infotainment screen. Vehicle speed must be below 8 mph.

HD Surround VisionF — The Surround Vision system displays the area surrounding the vehicle along with front and rear camera views on the infotainment screen. The system operates when the vehicle is in Reverse or Drive while moving less than 8 mph.

  • Touch one of the Camera buttons on the bottom of the infotainment screen to change the camera view.
  • Touch the Hitch View button for a view of the hitch area and guidance lines. Front and Rear Park Assist — During low-speed parking maneuvers, the system provides "distance to closest object" information on the Driver Information Center and the Safety Alert Seat pulses or beeps sound (if selected). When an object is very close, the Safety Alert Seat pulses or 5 beeps sound (if selected).

Rear Cross Traffic AlertF — When in Reverse, the system warns of cross-traffic approaching in either direction by displaying a red triangle with directional arrow alert on the infotainment screen and the left or right side of the Safety Alert Seat pulses or beeps sound (if selected).

  • To turn Park Assist and Rear Cross Traffic Alert on or off, press the Park Assist button (B) on the center of the instrument panel.

See Driving and Operating in your Owner's Manual.

Rear Camera Mirror
The rear camera mirror provides a wider, less obstructed field of view to assist when driving, changing lanes and checking traffic conditions.

  • Pull or push the lever at the bottom of the m irror to turn the video display on or off.
  • To adjust the brightness of the display, press and release the button on the upper back of the mirror without covering the light sensor. There are 5 brightness settings.

See Keys, Doors and Windows in your Owner's Manual.

CRUISE CONTROL

Setting Cruise Control

  1. Press the On/Off button. The symbol will illuminate white on the instrument cluster.
  2. When traveling at the desired speed, press down the switch to the SET– position to set the speed. The symbol will illuminate green on the instrument cluster.

Adjusting Cruise Control

RES+ Resume/Accelerate
Press the switch up to resume a set speed. When active, press up to increase speed.

SET– Set/Coast
When active, press the switch down to decrease speed.

Cancel
Press the button, or press the brake pedal, to cancel the Cruise Control without erasing the set speed from memory. Turn off Cruise Control to erase the set speed.

Adaptive Cruise Control–Advanced (Avenir model)
The system enhances regular Cruise Control to maintain a following gap — the time between your vehicle and a vehicle detected directly ahead — by accelerating or braking automatically while you continue to steer.

  • Press the Following Gap button to select a gap setting of Far, Medium or Near. This is also the Forward Collision Alert setting.
  • Press and hold the Cancel button to switch between regular Cruise Control and Adaptive Cruise Control–Advanced.

See Driving and Operating in your Owner's Manual.

WIPERS AND WASHERS

WIPERS AND WASHERS

Windshield Wipers
Raise or lower the wiper lever.
HI Fast Wipes
LO Slow Wipes
INT Intermittent
Rotate the band up for more frequent wipes or down for less frequent wipes.
OFF
1x Single Wipe
Washer Fluid
Pull the lever toward you to spray washer fluid on the windshield.

Rear Window Wiper
Rotate the end of the wiper lever.
OFF
INT Intermittent
ON
Rear Washer Fluid
Push the lever away from you to spray washer fluid on the rear window.

See Instruments and Controls in your Owner's Manual.

ELECTRIC PARKING BRAKE

ELECTRIC PARKING BRAKE

  • To apply the parking brake, press the Parking Brake button on the left side of the instrument panel.
  • To release the parking brake, turn on the ignition, press the brake pedal, and then press the button.

Note: The parking brake will release automatically if the vehicle is running, placed into gear and an attempt is made to drive.
See Driving and Operating in your Owner's Manual.

CARGO STORAGE

Underfloor Rear Cargo Storage
Underfloor Rear Cargo Storage

  • Lift up the rear cargo floor for additional storage space.

Remove the storage bin to access the spare tire. Refer to your Owner's Manual for instructions.
See Storage in your Owner's Manual.

REFUELING THE VEHICLE

REFUELING THE VEHICLE

  • To open the fuel door, press and release the center of the rear edge of the door. It will pop out slightly. Pull the door open.
  • The vehicle's capless fuel system does not have a fuel cap. Fully insert the fuel pump nozzle before starting to fill the tank.

Note: When using a portable gas can, insert the funnel adapter, stored with the spare tire, into the capless fuel fill.
See Driving and Operating in your Owner's Manual.

TIRE PRESSURE MONITOR

The Low Tire Pressure warning light on the instrument cluster illuminates when one or more of the vehicle's tires is significantly underinflated. Fill the tires to the proper tire pressures listed on the Tire and Loading Information label, located below the driver's door latch. Current tire pressures can be viewed on the Driver Information Center.
The Tire Fill Alert provides visual and audible alerts to help when inflating a tire to the recommended tire pressure.
Refer to your Owner's Manual for information about normal monthly tire maintenance.
See Vehicle Care in your Owner's Manual.

ROADSIDE ASSISTANCE

1-800-252-1112
TTY Users: 1-888-889-2438

As the owner of a new Buick, you are automatically enrolled in the Buick Roadside Assistance program for up to 5 years/60,000 miles, whichever occurs first, at no expense to you. Buick's Roadside Assistance toll-free number is staffed by a team of trained a dvisors who are available 24 hours a day, 365 days a year, to contact a service provider for light services (fuel delivery, jump-starts, flat tire and lock-outs) or make arrangements to tow your vehicle to the nearest Buick dealer for any repairs.

Roadside Assistance and OnStar®
If you have a current OnStar Safety & Security plan, push the blue OnStar button or red Emergency button to get the help you need. An OnStar advisor will use GPS technology to pinpoint your vehicle location and contact the nearest service provider.
To learn more about OnStar services, press the blue OnStar button, visit onstar.com, call 1-888-4-ONSTAR (1-888-466-7827), or refer to your Owner's Manual.

MYBUICK MOBILE APP

Download the myBuick app to your compatible smartphone (or device) and, if your vehicle is properly equipped, you can start or turn off your engine, lock or unlock your doors, view key diagnostic information, set parking information and more.
The app is available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device and data plan. Device data connection required. Visit onstar.com for more details. Download the mobile app from your compatible mobile device's app store.
www.apple.com
play.google.com

BUICK OWNER CENTER

Get to know your vehicle inside and out with the Buick Owner Center. Check out personalized information, including an online Owner's Manual and helpful how-to videos, track your service history and warranty status, review your current OnStar Vehicle Diagnostics report (active OnStar account required) and more. Create an account today at my.buick.com.
We recommend always using ACDelco or genuine GM service parts.
Certain restrictions, precautions and safety procedures apply to your vehicle. Please read your Owner's Manual for complete instructions.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Buick ENCLAVE 2020 - Automobile Manual

Advertisement

Need help?

Need help?

Do you have a question about the ENCLAVE 2020 and is the answer not in the manual?

Questions and answers

Table of Contents
