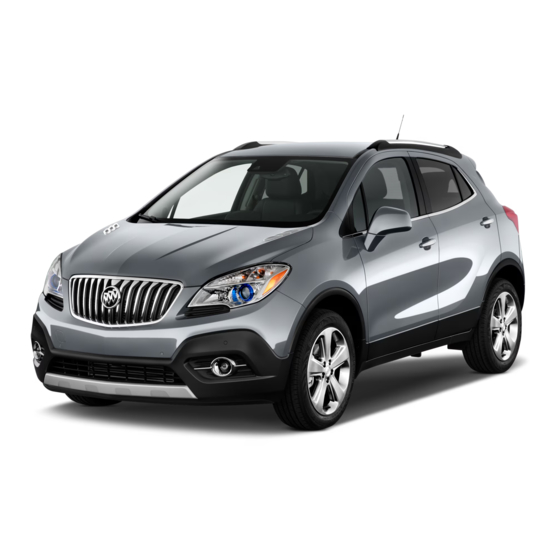

2013 Buick Encore Owner Manual
In Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information . . . . . . . . 1-4
Vehicle Features . . . . . . . . . . . . . 1-15
Performance and
Maintenance . . . . . . . . . . . . . . . . 1-19
Keys, Doors, and
Windows . . . . . . . . . . . . . . . . . . . . 2-1
Keys and Locks . . . . . . . . . . . . . . . 2-1
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Vehicle Security. . . . . . . . . . . . . . . . 2-9
Exterior Mirrors . . . . . . . . . . . . . . . 2-11
Interior Mirrors . . . . . . . . . . . . . . . . 2-13
Windows . . . . . . . . . . . . . . . . . . . . . 2-14
Roof . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16
Seats and Restraints . . . . . . . . . 3-1
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats . . . . . . . . . . . . . . . . . . . . 3-3
Rear Seats . . . . . . . . . . . . . . . . . . . 3-10
Safety Belts . . . . . . . . . . . . . . . . . . 3-14
Airbag System . . . . . . . . . . . . . . . . 3-23
Child Restraints . . . . . . . . . . . . . . 3-35
Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Additional Storage Features . . . 4-3
Roof Rack System . . . . . . . . . . . . . 4-5
Instruments and Controls . . . . 5-1
Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . 5-8
Information Displays . . . . . . . . . . 5-22
Vehicle Messages . . . . . . . . . . . . 5-25
Vehicle Personalization . . . . . . . 5-31
Lighting . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exterior Lighting . . . . . . . . . . . . . . . 6-1
Interior Lighting . . . . . . . . . . . . . . . . 6-5
Lighting Features . . . . . . . . . . . . . . 6-6
Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Audio Players . . . . . . . . . . . . . . . . 7-11
Phone . . . . . . . . . . . . . . . . . . . . . . . . 7-16
Trademarks and License
Agreements . . . . . . . . . . . . . . . . . 7-26
Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 8-6
Maintenance . . . . . . . . . . . . . . . . . . . 8-6
Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-2
Starting and Operating . . . . . . . 9-15
Engine Exhaust . . . . . . . . . . . . . . 9-22
Automatic Transmission . . . . . . 9-23
Drive Systems . . . . . . . . . . . . . . . . 9-26
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-26
Ride Control Systems . . . . . . . . 9-28
Cruise Control . . . . . . . . . . . . . . . . 9-32
Object Detection Systems . . . . 9-34
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-42
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-47
Conversions and Add-Ons . . . 9-47
Vehicle Care . . . . . . . . . . . . . . . . . 10-1
General Information . . . . . . . . . . 10-2
Vehicle Checks . . . . . . . . . . . . . . . 10-3
Headlamp Aiming . . . . . . . . . . . 10-23
Bulb Replacement . . . . . . . . . . 10-23
Electrical System . . . . . . . . . . . . 10-27
Wheels and Tires . . . . . . . . . . . 10-35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2013 Encore and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Buick 2013 Encore

  • Page 1 2013 Buick Encore Owner Manual In Brief ......1-1 Storage ..... . . 4-1 Climate Controls .
  • Page 2: Table Of Contents

    2013 Buick Encore Owner Manual Jump Starting ....10-61 Customer Information ..13-1 Towing ..... . 10-64 Customer Information .
  • Page 3: Using This Manual

    à l'adresse Keep this manual in the vehicle for this manual including, but not limited savant: quick reference. to, GM, the GM logo, BUICK, the Helm, Incorporated BUICK Emblem, and ENCORE are Attention: Customer Service trademarks and/or service marks of...
  • Page 4 Introduction About Driving the Vehicle Symbols WARNING As with other vehicles of this type, The vehicle has components and These mean there is something failure to operate this vehicle labels that use symbols instead of that could hurt you or other correctly may result in loss of text.
  • Page 5: Onstar

    Introduction Vehicle Symbol Chart : Engine Coolant Temperature : Power Here are some additional symbols : Exterior Lamps : Remote Vehicle Start that may be found on the vehicle : Fog Lamps : Safety Belt Reminders and what they mean. For more information on the symbol, refer to : Fuel Gauge : Tire Pressure Monitor...
  • Page 6 Introduction NOTES...
  • Page 7: In Brief

    In Brief In Brief Safety Belts ....1-9 Rear Vision Passenger Sensing System . . . 1-9 Camera (RVC) ... . . 1-17 Mirror Adjustment .
  • Page 8 In Brief Instrument Panel...
  • Page 9: Information

    In Brief 1. Air Vents on page 8-6. 8. Light Sensor. See Automatic 17. Horn on page 5-3. Headlamp System on page 6-3. 2. Turn Signal Lever. See Turn and 18. Steering Wheel Controls on Lane-Change Signals on 9. AM-FM Radio on page 7-7. page 5-2.
  • Page 10: Initial Drive Information

    In Brief Initial Drive : If equpped, press and hold briefly to initiate vehicle locator. Information Press and hold for at least three seconds to sound the panic This section provides a brief alarm. Press again to cancel the overview about some of the panic alarm.
  • Page 11: Door Locks

    In Brief When the engine starts, the parking Door Locks : Press to lock the doors. lamps will turn on and remain on as See Power Door Locks on page 2-7. To lock or unlock a door manually: long as the engine is running. The doors will be locked and the climate From the inside, to lock the door, Liftgate...
  • Page 12 In Brief Windows Seat Adjustment Manual Seats To open the liftgate, press the touch pad in the pull cup under the license plate and lift manually. Press the switch to lower the window. Pull up on the front edge of See Liftgate on page 2-8.
  • Page 13 In Brief Power Seats Lumbar Adjustment Reclining Seatbacks Manual Seat Shown, Power Seat To adjust a power seat: If available, press the front or rear of Similar the switch to increase or decrease Move the seat forward or To recline the seatback: lumbar support.
  • Page 14: Heated Seats

    In Brief To return the seatback to an upright If available, the MEM, 1, and 2 Heated Seats position: buttons on the outboard side of the driver seat are used to manually 1. Lift the lever fully without save and recall the driver seat and applying pressure to the outside mirror positions.
  • Page 15: Passenger Sensing System

    In Brief Press the control once for the Safety Belts Passenger Sensing highest setting. With each press of System the control, the heated seat will change to the next lower setting, and then the off setting. Three lights indicate the highest setting and one light the lowest.
  • Page 16: Mirror Adjustment

    1-10 In Brief The passenger airbag status 2. Move the control to adjust the from the headlamps from behind. indicator will be visible on the mirror. The dimming feature comes on instrument panel when the vehicle is when the vehicle is started. 3.
  • Page 17: Exterior Lighting

    In Brief 1-11 3. Pull or push the steering wheel Exterior Lighting : When the button is returned to closer or away from you. the middle position, the lamps turn on automatically when a door is 4. Lift the lever up to lock the opened.
  • Page 18 1-12 In Brief Windshield Wiper/Washer INT: Move the lever up to INT for : Turns on the parking lamps, taillamps, license plate lamps, intermittent wipes, then turn the sidemarker lamps, and instrument INT band up for more frequent panel lights. wipes or down for less frequent wipes.
  • Page 19: Climate Controls

    In Brief 1-13 Climate Controls The heating, cooling, defrosting, and ventilation for the vehicle can be controlled with these systems. Climate Control System 1. Temperature Control 5. Air Conditioning 2. Air Delivery Modes 6. Rear Window Defogger 3. Fan Control 7.
  • Page 20 1-14 In Brief Dual Automatic Climate Control System Transmission Driver Shift Control (DSC) English Shown, Metric Similar 1. Driver and Passenger Heated 6. Air Conditioning DSC allows you to shift an Seats (If Equipped) 7. Fan Controls automatic transmission similar to a 2.
  • Page 21: Vehicle Features

    In Brief 1-15 2. Press the + (plus) end of the Vehicle Features Storing a Station as a Favorite button on the top of the shift Stations from all bands can be lever to upshift, or push the Radio(s) stored in the favorite lists in any (minus) end of the button to order.
  • Page 22: Onstar Overview

    1-16 In Brief 4. Press the center of the TUNE/ Portable Audio Devices Steering Wheel Controls MENU knob to select the next Some vehicles have a 3.5 mm number. (1/8 in) auxiliary input and a USB 5. To save and return to the Time port located in the center console.
  • Page 23: Infotainment System

    In Brief 1-17 Driver Information Rear Vision : Press to silence the vehicle speakers only. Press again Center (DIC) Camera (RVC) to turn the sound on. For vehicles The DIC display is in the instrument If available, the RVC displays a view with OnStar or Bluetooth systems, cluster.
  • Page 24 1-18 In Brief Keep the sensors on the vehicle's Sunroof Open/Close: Press and hold the front and rear bumpers clean to front or rear of switch (1) to open or ensure proper operation. close the sunroof. See Ultrasonic Parking Assist on Vent: Press and hold the front or page 9-36 for more information.
  • Page 25: Maintenance

    In Brief 1-19 ® Performance and StabiliTrak System Maintenance The StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. The Traction Control system is on when the vehicle is System (TCS) started. The low tire pressure warning light The traction control system limits To turn off both Traction Control alerts to a significant loss in...
  • Page 26: Driving For Better Fuel Economy

    1-20 In Brief The TPMS does not replace normal Resetting the Oil Life System Driving for Better Fuel monthly tire maintenance. Maintain Economy 1. Press the MENU button to show the correct tire pressures. Remaining Oil Life on the Driving habits can affect fuel display.
  • Page 27: Roadside Assistance Program

    Services. See OnStar Overview on Canada: 1-800-268-6800 maintenance. page 14-1. Mexico: 01-800-466-0818 As the owner of a new Buick, you are automatically enrolled in the Roadside Assistance program. See Roadside Assistance Program (Mexico) on page 13-7 or Roadside Assistance Program (U.S. and...
