Potensic ATOM Series - Charging Hub Manual

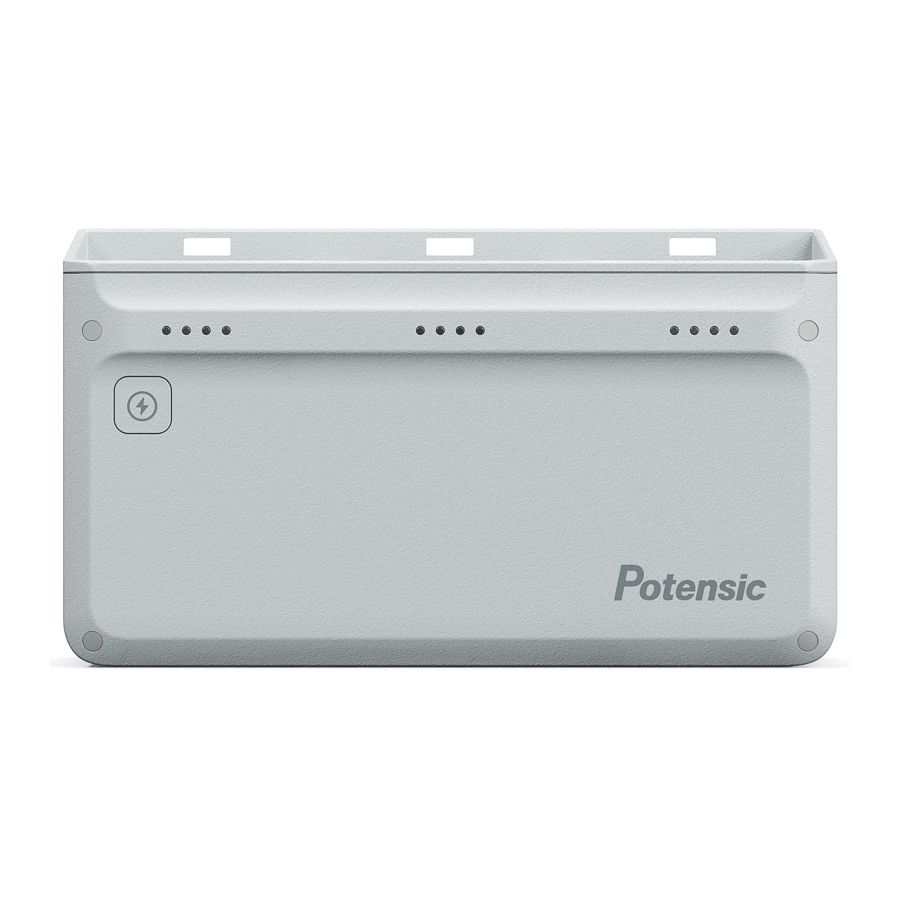

Diagram

1. Battery compartment
2. Battery terminals
3. Charging indicator
4. Battery level check button
5. USB interface (OUT)
6. Power interface (IN)

Introduction

The Potensic Atom series parallel charging Hub can charge three Atom intelligent batteries at the same time, and the USB interface can be used for the remote controller or other USB devices.
The box-like design makes it easy to carry and protect the battery.
Press the Battery Level Check Button, then the indicator will light on to show you the current battery level before flying.

Charging

1. As shown in Figure A, insert the battery and press it until you hear a "click", the battery is installed correctly. Then connect the adapter with the charging Hub and plug in.

2. Users can insert 1-3 batteries at will, and the charging Hub will automatically identify the batteries and start to charge. When charging, the charging indicator of each battery keep flashing in sequence.
3. After fully charged, the corresponding indicator lights will stay on. Remove the battery as shown in Figure B.

4. The USB interface can charge the remote controller or other USB devices (5V/1A).

The charging Hub supports hot swapping of batteries without turning off the power.
After fully charged, it is recommended to wait for the red power indicator of the battery to go out before unplugging the battery.

Check Battery Level

After a battery is inserted or unplugged from the charging Hub, the corresponding battery indicator will turn on to display the battery level and then turn off after 5 seconds. You can also check the battery level by short pressing the Check Button.

Fault Reminder

When a battery is inserted and the indicator corresponds to any set shown in the right table, then it means something is faulty.

Abnormal battery temperature: Indicates that the battery temperature has exceeded the safe charging temperature range. The charging Hub will stop charging until the battery temperature returns to normal.
Battery failure: It may be caused by battery communication failure, battery cell failure, device short circuit.

Specifications

The charging Hub can charge 3 batteries at the same time, and supports mixed use of 3 types of compatible batteries in the above table.

Disclaimer

1. To ensure the safe and proper use of this product, kindly adhere strictly to the operating instructions and precautions outlined in this manual.
2. Children under the age of 16 should utilize this product under adult supervision and guidance. Ensure that the product is kept out of children's reach when not in use.
3. The company assumes no responsibility for direct or indirect losses, including, but not limited to, property damage and personal injury, resulting from the user's failure to comply with the safety operating instructions outlined in this manual, Warranty services will not be provided.
4. When employing the Potensic Atom series parallel charging Hub (hereinafter referred to as the "Charging Hub") to charge the battery, it is imperative to use the original adapter. Potensic disclaims responsibility for any consequences arising from the use of non-original adapters.
5. Unauthorized disassembly or modification of this product is strictly prohibited. In the event of any violation, the user will be
   held solely responsible for the ensuing consequences.
6. For any issues related to use, operation, maintenance, etc., please reach out to the local dealer or the relevant company personnel.
7. Potensic reserves the right to interpret this document and related product documents, with the final interpretation subject to change without prior notice. For the latest information, please visit www.potensic.com.

Precautions

1. When charging the batteries, ensure the stability of the charging Hub placement and keep it away from heat sources.
2. Avoid direct contact with the battery terminals or power plug using your hands or any metal objects.
3. Do not stack items on the adapter and charging Hub. Keep these components away from water and flammable materials during use.
