REGA Fono Mini A2D - Home Audio Amplifier Manual

Introduction

The Fono Mini A2D is designed to amplify the signal from a moving magnet cartridge to a suitable level for all line level inputs of an audio amplifier. The USB interface also offers the ability to simply transfer vinyl to PC. The Fono Mini A2D amplifier offers exceptional performance and convenience and will be a valuable addition to any hi-fi set up.

Overview and Set-up

1. Input connections
   Connect the signal lead (tonearm leads) to the input sockets labelled on the rear panel. If the tonearm requires a separate earth, please connect the earth lead to the earth terminal located on the rear panel of the Fono Mini A2D.
   N.B. Only undo the earth screw just enough to fit your earth lead.
2. Output connections
   Connect the output sockets of the Fono Mini A2D to a suitable 'line level' input on your amplifier using appropriate RCA leads. Do not connect to an amplifier's integrated 'Phono' or 'Disk' input.
3. LED
4. Power connection
   Connect the designated power supply to the power socket situated on the rear panel. Power on is indicated by illumination of the red LED (3).

Set-up is now complete. Simply switch on, sit back and enjoy!

Connections via USB to PC

To transfer vinyl to your PC, you will need to install a digital audio editor. Such software is widely available as a free download (such as Audacity). This is a simple interface which allows monitoring of volume and balance whilst transferring your audio to your PC hard drive.

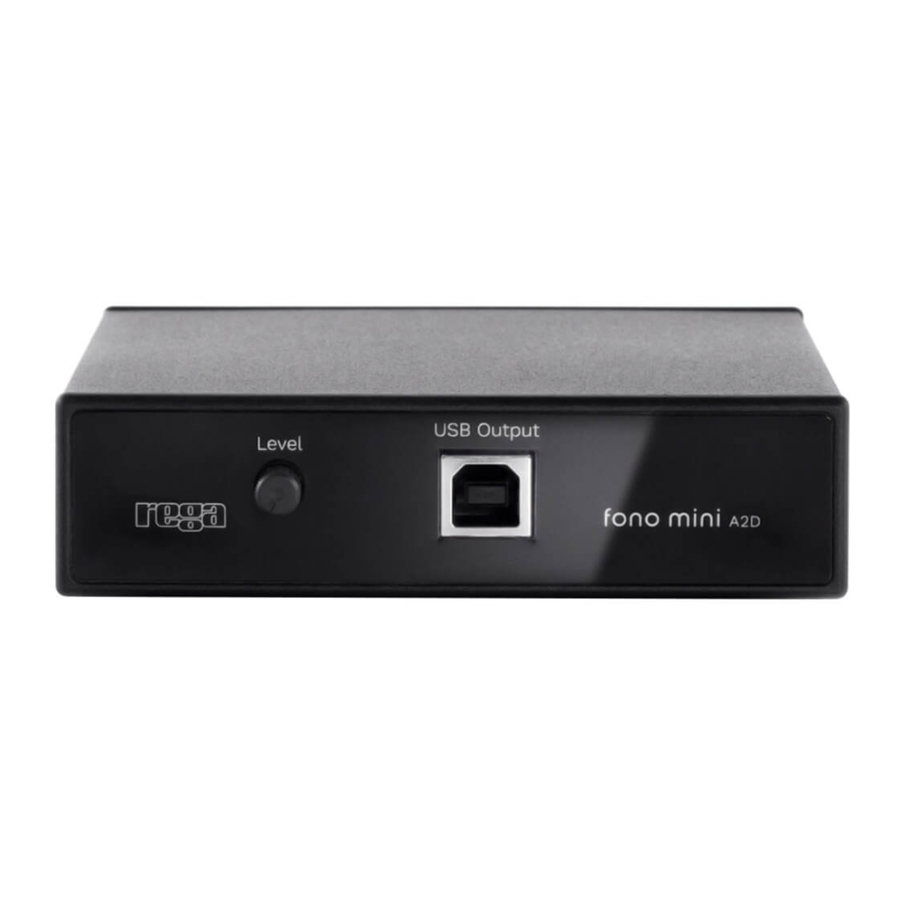

Audio editing software includes a level meter which indicates the output level achieved when playing a piece of vinyl. You should adjust the output as necessary via the 'Level' control located on the front panel. Always take special note of record levels to ensure optimum recording quality.
