Roccat ELO 7.1 AIR - Headset Manual

PACKAGE CONTAINS

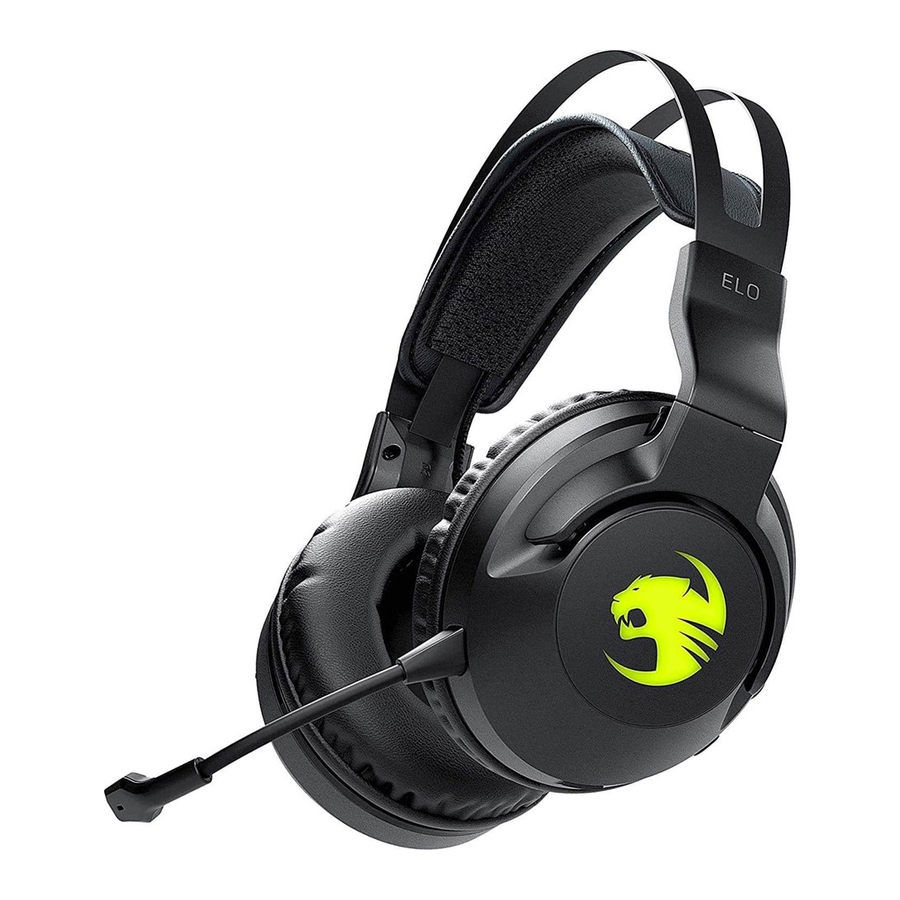

Transmitter Elo 7.1 Air Gaming Headset

HEADSET CONTROLS

LED INDICATIONS

Connection Status LED

Solid White = Headset Connected
Pulsing Red = Low Battery
Solid Red = Headset Charging
Pulsing White = Headset On/ Full Battery
Double Blink White = Headset Pairing

Connection Status LED

Solid White = Headset Connected
Double Blink White = Headset Pairing
Pulsing Red = Microphone Muted

CHARGING

The Elo 7.1 Air uses a 24+ hour rechargeable battery. Make sure to charge it regularly.

Headset Storage
Always charge your headset before storing it for any extended period of time (greater than 3 months). Never store the unit in temperatures above 113°F/45°C.

USB-A COMPATIBILITY

USB-A

The ELO 7.1 Air also works great with other platforms with USB-A ports, including the PS5 & PS4 and Nintendo Switch, in docked mode.

1. Plug the Transmitter in a USB-A on your device.
2. Hold the Power Button for 2 seconds to turn on the headset.
3. In your device's settings, make sure the Elo is selected on your device.

When connecting the transmitter to a PS5 or PS4, master volume must be adjusted from the Settings Menu.

*Software capabilities are only available on PC.

PC/MAC^® SETUP

1. Plug the Elo 7.1 Air Transmitter in a USB slot on your PC
2. Hold the Power Button for 2 seconds to turn on the headset (the transmitter and headset are automatically paired)
3. Right click the speaker icon in your toolbar and select "Open Sound Settings" Sound Settings"
4. Select "Elo 7.1 Air" from the "Choose Your Output Device" drop-down menu drop-down menu
5. Open the driver software to customize your settings.

TECHNICAL FACTS

TECH SPECS / SYSTEM REQUIREMENTS

• Direct wireless connection via USB-A transmitter Windows ® 7, 8 and 10 (software support)
• 20Hz – 20kHz speaker frequency response USB 2.0 (or higher)
• 2.4GHz transmitter frequency response Internet connection (for driver software)
• Audio controls: power button, master volume wheel, mic mute, mic monitor wheel
• Rechargeable 24h battery (average 1+ week play time based on typical ~3h use per day)
• 50mm speakers with neodymium magnets
• Removable unidirectional microphone
• Leatherette headband with foam cushioning
• Over-ear design featuring memory foam

SUPPORT

Should you need assistance...
Our support team is ready to help you with any technical questions. Just send an e-mail to
support@roccat.com or visit our website at:
WWW.ROCCAT.COM/SUPPORT

To prevent possible hearing damage, do not listen at high volume levels for long periods.

To access the rating label

1. Remove the left ear pad by pulling the ear pad straight up using your thumb.

2. Once you've released the cloth from the lip on top, pull the ear pad straight back and it should slip right off.


To replace the ear pad, follow the same process in reverse.
