Roccat Kave XTD Digital Quick Installation Manual

CALL BUTTON GUIDE*
Status Call Button Action Function
Standby Press and hold (4s) Initiate pairing
Incoming call Press once Accept call
Incoming call Press and hold (2s) Reject call
On a call Press once End call
Paired/Standby Press and hold (2s) Call back
Paired/Standby Press once Initiate call
Status Bluetooth® LED Illumination
Not paired Off
Paired On
Pairing Blinking
Status Call Button LED
On a call On
Idle Off
* full functionality dependent on finalizing BT® pairing
CONGRATULATIONS!

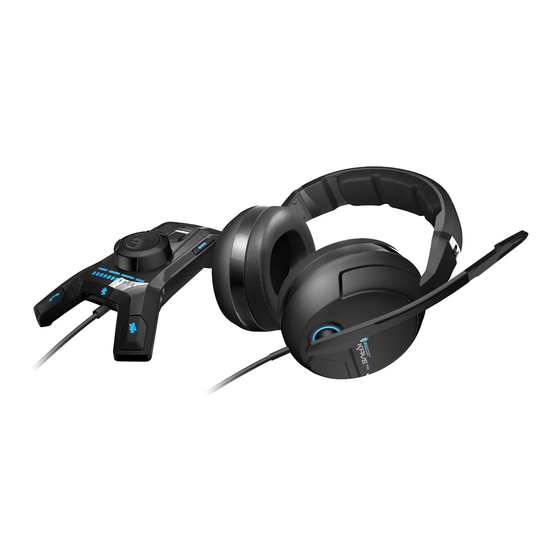

You are now the proud owner of the ROCCAT™ Kave XTD Digital – Premium 5.1 Surround Headset with USB Remote & Sound Card.
With true 5.1 surround sound, supreme comfort, robust design and a desktop remote featuring a high-quality inbuilt sound card
and Bluetooth® smartphone pairing technology, the Kave XTD is the total audio solution for gamers.
USB Remote & Sound Card Bluetooth
Featuring a high-quality inbuilt sound card, Also featured in the Kave XTD remote is
the Kave XTD remote gives you total audio patented ROCCAT™ Bluetooth® technology
control at your fingertips. With 5.1 speaker which lets you to pair your BT-enabled smart-
ports, you can hook your existing sound phone to your headset, allowing you to make
system up and switch between output and receive calls without having to leave the
modes easily. Completed by a game/movie action. Saving you time and keeping you
mode toggle, volume master controls, stylish focused on your game, you can chat to your
LED lighting and tons more, the remote friends through your headset while you keep
works as your audio command center. on fragging.
SPECIFICATIONS
PACKAGE CONTAINS TECH SPECS
ROCCAT™ Kave XTD Digital –
„
CENTER/FRONT/REAR DRIVER UNITS
Premium 5.1 Surround Headset
„ frequency response:
„ Desktop USB Remote with Inbuilt Sound Card
max. SPL at 1kHz:
„
Driver CD-ROM
„
max. input power:
„
Quick-Installation Guide
„
driver diameter:
„
driver unit material:
„
impedance:
„
SYSTEM REQUIREMENTS
VIBRATION DRIVER UNITS
Free USB 2.0 port (500mA) for power supply
„
frequency response:
„
Windows® 7 32 / 64 bit,
„
max. input power:
„
Windows® 8 / Windows® 8 Pro
driver diameter:
„
For phone feature*: Bluetooth® 3.0, backward
„
compatible with Bluetooth® 1.1, 1.2, 2.0 (+EDR) and 2.1
*only works with installed device driver
® Pairing High-comfort Surround Sound
With two 40mm driver units and one 30mm
vibrator unit per ear cup, the Kave XTD
provides fully-immersive surround sound
audio. With hand-sewn leatherette ear
cushions and plush headband padding,
supreme comfort is complemented by a
light yet robust and battle-proof design.
A detachable microphone with mute LED
rounds off your perfect gaming headset.
MICROPHONE
20~20.000Hz frequency response:
„
115±3dB
„ driver diameter:
50mW
„ sensitivity at 1kHz:
40mm
„ impedance:
Neodymium magnet directivity:
„
32Ω
GENERAL
20~100Hz
weight (headset only):
300mW „
cable length:
30mm „
QUICK-INSTALLATION GUIDE
IMPORTANT
DOCUMENT
10~10.000Hz
4×1.5mm
-32±-2dB
2.2kΩ + 15%
omni-directional
335gr
3.6m
5.1 | DIGITAL
