NZXT Capsule Mini - Cardioid Microphone Manual

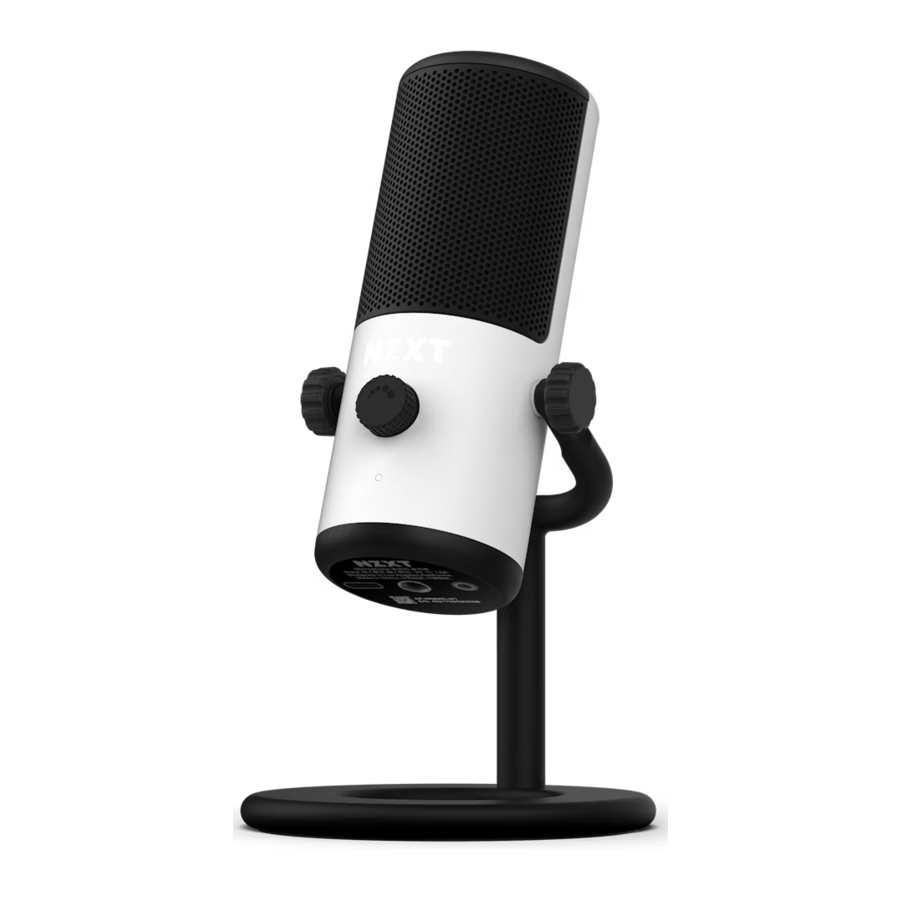

About The NZXT Capsule Mini

Create crystal clear audio with minimal background noise with the Capsule Mini. Designed for single sound-source gaming and streaming use, Capsule Mini delivers high-resolution voice pickup while suppressing unwanted background noise, so the only fans you hear are the ones watching your stream.

PACKAGING CONTENTS AND DESCRIPTION

OVERVIEW

1. Headset Volume
2. USB-C Connection
3. Adapter Connection
4. 3.5mm Headphone Output

USB-C TO USB-A CABLE

1. USB-A
2. USB-C

MIC THREAD ADAPTER

For use with male 3/8" threaded microphone boom arm or microphone stands including NZXT Boom Arm

Insert into bottom of Capsule Mini to use with Boom Arm

SETTING UP

Keep the USB cable fully inserted and seated into the connector on the back of the Microphone for proper operation. An incorrectly seated cable may cause feedback or other interference.

STEP 2
CONNECT THE HEADSET

You'll find a 3.5mm headphone output jack at the bottom of the microphone. Insert your 3.5mm headset into this jack.

For proper performance of the Capsule, make sure that the cable is fully seated in the 3.5mm headset jack.

STEP 3
CHANGE THE AUDIO SETTING

• Open your sound preferences or right click the audio icon located at the bottom of the task bar.
• Click on the "Playback devices" selection.
• Select "Speakers" or (Output). Underneath the speaker icon should read "NZXT MINI USB MIC"
• Select "Default Device"
• Click on the "Recording" (or Input) tab.
• Click on "Default Communication Device"
• Select "NZXT MINI USB MIC"

STEP 4
CONNECTING NZXT CAPSULE TO NZXT BOOM ARM

Boom Arm is threaded for male 3/8" connections.
If using NZXT Capsule USB Microphone, insert included male 1 / 4" to female 3/8" adapter into bottom of microphone, then attach the microphone with adapter onto Boom Arm's male 3/8"connection.

MAIN CONTROLS

LED
Capsule Mini contains an LED to show various states of the device's features.
When lit in white = microphone is unmuted and record-enabled. The device will now pickup your voice and will playback the sounds from your PC. The brightness of Capsule Mini's LED will increase or decrease in intensity with headphone volume adjustments.
When lit in red = microphone is muted. The device will not pickup your voice, but you will still be able to hear the sounds coming from your PC.

HEADSET VOLUME

The headphone output controls the volume of the headphones connected to the USB microphone. Turn clockwise to increase the volume and counterclockwise to decrease.
The brightness of Capsule Mini's LED will increase or decrease in intensity with headphone volume adjustments. To mute the Microphone input, press the microphone gain knob. The LED will change from white to red. To unmute, press the microphone gain knob again and the LED will change from red to white.

BASIC TROUBLESHOOTING

IF YOUR NZXT CAPSULE MINI IS NOT POWERING, CHECK... >
If the USB cable is fully plugged into the USB jack on both the Microphone and PC.

IF YOUR NZXT CAPSULE MINI HAS NO SOUND, CHECK... >
If headset audio cable is firmly pushed into the 3.5mm audio connection.
> If the sound output selector is switched to the appropriate device you would like to listen to.

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system.
service@nzxt.com
support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com.

Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online. NZXT Website: NZXT. com
