INTRODUCTION
Congratulations on your purchase of the NZXT Capsule USB Microphone! Whether you are a professional streamer, a casual player, or a hardcore gamer; we'd like to welcome you to the NZXT family of high-end gaming peripherals.
ABOUT THE NZXT CAPSULE
Create crystal clear audio with minimal background noise with the Capsule. Designed for single sound-source gaming and streaming use, the Capsule delivers high-resolution voice pickup while suppressing unwanted background noise, so the only fans you hear are the ones watching your stream.
PACKAGE CONTENTS & DESCRIPTION

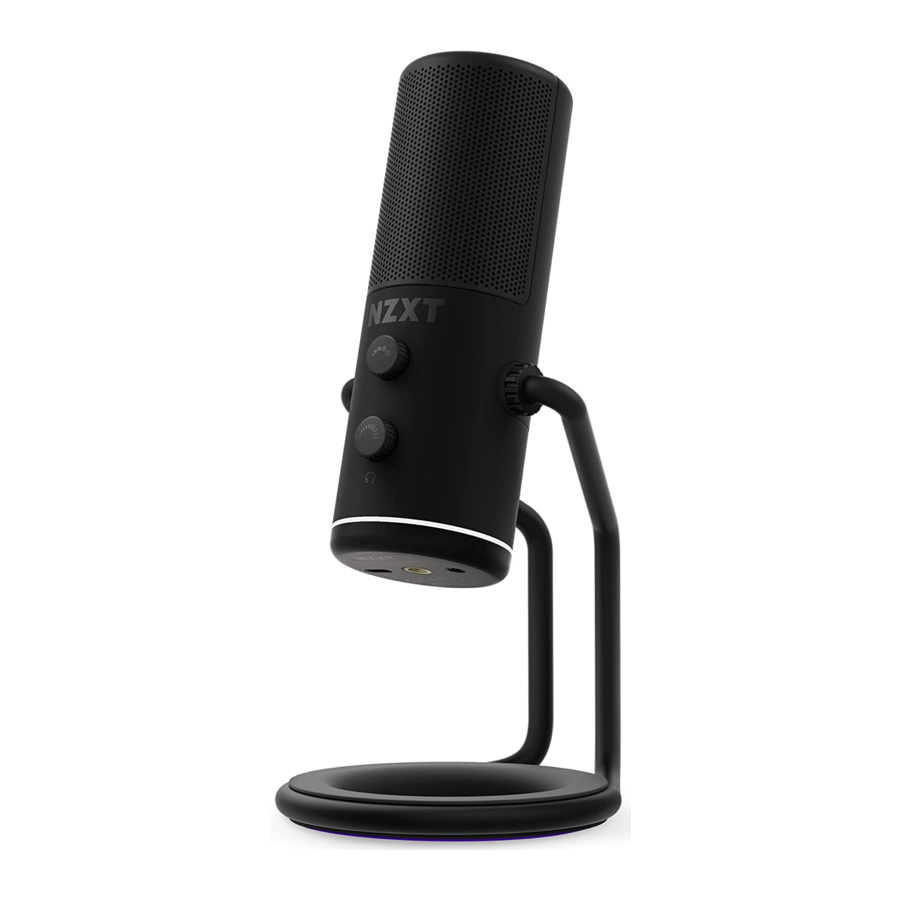

NZXT CAPSULE USB MICROPHONE
- Microphone Gain
- Headset Volume
- USB-C Connection
- Mic Stand Connection
- 3.5mm Headphone output
USB-C TO USB-A CABLE
- USB A
- USB C
STAND QUICK-RELEASE COVER
Insert into back of Capsule when released from built-in stand.
MIC THREAD ADAPTER
for use with male 3/8" threaded microphone boom arm or microphone stands including NZXT Boom Arm.
SETTING UP THE CAPSULE
STEP 1: CONNECTING CAPSULE TO YOUR PC
The capsule comes with a USB-C cable that connects from the microphone directly to the USB input on your PC.
- Insert the USB-C cable into the USB-C port of the microphone.
- Insert the opposite end of the cable into your PC.
Plugging the cable into the PC will provide power to the unit. The unit will turn on and automatically begin installing the Capsule.
- Keep the USB cable fully inserted and seated into the connector on the back of the Microphone for proper operation. An incorrectly seated cable may cause feedback or other interference.
STEP 2: CONNECT THE HEADSET
You'll find a 3.5mm headphone output jack at the bottom of the microphone. Insert your 3.5mm headset into this jack.
- For proper performance of the Capsule, make sure that the cable is fully seated in the 3.5mm headset jack.
STEP 3: CHANGE THE AUDIO SETTING:
- Open your sound preferences or right click the audio icon located at the bottom of the task bar.
- Click on the "Playback devices" selection.
- Select "Speakers" or (Output). Underneath the speaker icon should read "NZXT USB MIC"
- Select "Default Device"
- Click on the "Recording" (or Input) tab.
- Click on "Default Communication Device"
- Select "NZXT USB MIC"
STEP 4: CONNECTING NZXT CAPSULE TO NZXT BOOM ARM:
Boom Arm is threaded for male 3/8" connections.
- If using NZXT Capsule USB Microphone, insert the included male 1 / 4" to female 3/8" adapter into the bottom of the microphone, then attach the microphone with adapter onto Boom Arm's male 3/8"connection.
MAIN CONTROLS
LED RING
The bottom ring of Capsule contains an LED to show various states of the device's features.
When lit in white = microphone is unmuted and record-enabled. The device will now pickup your voice and will playback the sounds from your PC.
When lit in red = microphone is muted. The device will not pickup your voice, but you will still be able to hear the sounds coming from your PC.
MICROPHONE GAIN
The microphone gain controls the sensitivity level of the microphone capsule. Turn clockwise to increase the input sensitivity and counterclockwise to decrease. Check the input levels on your recording/streaming software to make sure you are capturing your voice at a desired sensitivity level. If you're clipping into the red in your meter system, turn the microphone gain knob counterclockwise slightly until the meter reads green.
To mute the Microphone input, press the microphone gain knob. The LED ring at the bottom of Capsule the will change from white to red. To unmute, press the microphone gain knob again and the LED ring will change from red to white.
HEADSET VOLUME
The headphone output controls the volume of the headphones connected to the USB microphone. Turn clockwise to increase the volume and counterclockwise to decrease.
BASIC TROUBLESHOOTING
IF YOUR NZXT CAPSULE IS NOT POWERING, CHECK...
- If the USB cable is fully plugged into the USB jack on both the Microphone and PC.
IF YOUR NZXT CAPSULE HAS NO SOUND, CHECK...
- If headset audio cable is firmly pushed into the 3.5mm audio connection.
- If the sound output selector is switched to the appropriate device you would like to listen to.
IF THE MICROPHONE DOES NOT OPERATE PROPERLY, CHECK...
- If the MUTE on the inline Mute/Volume control is engaged (the switch indicates RED when the mic is muted).
SUPPORT AND SERVICE
If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. nzxt.com/customer-support
Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, designer@nzxt.com.
Lastly we would like to thank you for your support by purchasing this product. For more information about NZXT, please visit us online. NZXT Website: NZXT.com
