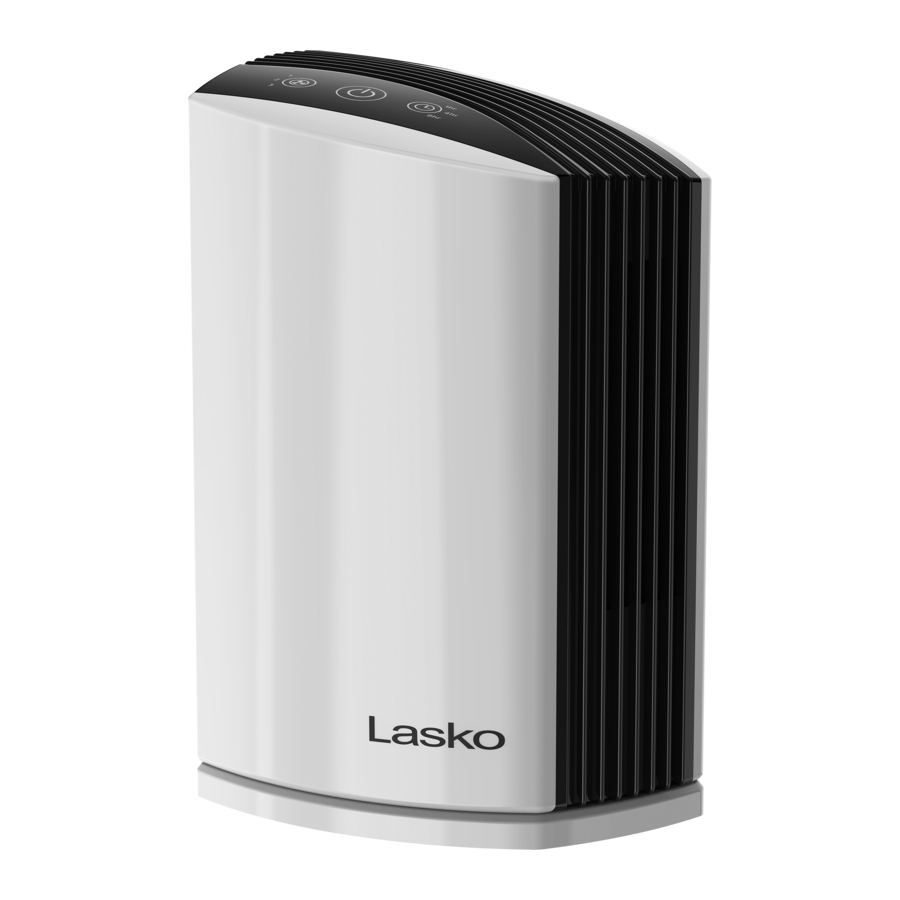

Lasko LP200/LP300 - Air Purifier Manual

Product Specifications

* Filters Included – One Year Supply
For replacement filters, visit www.lasko.com

Filter Description

TOTALPROTECT FILTRATION™
Protect Your Home from The Invisible 8: Captures 99.97% of Airborne Irritants

• The included True HEPA Filter combined with Lasko's compact blower is designed to purify efficiently and effectively.
• Activated Carbon Filter is remarkably effective at adsorbing odors while also capturing larger particles, keeping the True HEPA Filter cleaner, for longer.

Filter Installation

1. Press the EZclick™ Filter button to release the cover for the filter compartment.

2. Filters must be installed in the following order:
   First - True HEPA Filter
   Second - Activated Carbon Filter

3. Replace the Filter Door by pressing the EZclick™ Filter button to the top of the unit.

   *Note: The unit will not operate unless the rear cover is properly installed.

OPERATION GUIDELINES

• Keep curtains and loose objects away from rear intake.
• Always operate unit on a stable surface with the cord routed away from foot traffic.
• Please observe extreme caution when using this Air Purifier in the proximity of children.
• Do not operate the Air Purifier without Filters.
• Do not use in bathrooms, laundry areas or other damp indoor environments. Keep away from water at all times.

OPERATION

The LP200 is engineered to effectively clean small to medium-sized rooms in your home. For maximum performance, make sure to close windows and doors in the room you are purifying.

1. Plug the unit into a working 120V power source.
2. Intuitive operation makes this a very easy-to-use device. Lightly tap any function to select.

Controls

Power Button
Press Button to turn Air Purifier ON and OFF.
Note that the purified air will exit the right-hand side of the body.

Fan Speed
Press Button to cycle through: 1 - Low, 2 – Medium, 3 - High.

Auto-Off Timer
This function will automatically shut off the Purifier after a certain period of time. To engage, repeatedly press Button until the desired hour intervals are illuminated. The Timer is adjustable up to 8 hours. To discontinue, press Button until all LEDs under the hour marks are extinguished.

Filter Replacement Reminders
When the LED above the power button blinks RED it is time to replace the Activated Carbon Filter, the True HEPA Filter, or both. To reset the Filter Replacement Reminder press the Power and Timer button together for 3 seconds. The LED should blink 3 times and turn off. The unit run timer has now been reset.

Troubleshooting Guide

SAFETY INFORMATION

REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK - DO NOT USE THIS PRODUCT WITH ANY SOLID STATE SPEED CONTROL DEVICES.
Failure to the following warnings may result in electrical shock, burns, fire or injury:

GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:
Read all instructions before using this Product.
The Blue Plug^™ on your Lasko purifier is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or tamper with the originally supplied plug. If the Purifier has stopped functioning, it may be due to the safety device incorporated in this plug. Call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. Eastern for questions. If the plug warning label is missing or damaged, call the toll free number for a replacement label.
THIS PURIFIER HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.

1. Make certain the power source conforms to the electrical requirements of the Product.
2. Make certain that the room is equipped with a working smoke detector.
3. Use this Product only as described in this manual. Any other use not recommended by the manufacturer may result in injury to persons or damage to property.
4. To reduce the risk of personal injury and electric shock, the Product should not be played with or placed where small children can reach it.
5. Unplug power cord before moving the Product.

DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN MOVING THE PRODUCT. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF THE PRODUCT BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE PRODUCT IS ON OR PLUGGED IN.

6. DO NOT use Product in or near a window. Rain may create an electrical hazard.
7. Completely assemble Product according to instructions before connecting to power supply.
8. Avoid the use of extension cords because the extension cord may overheat and cause a fire. Do not plug Product into any other cord connected device, such as a power strip, cord reel, surge protector, multiple outlet adapters or outlet-type air fresheners. The use of such devices may create a fire hazard.
9. NEVER operate any Product with a damaged cord or plug, or if the Product has been dropped or damaged in any manner.
10. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock, fire, or damage the Product. To reduce the risk of fire, DO NOT block or tamper with the Product in any manner while it is in operation.
11. Always place the Product on a stable, flat, level surface when operating to avoid the chance of the Product overturning. It is recommended for floor use only. Locate the Power Cord so the Product or other objects are not resting on it. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over.
12. This Product is not intended for use in wet or damp locations. Never locate a Product where it may fall into a bathtub or other water container. NEVER use Product where flammable liquids are used or stored.
13. Care should be taken so that objects do not fall and liquids are not spilled into the enclosures.
14. NEVER use Product outdoors
15. This Product is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS PRODUCT DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
16. This Product is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS PRODUCT DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

• Do not immerse entire air purifier unit in water or other liquid.
• Do not reach for air purifier unit that has fallen into water. Unplug it immediately.
• The unit should be situated away from heat sources such as direct sunlight, radiators, heat registers, stoves or other heat-producing appliances.
• Never block the air openings of the unit with materials, such as clothing, plastic bags or papers. Do not place it on a soft surface, such as a bed or sofa where the air openings may be blocked. Keep the air openings free of lint and hair.
• Do not carry this unit by its cord or use the cord as a handle.

• DO NOT disassemble or attempt to repair the unit. Incorrect repair can cause risk of electric shock or injury to persons when the unit is used. There are no user serviceable parts inside. "Dangerous voltage" within the unit's enclosure may be of sufficient magnitude to constitute a risk of electric shock.
• DO NOT expose this unit to wet, damp, rain or moisture locations.
• This Product must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres where gasoline, paint, flammable liquids or vapors are used or stored.
• DO NOT operate where aerosol units are being used or where oxygen is being administered. Do not operate this unit in oxygen rich environments.

• Remove all packing materials (bags, cardboard, foam, etc.) prior to operating this unit.
• Do not allow children to play with any plastic bags that accompany this unit. Plastic bags are a hazard to young children.
• Close supervision is necessary when this unit is operated near children.
• Do not allow children to play with this unit. This unit is not a toy.
• Use this unit only for its intended use as described in this manual.
• Unplug this unit during lightning storms or when unused for long periods of time.
• For indoor use or operation only.
• Use correct electrical supply voltage as indicated on the bottom label of the unit.
• Turn the unit off before unplugging from an electrical outlet.
• Plastic or rubber parts, like the feet on this product may stick to surfaces and/or hardwood floors. The product may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain surfaces.

Register Your Product Today
www.lasko.com/product-registration/

You will benefit from:

• Efficient and enhanced support
• Future product updates

CUSTOMER SERVICE:
Toll-Free (800) 233-0268. Email: producthelp@lasko.com
Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern.
Please have your model number available.
Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380
(Please do not send product to this location)
www.lasko.com
