- Page 1 Rev.07 02/2024 USE AND MAINTENANCE MANUAL DOUBLE EXERCISE PULLEY DOUBLE EXERCISE PULLEY MODELS Description Code Double Exercise Pulley 1315020...
- Page 2 Table of contents INTRODUCTION p. 3 SAFETY – WARRANTY – UNPACKING – DISPOSAL p. 4 TECHNICAL SPECIFICATIONS – SUPPLIED ACCESSORIES p. 5 ASSEMBLY – HOW TO USE THE EQUIPMENT p. 6 WARNINGS – MAINTENANCE – CLEANING p. 7 ACCESSORIES p. 8 INSPECTION RECORD SHEET p.
- Page 3 90 % - temperature -10°C ÷ +50°C – Clean place. WARNING! Thoroughly read the manual before use. FISIOTECH SRL refuses any responsibility and is not liable in case any damage to people and/or goods caused by the improper use of the couch, by negligent or not-qualified staff or by non compliance with these instructions occurs.
- Page 4 WARNING! The exercise pulley should not be used: Beyond the max working load declared by the manufacturer; If the load is not placed and divided following the guidelines of this manual With moving loads. (dynamic) Without having carried out the assembly, anchoring and testing. ...
-
Page 5: Product Code

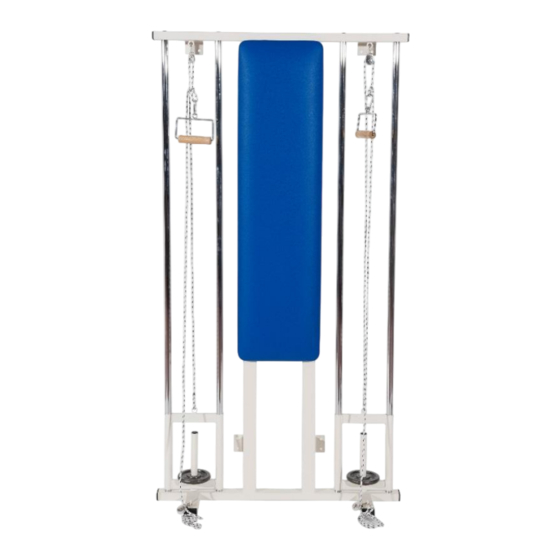

Product code 1315020 Single pulley therapy powder-coated structure with rope. With padded backrest, upholstered in washable, fire-resistant leatherette. Working load adjustable with 1 kg disks, max load 8 kg. Height 185 cm Width 102 cm Depth 28 cm WARNING! Before assembling the cage, make sure: ... - Page 6 Place the equipment on the wall and mark the holes with a pencil. Drill the wall using the specific drill for the wall plug chosen (according to the masonry). Insert the plugs and tighten the screws. 1. Insert the weights needed according to the exercise in the specific weight holder bar (A). 2.
-
Page 7: Maintenance
WARNING WARNING! The professional should never leave the patient unattended to prevent falls. The manufacturer is not liable for any damage to people and/or goods caused by negligent and/or not-qualified personnel. Maintenance must be carried out by a specialist, an electrician or someone who is familiar with the content of this manual. - Page 8 CODE DESCRIPTION 1316052 Ankle strap with hook. Black 1317105 Ankle strap 1316041 Cast iron disks 8 of 9...
- Page 9 INSPECTION RECORD SHEET DEVICE MODEL / CODE: INSTALLATION DATE SERIAL No. ……………………………………… ……………………… ……………………. Inspection Maintenance Name of the inspector Signature Date 9 of 9...
