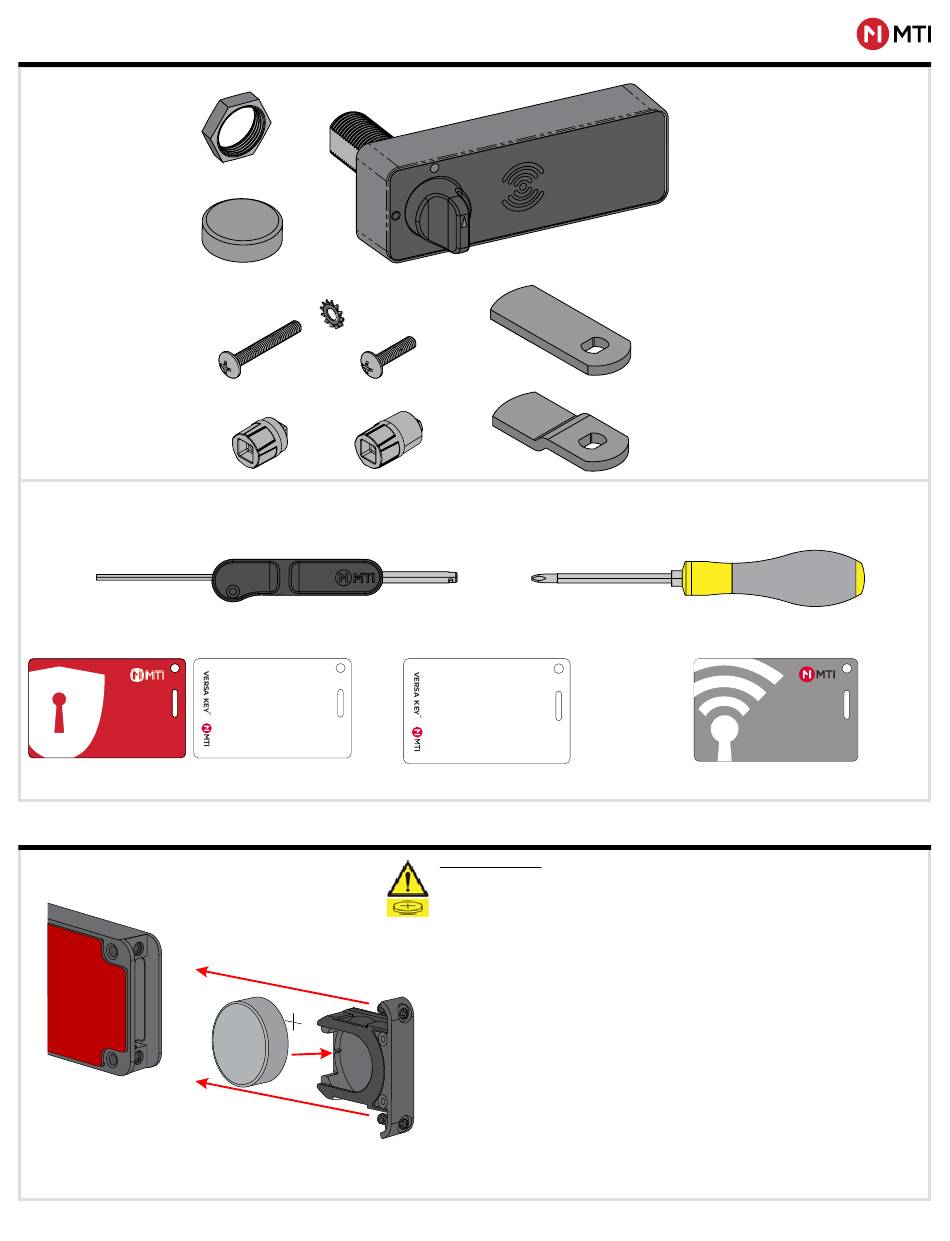

CamLock Kit
CR 2477 Coin Cell Battery
Not included
Key Starter Set – 185-00459
AUTHORIZATION
x1
BATTERY
CR 2477 Coin Cell Battery
www.mobiletechinc.com | T:800.426.6844
SmartLock
003-00036 - For battery door
x2
No. 2 Philips Screwdriver - Cam Mounting
User Key Bulk (x5) Pack -
185-00460
x5
Battery Caution
Do not ingest the battery, Chemical Burn Hazard.
Keep new and used batteries away from children.
The product contains a lithium coin/button cell battery. If the coin/button cell battery
is swallowed, it can cause severe internal burns in just 2 hours and can lead to
death.
If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
If the battery compartment does not close securely, stop using the product and keep
it away from children.
CAUTION:
Risk of fire or explosion if the battery is replaced by an incorrect type.
-battery type: CR 2477 (non-rechargeable)
-chemical system of the battery: Lithium
MTI CAMLOCK™
Connect Card - 401-00008
NETWORK PAIRING
x1
MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved
1
Advertisement
Related Manuals for MTI CamLock
Summary of Contents for MTI CamLock
- Page 1 Risk of fire or explosion if the battery is replaced by an incorrect type. -battery type: CR 2477 (non-rechargeable) -chemical system of the battery: Lithium CR 2477 Coin Cell Battery www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
- Page 2 Lock will automatically download key whitelist from Versa EX. Full Versa EX programming can be found in guide 063-00393 www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
- Page 3 (19mm) .75in Peel red liner from VHB tape Apply lock to door, ensuring it is straight. Apply pressure to VHB for 10 seconds to ensure complete adhesion. www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
- Page 4 Attach CAM to Cam shaft with phillips screw and serrated washer with No 2 screwdriver. Check to will engage with mating square “keyway”. ensure Cam is oriented in the correct lock/unlocked position before tightening screw. www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
- Page 5 To prevent harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To dispose of used devices contact MTI Global Services Contact Center at 503-648-6500 or contact local recycling company for proper recycling instructions for electronic devices.
- Page 6 Upon powering up, wait 10 seconds to initialize lock. Leave battery plugged in until you have re-locked the Swipe RFID card. Twist lock to unlock normally. door. Replace battery as soon as possible. www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
-
Page 7: Fcc Statement
Technical Data Operating frequency 125KHz , 2.4GHz : 2405- 2480MHz Operating temperature: 0º C to 40º C Max power : 125KHz <42dBuA/m at 10m, 2.4GHz < 20 dBm www.mobiletechinc.com | T:800.426.6844 MTI P/N 063-00431 rev A ©2023 MTI All Rights Reserved...
