Worksaver HPD-16 Owner's/Operator's Manual

3-pt. hydraulic post driver with quick change system
Hide thumbs Also See for HPD-16:
Table of Contents

Advertisement

Quick Links

Download this manual

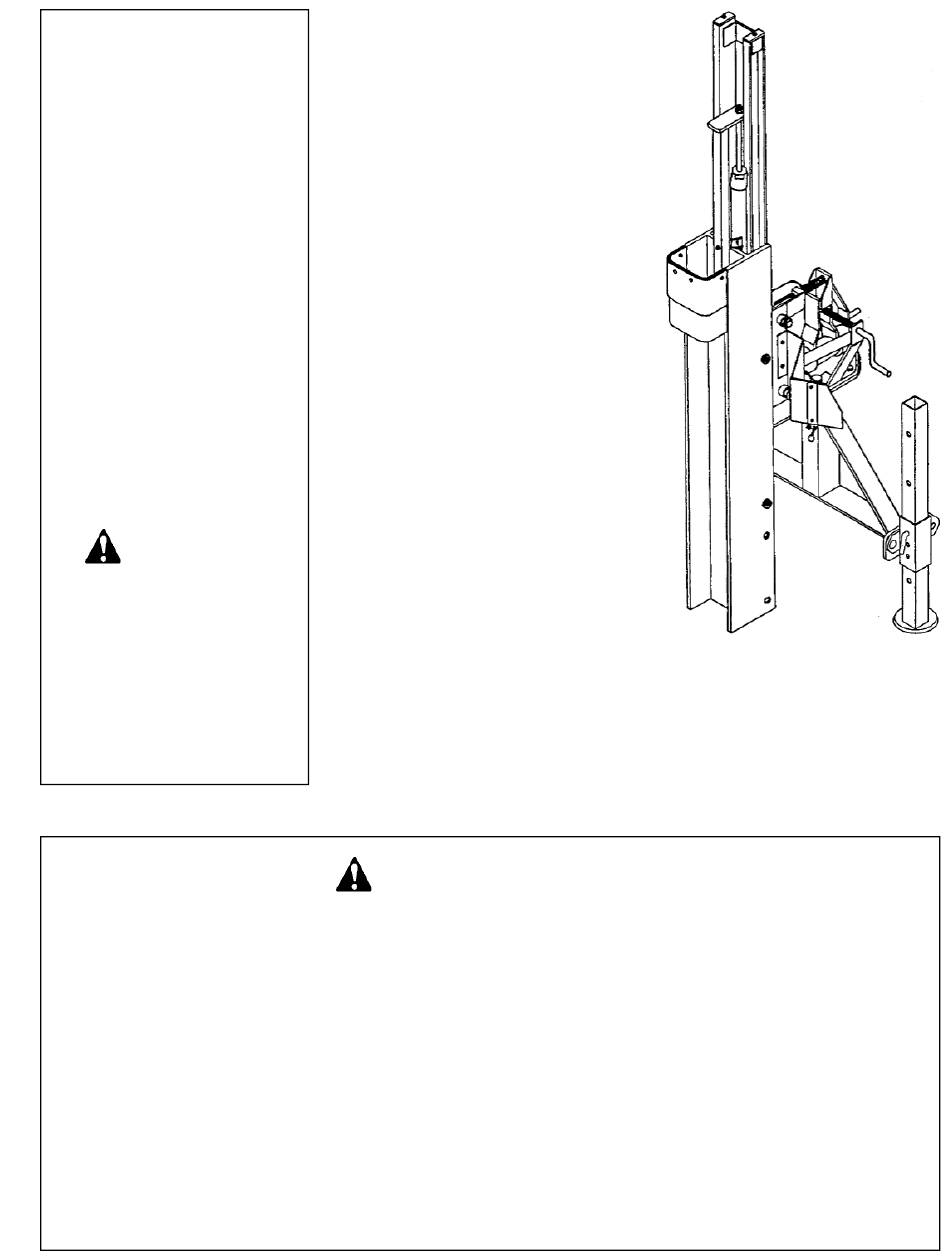

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
HPD-16
(S/N 4215 and above)
HPD-22Q
(S/N 5501 and above)
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
HYDRAULIC
POST DRIVER
Quick Change
System
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
3-PT.
with
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.
TM
Assembly & Mounting
Maintenance
Repair Parts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPD-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worksaver HPD-16

Summary of Contents for Worksaver HPD-16

  • Page 1 OWNER’S / OPERATOR’S MANUAL 3-PT. HYDRAULIC MODEL NO.’s POST DRIVER HPD-16 (S/N 4215 and above) with HPD-22Q Quick Change (S/N 5501 and above) System CAUTION For Safe Operation Read Rules And Instructions Carefully SI NO LEEINGLES, PIDA AYUDA Safety Instructions Assembly &...

  • Page 2: Table Of Contents

    Like all mechanical products, it will require cleaning and upkeep. Lubricate the Post Driver as specified. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Post Driver here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...

  • Page 3: Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judge- ment of Worksaver such use affects its performance, stability, or reliability.

  • Page 4: Understand Signal Words

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 6 SAFETY INSTRUCTIONS (continued) PREPARATION Never operate the tractor and post driver until you and the operator have read and completely understand this manual, the Tractor Operator’s Manual, and each of the Safety Messages found on the safety signs on the tractor and post driver.

  • Page 7: Operational Safety

    SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY The use of this equipment is subject to certain hazards which cannot be protected against by mechanical means or product design. All operators of this equipment must read and understand this entire manual, paying particular attention to safety and operating instructions, prior to using. If there is something in this manual you do not understand, ask your supervisor, or your dealer, to explain it to you.

  • Page 8: Transport Safety

    SAFETY INSTRUCTIONS (continued) When using a unit, a minimum 20% of tractor and equipment weight must be on tractor front wheels. Without this weight, tractor could tip over, causing personal injury or death. The weight may be attained with a front end loader, front wheel weights, ballast in tires of front tractor weights.

  • Page 9: Maintenance Safety

    SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement (or if working underneath, raise and block securely), shut off the engine, set the brakes, and remove the ignition keys. Remove hydraulic pressure prior to doing any maintenance.
  • Page 10 SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation, or when unhooking, stop the tractor, set the brakes, lower ram to lowest position and engage transport lock pin, shut off the engine, relieve hydraulic pressure and remove the ignition keys. Store the unit in an area away from human activity. Do not park equipment where it will be exposed to livestock for long periods of time.

  • Page 11: Safety Signs

    SAFETY SIGNS NOTE: If Safety Sign is missing or damaged, replace immediately. 101358 Cylinder Locking Strap - Remove before using Post Driver 101202...

  • Page 12: Assembly & Mounting

    22Q Hydraulic Post Drivers with manual 3 pt. mount. tems. See the “maintenance and adjustment” section of The Model HPD-16 Post Driver can be used on tractors this manual for conversion instructions. having either a Category I or II 3 pt. hitch. The Model...
  • Page 13 INSTRUCTIONS (continued) 3. Attach the driving ram assembly to the base plate Connect the ” I.D. x 60” long hose from the inlet assembly. A chain hoist or forklift can be used to stand side of the control valve to one of the tractor hydraulic the driving ram assembly upright to its normal working remote outlets.

  • Page 14: Before You Start

    INSTRUCTIONS (continued) 6. Stand clear of the driving ram assembly and raise the completely assembled unit approximately 10 inches with the 3-point of the tractor. Operate the hydraulic valve on the tractor so that oil flows from the tractor to the valve and returns by the tractor fill opening hose.

  • Page 15: Operation

    INSTRUCTIONS (continued) OPERATION NOTE: The Post Holder Attachment works best with smooth sided posts. For rougher sided posts, use the Observe all operating and safety instructions in this Post Holder Tool to stabilize the post. manual and those on the Post Driver before using this machine.
  • Page 16 INSTRUCTIONS (continued) MAINTENANCE AND HYDRAULIC CYLINDER BASE ADJUSTMENT – HPD-16 ADJUSTMENTS Due to the design of the Driver carriage, it is necessary (continued) for both the base and rod end of the hydraulic cylinder to Periodically check all bolts to make sure they are tight have a slight amount of freedom.
  • Page 17 INSTRUCTIONS (continued) MAINTENANCE AND 4. Lower the cylinder with the valve (Photo N). ADJUSTMENTS 5. Remove the step nut from the cylinder rod using the (continued) 1 1/2" wrench and the 5/8" wrench on the rod flats 3. Remove the hydraulic cylinder from the carriage. (Photo 0).
  • Page 18 NOTE: The lower hydraulic cylinder mounting bolts have stamploc hex nuts ( ” on HPD-16). DO NOT use regular hex nuts in place of these nuts. They need to be stamploc 6. Remove the transport pin (the driving ram may have nuts.

  • Page 19: Specifications

    POST DRIVER SPECIFICATIONS HPD-16 HPD-22Q Maximum post size ... . 5” x 9’ ** ”...

  • Page 20: Trouble-Shooting

    TROUBLE-SHOOTING GUIDE PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY DRIVER DOES NOT 1. The hydraulic valve return line is connected Connect the return line directly to the tractor DRIVE A POST to a tractor remote outlet and/or a quick reservoir filler opening. coupler is being used.
  • Page 21 TROUBLE-SHOOTING GUIDE (continued) PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY POST VEERS OFF AT 1. Top of post is not cut “square,” causing the Re-cut top of post “square.” AN ANGLE WHILE post to drive at an angle. BEING DRIVEN 2. Bottom of post is cut at an angle or post is Re-cut bottom of post.
  • Page 22 TROUBLE-SHOOTING GUIDE (continued) PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY DRIVER RAM RAISES 1. Post driver control valve “UP” limit screw Adjust limit screw (see page 14). VERY FAST AND HITS needs adjusting. TOP URETHANE BUMPERS 2. Tractor model has high volume hydraulic oil Set tractor throttle at lower speed to reduce vol- pump.

  • Page 23: Parts Lists

    ADJUSTABLE MANUAL BASE MOUNTING PACKAGE PARTS DRAWING & LIST NOTE: This mount effective with S/N 4215 (HPD-16), S/N 4825 (HPD-20), and S/N 5001 (HPD-22Q).
  • Page 24 HPD-16 PARTS DRAWING HPD-16 Effective with S/N 4077...
  • Page 25 HPD-16 PARTS LIST...
  • Page 26 HPD-22Q PARTS DRAWING HPD-22Q Effective with S/N 5501...
  • Page 27 HPD-22Q PARTS LIST...
  • Page 28 HYDRAULIC CONTROL VALVE AND MOUNTING BRACKET PARTS DRAWING NOTE: Post Drivers prior to S/N 2656 (HPD-16) and S/N 2987 (HPD-20) used valve #814473 (Gresen). NOTE: Post Drivers S/N 4215 (HPD-16) and S/N 4825 (HPD-20) and above have O-ring fittings shown in this drawing.
  • Page 29 HYDRAULIC CONTROL VALVE AND MOUNTING BRACKET PARTS LIST...
  • Page 30 3 PT. HITCH PARTS DRAWING & LIST...
  • Page 31 POST HOLDER ATTACHMENT PARTS DRAWING & LIST...

  • Page 32: Safety Requirements

    A HOLIDAY FROM ACCIDENTS SI NO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. APRIL 2014 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-PH021-OG...

This manual is also suitable for:

Hpd-22q
