Radium LMZA4535 User Manual

Read all instructions before using or installing the product. Keep for future reference. Include the user manual when
passing the product on to third parties.
• The product is designed to control one
or several controllers for white strips
which can be grouped into 4 zones.
• Up to 30 lighting devices can be paired
with the product.

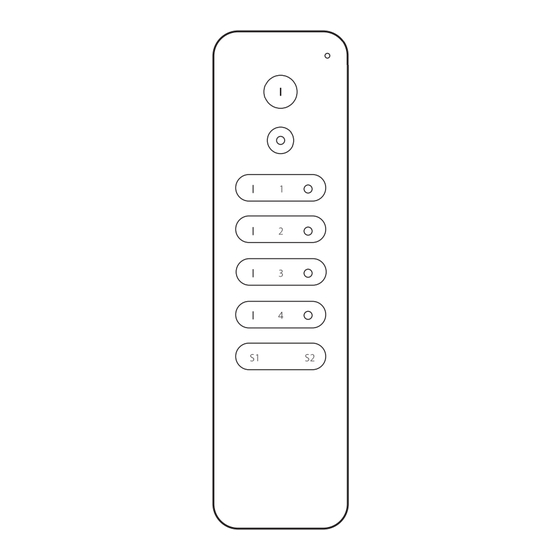

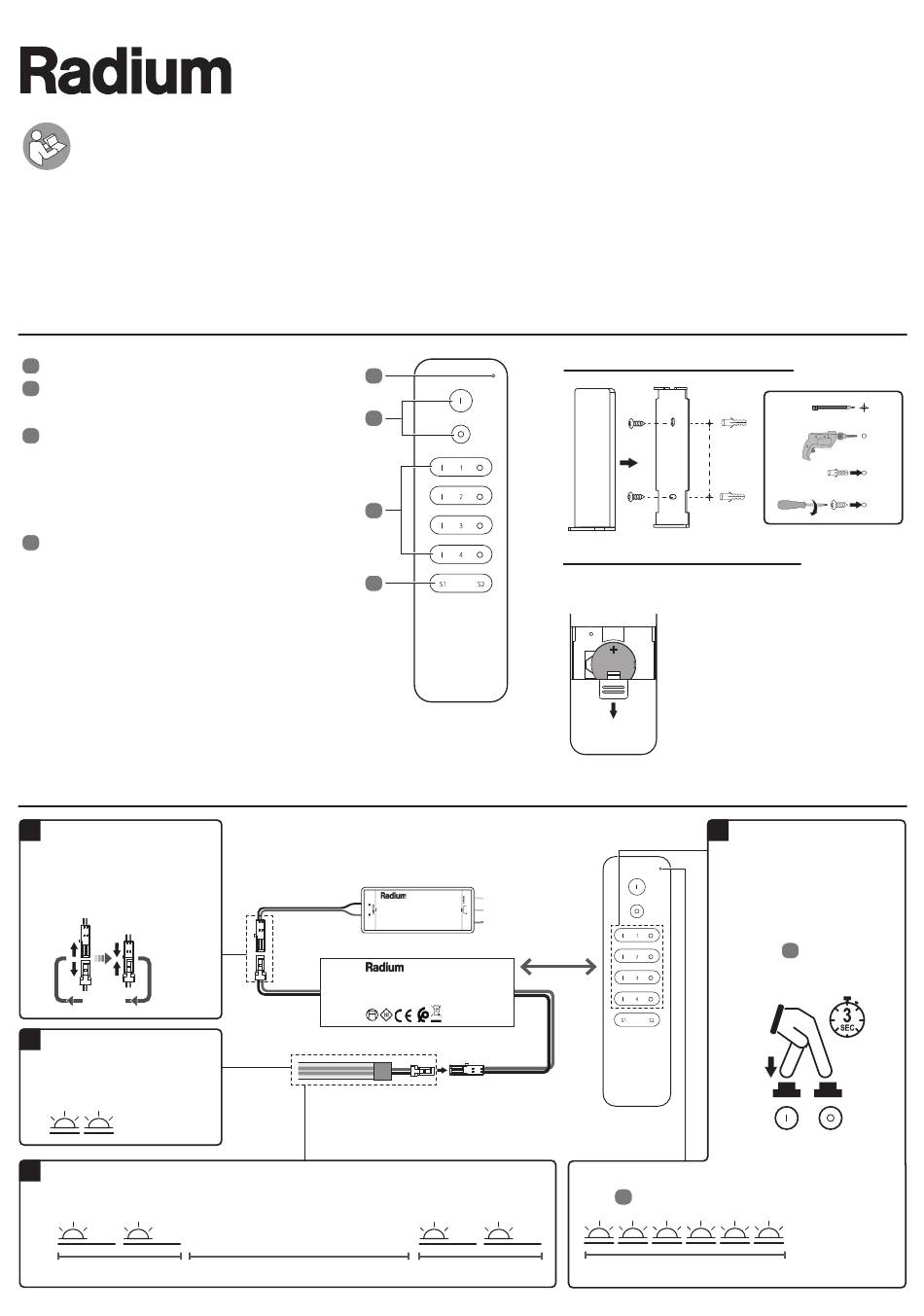

Product introduction
Status LED
1
Master ON (I) /OFF (O) buttons
2
To switch all zones on or off.
Zone ON (I) /OFF (O) buttons (1–4)
3
− Press I or O once to turn on or off all
devices in the same zone.
− Press and hold I or O to increase or
decrease the light intensity of all devices in
the same zone.
4 Scene buttons (S1/S2)
− Up to 2 scenes (zone, on/off and brightness)
can be saved.
− Set the brightess level of the connected
LED strip light to the level you want and
press and hold the scene button until the
status LED flashes once to save the scene.
− Press the scene button once to switch on/
off the saved scene.
− To overwrite the scene, press and hold the
scene button.
Pairing the controller to a zone of the remote control (without using a ZigBee hub)
1
Disconnect the cable
connection 4 times in
succession between the
controller and driver unit.
4×
2
Check the LED strip
light. It flashes twice
when ready for pairing.
4
Check the LED strip light. It flashes twice slowly, then turns off for a few
seconds, and finally flashes twice slowly when pairing is successful.
slow (2×)
• The product only works with the
LMZA4376 controller.
• Protocol: ZigBee 3.0
• Transmission frequency: 2.4 GHz
• Transmission line: 6 dbm
1
2
3
4
N
L
LMZA4376
Zigbee LED Controller
DC INPUT
Input Voltage: DC 24V
Red: V+
Max. Output Current: 3.5A
Black: V-
Max Output Power: 84W .
Made in China
OFF for a few seconds
Installing the magnetic holder
Installing/replacing the battery
Remove the insulation film from the battery
before first use.
< 10 cm
Radium Lampenwerk GmbH
Dr.-Eugen-Kersting-Str. 6
51688 Wipperfürth
Germany
www.radium.de
LED OUTPUT
Red: LED+
Black: LED-
The paring mode has started when the status
LED
slow (2×)
Remote control
LMZA4535 | REMOTE ZGB WHITE 4ZONE
User manual
• Transmission range (free field): 30 m
• Operation voltage: 3 V DC (CR2032)
• Protection rating: IP20 (Do not expose to
moisture)
− The product requires a CR2032
(3 V) coin battery.
− Slide open the cover for battery
installation/replacement.
− Make sure the polarity (+/-)
is correct when installing the
battery (with the "+" side facing
upward).
3
Place the product near the
controller (< 10 cm) and
select a zone you want to
pair with it. Press and hold
the corresponding zone
ON (I) and OFF (O)
3
buttons
least 3 seconds to start
pairing.
1
flashes quickly for approx. 5 seconds.
5 sec.
OKM 4103522 AA V01
1.
2.
3.
4.
together for at
