Summary of Contents for Jackco SOLO ALIGN RACE SA-1000

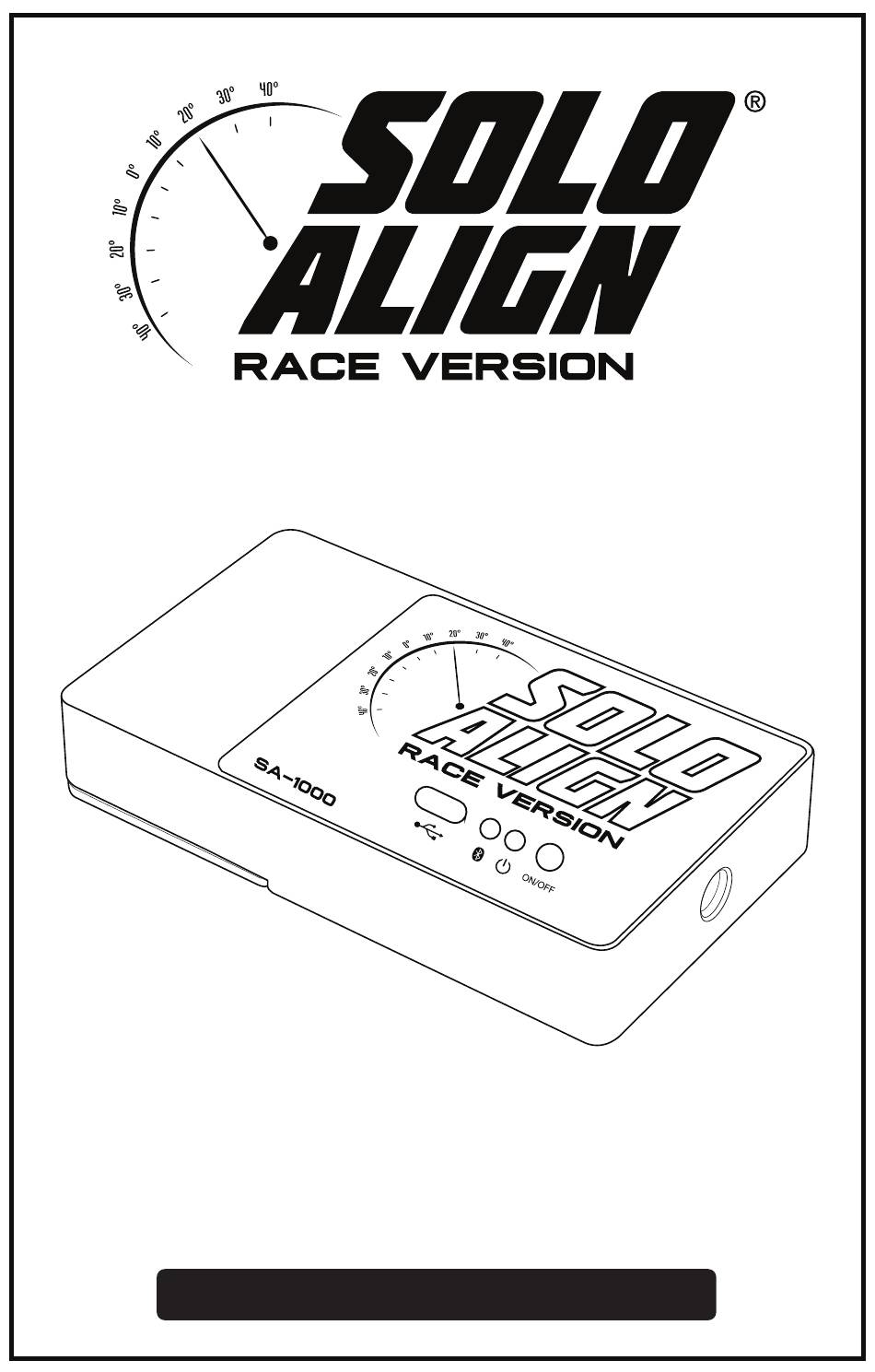

- Page 1 SA-1000 user's manual Ver. 1.0...
-
Page 2: Micro Usb Charging Port
Overview: Micro USB LED Power Charging Port Indicator LED Bluetooth On/Off Switch Indicator LED Color LED Status Meaning... -
Page 3: Technical Specifications
Features Displays steering angle in real time Detailed reports saved Interactive on-screen instructions Easy to compare data in list view guide you through the process Add photos and notes to each report Get measurements in minutes Live camber reading screen Bluetooth automatically connects when Solo Align app is open Technical Specifications:... -
Page 4: Operation
Operation 1. Download App Look for and download the Solo Align Angle Sensor App on your smart device 2.1 Connecting the sensor to your smart device If your Bluetooth is turned on, search for the Solo Align sensor and connect. When the yellow light on the sensor is steady on, your device has connected. - Page 5 Operation 3. Open Solo Align App / Main Menu New Measurement: Starts the measurement process to get a caster and camber on the left and right wheel. Live Camber Angle: Reads a real-time camber angle for fast viewing. Report: View a list of previously saved reports New Measurement Live Camber Angle Settings:...
- Page 6 Operation 3.1.3 3.1.4 Follow the on-screen instructions. When instructed, turn the wheel to the Turn wheel to the left (>18°) and HOLD right (>18°) and HOLD. When measurement is complete, a Caster reading will show. Repeat the process on the Right by selecting the “Right Wheel”...
-
Page 7: View Report
Operation 3.1.5 Measurement Complete. You can let your steering wheel go back to 0°. Select the “Report” tab to view the report Select the “Restart” button to restart the measurement View Report 3.1.6 Delete Report Weather Current Location Date/Time of Measurement Add photo to report Save Report... - Page 8 Operation Live Camber Angle Reads a real-time camber angle for fast viewing.
- Page 9 Operation Settings Reports View a list of previously saved reports. Select a report to see more details. 3.4.1 Select Device 3.4.2 Calibration...
- Page 10 Fixture Parts List Solo Align Universal Fixture Center Base Center Base Extension Rod Spacer Tire Holding Bracket Tire Holding Arm Holding Arm Adjusting Knob Knob Solo Align Sensor...
-
Page 11: Frequently Asked Questions
Frequently Asked Questions Troublshooting... -
Page 12: Fcc Declaration Of Conformity
No other warranties, expressed or implied, including those of merchantability or fitness for particular purpose shall be applicable to Jackco except as specifically stated herein. In no event shall Jackco be liable to any party for any special, direct, indirect, consequential, punitive damage of any nature caused by the sale or use of the equipment, tool, or product.
