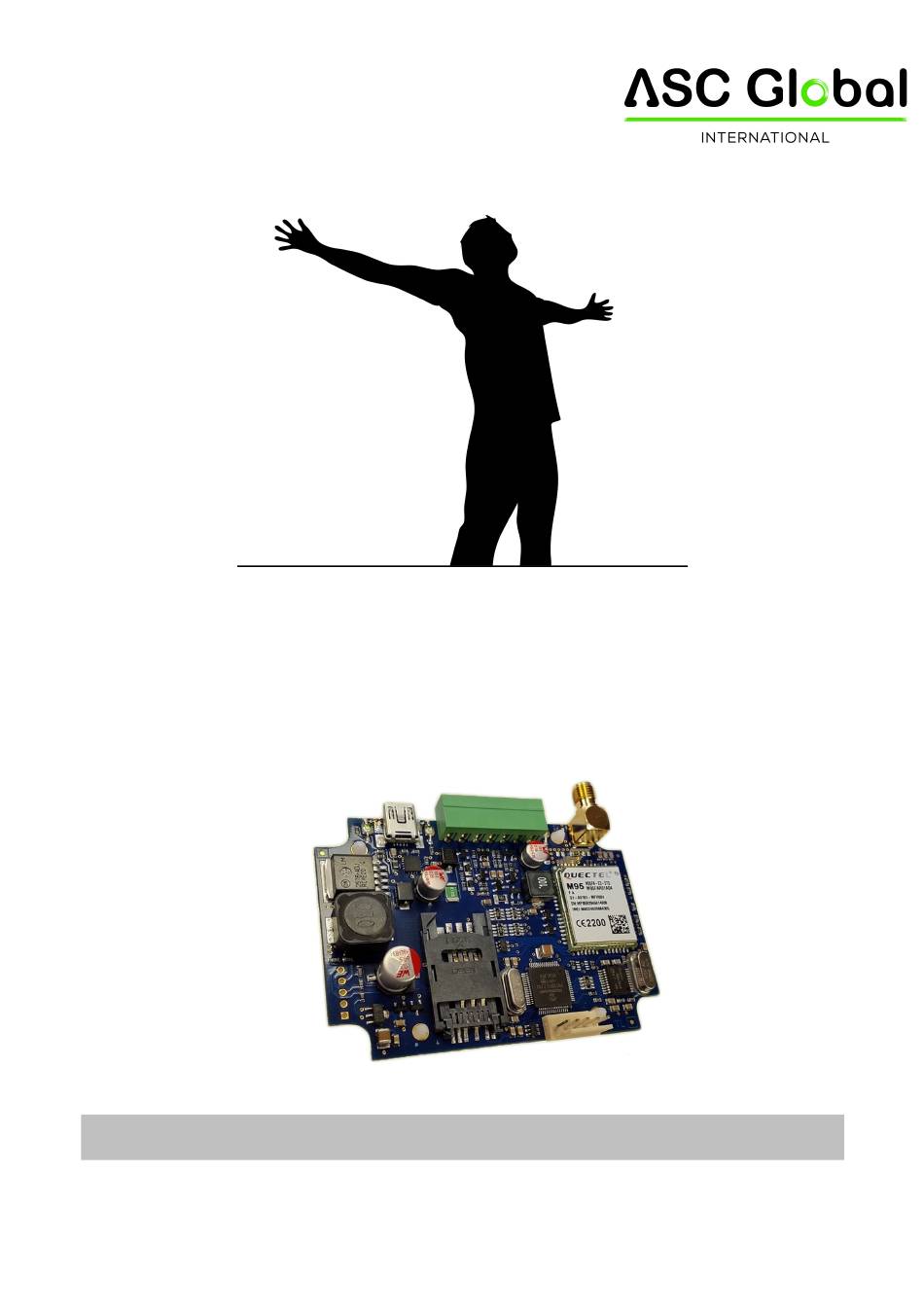

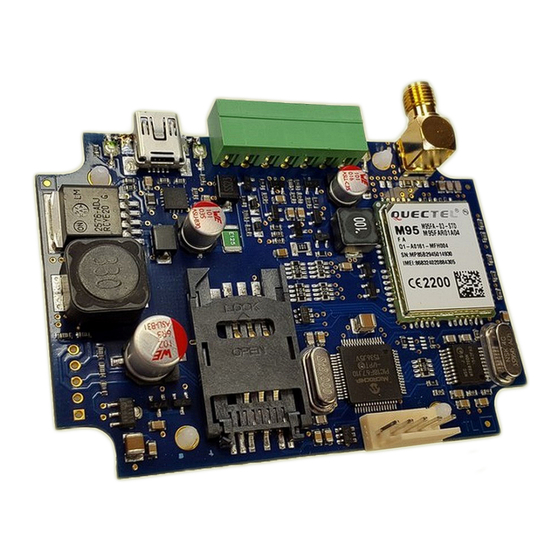

- Page 1 COM-G GPRS/GSM COMMUNICATOR INSTALLER AND USER’S GUIDE Version: 1.0...
-
Page 2: Table Of Contents
COM-G www.ascglobal.eu TABLE OF CONTENTS Introduction........................................ 3 System overview..........................................3 Module buildup......................................4 Installation steps......................................5 LED Indicators......................................6 General recommendations..................................7 Programming......................................7 Programming with PC........................................7 Remote programming........................................9 Communication......................................9 AES Encryption..........................................10 Channel settings...................................... 10 Ethernet............................................10 GPRS............................................10 PSTN/GSM..........................................10 EMAIL report..........................................10 SMS report..........................................11... -
Page 3: Introduction
SMS to one phone number, moreover, the module is capable to send a message to the monitoring station as well. Also, we can link zones to the inputs. The COM-G is able to translate the contact ID codes, which were sent by the alarm panel, to SMSs. -
Page 4: Modulebuildup
COM-G www.ascglobal.eu Modulebuildup Figure 1: the buildup of the module Figure 2: Series diagram wiring terminal Figure 3: SIM card inserting Page 4... -
Page 5: Installation Steps
COM-G www.ascglobal.eu Installation steps 1. Carry out a signal strength check with your mobile phone. Sometimes occurs there is no sufficient signal strength at the commissioning site. In this case it is recommended to change the module position prior of installation. -
Page 6: Led Indicators
General recommendations The COM-G communicators can report to AMS servers via GPRS and GSM network. A primary and secondary reporting channel for all communication media. Furthermore, email and SMS sending is available for notification purposes. The COM-G communicator uses a special DTMF format for GSM reporting which guarantees problem-free transmission over the GSM audio line. -
Page 7: Programming
Programming Programming with PC The COM-G communicators can be programmed via the USB connector (virtual serial port). For programming, please, use the Terminal software. The COM-G communicators are supported from Terminal version 2.35. It is always recommended to check the latest available software version before programming. The latest version of the Terminal software can be downloaded from the following link: http://download.tellsystem.eu/software/terminal.exe... -
Page 8: Communication
COM-G www.ascglobal.eu 5. Read out the current settings from the device, by clicking on Communication / Read button. The firmware version of the device can be interpreted as follows: G – 16 ( year – 2016, alphanumeric) 6 – 6 (month – June, hexadecimal) 03 –... -
Page 9: Aes Encryption
COM-G www.ascglobal.eu 3-5; 4-6 mode This mode can be used, when the events has to be reported to two independent AMS. An IP, GPRS and GSM channel can be used for each AMS server AES Encryption We can use 128 bit AES encryption for the message sending, which ensures higher security level. -
Page 10: Gprs Settings
I/O settings Input settings The COM-G has two I/O ports. In case we use it as an input, we can give the type of the input (NO/NC), the event code, and the restore code. Moreover, the input sensitivity can be modifyied between 10ms and 2550 ms. -
Page 11: Unique Zone Name Settings
Connecting the module to the alarm panel In the Telco special parameters we can set the details of the communication between the COM-G and the alarm panel. We must give a number here that the alarm center will dial recommended 99999999. -
Page 12: Firmware Upgrade
COM port. SYMPTOM: the settings of COM-G seem to be ok, but no communication goes through to the AMS central. SOLUTION: Check the IP address and port settings for the AMS server. Check the APN settings. Turn off PIN request at the SIM card, using a mobile phone. -
Page 13: Sms Programming
1354 012 99 = Ethernet cable is not connected 1354 034 99 = SIM card not present 1354 999 99 = Comm Trouble between the COM-G and the control panel 1354 001 99 = Comm Failure on channel IP #1 (Ethernet) - Page 14 COM-G www.ascglobal.eu Sets account-id The number of the Account-id #1234* a=1234 communicator globally, channel #1234* a3=5678 individual channels. The device will restart within 30 seconds. This command sets the server The number of the ip:port:tcp/udp #1234* s4=my.ams.com:987:tcp parameters for channels 3 and 4,...
-
Page 15: Technical Data
Inputs / Outputs 2, programmable Output type / rating OC / max. 50 mA Ethernet connection 10 Base-T COM-G: M95 Quad Band 850/900/1800/1900MHz Mobile modem GPRS Class B, Multislot Class 12, GSM Class 4/Class 1 Antenna Event buffer Up to 64 events Operating temperature -10 °C / 50 °C...
