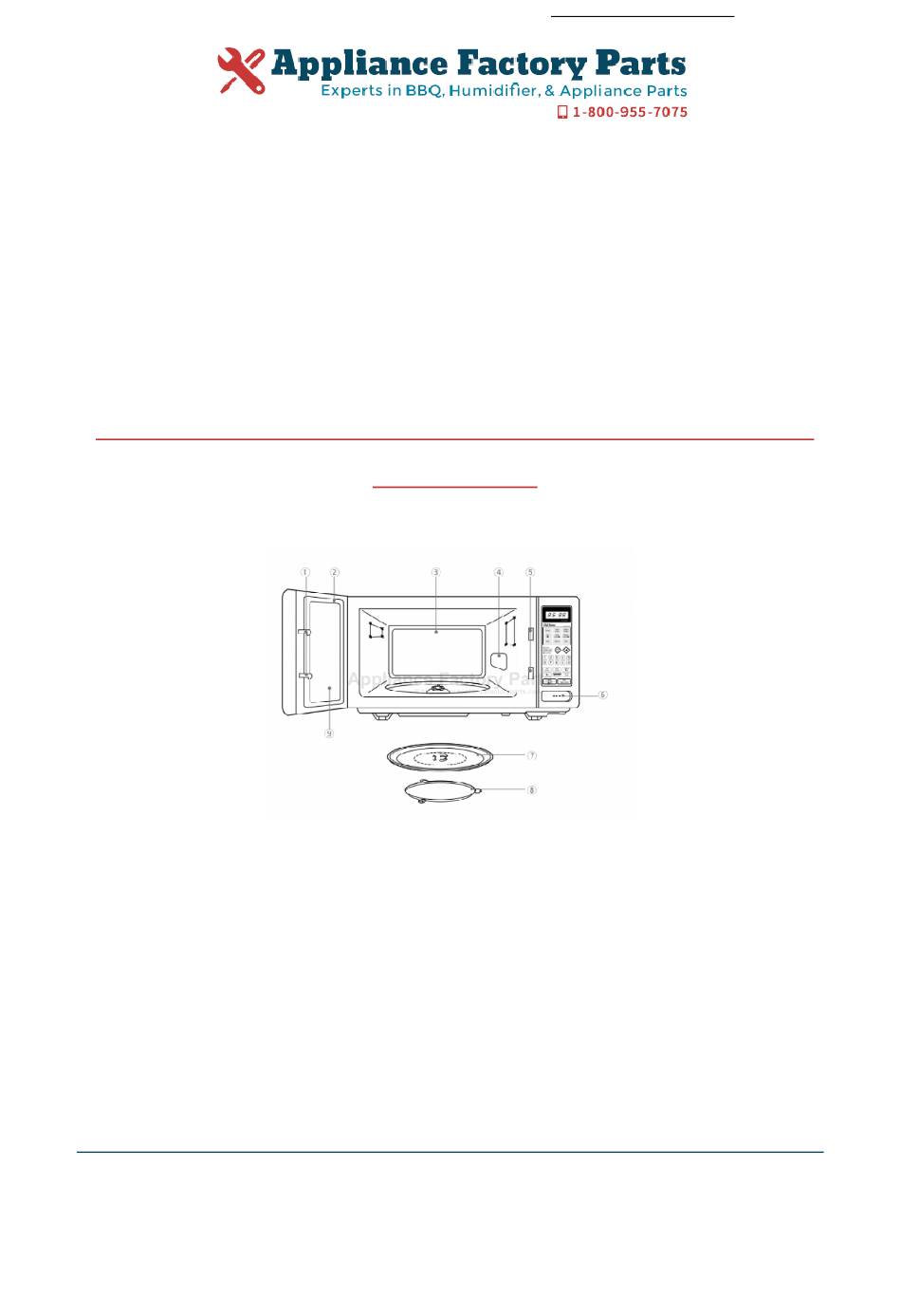

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAGIC CHEF MCB1221W Owner's Manual Shop genuine replacement parts for MAGIC CHEF MCB1221W Find Your MAGIC CHEF Microwave Parts - Select From 180 Models -------- Manual continues below --------...
-
Page 2: Cu. Ft. Microwave Oven

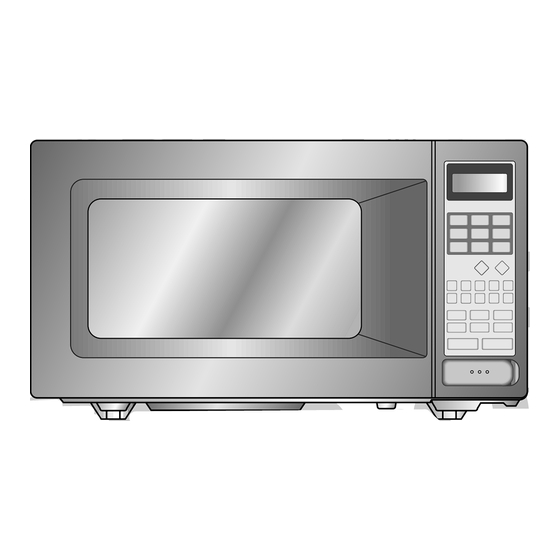

1.2 cu. ft. Microwave Oven MCB1221W DAEWOO Wording display SENSOR COOK KOR-161SOA Frozon Baked Reheat Dinner Potato Fish Fresh Frozen Fillet Vegetable Vegetable Soup Popcorn Rice 1. Beverage 2. Chicken Pieces Auto 3. Bread & Cakes Help Cook 4. Frozen Entree 5. -
Page 3: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS 2. IMPORTANT SAFETY INSTRUCTIONS 3. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A ONLY) 4. GROUNDING INSTRUCTIONS 5. INSTALLATION 6. USE YOUR MICROWAVE OVEN SAFELY 7. SPECIFICATIONS 8. FEATURES DIAGRAM 9. KEYPAD DIAGRAM 10. MICROWAVE UTENSILS 11. -
Page 4: Precautions
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: Read all instructions before using the appliance. Keep cord away from heated surfaces. -
Page 6: Federal Communications Commission Radio Frequency Interference Statement (U.s.a Only)
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A ONLY) WARNING: This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type-tested and found to comply with limits for an ISM equipment pursuant to part 18 of FCC rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 7: Installation
INSTALLATION Examine the oven after unpacking check fork damage such as a misaligned door, broken door or dent in the cavity. If any damage is visible, DO NOT INSTALL, and notify your dealer immediately. Level, flat location Install the microwave oven on a level, flat surface. Ventilation Do not block air vents. -
Page 8: Use Your Microwave Oven Safely
USE YOUR MICROWAVE OVEN SAFELY GENERAL USE Do not attempt to defeat or tamper with safety interlocks. Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads. Do not subject the oven door strain or weight such as a child hanging on an open door. -
Page 9: Specifications
SPECIFICATIONS POWER SUPPLY 120V AC 60 Hz SINGLE PHASE WITH GROUNDING POWER CONSUMPTION 1450 W MICROWAVE OUTPUT POWER 1000 W FREQUENCY 2450 MHz OUTSIDE DIMENSIONS (W X H X D) 564 X 290 X 413 mm (22.2X11.4X16.2 in.) CAVITY DIMENSIONS (W X H X D) 374 X 233 X 372 mm (14.7X9.2X14.8 in.) NET WEIGHT APPROX. -
Page 10: Features Diagram
FEATURES DIAGRAM Chef Sense Chef Sense 1. Door latch - When the door is closed it will 6. Door release button - Pushing this button automatically shut off. If the door is opened stops oven operation and opens the door. while the oven is operating, the magnetron 7. -
Page 11: Keypad Diagram
KEYPAD DIAGRAM Chef Sense 10. Time set pad - Used to set the cooking time and 18. Clock - Used to set clock. the present time. 19. Power level/More less - Used to set power 11. Display - Cooking time, power level, indicators level/Used to increase (or decrease) the cooking and present time are displayed. -
Page 12: Microwave Utensils
MICROWAVE UTENSILS Glass, Ceramic and China Ovenproof glass or ceramic baking dishes are the most used microwave utensils. Many of these items are readily available in most homes : glass measure, custard cups, mixing bowls, covered casseroles, pie plates and round or square cake dishes. Ovenproof dinner ware is usually safe to use in the microwave. -
Page 13: Operation
OPERATION This section includes useful information about oven operation. 1. Plug power supply cord into a standard 3- pronged 15 Amp, 120V AC 60Hz power outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 14: Controls
CONTROLS SENSOR COOK Sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking time and power level for various foods and quantities and you don’t need to enter the weight or quantity of the food. Follow the steps below for easy sensor cooking. -
Page 15: Auto Cook
AUTO COOK AUTO COOK allows you to cook or reheat many of your favorite foods by touching Auto Cook pad and choosing the desired menu. 1. Touch pad. Auto Cook “AUTO COOK 1-BEVERAGE 2-CHICKEN PIECES 3-BREAD CAKES 4-FROZEN ENTREE 5-FROZEN PIZZA SELECT NUMBER”... -
Page 16: Auto Defrost Chart
AUTO DEFROST CHART Auto Defrost menu Display User Guide (When touching Help pad) 1. GROUND MEAT “GROUND MEAT -- ENTER WEIGHT IN LB” “WEIGHT RANGE 0.5 TO 3.0 LB” 2. ROAST “ROAST -- ENTER WEIGHT IN LB” “WEIGHT RANGE 2.0 TO 3.5 LB” 3. -
Page 17: Time Cook
TIME COOK Power “SELECT POWER LEVEL OR COOKING TIME DEFAULT 1. Touch pad and Level POWER LEVEL HIGH” is displayed. “HIGH” blinks three program the desired power level. times. (Please refer to the wattage output chart in the page 8.) 2. - Page 18 KITCHEN TIMER (continued) HOW TO USE TO DELAY THE START OF COOKING Kitchen The TIMER indicator appears and “ENTER TIME” is 1. Touch pad. Timer displayed. “TIME” blinks three times. 2. Touch number pads for the time The selected time appears and “PRESS START” is displayed. “START”...
-
Page 19: Easy Cook
EASY COOK EASY COOK allows you to cook at 100% (full power) by simply touching Easy cook pad. By repeatedly touching Easy cook pad, you can also extend the cooking time to 5 minutes by 30 seconds. Easy If you touch Easy cook pad once, “ :30” appears and the oven 1. -
Page 20: Help
HELP HELP provides 6 features which enable you to use the oven easily. CHILD LOCK This function prevents unwanted oven operation such as by small children. This allows you to choose the weight unit between LB and G. LB, G If “OFF”... -
Page 21: More, Less
MORE, LESS MORE pad: adds 10 seconds to 20 seconds. LESS pad: removes 10 seconds to 20 seconds. This pad only works with one touch cooking. Always input prior to one touch sequence. CHILD SAFETY LOCK The safety lock prevents unwanted oven operation such as by small children. To set, press and hold STOP/CLEAR for 3 seconds, LOCK indicator lights. -
Page 22: Care Of Your Microwave Oven
CARE OF YOUR MICROWAVE OVEN 1 Turn the oven off before cleaning. 2 Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent maybe used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended. -
Page 23: Warranty
Under no circumstances will the customer be permitted to return the defective unit directly to the factory. Exchange must be directly with the dealer. Model Parts Labor Magnetron MCB1221W 1 year 1 year 8 years For Service or Assistance, please call : 1-800-553-4355...
