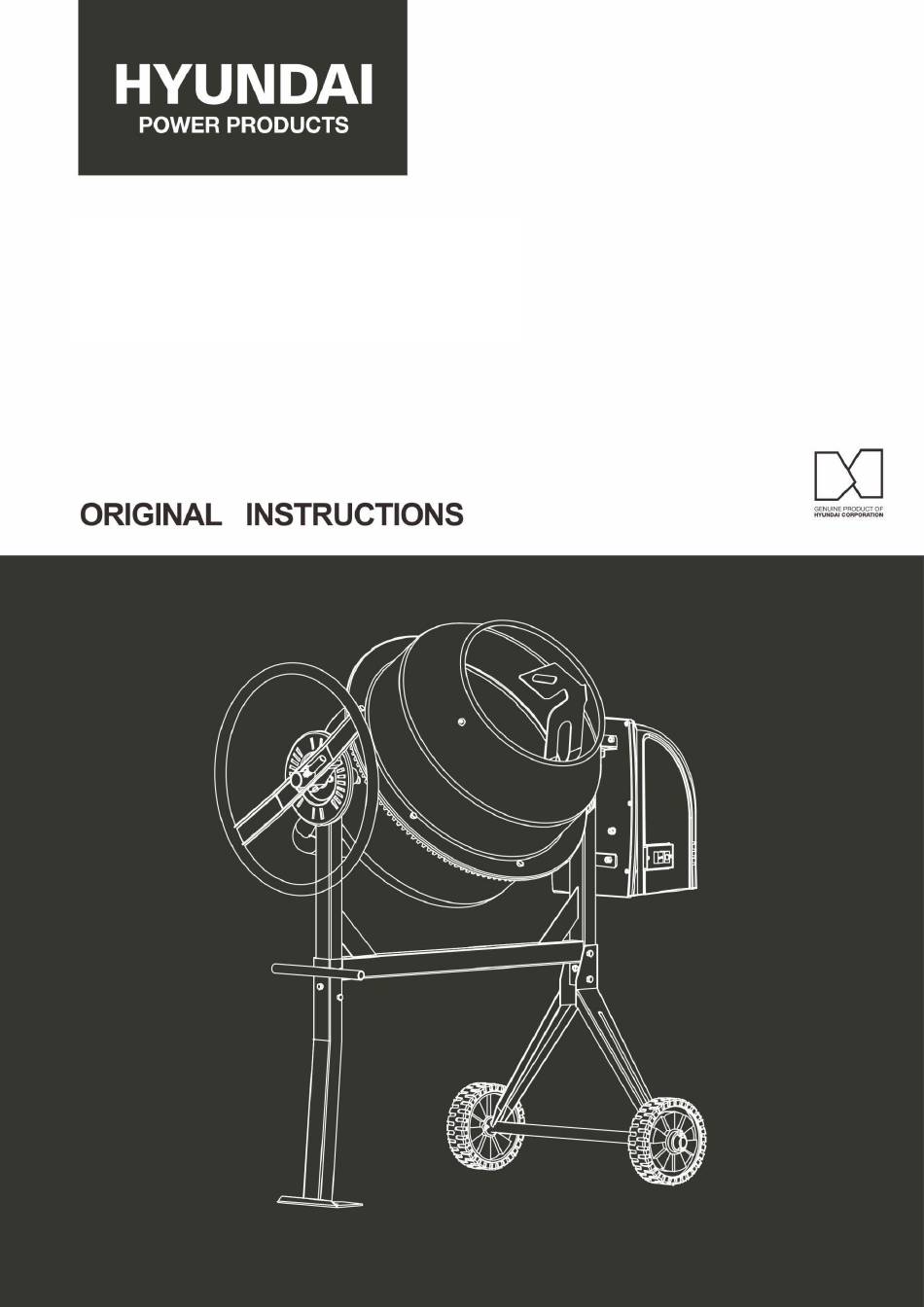

- Page 1 CONCRETE MIXER HBTE650 WARNING: Read thoroughly the instruction manual before using.
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE.............................3 2. RESIDUAL RISKS..........................3 3. SAFETY INSTRUCTIONS........................3 4. ELECTRICAL SAFETY........................5 5. SYMBOLS...............................7 6. PRODUCT DESCRIPTION........................ 10 7. ASSEMBLY INSTRUCTIONS......................11 8. OPERATION INSTRUCTIONS......................16 9. MAINTENANCE AND STORAGE....................18 10. TROUBLESHOOTING........................20 11. DISPOSAL............................20 12. DECLARATION OF CONFORMITY....................21 13. -
Page 3: Intended Use
Read and understand the operating instructions before using the appliance. Familiarize with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. In case of any doubts about connection and operation refer please to our customer center: https://services.swap-europe.com/ 1. - Page 4 2. Do not touch, inhale (dust development) or consume the cement and additives. 3. Comply with the local injury prevention regulations and safety regulations in the work area. 4. Adequate light conditions must be provided. 5. The concrete mixer can only be used after complete installation of all parts. 6.
-
Page 5: Electrical Safety
19.Form a habit of checking to see that all the adjusting tools, shovels, hand towels and other tools/equipment are removed from mixer area before turning it on. 20.Replace damaged, missing or failed parts before using it. Warning labels carry important information. Replace any missing or damaged warning labels. - Page 6 7. When extending the connecting cable make sure it does not get jammed, broken and the plug is not wet. 8. Connecting cables with a rubber socket with a plug for more difficult conditions, protected against spraying water, to be used. 9.
-
Page 7: Symbols
8. The mixer must necessarily be unplugged before: (1) Relocation and transport (2) Cleaning, servicing and repair (3) Failure removal (4) Check the connecting cables if not knotty or damaged (5) Leaving (even in case of short interruption) STORAGE Keep any equipment not being used in dry and locked spaces. TRANSPORT Move the concrete mixer with trailer. - Page 8 Wear safety shoes with steel reinforcement! Wear ear protectors! Always wear a breathing mask Always unplug the machine when not in use, before moving, making adjustments, changing parts, cleaning or working the machine. Keep distance of persons Do not touch inside the running mixer drum! (Rotary stirrer).
- Page 9 Only use the machine on a solid, flat and level surface. Replace damaged, missing or failing parts before using the machine. Before switching on, always remove adjustment tools, shovels, hand trowels, and other tools from the machine area. Keep your hands away from all moving parts. Warning against dangerous voltage Sound power level L CE marking...
-
Page 10: Product Description
6. PRODUCT DESCRIPTION 1. On/off switch 2. Operating wheel 3. Drum 4. Support bracket 5. Wheel bracket 6. Wheels 7. Motor compartment... -
Page 11: Assembly Instructions
TECHNICAL DATA Mains voltage: 230V~, 50Hz Power input: 650W (S6 30%) Speed: 26.6/min Drum capacity: 140L Drum mouth size: 380mm Weight: 52 kg Degree of protection: IP44 Overall dimensions LxWxH in mm: 1200x710x1350mm Sound pressure level L (Distance 1 m, Height above the earth 1,55 m) 73.5dB(A) Guaranteed sound power level L 95dB(A) - Page 12 2.With the frame lying on its side, attach the support leg as shown. Insert two M8X70 hex bolts through the holes from one side, then flat washers, lock washers and nuts from the other side. Also screw a M8X55 hex bolt with lock and flat washers to the nut on the frame.
- Page 13 THE BOTTOM DRUM 1. Slide the bearing block on the shaft. Hold it in place with the Ø42 spiral ring. 2. Carefully, and with two people, set the bottom drum with support arm onto the side supports of the stand as shown in the drawing.So that the bearing blocks slot into the channels provided by the side supports.
- Page 14 Mount the mixing blades inside the bottom drum loosely as shown - Two holes are provided at the base of the drum into which a M8X16 bolt may be inserted from the outside. A leather washer, flat washer, lock washer and a nut should be threaded on loosely on the inside.
- Page 15 THE TIPPING WHEEL 1. Slide the locking plate over the large diameter shaft at the leg end of the frame with the rim facing inwards as shown. Secure with two M8X25 bolts, each with a nut, lock and flat washers.
-
Page 16: Operation Instructions
2. The spnng is clamped in its holder by a U shaped plate for easier assembly. Slide the wheel over the larger diameter shaft until the holes in the bracket line up with the hole drilled. Insert a M1OX6O hex bolt and screw on a nut with flat and lock washers from the other side. - Page 17 tipping wheel to dis-engage the locking lugs. This then allows the tipping wheel and drum to be turned in the same direction. To retain the drum in position, aligning the lugs with the slots, release the tipping wheel a little while retaining the drum. Rotate the tipping wheel until the locking lugs engage into the locking plate on the mixer frame..
-
Page 18: Maintenance And Storage
EMPTYING Do not turn mixer off while full of load. Emptying the drum with drum rotating. CLEANING Never put hands inside the drum with drum rotating. Thoroughly clean the mixer at the end of each day’s operation. Keep your mixer clean. - Page 19 The wiring diagram and parts schematic in this manual are as reference tools only. Neither the manufacturer nor distributor makes any representation or warranty of any kind to the buyer that he or she is qualified to make any repairs to the product or that he or she is qualified to replace any parts of the product.
-
Page 20: Troubleshooting
10. TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Can not start Not connect to power Check if the power supply is connected work Electromagnetic switch not closed Check if the electromagnetic switch is or damaged engaged and damaged Excessive load or concentrate the Reduce load load on one side Load equably... -
Page 21: Declaration Of Conformity
BUIDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: CONCRETE MIXER HBTE650 Serial number : 20240604205-20240604492 Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it. Also in conformity with the following Directives: EMC Directive 2014/30/EU RoHS Directive 2011/65/EU &... -
Page 22: Warranty
13. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 24: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
