Summary of Contents for Hyundai power products HBTE180L

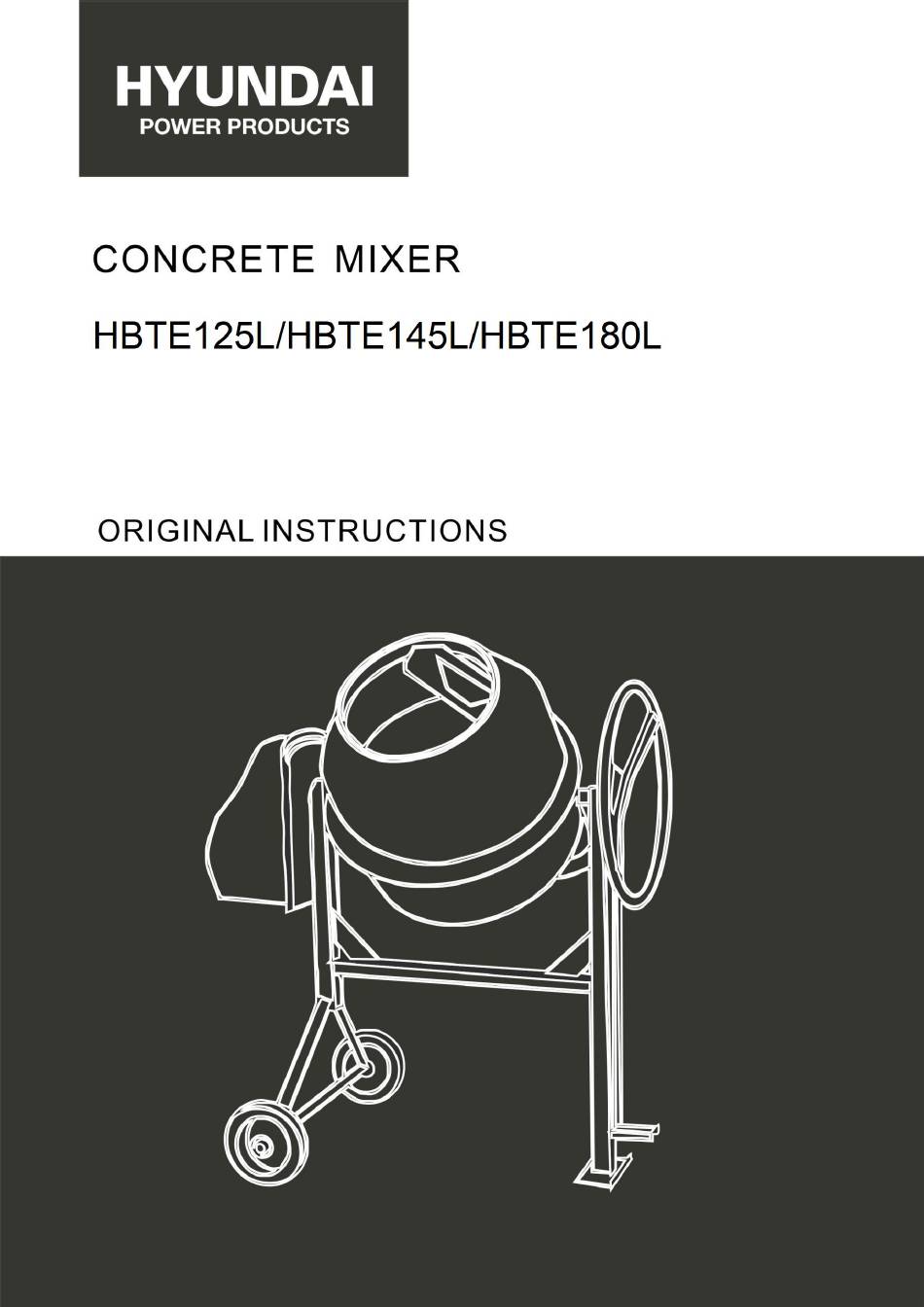

- Page 1 WARNING: Read thoroughly the instruction manual before use.
-
Page 2: Table Of Contents
CONTENT 1. INTENDED USE..........................3 2. RESIDUAL RISKS..........................3 3. SAFETY INSTRUCTIONS......................... 3 4. ELECTRICAL SAFETY........................5 5. SYMBOLS............................7 6. PRODUCT DESCRIPTION........................9 7. TECHNICAL DATA..........................9 8. ASSEMBLY INSTRUCTIONS......................10 9. OPERATION INSTRUCTIONS....................... 15 10. MAINTENANCE INSTRUCTIONS....................17 11. DISPOSAL............................17 12. DECLARATION OF CONFORMITY.................... 18 13. -
Page 3: Intended Use
1. INTENDED USE The concrete mixer has been designed to be used exclusively for concrete and mortar production. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. - Page 4 sure it does not fall over). 7. To prevent tripping, remove any obstacles on the site. 8. The operator is responsible to third persons in the work area. 9. Do not operate the mixer unattended. 10.Do not let children near the mixer. 11.Mixer to be only used for works given in paragraph “Use as designated“.
-
Page 5: Electrical Safety
4.ELECTRICAL SAFETY Operation is only allowed with a safety switch against stray current (RCD max. current of 30mA). WARNING! Before opening the housing, disconnect from the electric grid. The housing must be fully closed before operating the machine. 1. Concrete mixer with protective insulation, (Protection class II) 2. - Page 6 insulation materials/components are used for a repair and when the insulation distances are not changed. OPERATION 1. Never touch inside the running mixer drum (rotary stirrer). Keep adequate safety distance from the mixer. 2. Prevent any contact with the rotary or moving parts of the machine. 3.
-
Page 7: Symbols
5. SYMBOLS Caution! Read the operating instructions to reduce the risk of injury. Always wear goggles when using the machine. Wear gloves! Wear safety shoes with steel reinforcement! Wear ear protectors! Always wear a breathing mask Always unplug the machine when not in use, before moving, making adjustments, changing parts, cleaning or working the machine. - Page 8 Only use the machine on a solid, flat and level surface. Replace damaged, missing or failing parts before using the machine. Before switching on, always remove adjustment tools, shovels, hand trowels, and other tools from the machine area. Keep your hands away from all moving parts. Warning against dangerous voltage Sound power level L CE marking...
-
Page 9: Product Description
1. ON/OFF switch 5. Wheel bracket 2. Operating wheel 6. Wheels 3. Drum 7. Motor compartment 4. Support bracket 7. TECHNICAL DATA Model HBTE125L HBTE145L HBTE180L Mains voltage 230V~, 50Hz 230V~, 50Hz 230V~, 50Hz Power input 550W 550W 850W Speed 29/min... -
Page 10: Assembly Instructions
Guaranteed sound 95dB(A) 95dB(A) 95dB(A) power level L 8. ASSEMBLY INSTRUCTIONS Two people assist in assembly recommended. Step1 Step2 Take out the wheels, wheels Assemble the support wheels and the wheels brackets, the support bracket Take the support wheels and the wheels, 4 washers and 2 pins and the frame as shown. - Page 11 Step5 Install the screw M8*70 and lock nut M8 (with blue rubber ring inside) as shown to fix the pedal. Step6: Step7 Assemble the pedal Take out the lower drum (2 people shall do it) by holding the 2 sides of the curved bracket and put in place as circled. Step8: Install the tie rod, washer M6, spring washer M5 and 2 nuts M5 in order as shown;...
- Page 12 Step9: Assemble the steering wheel Use 2 sets of screw M8*16 & spring washer M8 & washer M8 as shown to fix. Step10: Assemble the mixer blades and lower durm Install 2 sets of screw M8*16 & washer M8 inside and 2 nut M8 outside as shown to fix the bottom of the mixer blades.
- Page 13 Step12: Assemble the upper and lower drum according to the arrows, tighten the screws with nuts. Step13: Step14: Install 2 sets of screw M8*16 & Tighten the screws and nuts with tools as shown. washer M8 outside and 2 nuts inside to fix the top of the mixer blades.
- Page 14 Step16: Step17: Assemble the motor. Install 2 sets of screw M8*25 & spring washer M8 & washer M8 in the 2 circled holes to fix the motor. Step18: Rotate the drum as shown, install screw M8*55 & spring washer M8 & washer M8 to fix the motor.
-
Page 15: Operation Instructions
Step19: Make sure that the product is well installed. 9. OPERATION INSTRUCTIONS 9.1 DRUM TILTING The spring-loaded tipping wheel with locking lugs provides an easy positive control of the drum which can be locked in the mix, discharge and stored position. - Page 16 9.3 LOADING Completely unwind the extension cord. Connect it to the concrete mixer first before plugging in power supply. Always start the mixer before loading the drum. Loading the drum with drum rotating. Do not throw material into the mixer to avoid sticking firmly to the back of the drum.
-
Page 17: Maintenance Instructions
10. MAINTENANCE INSTRUCTIONS Ensure the extension cord is always unplugged before the motor cover is removed. The drive belt is under constant even tension by a spring loaded jockey. No adjustment apart from a touch of grease on the spindle. The bearings are sealed for life. -
Page 18: Declaration Of Conformity
Declare that the following machine: CONCRETE MIXER HBTE125L/HBTE145L/HBTE180L Serial number: 20230305350-20230305464 (HBTE125L) 20230305478-20230305624 (HBTE145L) 20230305625-20230305679 (HBTE180L) Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it Also in conformity with the following Directives: EMC Directive 2014/30/UE RoHS Directive 2011/65/UE &... -
Page 19: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 20: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
