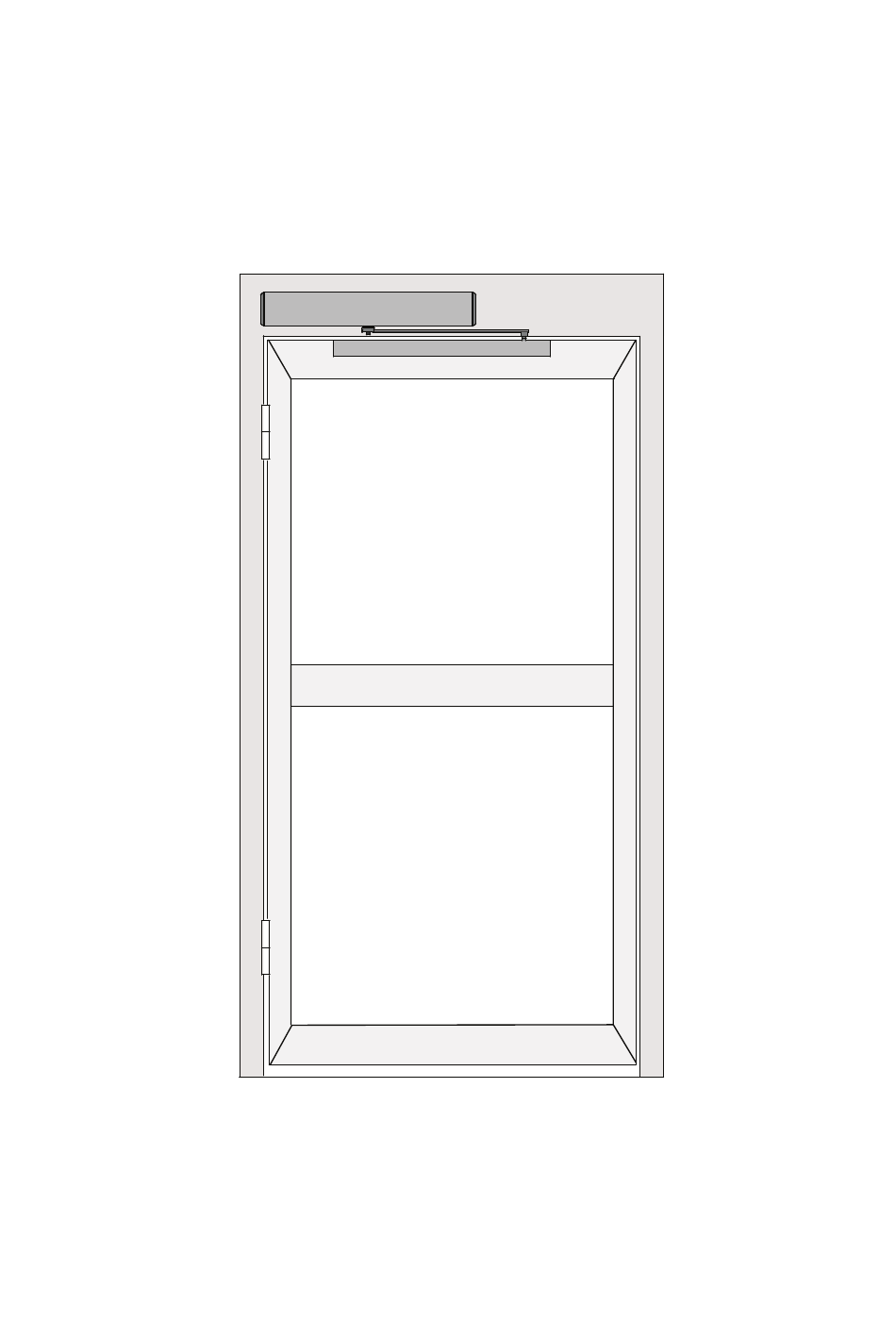

- Page 1 Heimdall 100 I N ST AL LA TI ON MA NUAL DSW - 1 0 0 N AUTOMATIC ENTRANCE SPECIALISTS...
-
Page 2: Table Of Contents
Contents 1 Technical Parameters 2 Components 3 Installation 3.1 Installation Example 3.2 Installation of base plate 3.3 Installation of pull arm 3.4 Installation of push arm 3.5 Installation of operation system 3.6 Installation of cover 3.7 Connection of operation system and pull arm 3.8 Connection of operation system and push arm 4 Electrical connection 10-14... -
Page 3: Technical Parameters
1 Technical Parameters Supply Voltage: 100～240V Power consumption: 50W 。 Opening time: 3~7s/90 Hold open time: 1~30s adjustable Max. door frame depth: 450mm Door width: Min. 660mm / Max. 1200mm 。 Max. opening angle:120 Environment Temperature: -20℃~+50℃ Protection class： IP12D Product weight：... -
Page 4: Components
2. Components hole for sensor cable hole for power cable base plate power connector motor controller output shaft operator cover pull arm(alternative) Inward opening push arm(alternative) Outward opening... -
Page 5: Installation
3. Installation Installation example Choose pull arm：door leaf open toward inside（operator is inside） Choose push arm：door leaf open toward outside（operator is inside）... -
Page 6: Installation Of Base Plate
3. Installation Installation of base plate Pull arm 22.5 30.5 38.5 464. 5 As the picture show,fix the base plate on the frame with eight countersunk wood screws (if the frame is steel structure should use M6 * 15 hex countersunk head screws). At door right 22.5 30.5... - Page 7 3. Installation Installation of base plate Push arm 22.5 30.5 38.5 464. 5 As the picture show,fix the base plate on the frame with eight countersunk wood screws (if the frame is steel structure should use M6 * 15 hex countersunk head screws). At door right 22.5 30.5...
-
Page 8: Installation Of Pull Arm
3. Installation 3.3 Pull arm Fix the slide rail of pull arm on the door panel as shown using three round head wood Screws (if the door panel is steel, please use M6*15 cross recessed head screws.) Adjust the opening angle by moving the stopper (The stopper is at the left side when left installation). -
Page 9: Installation Of Push Arm
3. Installation 3.4 Push arm Fix the support holder of push arm on the door panel as shown using two round head wood screws (if the door panel is steel, please use M6*15 cross recessed head screws.) Loosen this three bolts and adjust the push arm length according to the door depth(L) until the angle between At door right the push arm and door panel is 90°... -
Page 10: Installation Of Operation System
3. Installation 3.5 operation system Hook the operation system on the finished base plate as shown, fix it with eight hexagon socket head screws. 3.6 Cover Opening the cover... -
Page 11: Connection Of Operation System And Pull Arm
3. Installation 3.7 Connect the operation system and the pull arm 3.8 Connect the operation system and the push arm motor axis extend... -
Page 12: Electrical Connection
4.Electrical connection fuse 3A power cable supply power 100～240V +24V 1 2 3 4 sensor safety sensor/close +12V access control safety sensor/open 1.COM sync (input) inter-lock(input) e-lock +12V 2.Oneway battery - 3.Lock sync(output) battery+24V inter-lock(output) 4.Hold-open K1.open direction Encode power light K2.master/slave button K3.close force... -
Page 13: Power Output
4. Electrical connection 24V power output 12V power output 4-pin +12V +24V 5-pin connector e-lock+12V sensor connector battery - access control battery+24V Electric lock (Automatic lock) The door will be locked every time while it is fully closed. +24V +12V safety closing sensor safety opening... - Page 14 4. Electrical connection Double-door synchronous synchronous(in) synchronous(in) 3-pin 3-pin connector connector synchronous(out) synchronous(out) Controller B Controller A *When double opening,open first and close second is master door,close first and open second is slave door; Master door turn K2 down, slave door turn K2 up. *Sensors and access control system are connected with the master door controller.
- Page 15 4. Electrical connection optional: Functional key switch 6 5 4 3 2 1 Oneway Lock Hold-open Lock Automatic Oneway Half-open(ignore it) Hold-open 1. When the key switch is set “Oneway”, the sensor signal is shielded, but the access control works normally. 2.
- Page 16 4. Electrical connection Optional: remote control Hold-open Lock Reset Automatic Encode remote control with the door controller : 1. Delete all: long press the button “Encode” until the sound of buzzer disappears, loosen the button. 2. Encoding: Press the button “Encode”, the buzzer sounds. Then press any button of the remote control, the buzzer stops sounding which means encoding successfully.
-
Page 17: Parameters Adjustment
5. Parameters adjustment +24V 1 2 3 4 sensor safety sensor/close +12V access control safety sensor/open 1.COM sync (input) inter-lock(input) e-lock+12V 2.Oneway battery - 3.Lock sync(output) battery+24V inter-lock(output) 4.Hold open K1.open direction Encode K2.master/slave power light button K3.close force 1 2 3 4 K4.pull / push opening slow opening... - Page 18 The Product Has Passed ISO 9001:2015 Quality Management System Certification.
